LABS-5166 Spray Booth (5 x 16 x 6)
Weight: 600 lb
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Spray Booth
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LABS-5166 Spray Booth (5 x 16 x 6)
Unit from $7,699.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— Maximum Reach Finishing
The LABS-5166 Spray Booth Tackles Your Longest Finishing Jobs

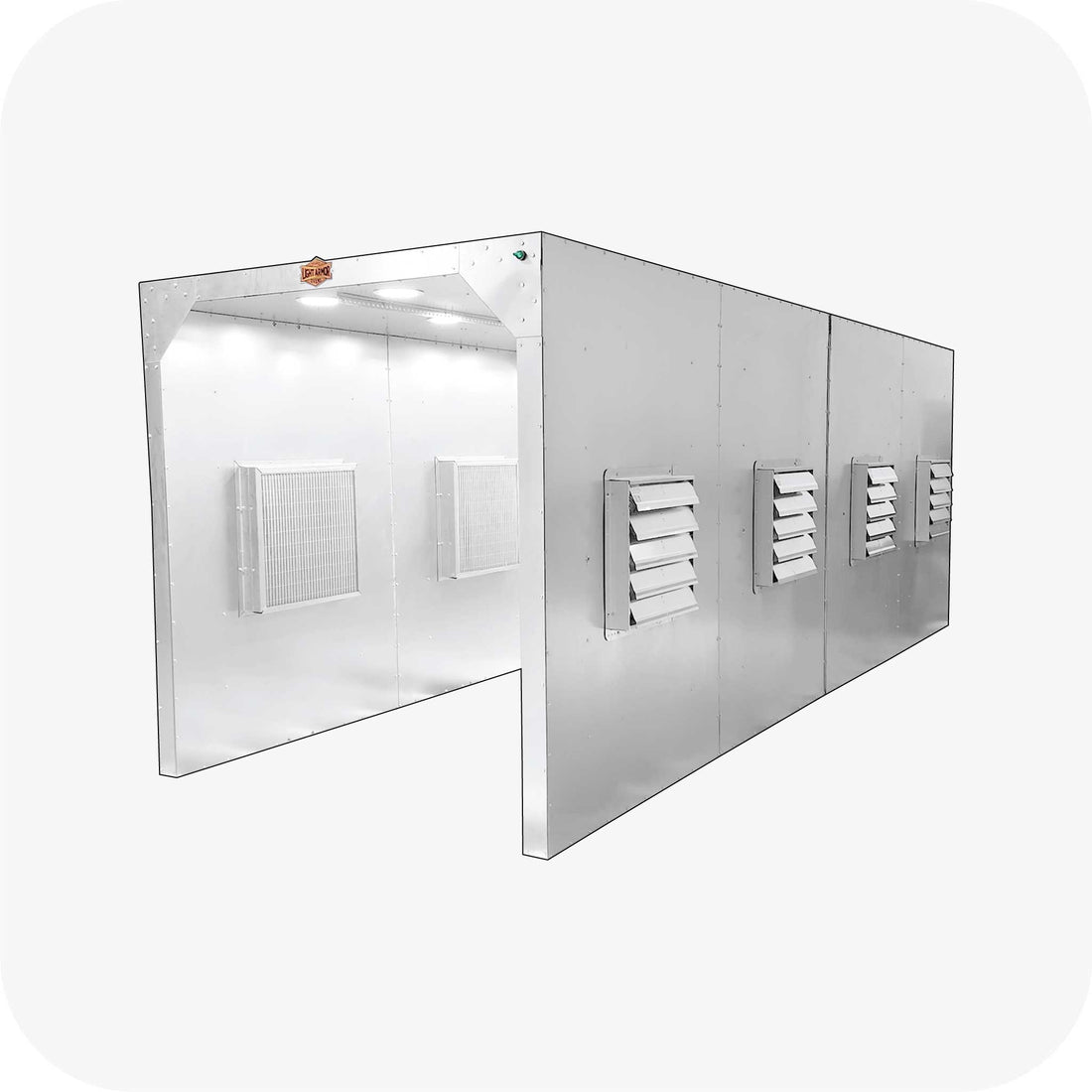

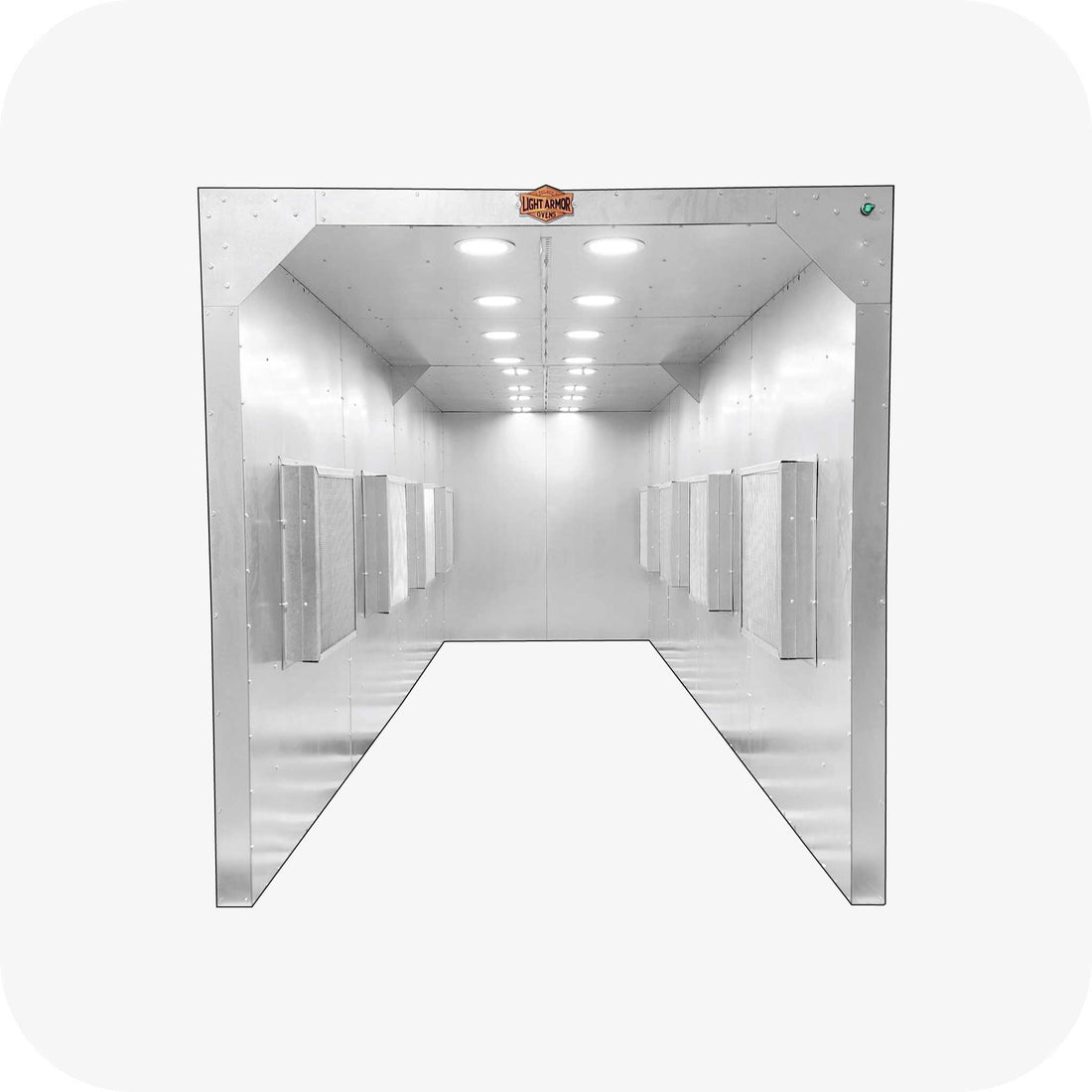

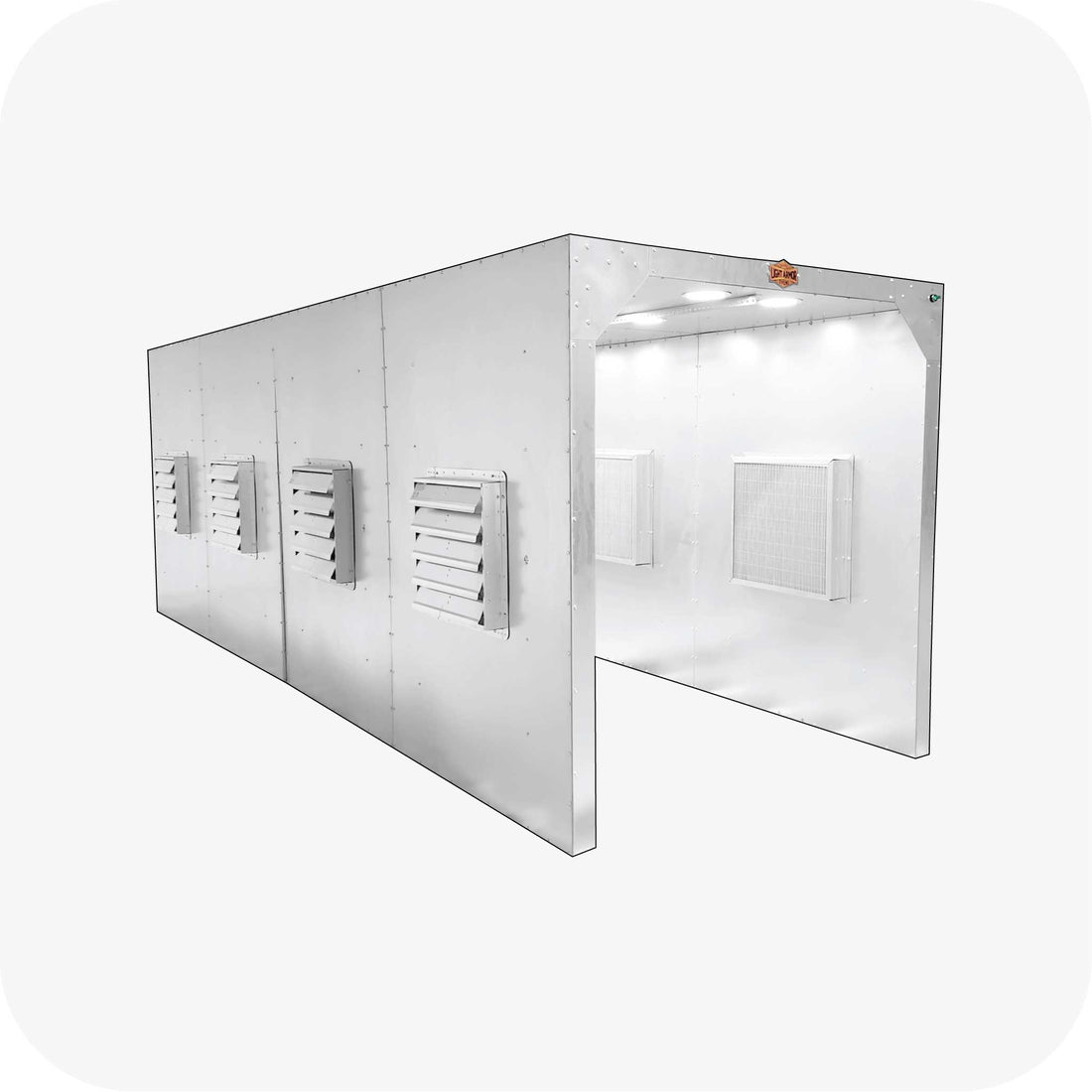

When your parts stretch the tape measure, the LABS-5166 spray booth answers with a 5' x 16' x 6' footprint and an exceptionally deep 45" W x 209" D x 72" T interior. This Illinois-built paint booth is made to give long extrusions, rails, and oversized fabrications the room they need to be sprayed properly end to end. Eight 20" exhaust fans moving roughly 24,000 CFM between them generate the airflow to keep stray powder under control across that entire length, protecting both your finish and the air your operator breathes. It ships in two sections that latch together at the center, so it comes in on two pallets rather than one oversized piece.
Serious Airflow, Smart Filtration
Eight exhaust fans make the LABS-5166 powder coating booth a workhorse for high-capture finishing over a large volume. Eight washable 24" MERV 8 filters rinse clean and return to service, while eight disposable 24" MERV 12 filters back them up to trap the fine overspray. Bright LED lighting keeps even the far end of a long part clearly lit.
- ✓ Extra-deep 45" x 209" x 72" interior — spray your longest parts from end to end with room to work
- ✓ Eight 20″ exhaust fans — roughly 24,000 CFM combined across a large working volume
- ✓ Sixteen-filter, two-stage capture — eight washable 24″ MERV 8 filters plus eight disposable 24″ MERV 12 for fine overspray
- ✓ Bright LED lighting — full visibility for oversized work
| ✎ Dimensions & Shipping | |
|---|---|

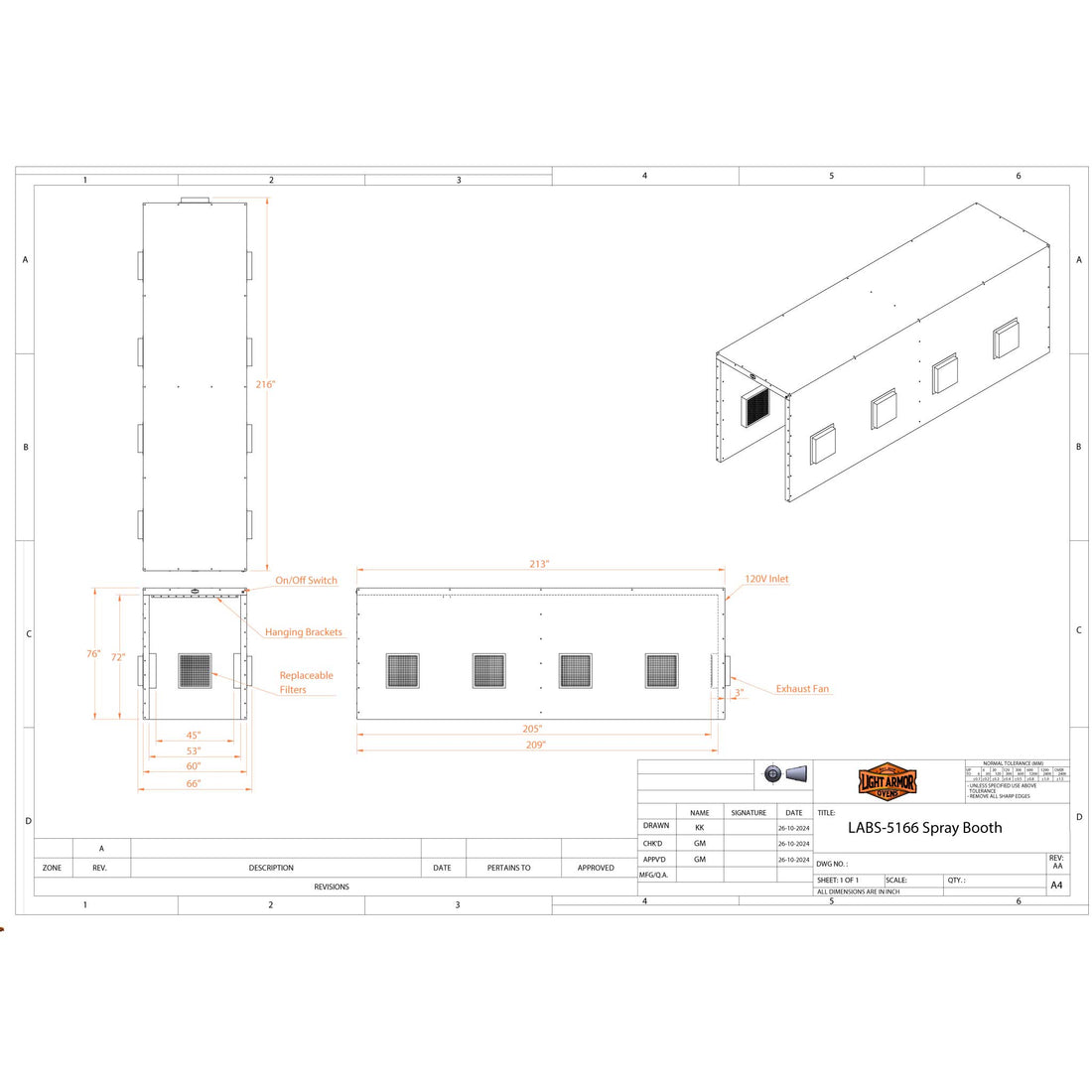

| Inside Working Dimensions | 45″ W × 209″ D × 72″ T |
| Outside Footprint | 66″ W × 216″ D × 76″ T |
| Skid Size | Two Skids, each 6′ W × 10′ D × 7′ T |
| Shipping Weight | ~800 lb per Skid (~1,600 lb total) |
| Assembly | Ships in Two Sections (latch together at center) |
| Recommended Distance from Wall | 6″ (fan exhaust side) |
| ⚡ Power & Electrical | |
| Power Requirements | 120V / Single Phase / 8A Draw |
| Electrical Hook-Up | 120V Inlet on Back (extension cord not included) |
| Accessory Receptacle | Front-Mounted, for Powder Gun or Similar |
| Power Switch | Green Illuminated On/Off |
| 💨 Airflow & Filtration | |
| Exhaust Fans | Eight 20″ / ~24,000 CFM Combined |
| Filtration | Eight 24″ Washable MERV 8 + Eight 24″ Disposable MERV 12 |
| 🛡 Included & Support | |
| Lighting | Ceiling LEDs Included |
| Warranty | 1-Year Parts Warranty |
***OVERSIZED ITEM - REQUIRES FORKLIFT OR LOADING DOCK AT PLACE OF DELIVERY, UNLESS PICKING UP FROM FREIGHT TERMINAL OR OUR WAREHOUSE***
