LABS-6166 Spray Booth (6 x 16 x 6)
Weight: 600 lb
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Spray Booth
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LABS-6166 Spray Booth (6 x 16 x 6)
Unit from $8,099.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— Contain Every Speck
The LABS-6166 Spray Booth Keeps Your Powder Where It Belongs

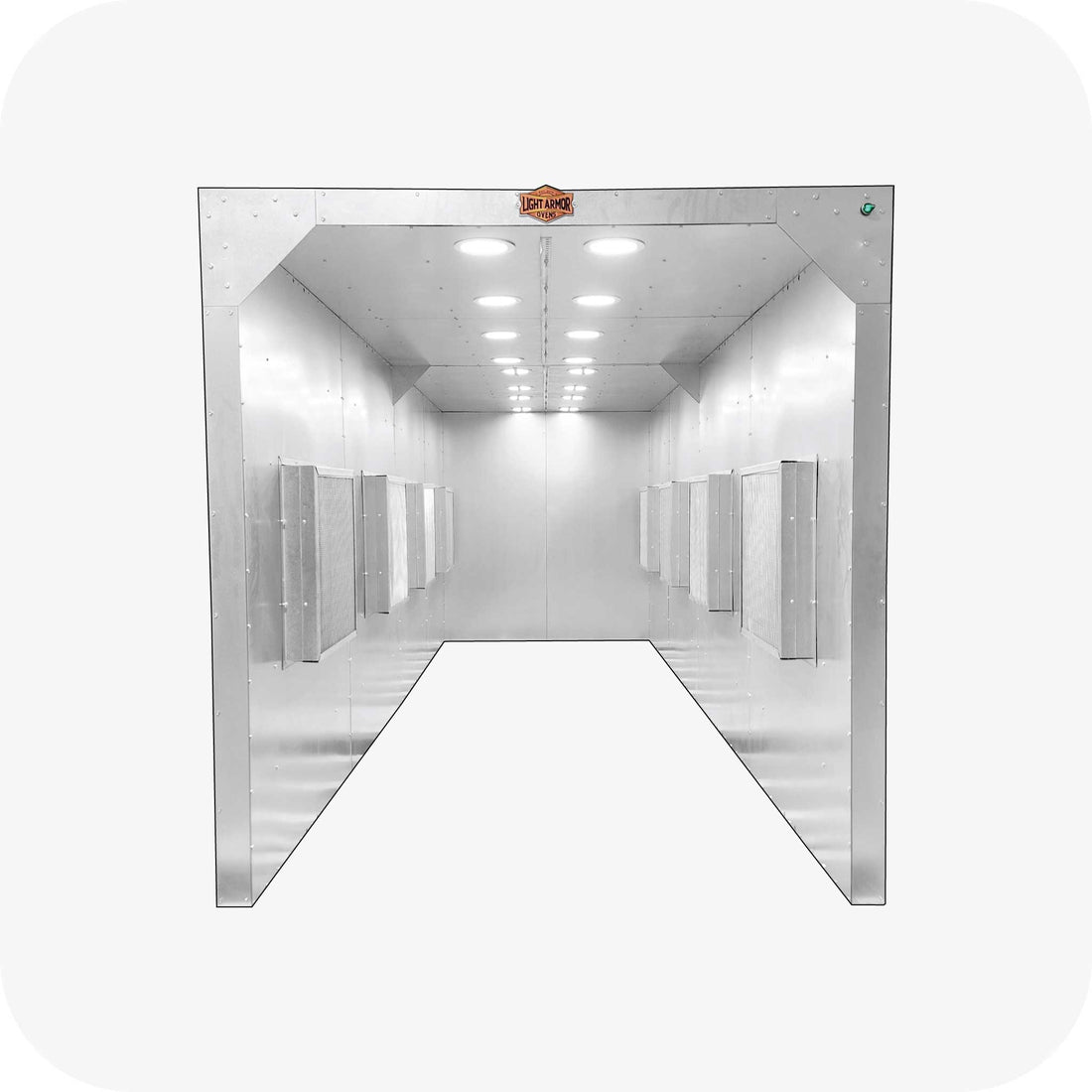

When you're finishing long parts, you need room to move and air that pulls overspray away from your work. The LABS-6166 spray booth gives you a generous 6' x 16' x 6' footprint — 57" W x 209" D x 72" T of usable interior — so you can walk around and coat without crowding. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, this paint booth is engineered to keep the conditions around your spray application clean, safe, and consistent from the first pass to the last.
A Powder Coating Booth That Works As Hard As You Do

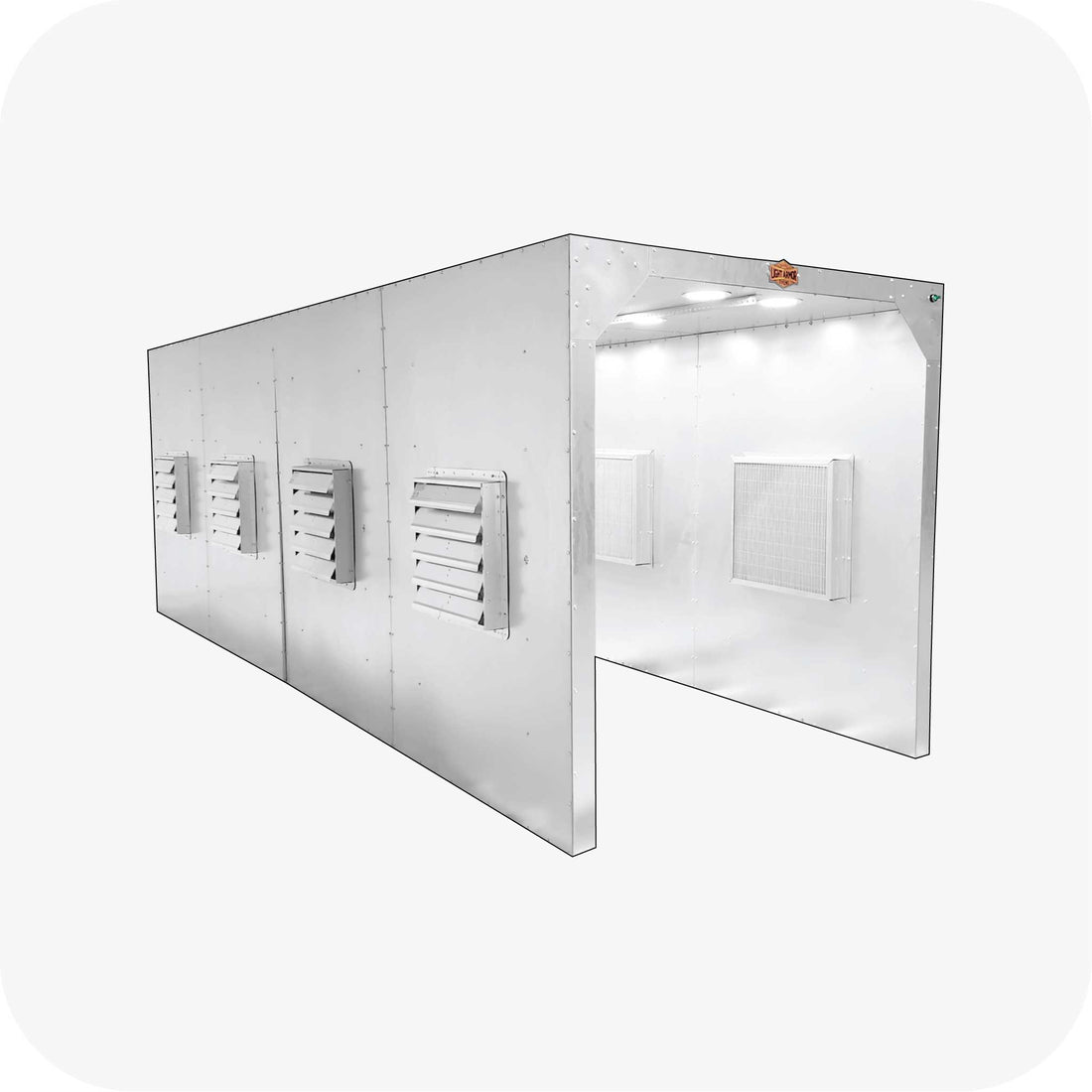

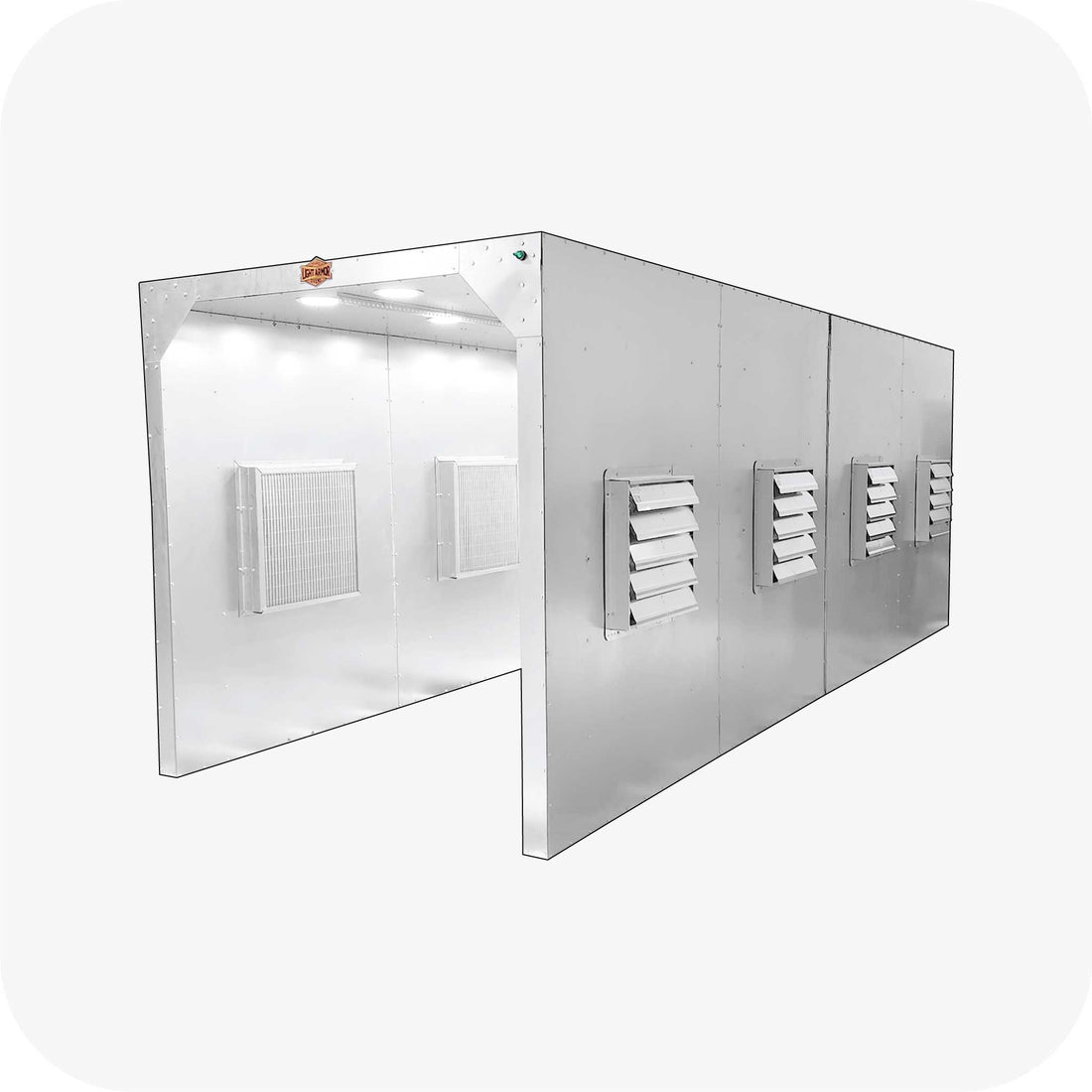

Eight 20" exhaust fans moving roughly 24,000 CFM between them, plus bright LED lighting, mean you see every detail and capture stray powder before it settles where you don't want it. It ships in two sections that latch together at the center, arriving on two pallets rather than one oversized piece. Configure it open or fully enclosed to match your workflow, and adjust the design to fit the parts you're running.
- ✓ ~24,000 CFM of capture power — eight 20″ exhaust fans pull stray powder out of your air and away from your finish
- ✓ Sixteen-filter, two-stage capture — eight washable 24″ MERV 8 filters rinse and reinstall, backed by eight disposable 24″ MERV 12 for the fine overspray
- ✓ Designed and Assembled in the USA, built to order — from U.S. and imported parts; open or enclosed, sized to your parts, so email us for current build times

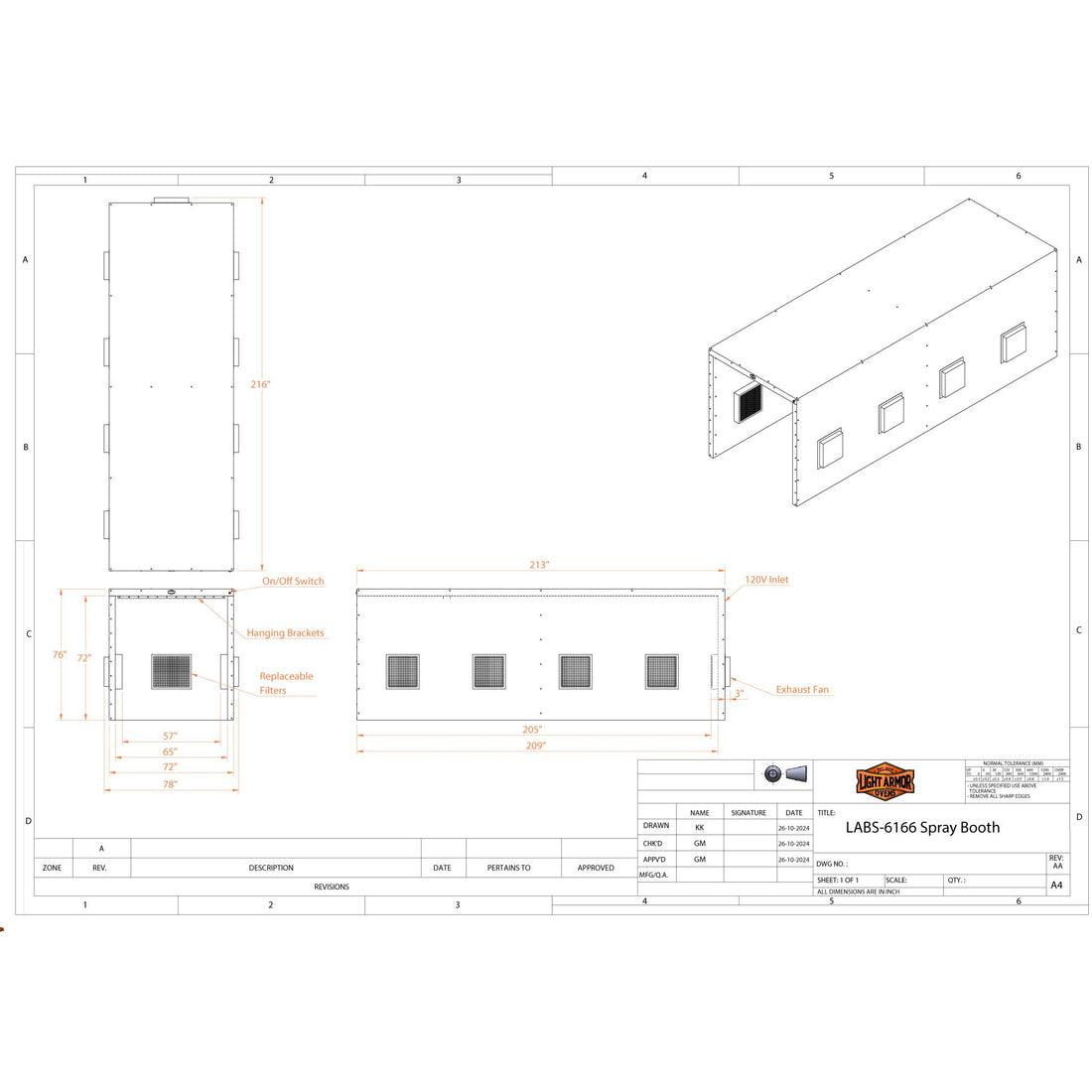

| ✎ Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 57″ W × 209″ D × 72″ T |
| Outside Footprint | 78″ W × 216″ D × 76″ T |
| Skid Size | Two Skids, each 7′ W × 10′ D × 7′ T |
| Shipping Weight | ~900 lb per Skid (~1,800 lb total) |
| Assembly | Ships in Two Sections (latch together at center) |
| Recommended Distance from Wall | 6″ (fan exhaust side) |
| ⚡ Power & Electrical | |
| Power Requirements | 120V / Single Phase / 8A Draw |
| Electrical Hook-Up | 120V Inlet on Back (extension cord not included) |
| Accessory Receptacle | Front-Mounted, for Powder Gun or Similar |
| Power Switch | Green Illuminated On/Off |
| 💨 Airflow & Filtration | |
| Exhaust Fans | Eight 20″ / ~24,000 CFM Combined |
| Filtration | Eight 24″ Washable MERV 8 + Eight 24″ Disposable MERV 12 |
| 🛡 Included & Support | |
| Lighting | Ceiling LEDs Included |
| Warranty | 1-Year Parts Warranty |
***OVERSIZED ITEM - REQUIRES FORKLIFT OR LOADING DOCK AT PLACE OF DELIVERY, UNLESS PICKING UP FROM FREIGHT TERMINAL OR OUR WAREHOUSE***
