LABS-686 Spray Booth (6 x 8 x 6)
Weight: 600 lb
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Spray Booth
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LABS-686 Spray Booth (6 x 8 x 6)
Unit from $5,899.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— Wider Booth, Better Reach
The LABS-686 Spray Booth Gives You Extra Width to Work Comfortably

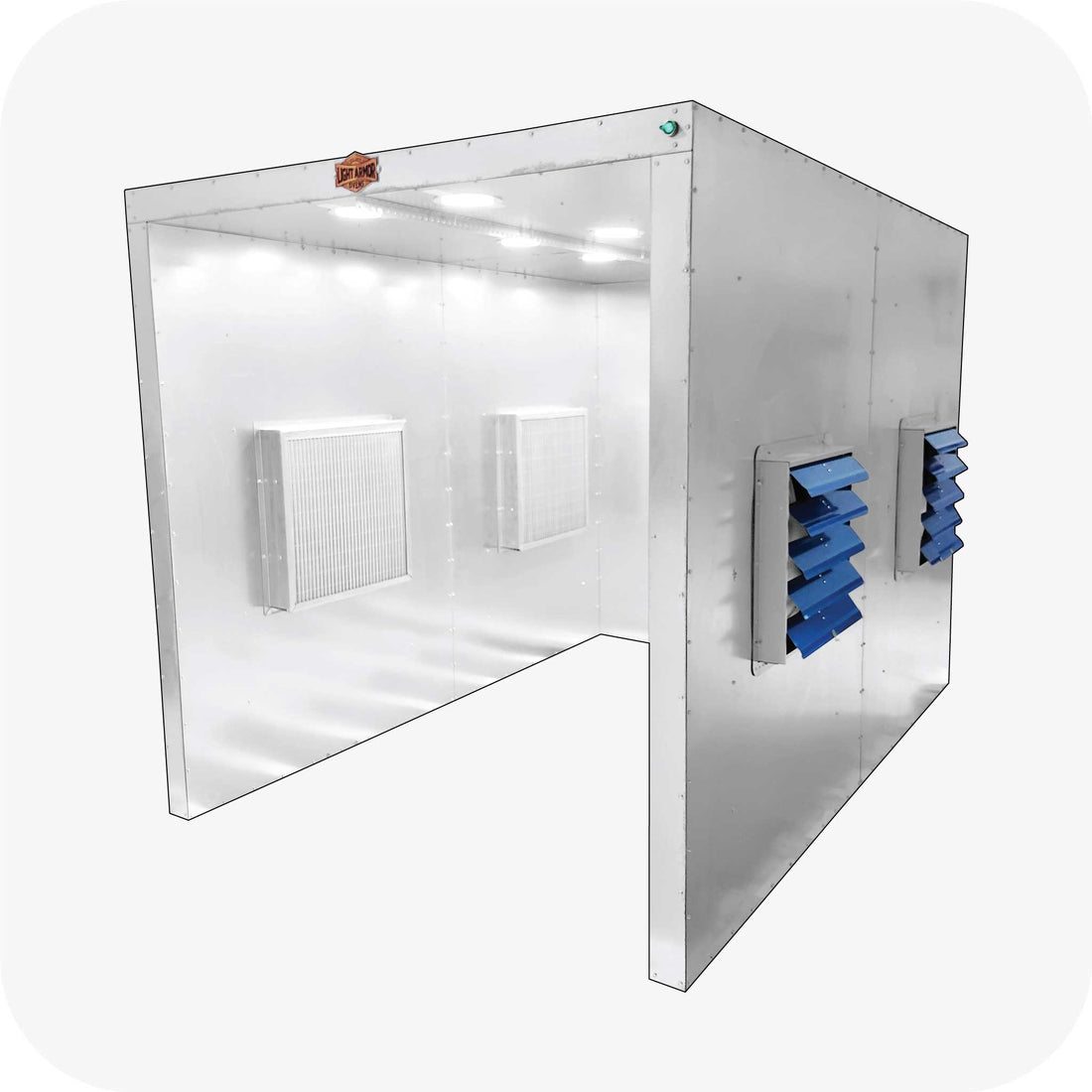

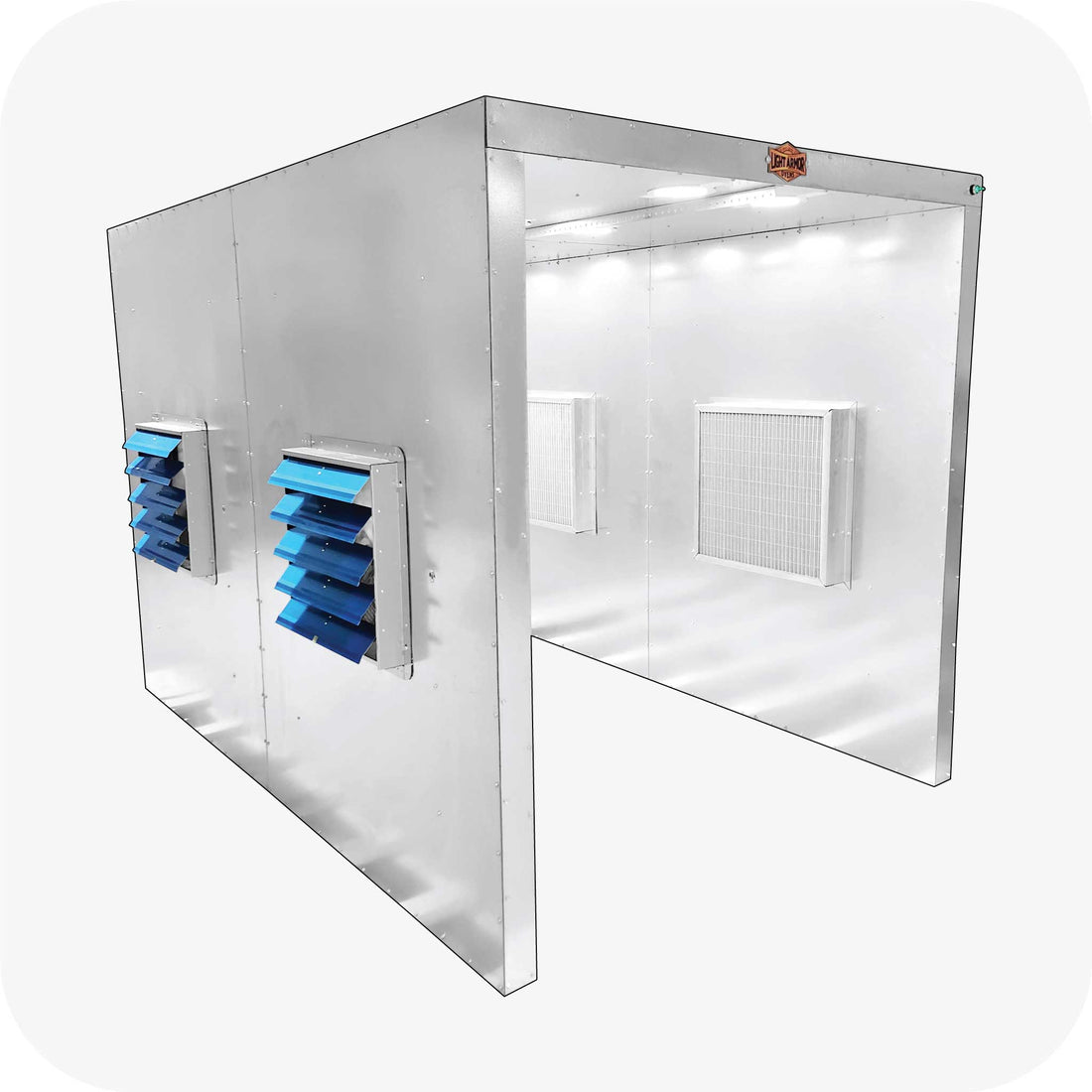

The LABS-686 spray booth opens up a 6' x 8' x 6' finishing area with a roomy 57" W x 96" D x 72" T interior — that extra width means you can walk around wider parts and reach every angle without contorting. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, this paint booth is designed to maintain the safe, hygienic conditions your spray work demands. Four 20" exhaust fans moving roughly 12,000 CFM between them sweep stray powder out of the way, protecting both your lungs and your finish so overspray never clouds the surface you are trying to perfect.
Reusable Filtration and Bright, Honest Light
The LABS-686 powder coating booth is built to keep operating costs down. Four washable 24" MERV 8 filters rinse clean and go straight back in, while four disposable 24" MERV 12 filters add a second stage that catches the fine overspray. Powerful LED lighting floods the booth so you spot every run and thin patch.

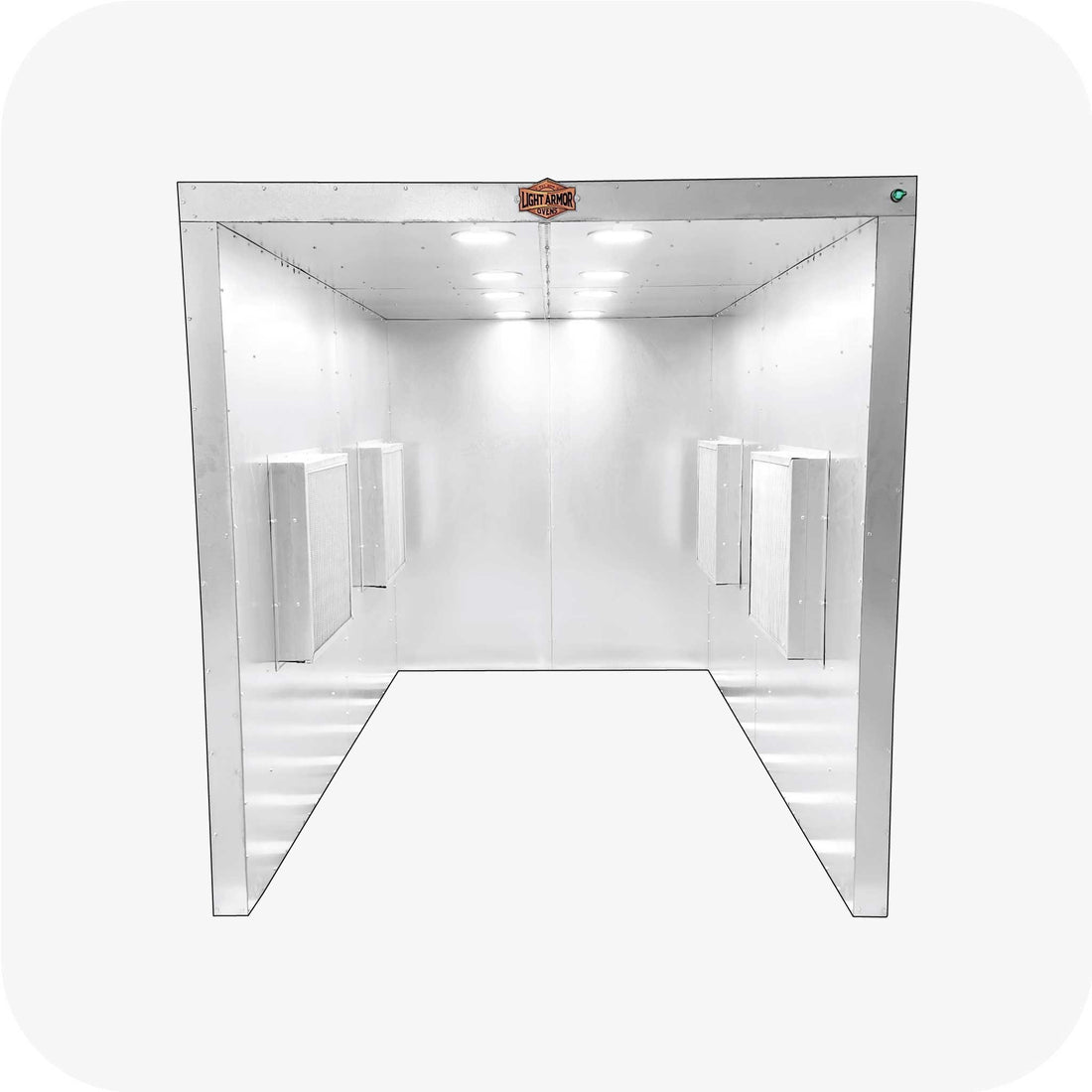

- ✓ Wide 57" x 96" x 72" interior — extra room to work around larger parts with ease
- ✓ Four 20″ exhaust fans — roughly 12,000 CFM combined for reliable overspray capture
- ✓ Eight-filter, two-stage capture — four washable 24″ MERV 8 filters plus four disposable 24″ MERV 12 for fine overspray
- ✓ Bright LED lighting — see every run and thin spot clearly before it cures

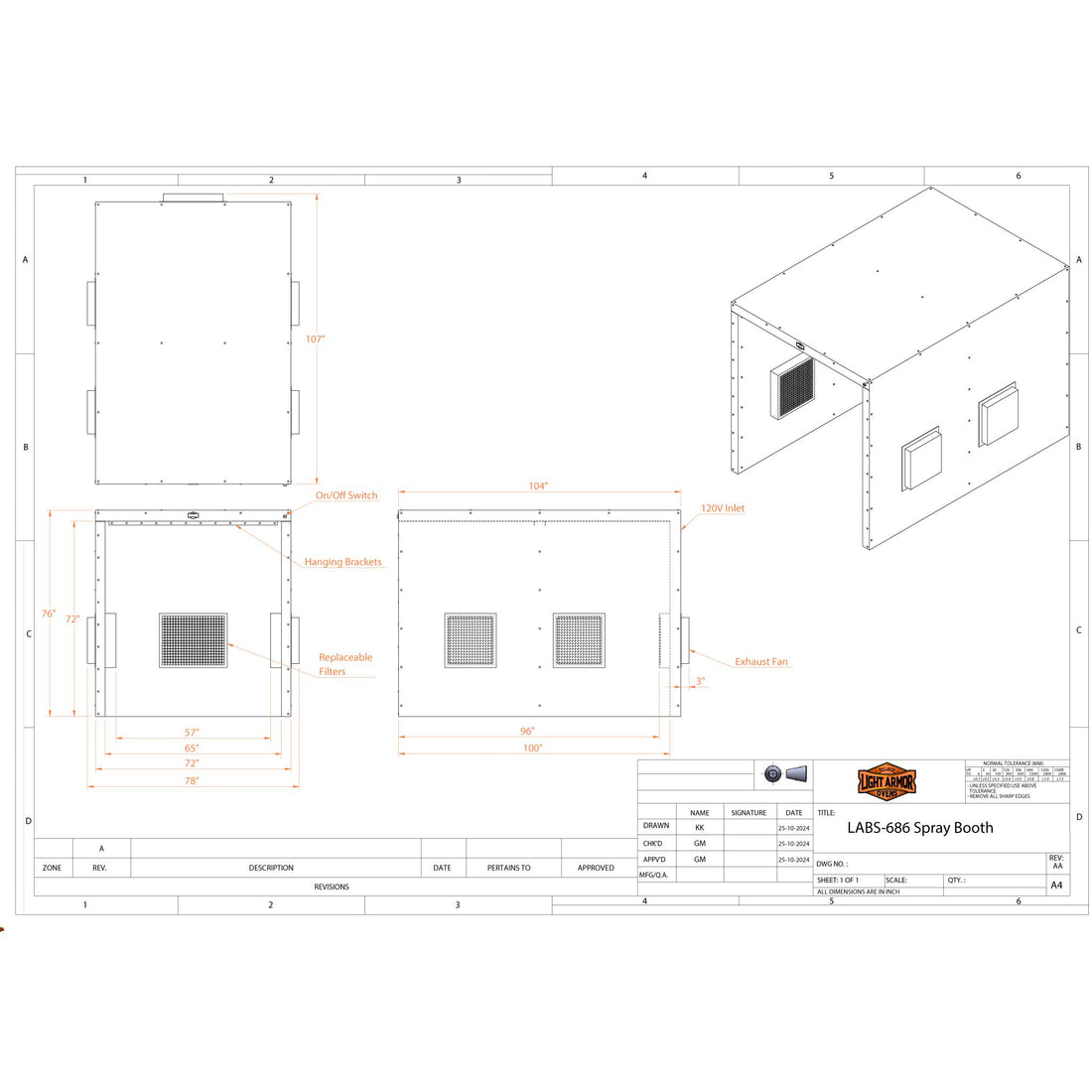

| ✎ Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 57″ W × 96″ D × 72″ T |
| Outside Footprint | 78″ W × 107″ D × 76″ T |
| Skid Size | 7′ W × 10′ D × 7′ T |
| Shipping Weight | ~900 lb |
| Recommended Distance from Wall | 6″ (fan exhaust side) |
| ⚡ Power & Electrical | |
| Power Requirements | 120V / Single Phase / 4A Draw |
| Electrical Hook-Up | 120V Inlet on Back (extension cord not included) |
| Accessory Receptacle | Front-Mounted, for Powder Gun or Similar |
| Power Switch | Green Illuminated On/Off |
| 💨 Airflow & Filtration | |
| Exhaust Fans | Four 20″ / ~12,000 CFM Combined |
| Filtration | Four 24″ Washable MERV 8 + Four 24″ Disposable MERV 12 |
| 🛡 Included & Support | |
| Lighting | Ceiling LEDs Included |
| Warranty | 1-Year Parts Warranty |
***OVERSIZED ITEM - REQUIRES FORKLIFT OR LOADING DOCK AT PLACE OF DELIVERY, UNLESS PICKING UP FROM FREIGHT TERMINAL OR OUR WAREHOUSE***
