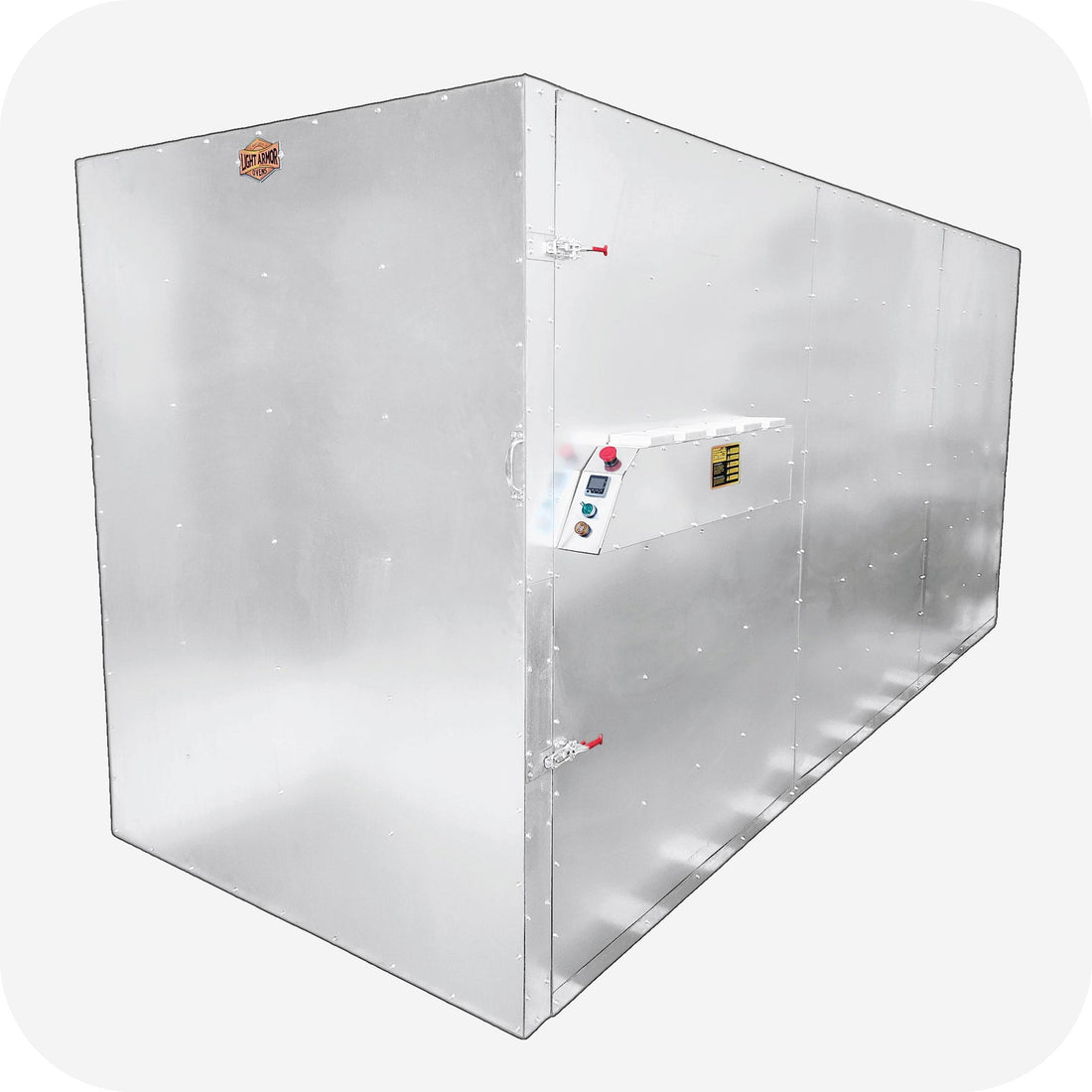

LABS-5126 Powder Coat Oven (5 x 12 x 6)
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LABS-5126 Powder Coat Oven (5 x 12 x 6)
Unit from $8,699.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LABS-5126 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
50×153×72″
Weight
~1600 lb

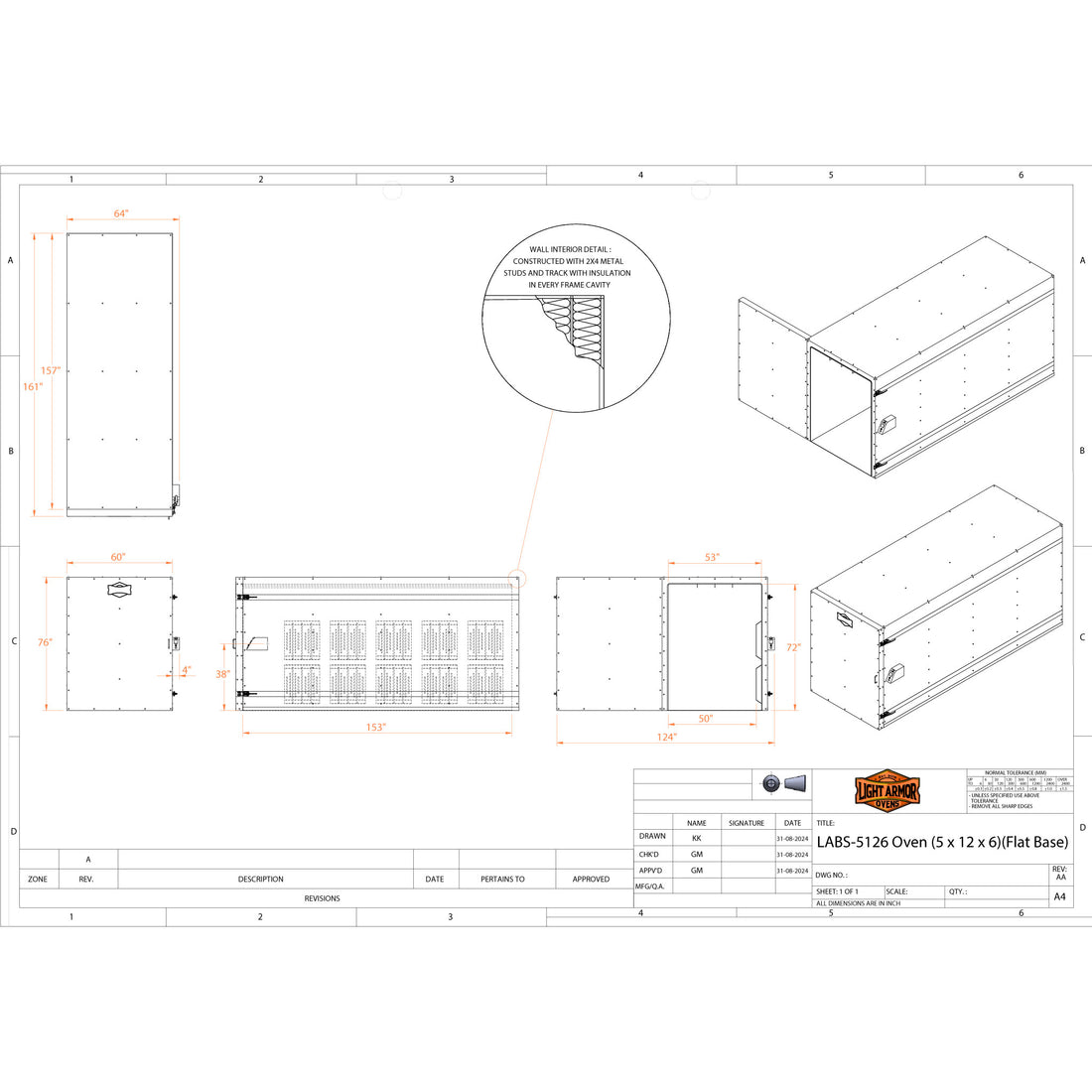

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 50″ W × 153″ D × 72″ T (Nominal) |
| Outside Footprint | 64″ W × 161″ D × 76″ T (Nominal) |
| Weight | ~1600 Pounds |
| Shipment Size | 6′ W × 14′ D × 7′ T |
| Recommended Distance from Wall | 3″+ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 140A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 150A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) |
| Recommended # of Blower Fans | 4–6 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |

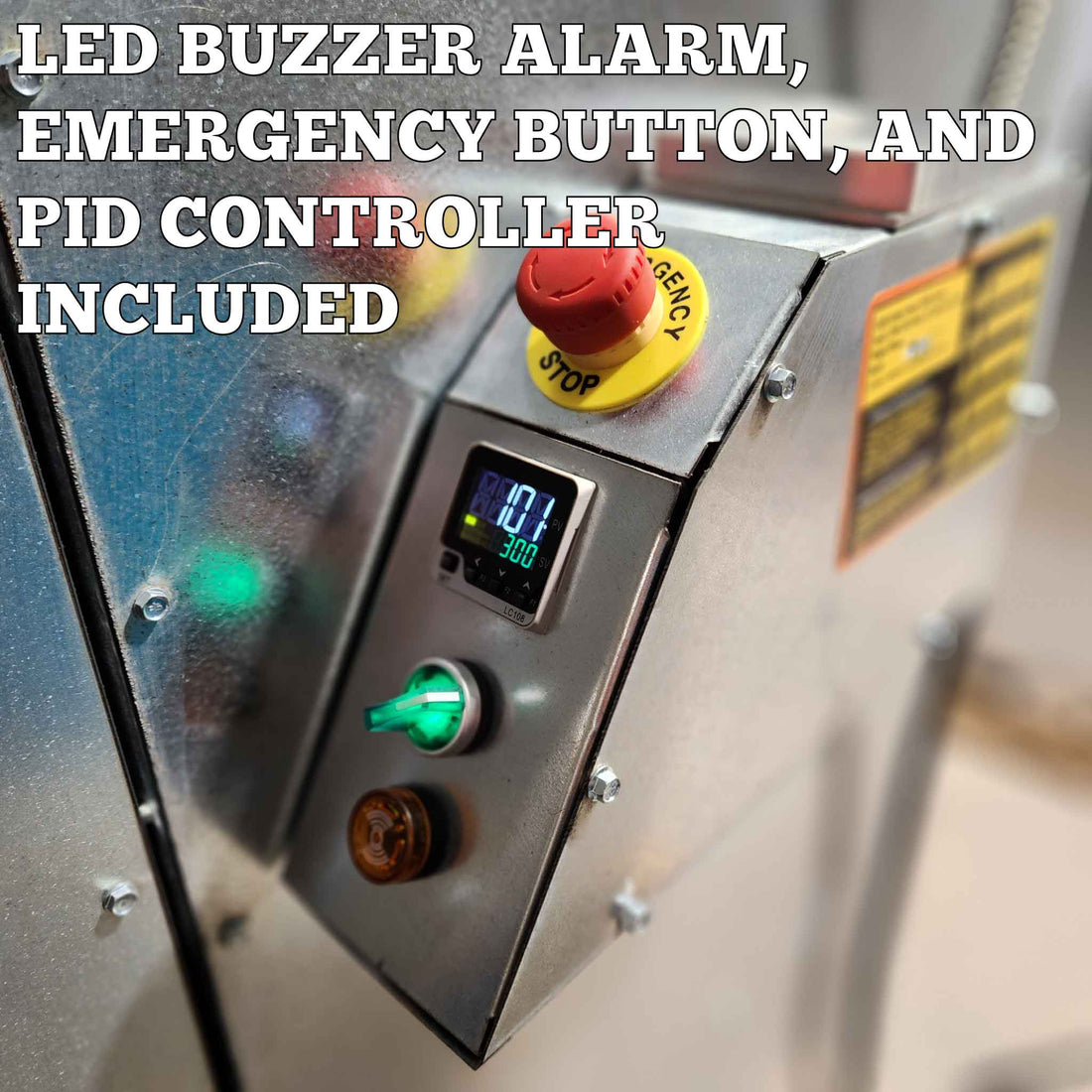

| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |

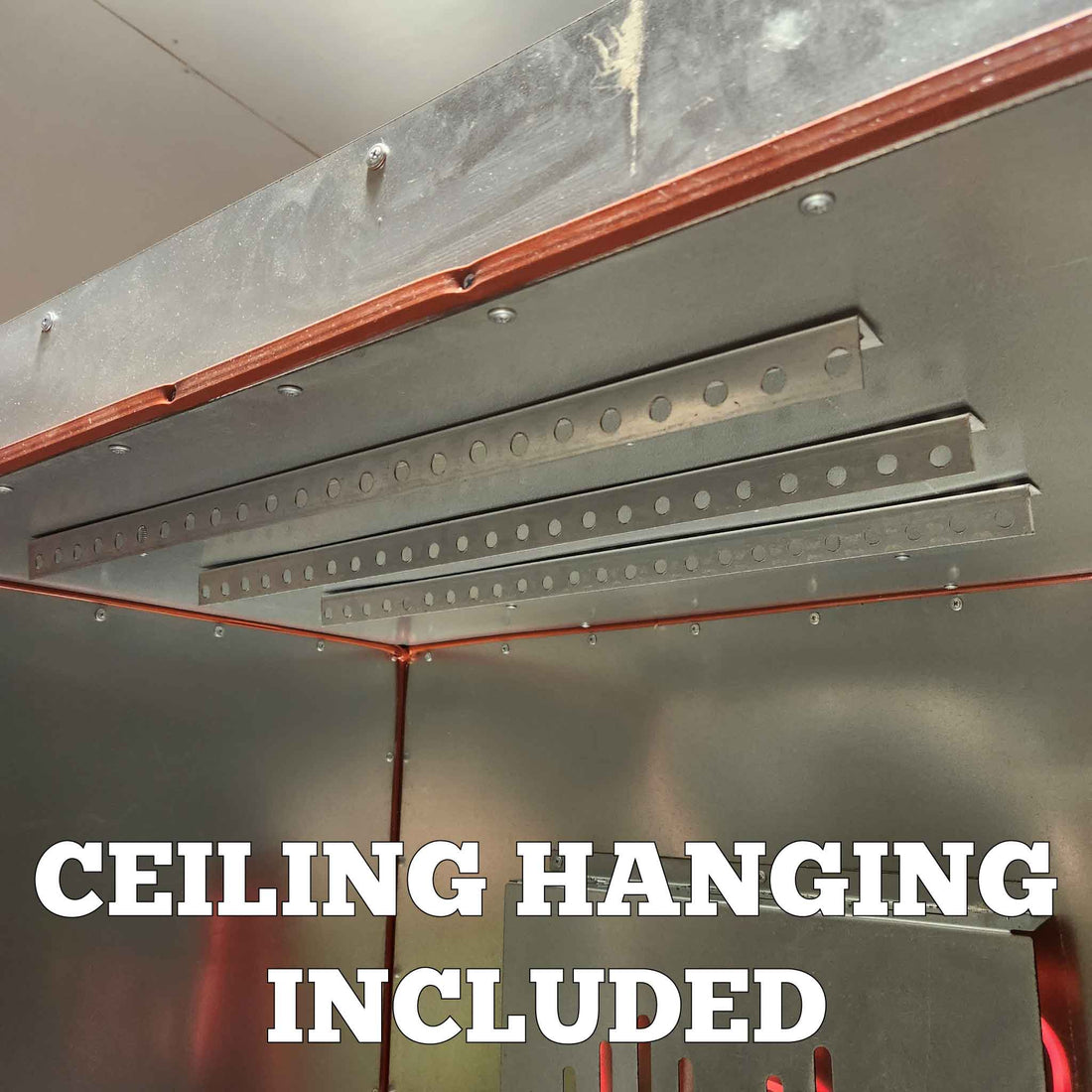

| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty Included |
— Long Parts, No Problem
Handle Twelve-Foot Work in the LABS-5126 Powder Coating Oven

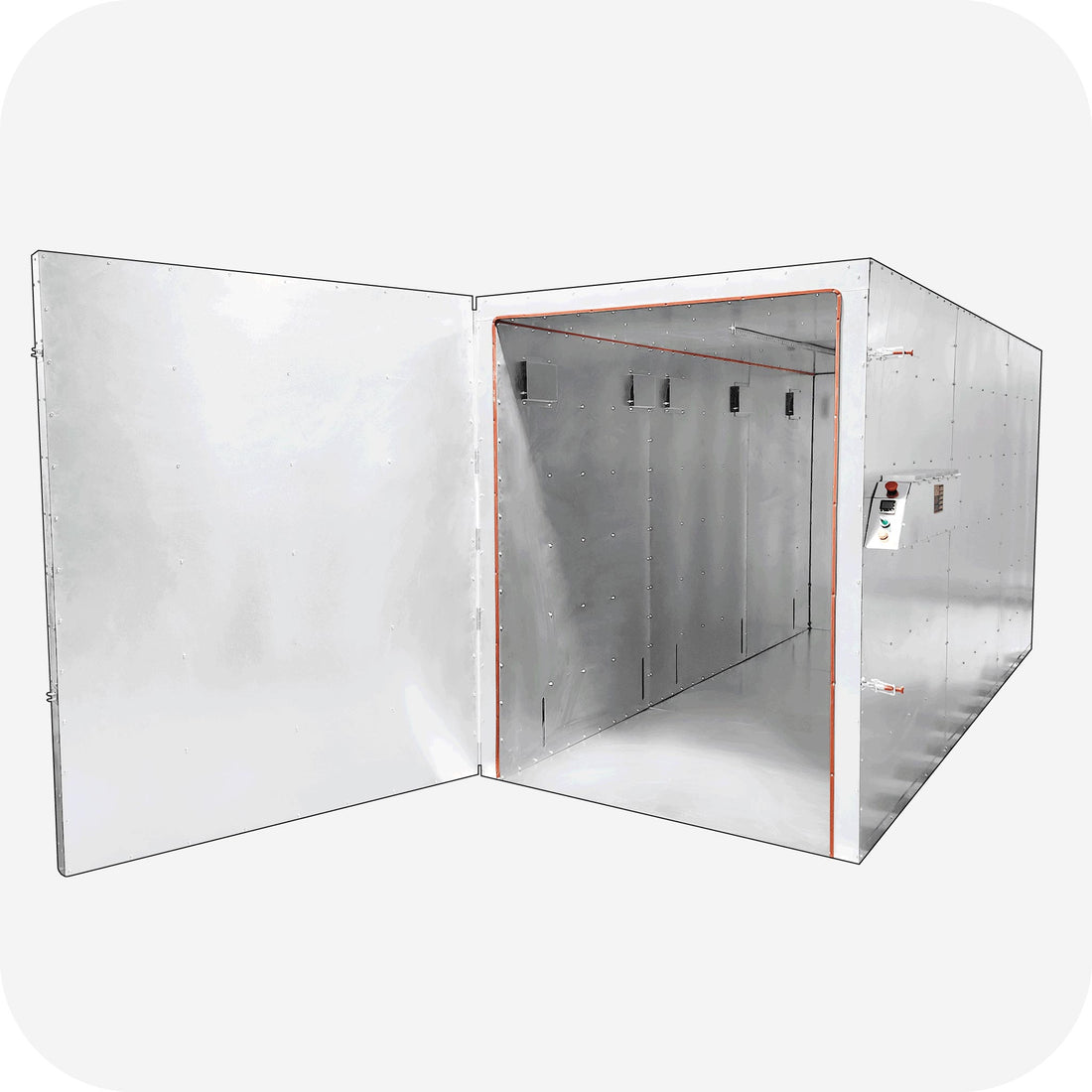

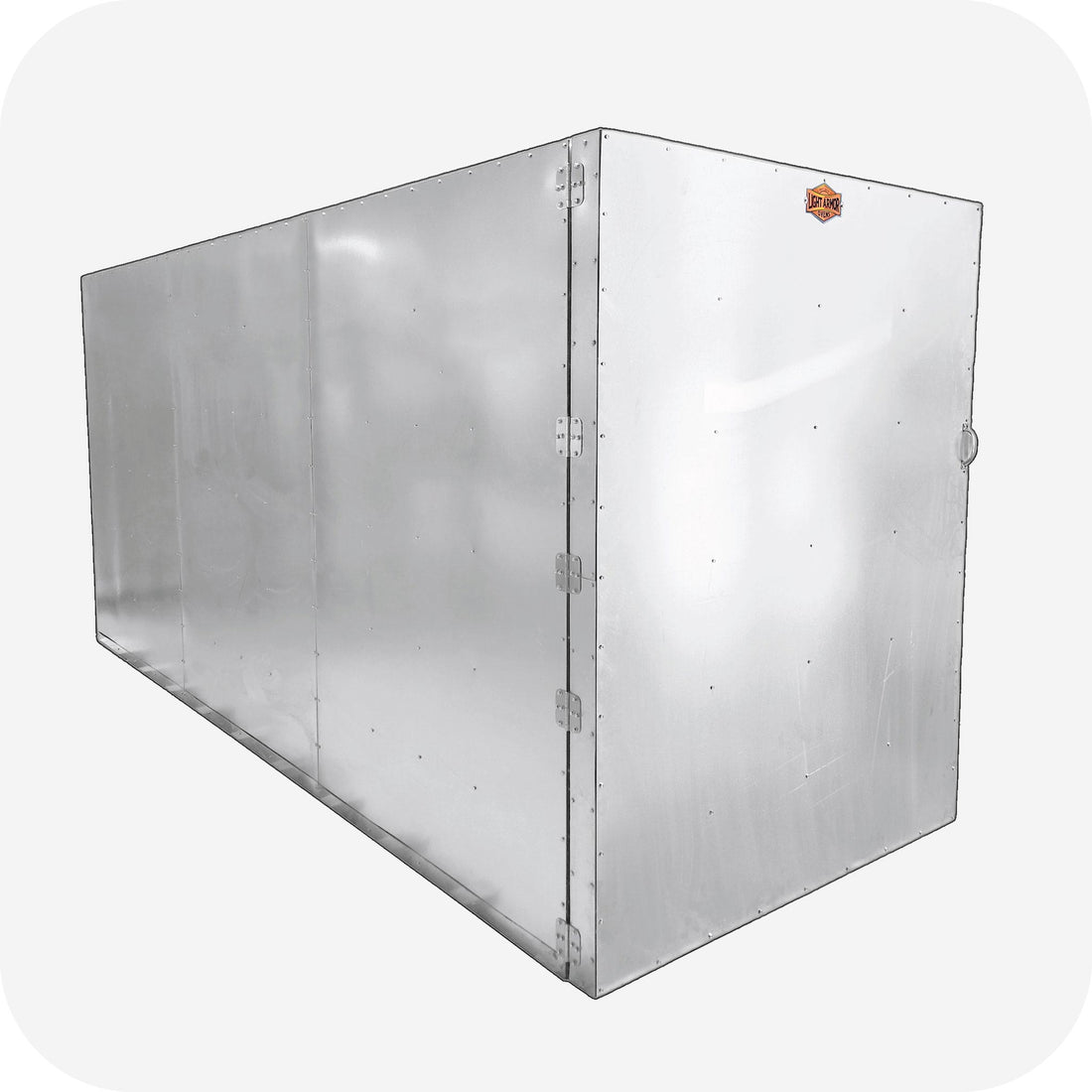

Railings, bed frames, fencing, and long fabrications finally have a home. The LABS-5126 curing oven stretches to a full 5' x 12' x 6', so oversized parts cure in one pass instead of being coated in awkward sections. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with G90 galvanized steel that shrugs off rust, it welcomes rolling carts across its flat floor and maintains the even, held temperature that a flawless powder coat or Cerakote cure requires.
Built for the Big Jobs
This is the oven that lets you say yes to the long, heavy work other shops turn away. Run full batches or feed a continuous process — the LABS-5126 keeps heat locked in so every inch of a lengthy part cures uniformly.
- ✓ Twelve-foot interior length — cure long railings and frames in a single, unbroken pass
- ✓ G90 galvanized shell — rust-resistant, Illinois-built material for a long service life
- ✓ Flat drive-in floor — roll loaded carts in and out with heavy parts already staged

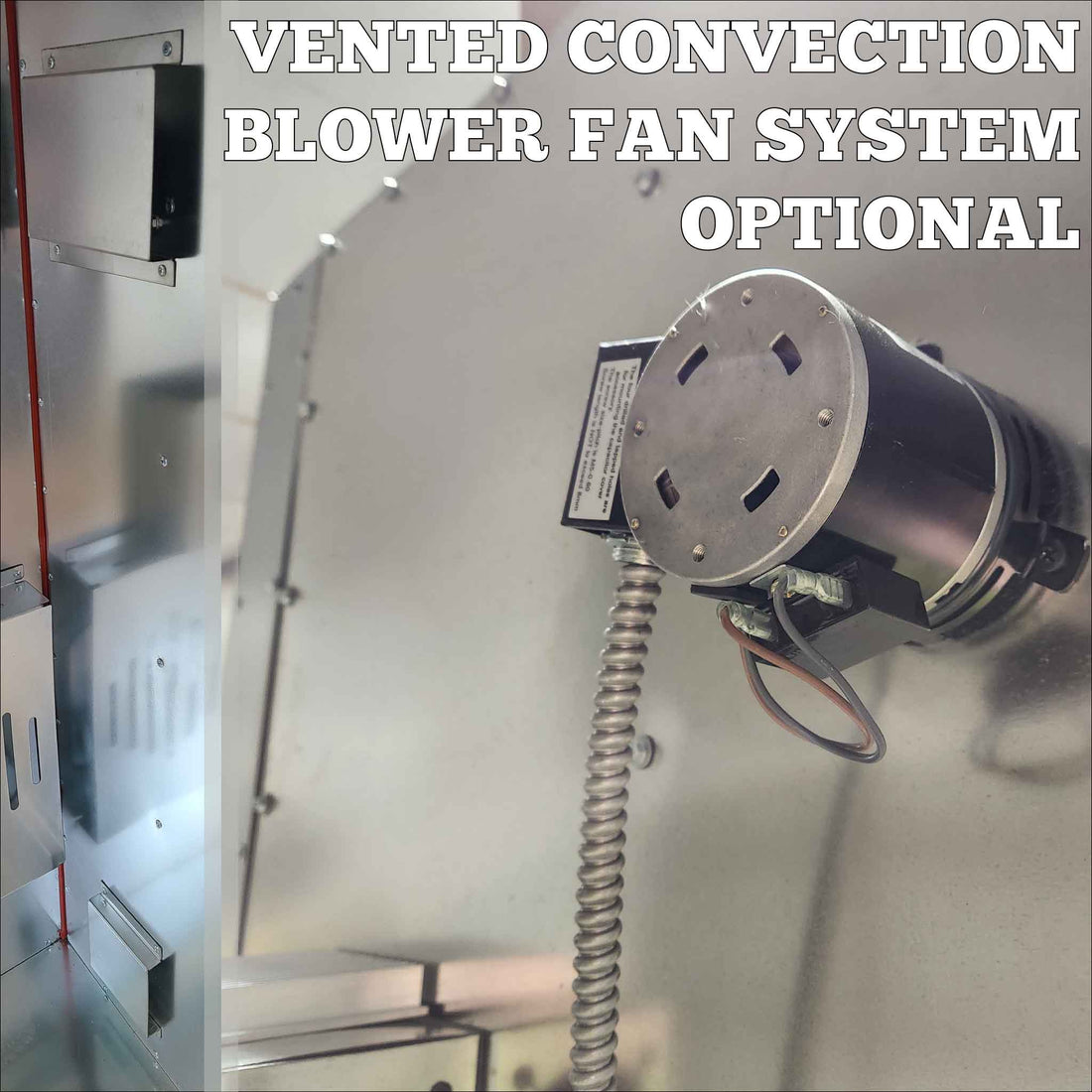

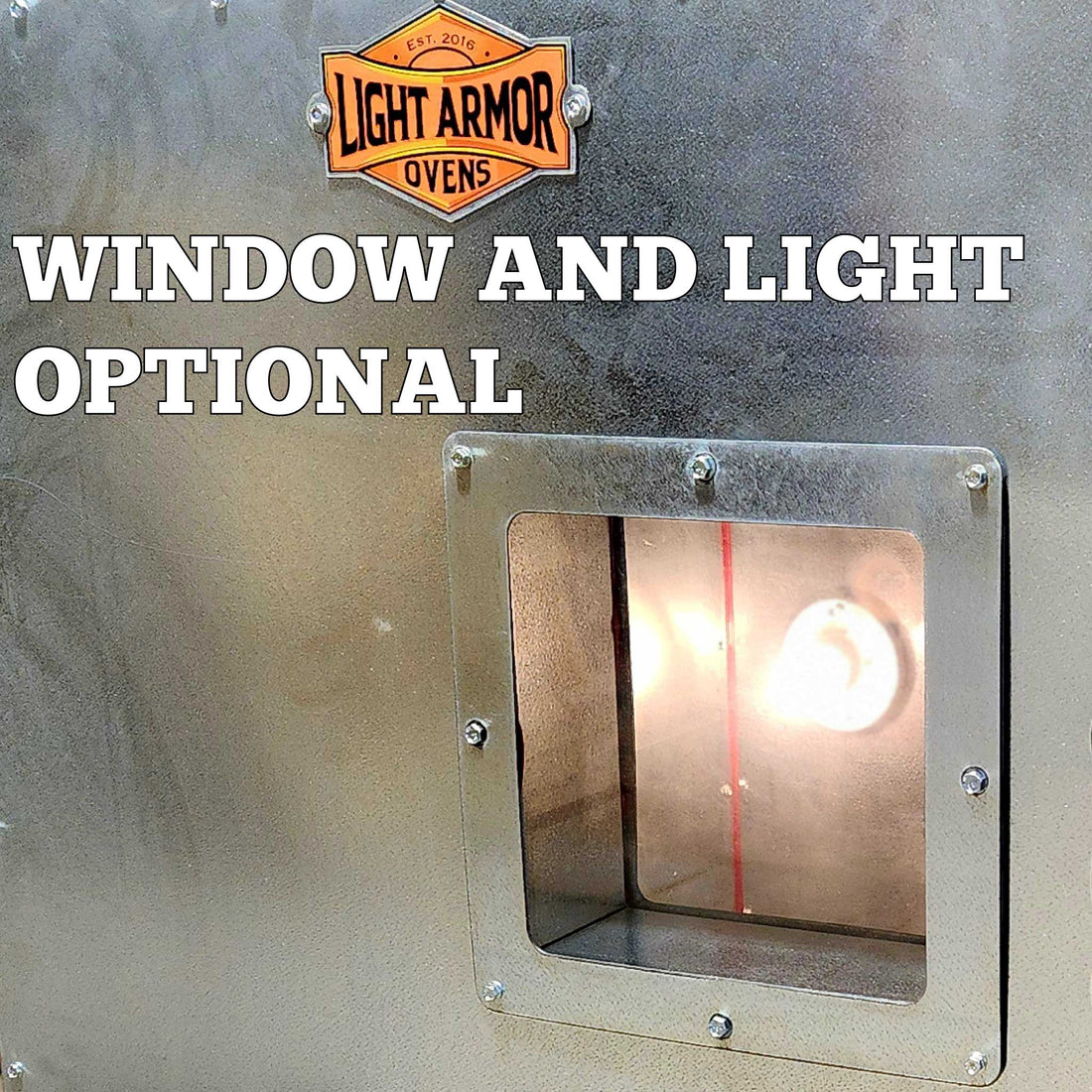

- ✓ Customizable features — specify a blower fan, oven light, or Rockwool insulation
OVERSIZED ITEM - REQUIRES FORKLIFT AT PLACE OF DELIVERY, UNLESS PICKING UP AT OUR WAREHOUSE. FOR FREIGHT RATE, PLEASE EMAIL US
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
Customer Reviews
No reviews yet. Own one of these? We'd love to hear how it's working in your shop.
