LABS-5127 Powder Coat Oven (5 x 12 x 7)
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LABS-5127 Powder Coat Oven (5 x 12 x 7)
Unit from $9,899.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LABS-5127 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
50×153×84″
Weight
~1900 lb

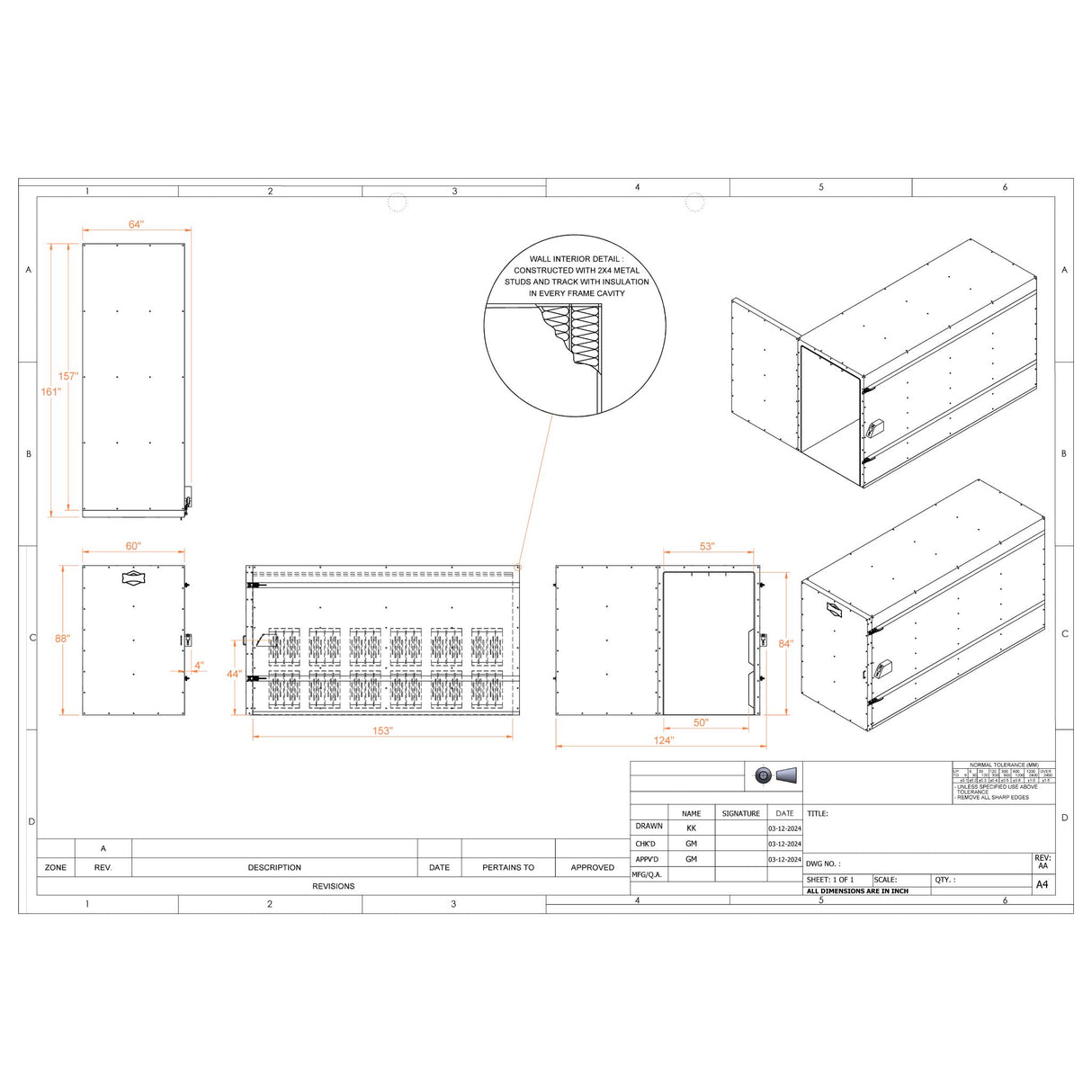

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 50″ W × 153″ D × 84″ T (Nominal) |
| Outside Footprint | 64″ W × 161″ D × 88″ T (Nominal) |
| Weight | ~1900 Pounds |
| Shipment Size | 6′ W × 14′ D × 8′ T |
| Recommended Distance from Wall | 3″+ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 168A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 175A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) |
| Recommended # of Blower Fans | 4–6 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty Included |
— Wide And Long At Once
The LABS-5127 Powder Coating Oven Handles Bulk And Length Together
Some jobs are both wide and long, and that's exactly where the LABS-5127 shines. With a generous 5' x 12' x 7' curing chamber, you get the extra width for broad assemblies plus the depth for lengthy parts — all in one oven. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with G90 galvanized material that stands up to rust, this powder coating and Cerakote curing oven is engineered to deliver dependable, uniform results across every load.
Consistent Curing For Serious Production
The LABS-5127 raises your parts to temperature and holds it for the full cycle, then eases back down so finishes set hard and even. Its flat floor keeps cart loading quick, and it's ready for batch or continuous operation as your volume grows.
- ✓ 5-foot width by 12-foot depth — the room to cure large, long parts in a single load
- ✓ Designed and Assembled in the USA with G90 galvanized steel — from U.S. and imported parts; a rust-resistant build for years of reliable service
- ✓ Flat, roll-in floor — load heavy carts effortlessly to keep production flowing
- ✓ Batch or continuous, your choice — with optional blower fan, oven light, and Rockwool insulation
OVERSIZED ITEM - REQUIRES FORKLIFT AT PLACE OF DELIVERY, UNLESS PICKING UP AT OUR WAREHOUSE. FOR FREIGHT RATE, PLEASE EMAIL US
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
Customer Reviews
No reviews yet. Own one of these? We'd love to hear how it's working in your shop.
