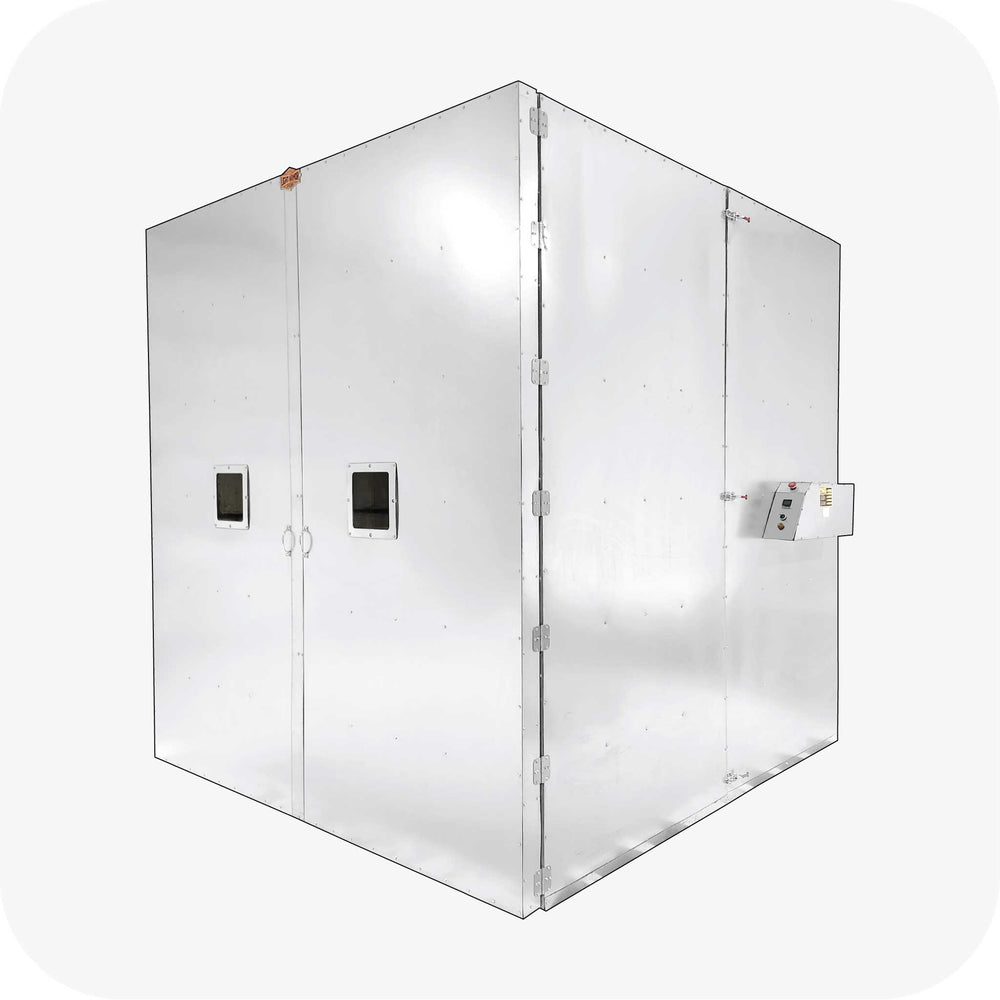

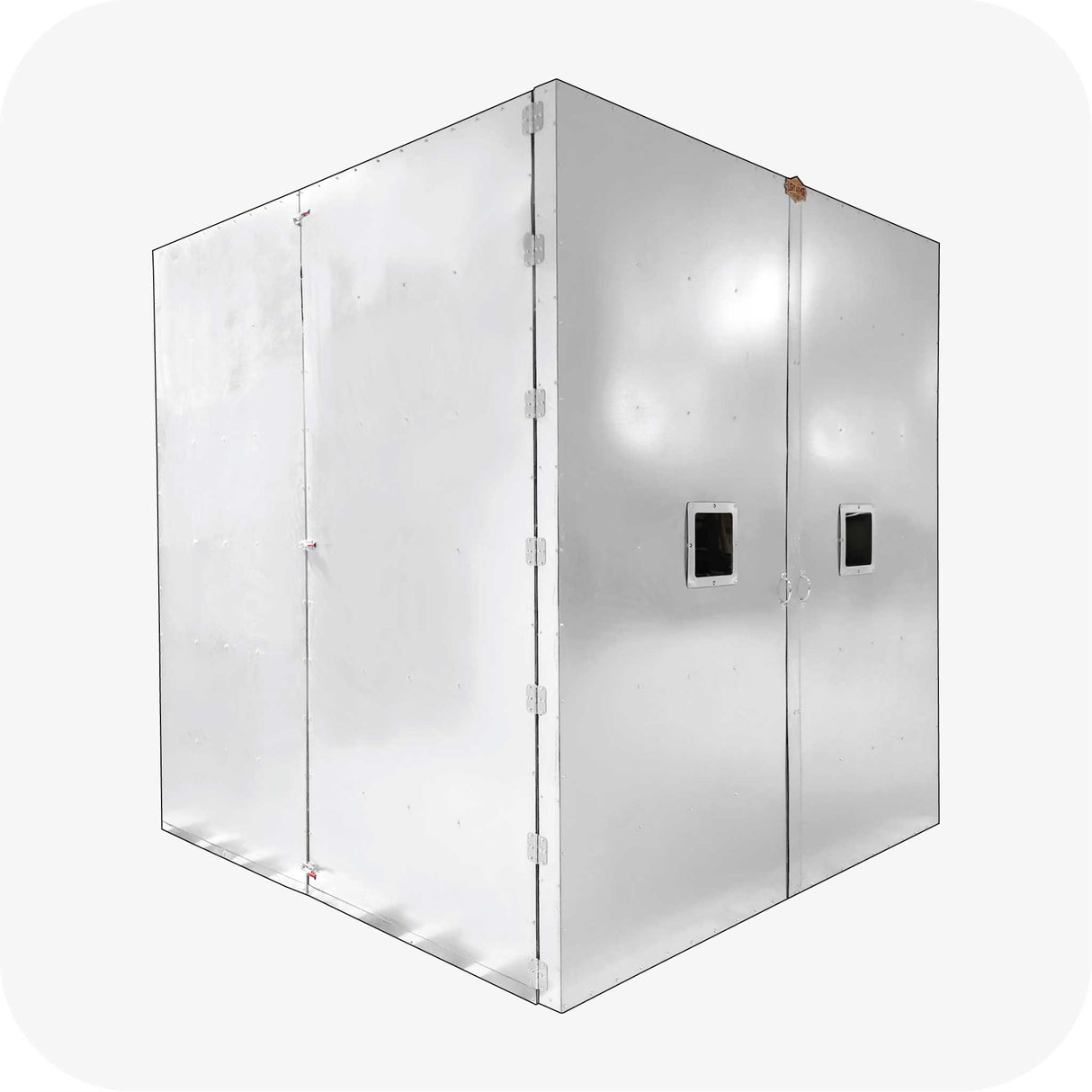

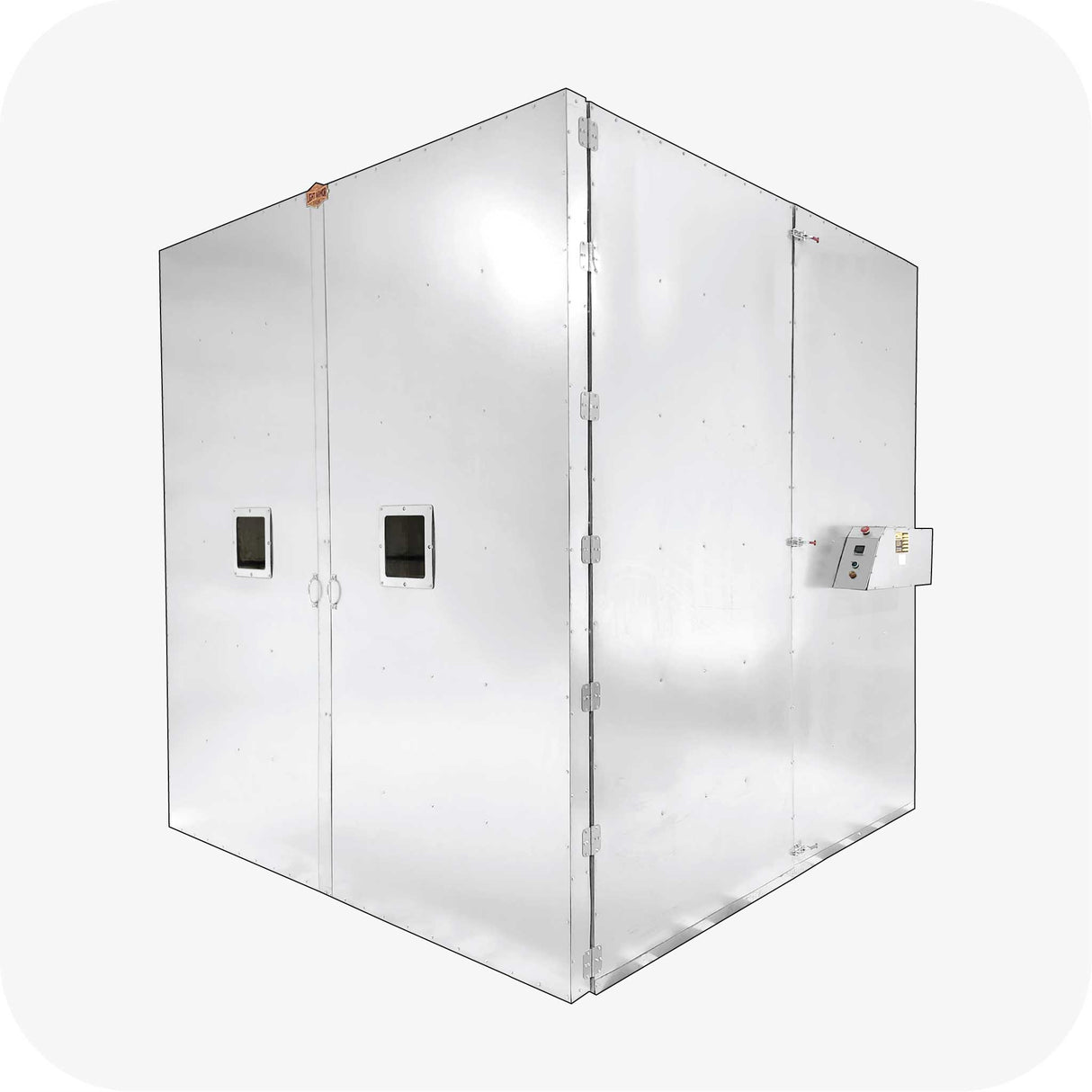

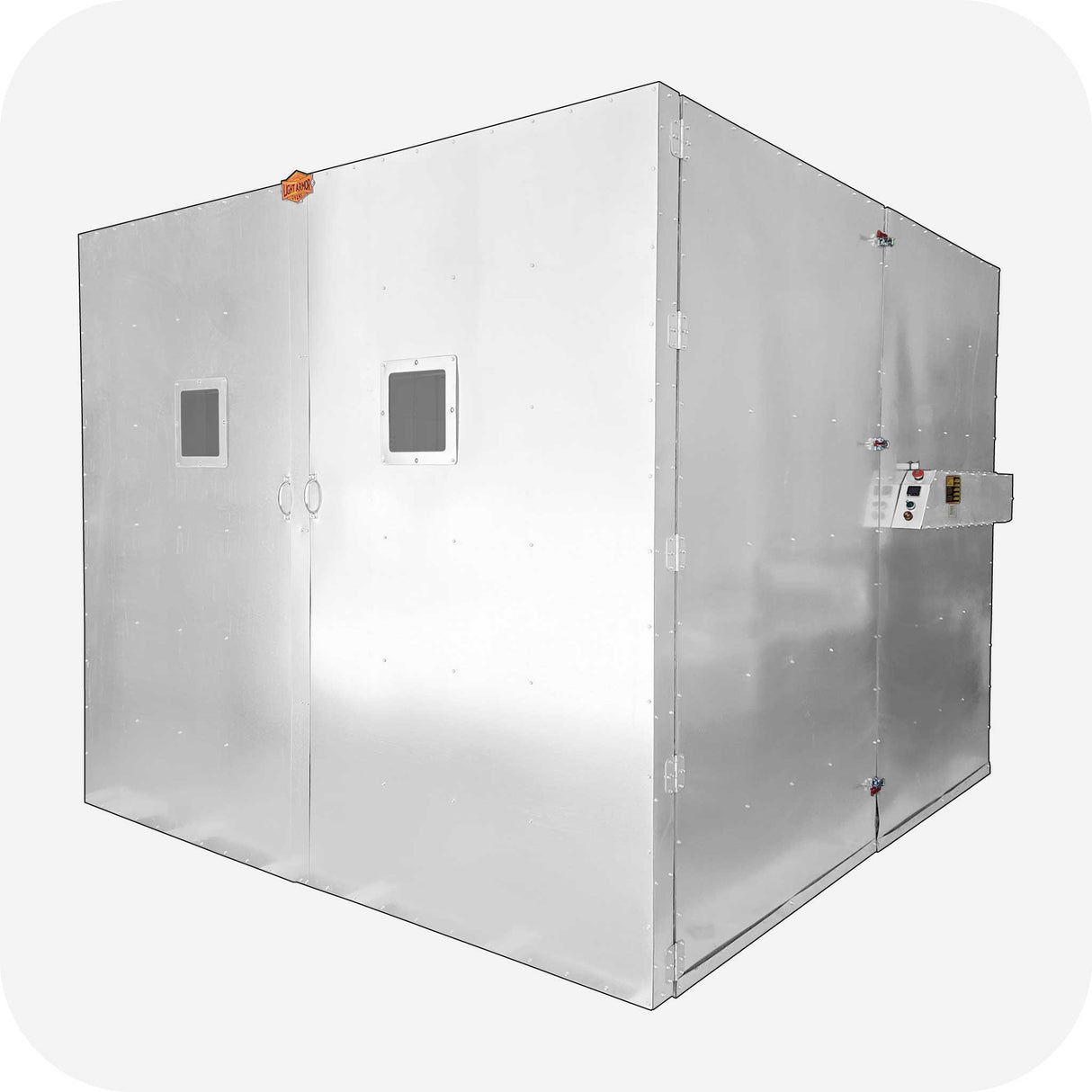

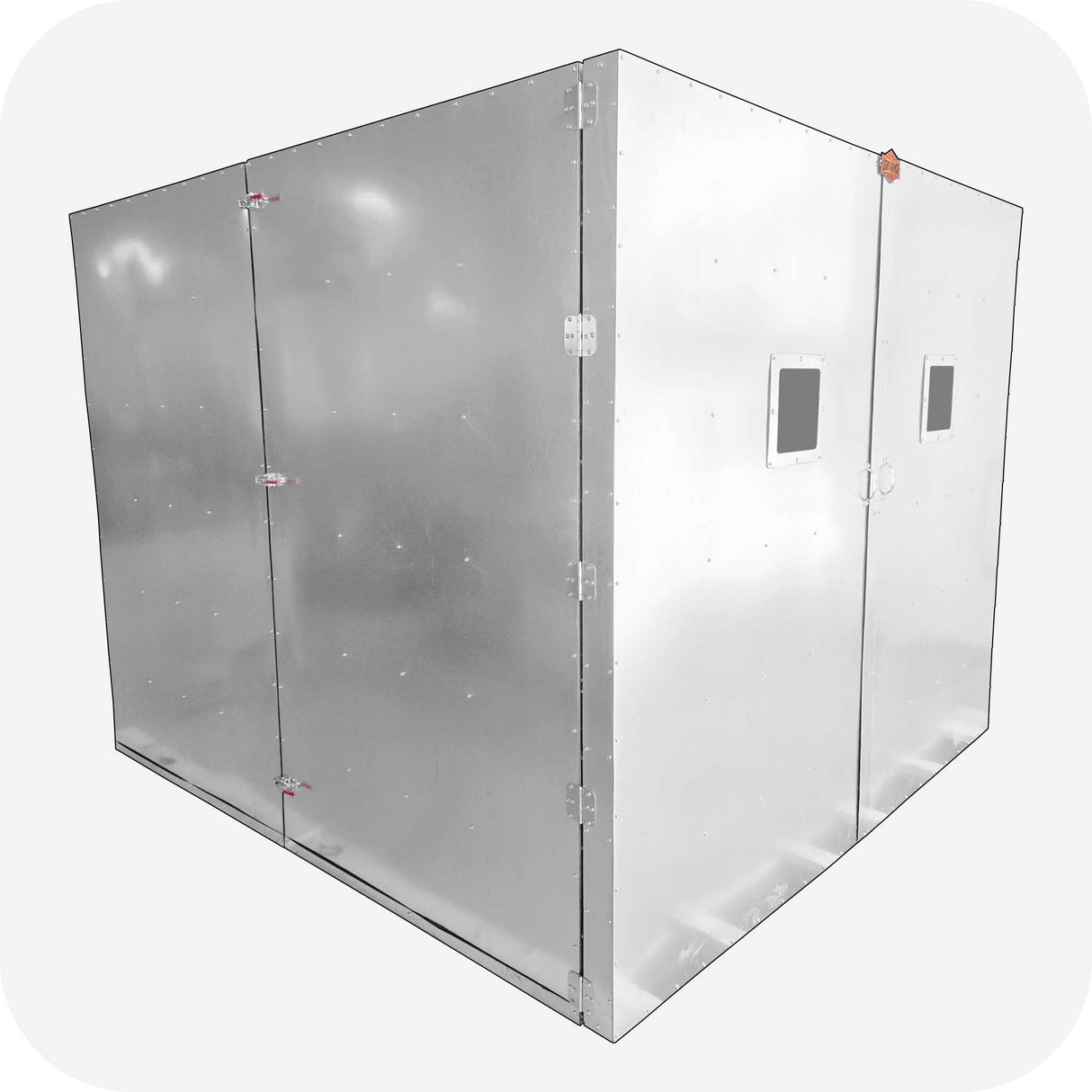

LABS-887 Powder Coat Oven (8 x 8 x 7)
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LABS-887 Powder Coat Oven (8 x 8 x 7)
Unit from $11,999.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LABS-887 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
96×96×84″
Weight / Skid
~1350 lb / skid

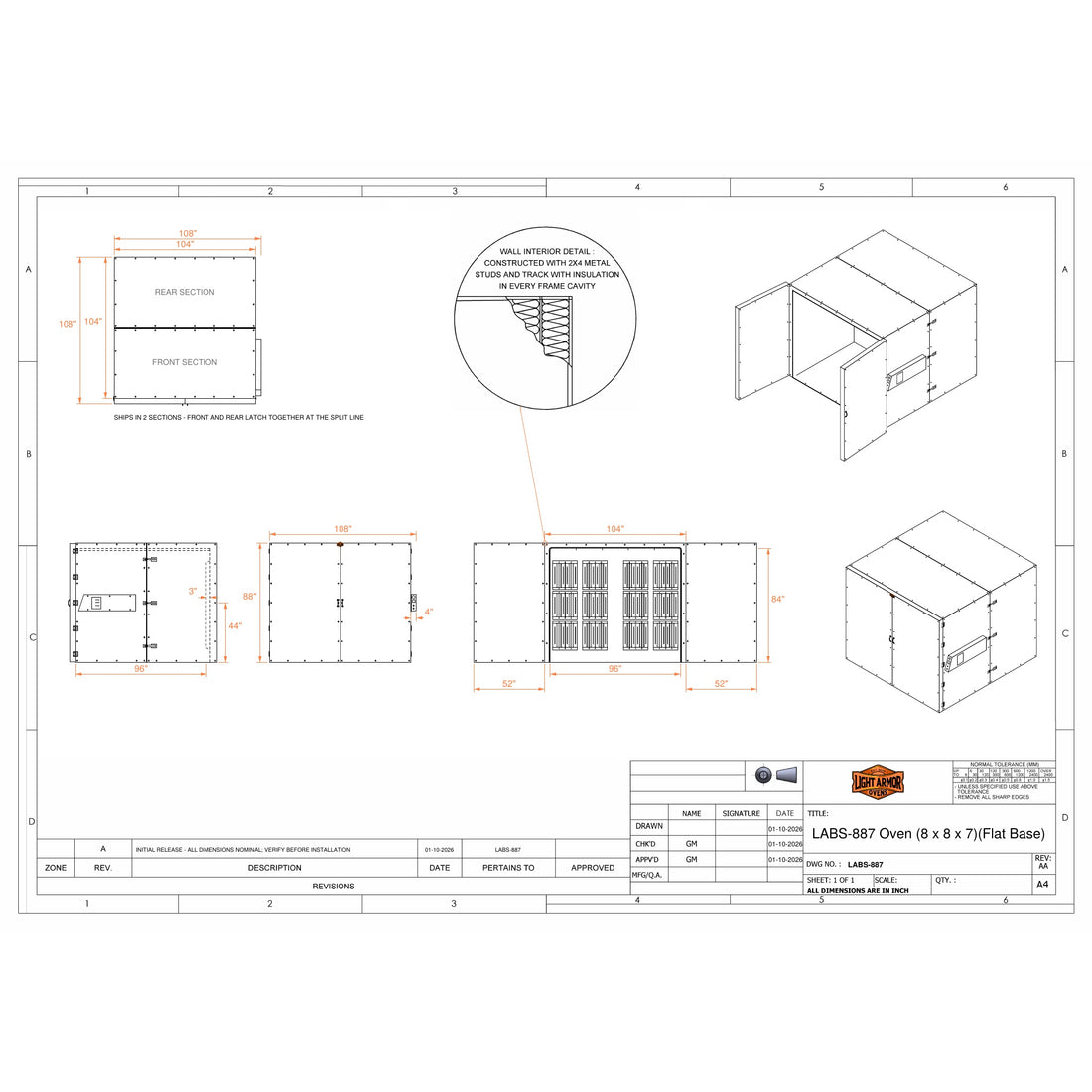

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 96″ W × 96″ D × 84″ T (Nominal) |
| Outside Footprint | 108″ W × 108″ D × 88″ T (Nominal) |
| Weight | ~1,350 Pounds Per Skid |
| Shipment Size | x2 Skids, Each 5′ W × 10′ D × 8′ T |
| Assembly | Ships in Two Sections (front & rear, latch together on site) |
| Recommended Distance from Wall | 3″+ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 168A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 175A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) |
| Recommended # of Blower Fans | 4–6 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty Included |
— Tall-Capacity Curing Oven
The LABS-887 Powder Coating Oven Gives Tall Parts the Height They Need
Some parts just need more headroom, and the LABS-887 curing oven delivers it with a tall 8' x 8' x 7' chamber. That extra vertical space lets you hang long rails, tall frames, and stacked racks without crowding — then roll them straight in over the flat floor. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with rust-resistant G90 galvanized material, this powder coating oven holds even, sustained heat so powder and Cerakote finishes cure through completely and consistently.
Configured Around Your Shop's Needs
Choose batch loading or a continuous-process setup, and customize the LABS-887 with a blower fan, oven light, or Rockwool insulation. Windows and lights are offered as an optional upgrade for a clear look inside. Engineered by a team focused on dependable results, this Illinois-built curing oven is ready to serve a wide range of finishing industries.
- ✓ Tall 8' x 8' x 7' chamber — gives long and upright parts the vertical clearance to hang freely
- ✓ Two-section build — built and shipped as front and rear sections that latch together on site, so each piece is easier to move into your shop

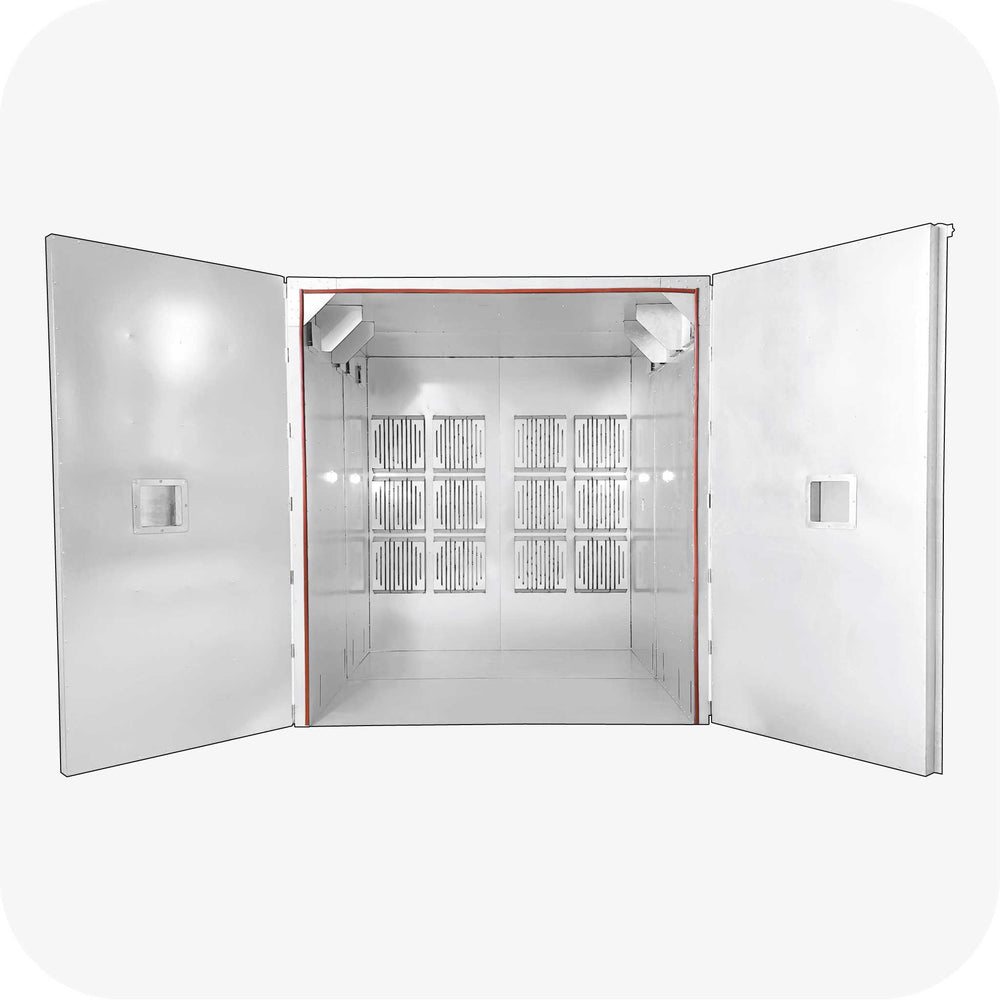

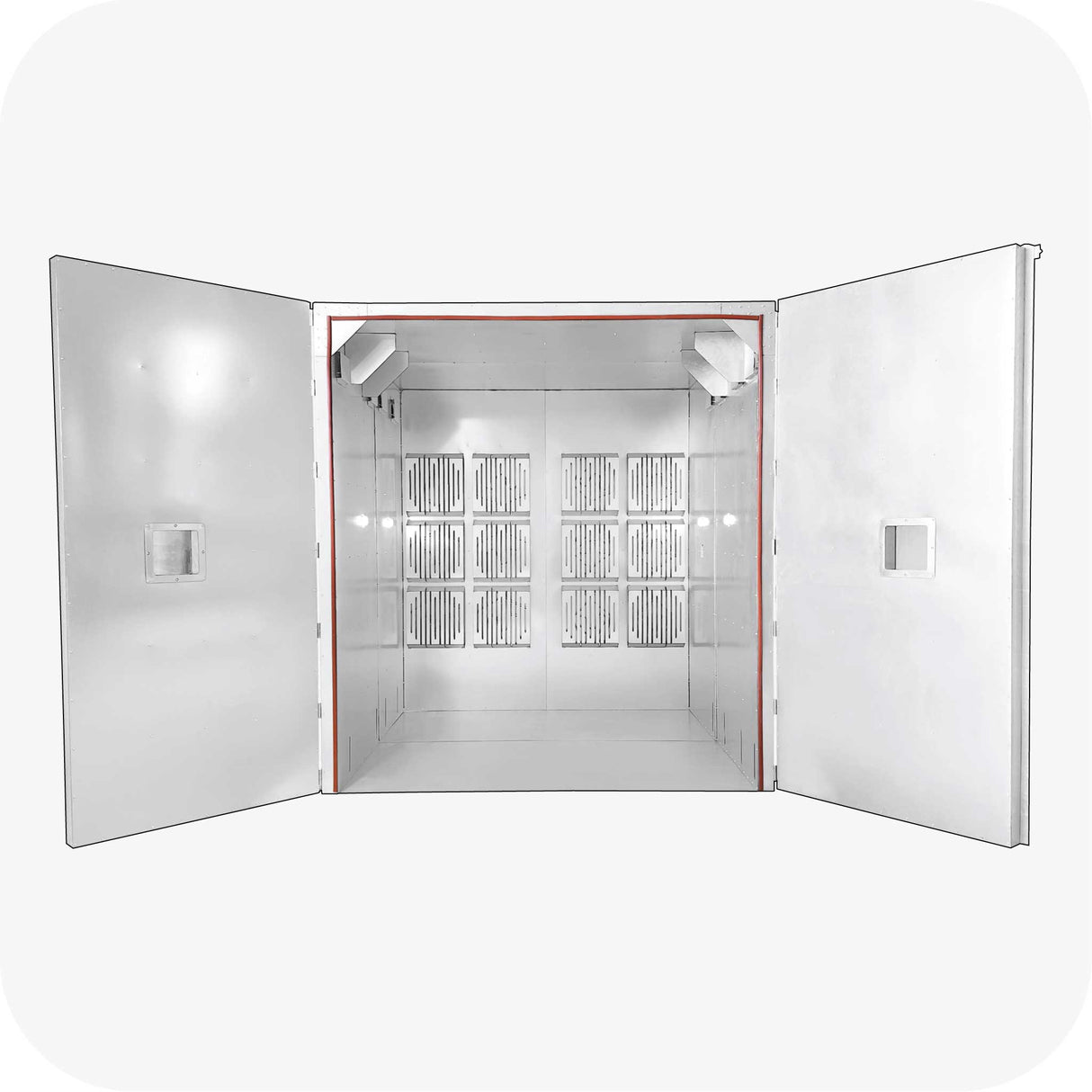

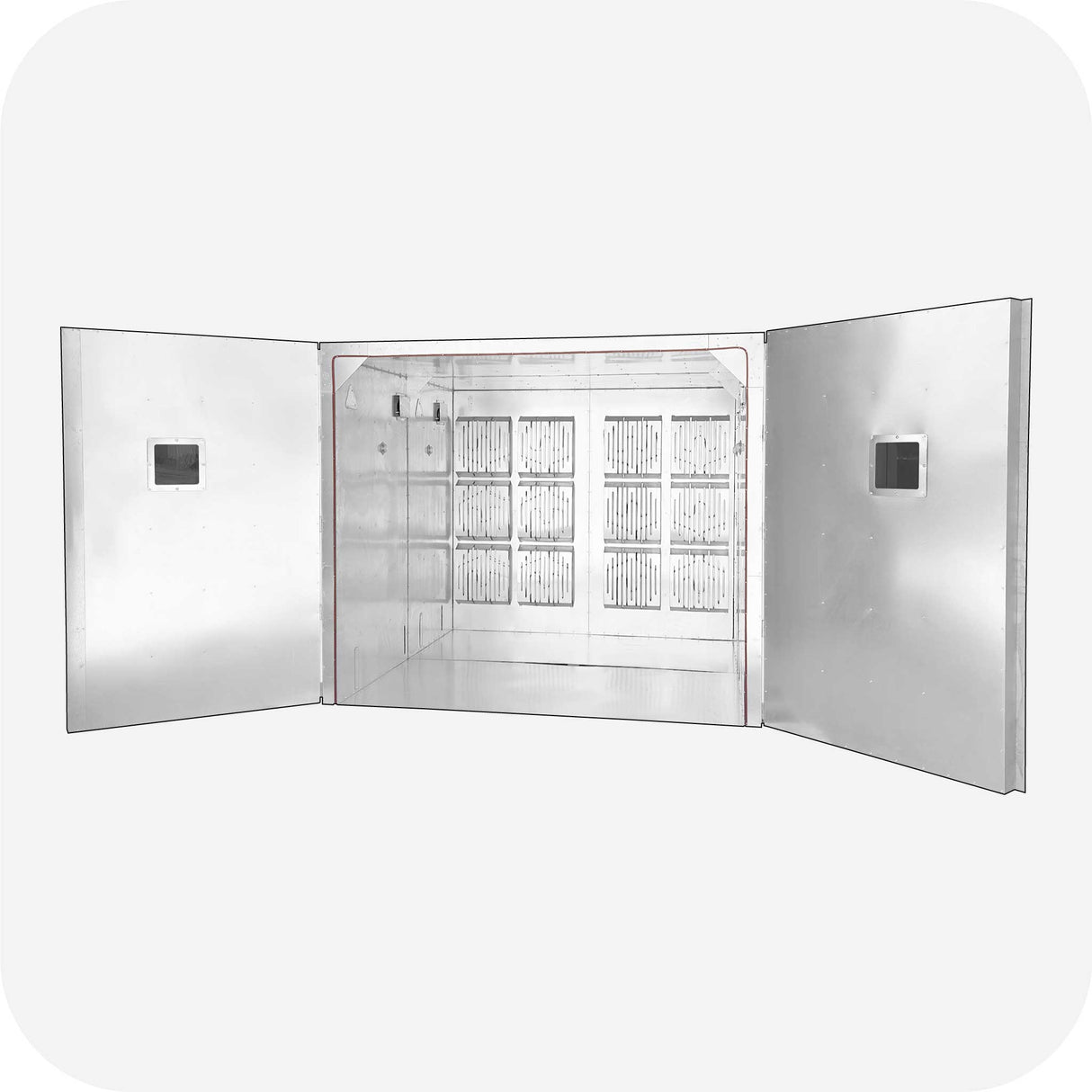

- ✓ Flat roll-in floor — move loaded carts inside easily and load full batches with less effort
- ✓ Batch or continuous process — run it the way your production volume and parts demand
- ✓ Designed and Assembled in the USA, G90 galvanized — from U.S. and imported parts; rust-resistant construction that maintains steady curing heat
OVERSIZED ITEM - REQUIRES FORKLIFT AT PLACE OF DELIVERY, UNLESS PICKING UP AT OUR WAREHOUSE. FOR FREIGHT RATE, PLEASE EMAIL US
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
