LA10KW6 Powder Coating Oven (6' x 2' x 6')
LA10KW6 Powder Coating Oven (6' x 2' x 6') is backordered and will ship as soon as it is back in stock.
Pickup available at Main Warehouse
Usually ready in 5+ days
Shipping, Tracking and Delivery
Shipping, Tracking and Delivery
Once your order is picked up by freight, we email you tracking information so that you can follow your shipment in transit. Freight carriers will have your name and number in case they need to contact you ahead of delivering. All freight that's shipped out is covered by insurance; in the case that your shipment is damaged, we will file an insurance claim on your behalf. Please note these claims can take anywhere between 1-2 months to fully process.
Description
Description
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LA10KW6 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
65×23×72″
Shipping Weight
~550 lb

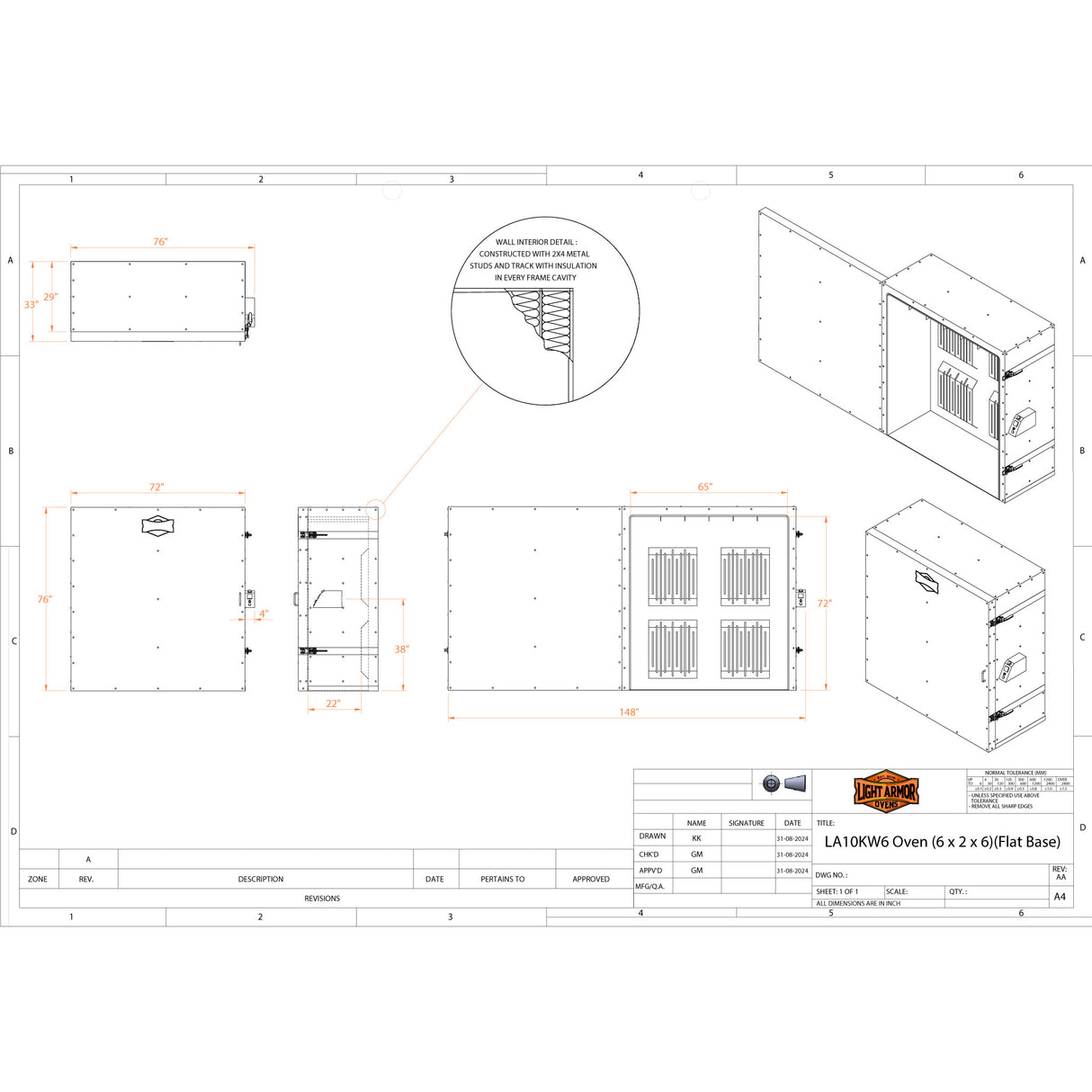

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 65″ W × 23″ D × 72″ T (Nominal) |
| Outside Footprint | 76″ W × 33″ D × 84″ T (Nominal) |
| Shipment Size | 4′ W × 7′ D × 7′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 56A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 60A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 2 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |

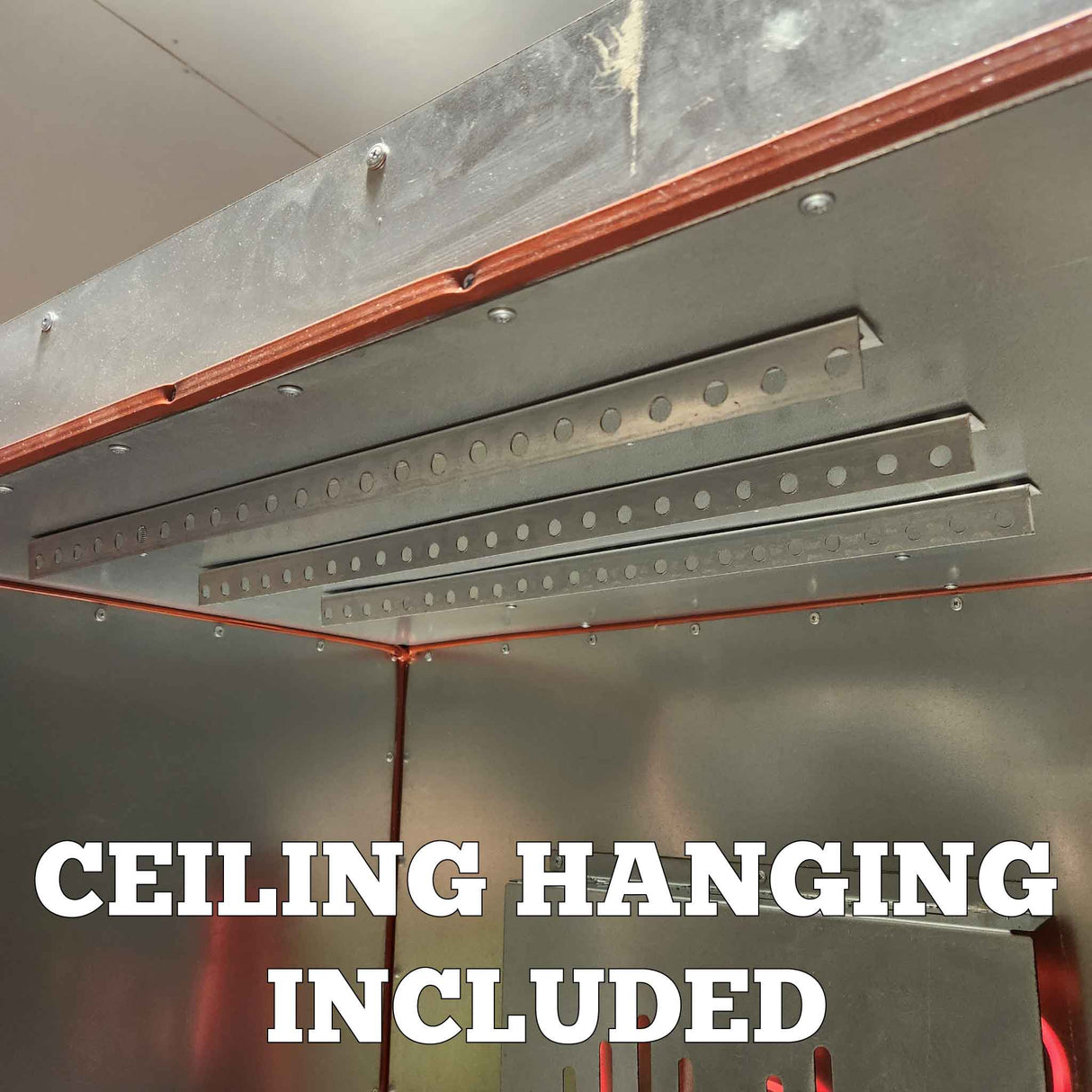

| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
— Movable Long-Part Curing Oven
The LA10KW6 Powder Coating Oven — Long Reach, On the Move
Need to cure long parts without a towering ceiling? The LA10KW6 Powder Coating Oven pairs a 6-foot length with a 6-foot height in a 6' x 2' x 6' chamber, giving you room for extended work in a compact vertical profile. Made in the USA from G90 galvanized material, this curing oven fights rust from day one and includes a mobile base option so it goes where the work is.
Dependable Cures, Configured Around Your Shop

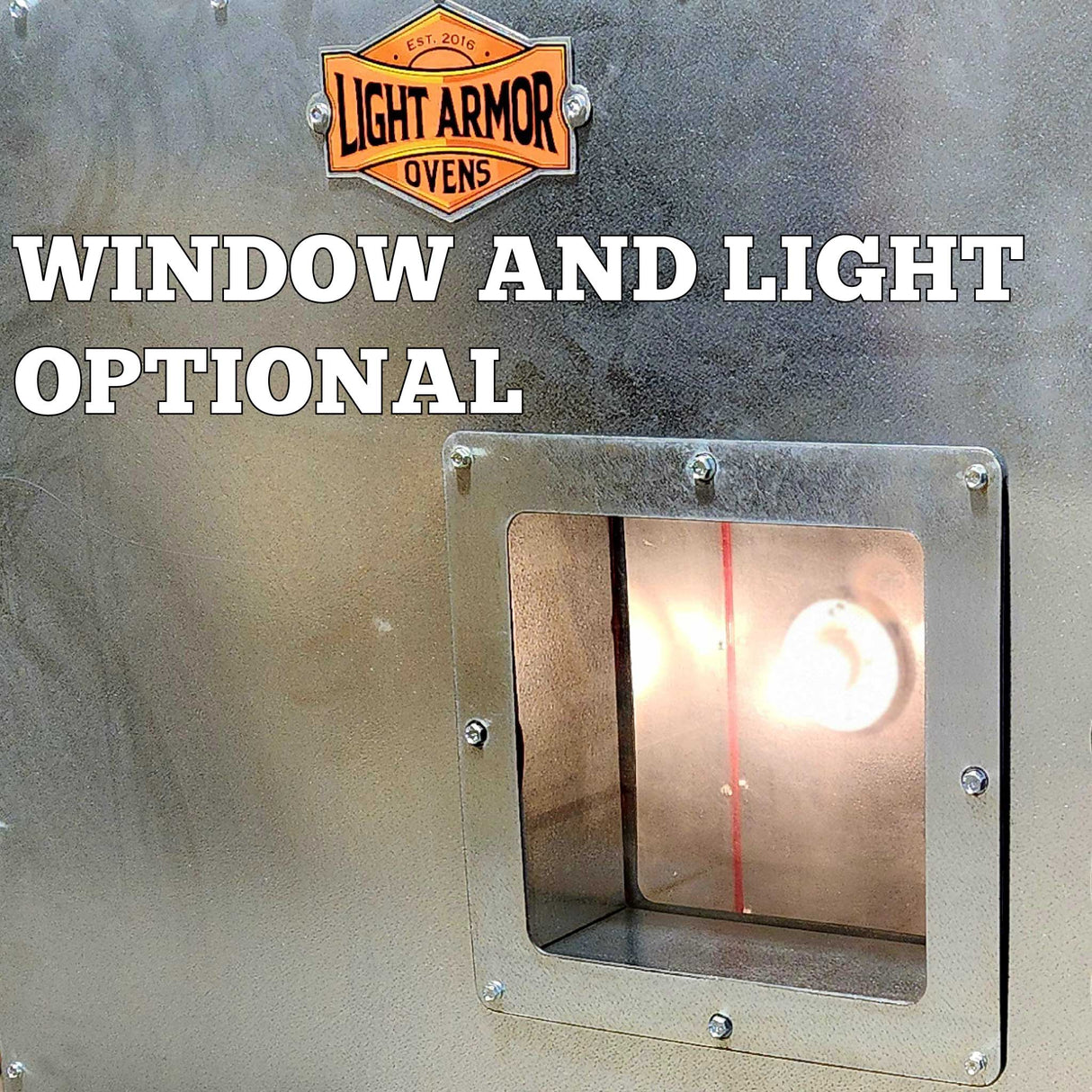

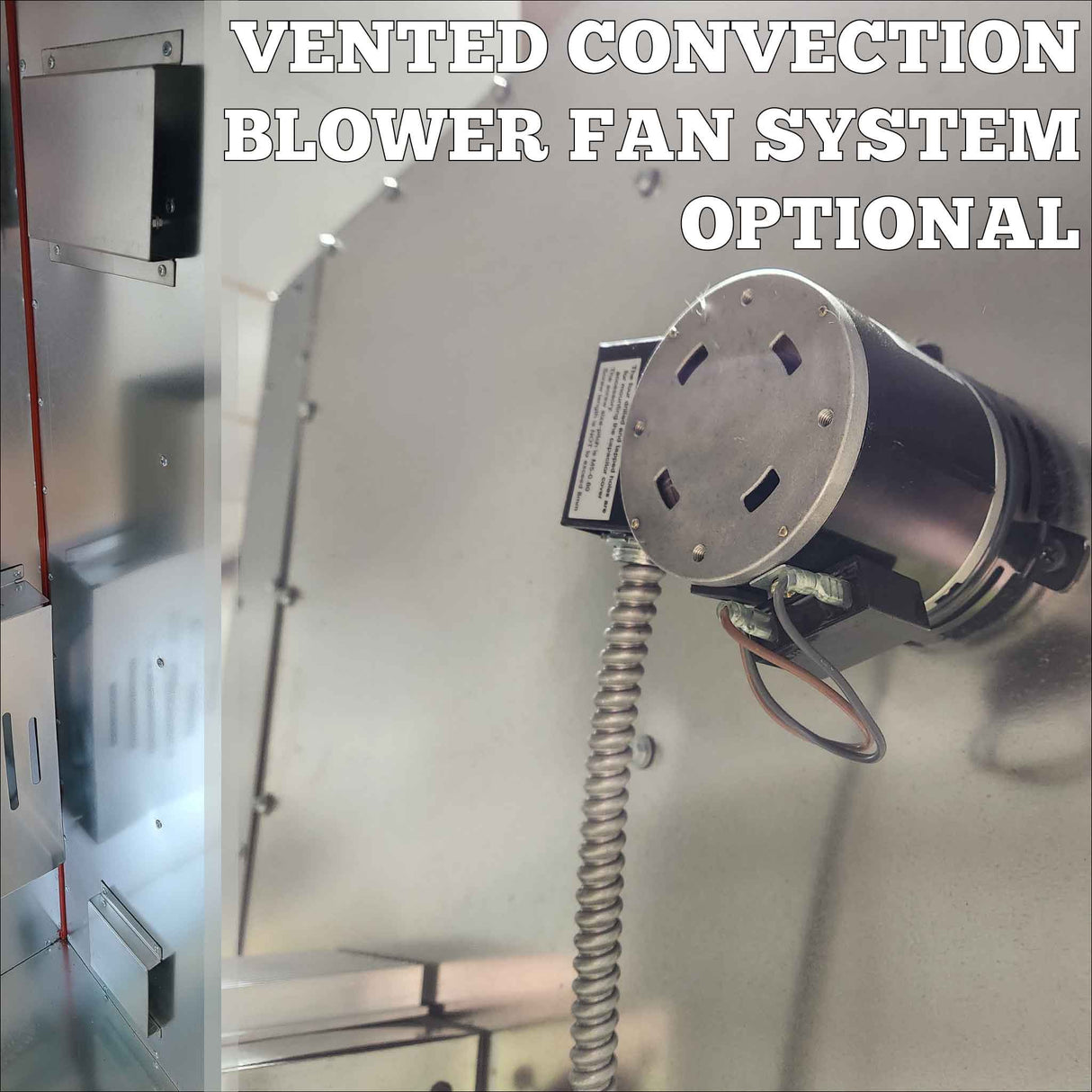

Heat held steady is what turns a coating into a lasting finish — and the LA10KW6 brings parts up to temperature, maintains it through the cure, then lets them cool safely afterward. Set it up for batch loading or a continuous process to suit your production, and personalize it with a blower fan, oven light, or your choice of color.
- ✓ Long 6' x 2' x 6' chamber — cures extended parts while keeping a more compact overall height
- ✓ Mobile base option — move the powder coating oven to wherever your production line runs
- ✓ G90 galvanized, made in the USA — engineered to resist rust and endure tough industrial conditions
- ✓ Batch or continuous setup — customize with a blower fan, oven light, or color to fit your process
***OVERSIZED ITEM - REQUIRES FORKLIFT OR LOADING DOCK AT PLACE OF DELIVERY, UNLESS PICKING UP FROM FREIGHT TERMINAL OR OUR WAREHOUSE***
