LABS-687 Spray Booth (6 x 8 x 7)
Weight: 600 lb
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Spray Booth
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LABS-687 Spray Booth (6 x 8 x 7)
Unit from $7,199.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— Cleaner Air, Sharper Finishes

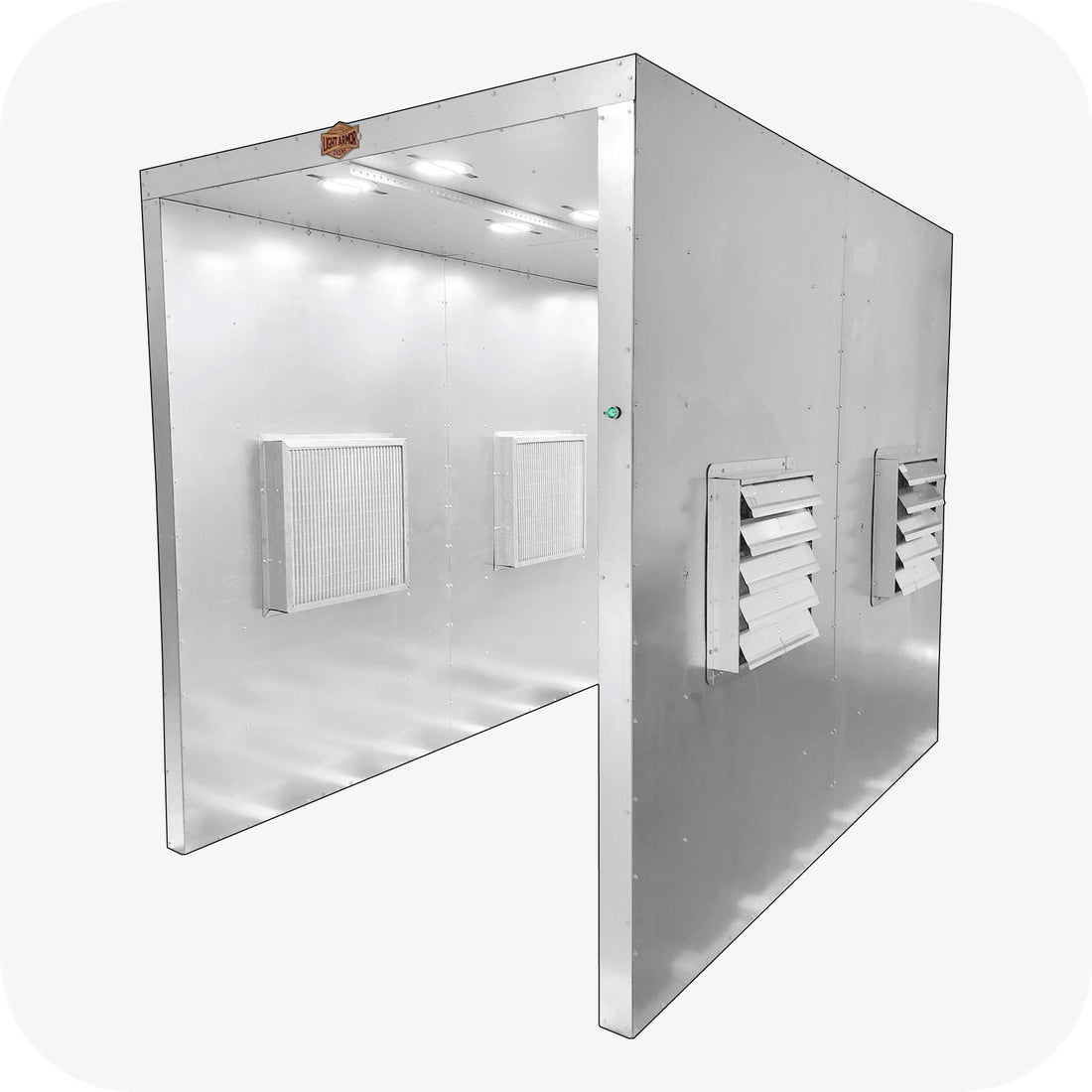

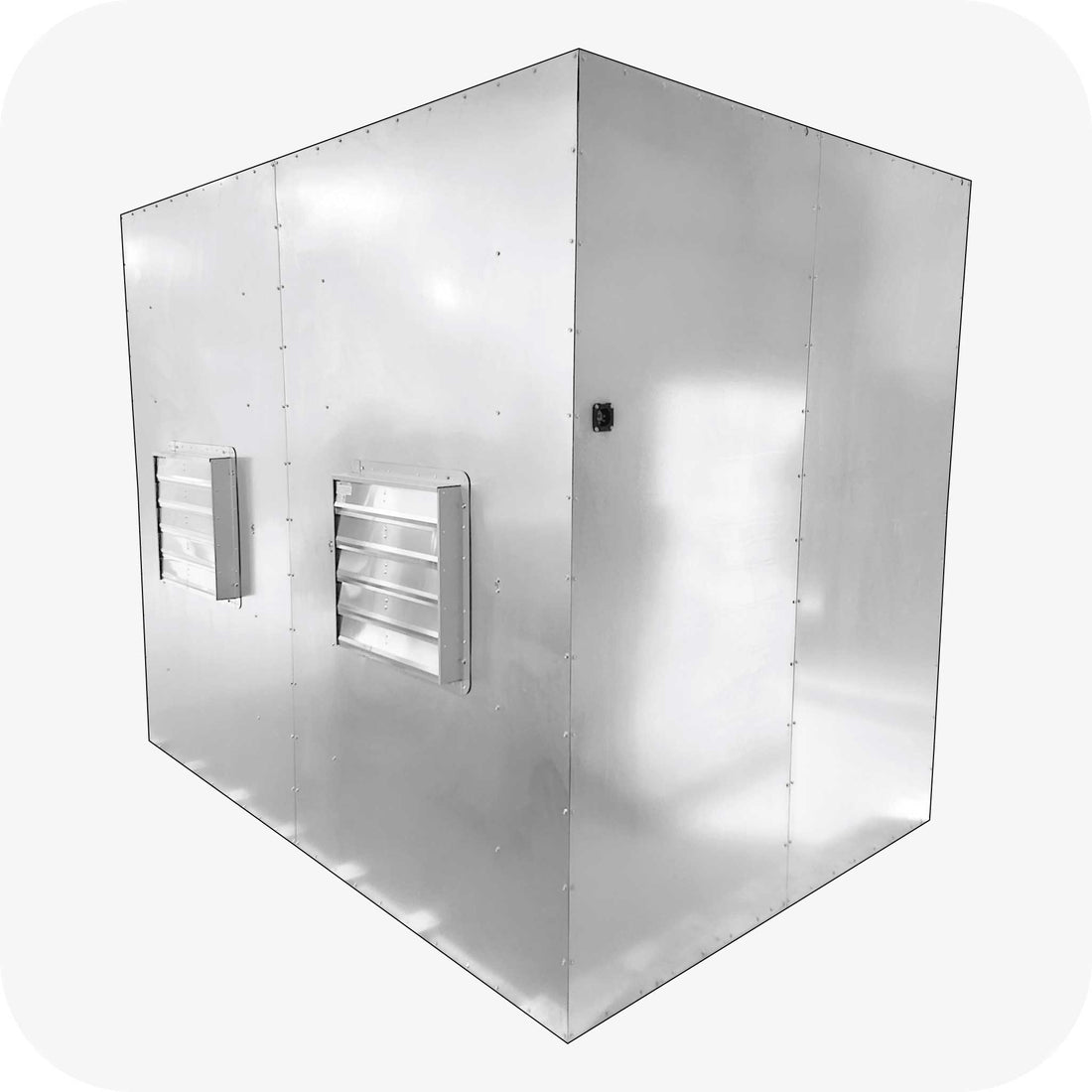

Contain Every Speck of Overspray in the LABS-687 Spray Booth

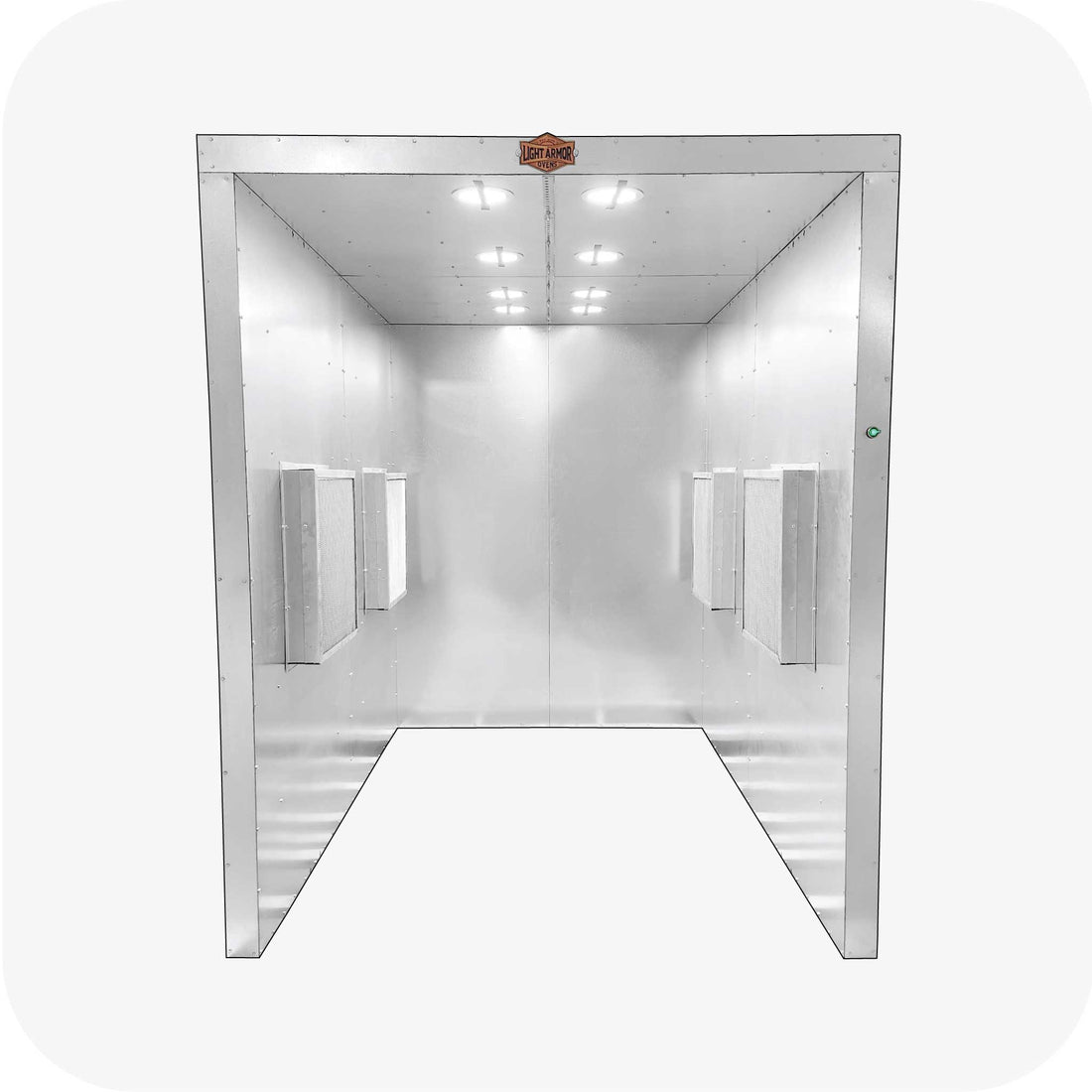

When you want a dedicated finishing station that keeps your shop clean and your parts flawless, the LABS-687 spray booth gives you a generous 6' x 8' x 7' footprint — 57" W x 96" D x 84" T of interior working space — to move around big pieces and work without compromise. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, this paint booth is engineered to protect you and everyone nearby from stray powder and fumes.
A Powder Coating Booth That Works as Hard as You Do
Four 20" exhaust fans moving roughly 12,000 CFM between them pull overspray away from your work, into four washable 24" MERV 8 filters backed by four disposable 24" MERV 12 filters, while bright LED lighting shows you every detail. Configure it open or fully enclosed, and adjust dimensions to fit the parts you finish most.
- ✓ ~12,000 CFM total capture — four 20″ exhaust fans pull stray powder off your parts and out of your breathing zone
- ✓ Eight-filter, two-stage capture — four washable 24″ MERV 8 filters rinse and reinstall, backed by four disposable 24″ MERV 12 for the fine overspray
- ✓ Bright LED lighting — see thin spots and runs the moment they happen for a right-the-first-time finish

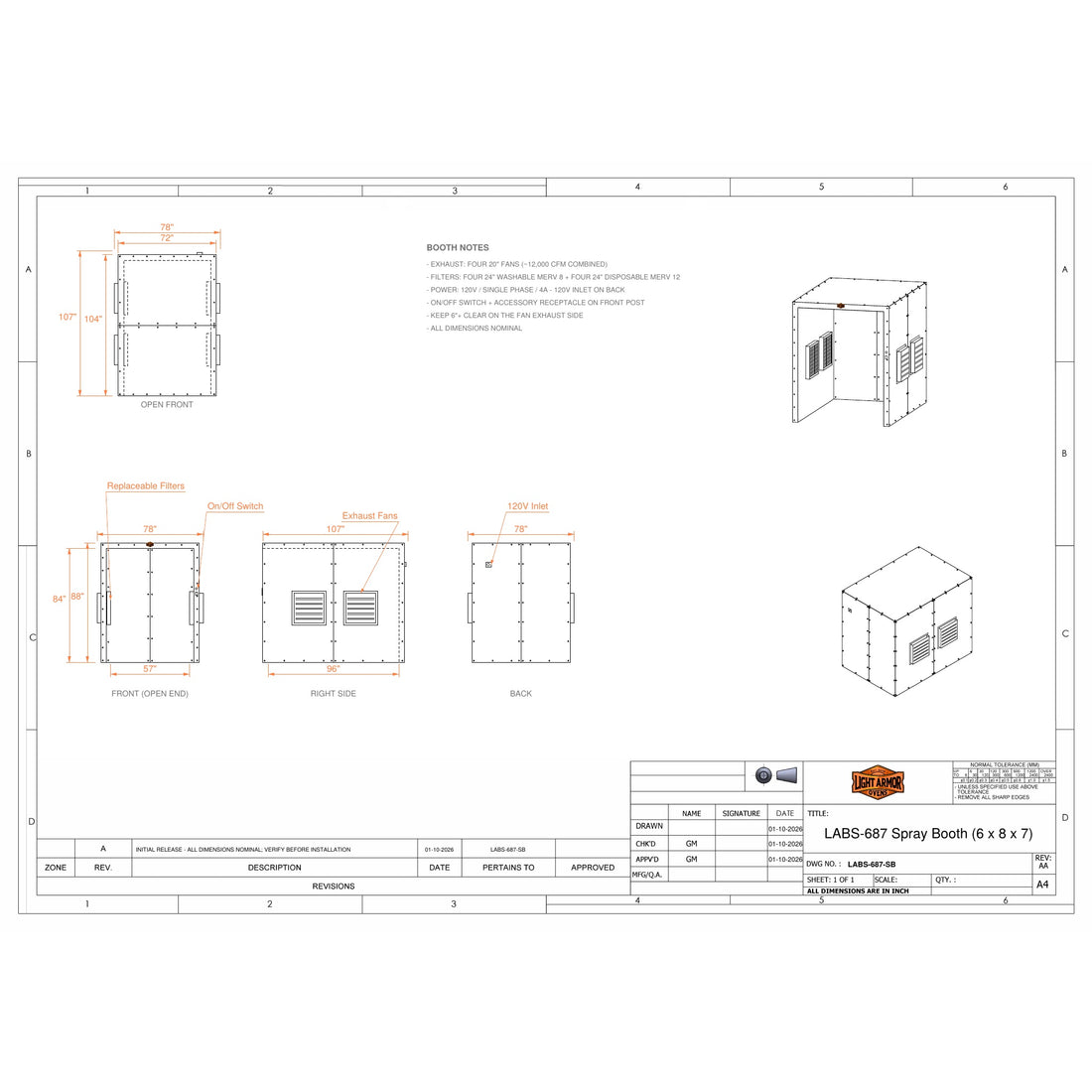

| ✎ Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 57″ W × 96″ D × 84″ T |
| Outside Footprint | 78″ W × 107″ D × 88″ T |
| Skid Size | 7′ W × 10′ D × 94″ T |
| Shipping Weight | ~1,000 lb |
| Recommended Distance from Wall | 6″ (fan exhaust side) |
| ⚡ Power & Electrical | |
| Power Requirements | 120V / Single Phase / 4A Draw |
| Electrical Hook-Up | 120V Inlet on Back (extension cord not included) |
| Accessory Receptacle | Front-Mounted, for Powder Gun or Similar |
| Power Switch | Green Illuminated On/Off |
| 💨 Airflow & Filtration | |
| Exhaust Fans | Four 20″ / ~12,000 CFM Combined |
| Filtration | Four 24″ Washable MERV 8 + Four 24″ Disposable MERV 12 |
| 🛡 Included & Support | |
| Lighting | Ceiling LEDs Included |
| Warranty | 1-Year Parts Warranty |
***OVERSIZED ITEM - REQUIRES FORKLIFT OR LOADING DOCK AT PLACE OF DELIVERY, UNLESS PICKING UP FROM FREIGHT TERMINAL OR OUR WAREHOUSE***
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
