LABS-4126 Powder Coat Oven (4 x 12 x 6)
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LABS-4126 Powder Coat Oven (4 x 12 x 6)
Unit from $8,099.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LABS-4126 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
42×153×72″
Weight
~1400 lb

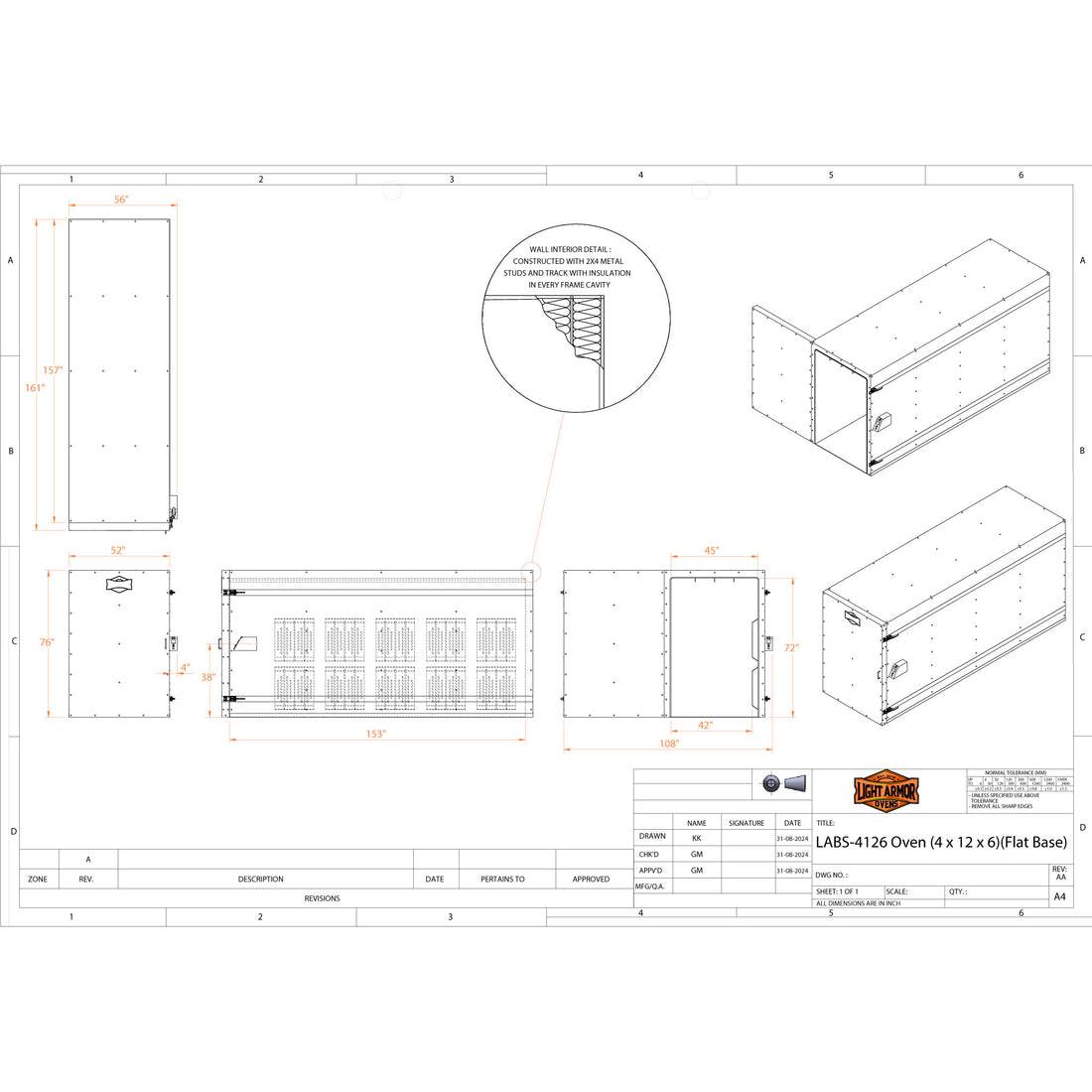

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 42″ W × 153″ D × 72″ T (Nominal) |
| Outside Footprint | 56″ W × 161″ D × 76″ T (Nominal) |
| Weight | ~1400 Pounds |
| Shipment Size | 6′ W × 14′ D × 7′ T |
| Recommended Distance from Wall | 3″+ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 140A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 150A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) |
| Recommended # of Blower Fans | 4–6 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty Included |
— Length Without the Footprint
Cure Long Parts in Tight Shops with the LABS-4126 Curing Oven
You need the length to fit twelve-foot parts, but you would rather not give up a foot of floor width. The LABS-4126 powder coating oven answers with a slim 4' x 12' x 6' chamber that reaches deep for long fabrications while keeping a narrow profile in your shop. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with G90 galvanized steel that resists rust, it rolls carts in flat and holds the consistent heat that dependable Cerakote and powder finishes demand.
Efficient Curing for Long Work
A four-foot-wide chamber heats efficiently while still handling railings, tubing, and extended parts end to end. Load it in batches or run it continuously — either way, the LABS-4126 delivers a full, even cure.
- ✓ Space-saving 4' width — full twelve-foot length in a footprint that fits crowded shops
- ✓ G90 galvanized steel — rust-resistant, Illinois-built construction built for daily use
- ✓ Flat floor loading — wheel carts straight in so long, heavy parts stay easy to handle
- ✓ Options to match your work — add a blower fan, oven light, or Rockwool insulation
OVERSIZED ITEM - REQUIRES FORKLIFT AT PLACE OF DELIVERY, UNLESS PICKING UP AT OUR WAREHOUSE. FOR FREIGHT RATE, PLEASE EMAIL US
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
