LABS-866 Powder Coat Oven (8 x 6 x 6)
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LABS-866 Powder Coat Oven (8 x 6 x 6)
Unit from $7,499.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LABS-866 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
96×64×72″
Weight
~1500 lb

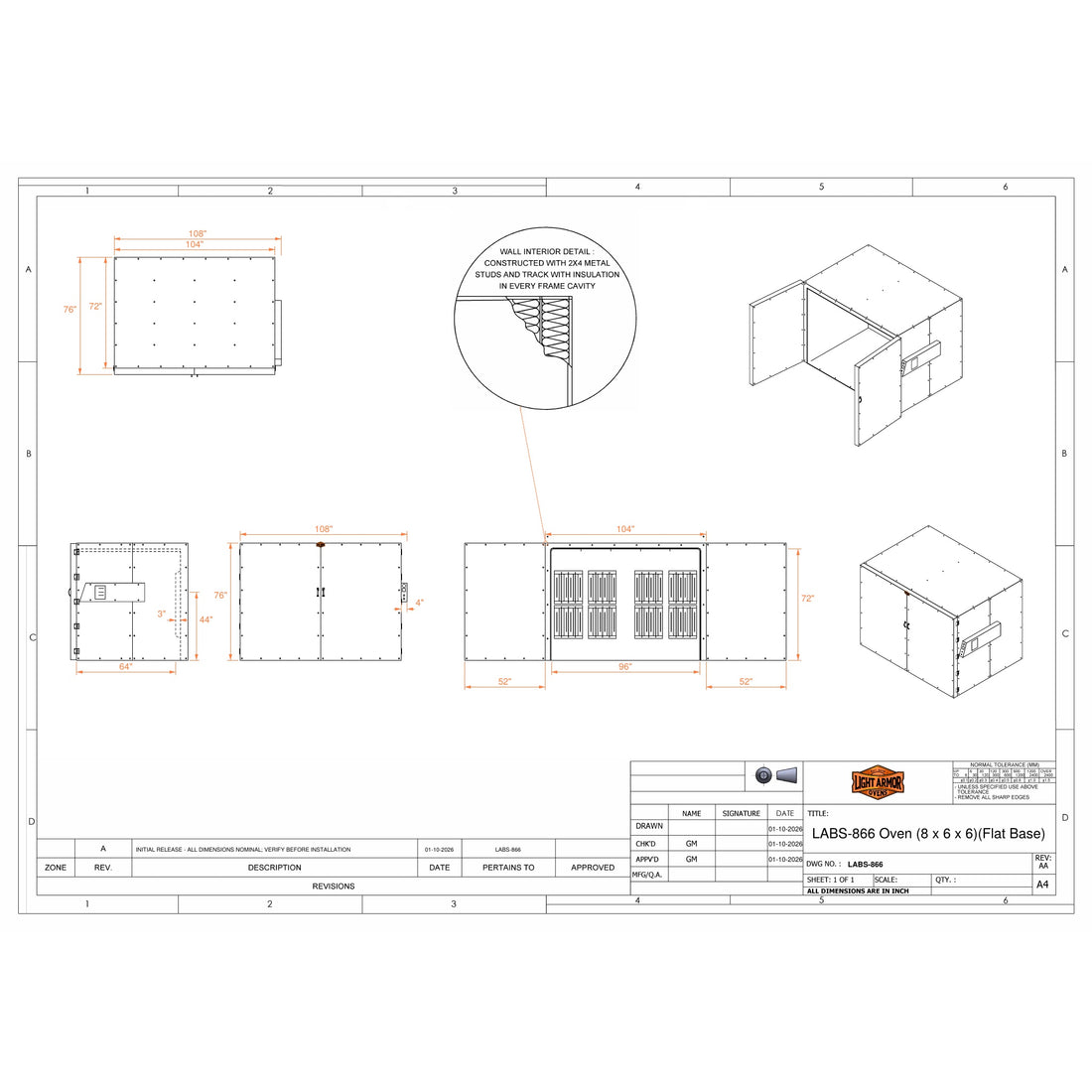

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 96″ W × 64″ D × 72″ T (Nominal) |
| Outside Footprint | 108″ W × 76″ D × 76″ T (Nominal) |
| Weight | ~1500 Pounds |
| Shipment Size | 7′ W × 10′ D × 7′ T |
| Recommended Distance from Wall | 3″+ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 112A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 125A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) |
| Recommended # of Blower Fans | 3–4 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty Included |
— Customizable Curing Oven
The LABS-866 Powder Coating Oven Rolls Big Batches In and Cures Them Right
Cure more in every cycle with the LABS-866, a customizable curing oven built around a roomy 8' x 6' x 6' chamber. A flat floor lets you roll loaded carts straight in, so heavy or bulky parts go from rack to heat without lifting. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with rust-resisting G90 galvanized material, this powder coating oven is engineered to hold steady, even heat through the full curing cycle for consistent, dependable results on every part.
Built Your Way for Your Parts
The LABS-866 adapts to how you work — configure it for batch loading or a continuous process, and add options like a blower fan, an oven light, or Rockwool insulation. Whether you run powder coating or Cerakote, this Illinois-built curing oven is designed to deliver the reliable, repeatable heat your finishes depend on.
- ✓ Spacious 8' x 6' x 6' chamber — cures large parts and full batches in a single efficient load
- ✓ Flat roll-in floor — wheel loaded carts directly inside — no awkward lifting of heavy parts
- ✓ G90 galvanized, assembled in the USA — from U.S. and imported parts; resists rust and stands up to years of shop use
- ✓ Customizable configuration — add a blower fan, oven light, or Rockwool insulation to match your workflow
OVERSIZED ITEM - REQUIRES FORKLIFT AT PLACE OF DELIVERY, UNLESS PICKING UP AT OUR WAREHOUSE. FOR FREIGHT RATE, PLEASE EMAIL US
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
Customer Reviews
No reviews yet. Own one of these? We'd love to hear how it's working in your shop.
