LABS-867 Powder Coat Oven (8 x 6 x 7)
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LABS-867 Powder Coat Oven (8 x 6 x 7)
Unit from $7,999.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LABS-867 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
96×64×84″
Weight
~1750 lb

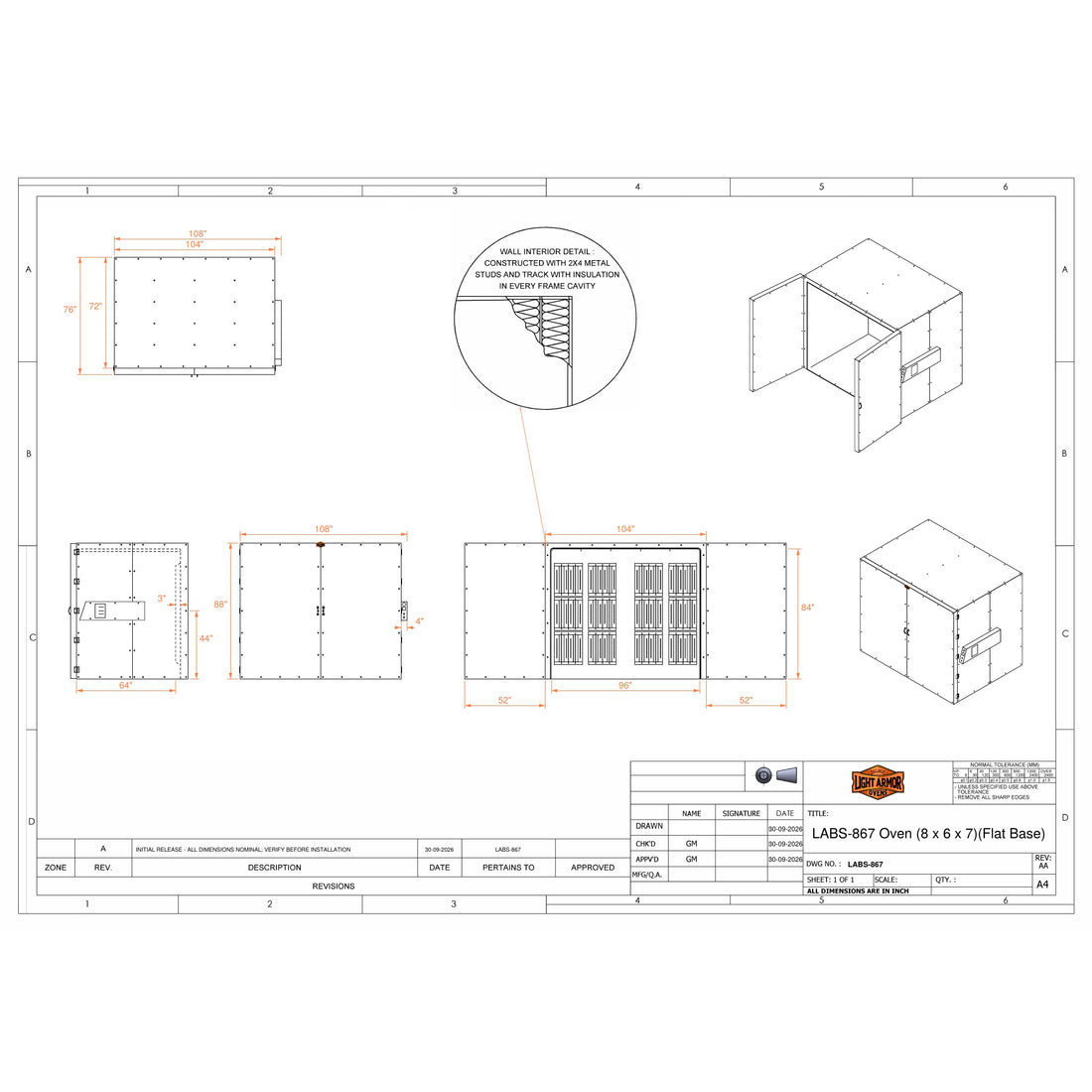

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 96″ W × 64″ D × 84″ T (Nominal) |
| Outside Footprint | 108″ W × 76″ D × 88″ T (Nominal) |
| Weight | ~1750 Pounds |
| Shipment Size | 7′ W × 10′ D × 8′ T |
| Recommended Distance from Wall | 3″+ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 168A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 175A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) |
| Recommended # of Blower Fans | 3–4 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty Included |
— Roll-In, Roll-Out Curing
The LABS-867 Powder Coating Oven Was Built for Heavy Production
Big loads deserve a big box. The LABS-867 curing oven opens up a spacious 8' x 6' x 7' chamber with a flat floor, so you can roll carts straight in and keep heavy or awkward parts moving without lifting a thing. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with G90 galvanized steel, this powder coating oven resists rust and delivers the steady, held heat that powder coat and Cerakote chemistry rely on to cure correctly — then cools your parts down on cue.
Configured Around Your Workflow
Run the LABS-867 for batch loading or fold it into a continuous process, matched to your part count and throughput. Customize it your way with a blower fan, interior oven light, or Rockwool insulation, and count on even heat that repeats dependable results across every load.
- ✓ Flat-floor 8' x 6' x 7' chamber — roll carts in and out with heavy parts loaded
- ✓ Designed and Assembled in the USA, G90 galvanized — from U.S. and imported parts; rust-resistant steel built for daily production
- ✓ Batch or continuous process — scales to your part volume and schedule
- ✓ Customizable build — add a blower fan, oven light, or Rockwool insulation
OVERSIZED ITEM - REQUIRES FORKLIFT AT PLACE OF DELIVERY, UNLESS PICKING UP AT OUR WAREHOUSE. FOR FREIGHT RATE, PLEASE EMAIL US
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
Customer Reviews
No reviews yet. Own one of these? We'd love to hear how it's working in your shop.
