LABS-886 Powder Coat Oven (8 x 8 x 6)
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LABS-886 Powder Coat Oven (8 x 8 x 6)
Unit from $10,999.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LABS-886 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
96×96×72″
Weight / Skid
~1250 lb / skid
| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 96″ W × 96″ D × 72″ T (Nominal) |
| Outside Footprint | 108″ W × 108″ D × 76″ T (Nominal) |
| Weight | ~1,250 Pounds Per Skid |
| Shipment Size | x2 Skids, Each 5′ W × 10′ D × 7′ T |

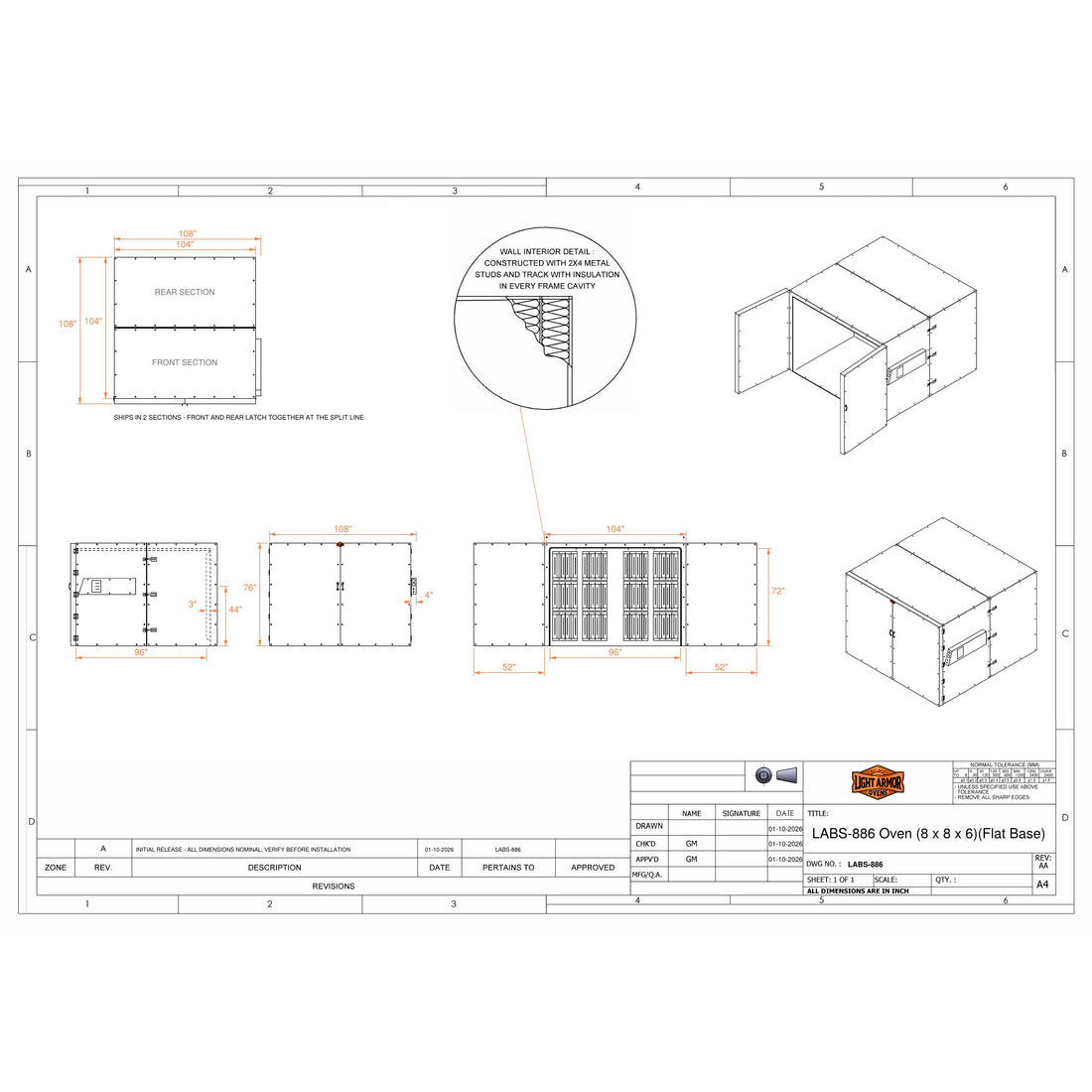

| Assembly | Ships in Two Sections (front & rear, latch together on site) |
| Recommended Distance from Wall | 3″+ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 168A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 175A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) |
| Recommended # of Blower Fans | 4–6 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty Included |

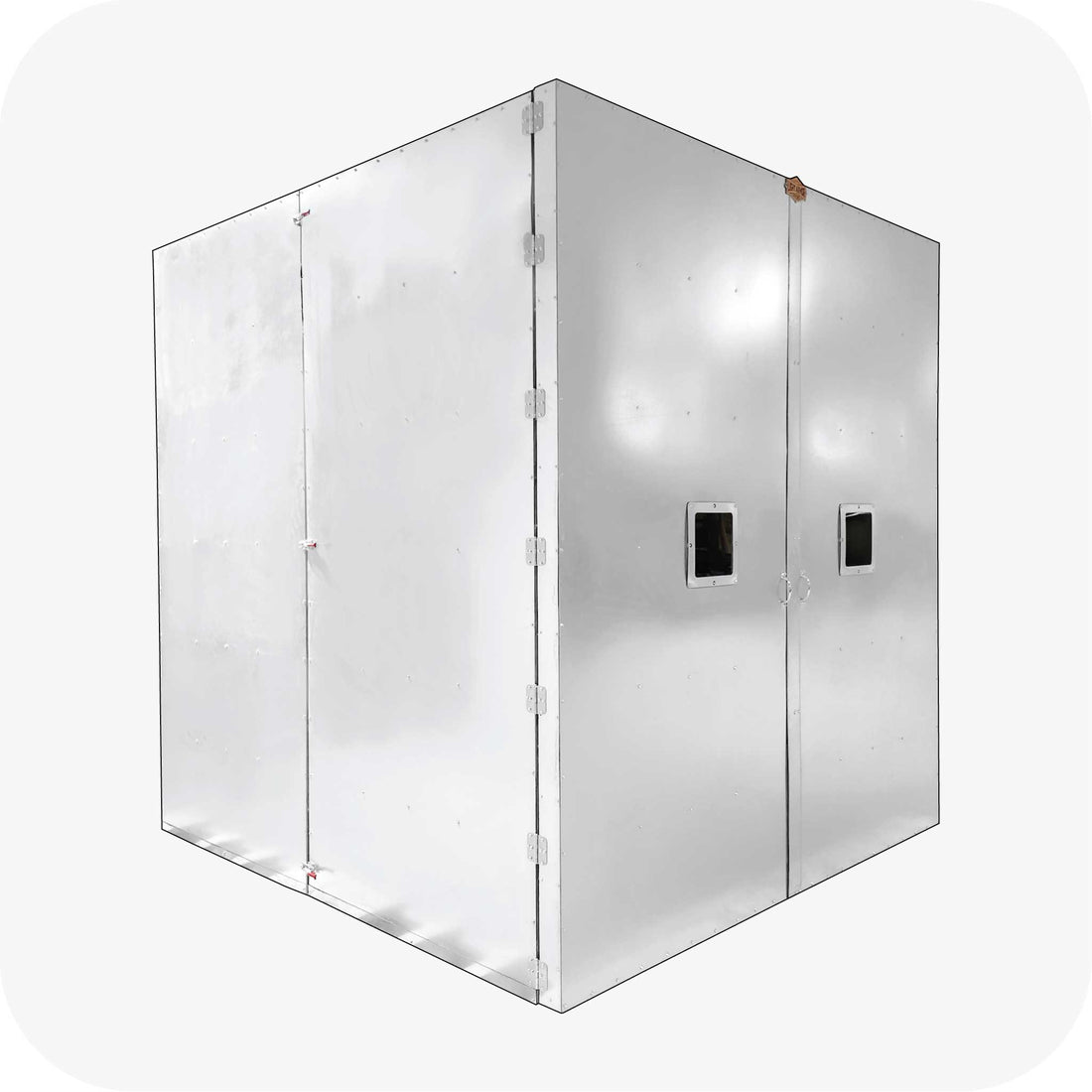

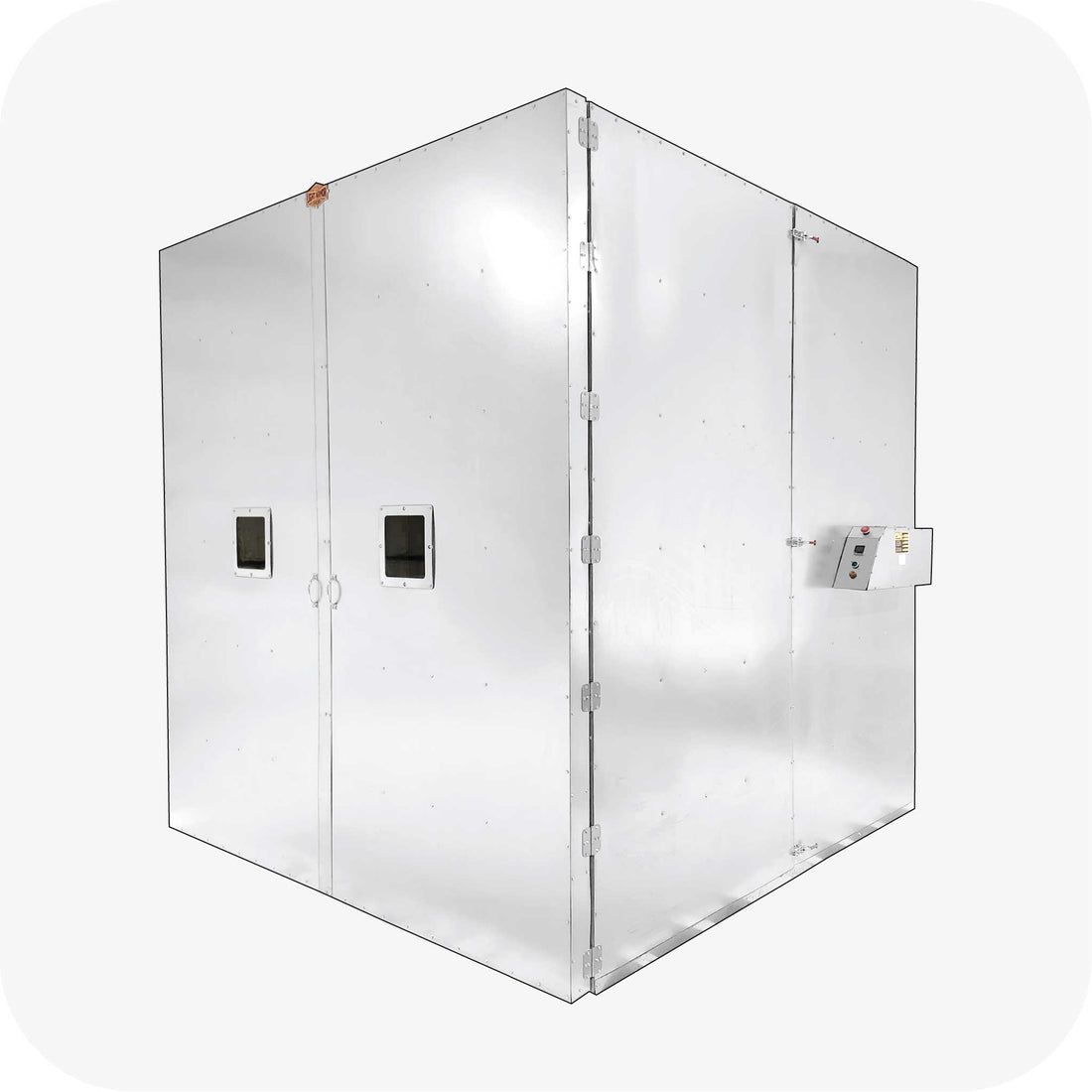

— Illinois-Built Curing Oven
Widen Your Output With the LABS-886 Powder Coating Oven
The LABS-886 curing oven brings extra width to your finishing line with a generous 8' x 8' x 6' chamber — ideal when parts are broad, plentiful, or both. Its flat floor welcomes rolling carts so you can load a full batch and get it curing fast. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with rust-fighting G90 galvanized material, this powder coating oven maintains the steady, sustained heat that powder coating and Cerakote finishes need to cure hard and even.
Heat You Can Count On, Cycle After Cycle
Run the LABS-886 for batch loading or continuous production, and tailor it with a blower fan, oven light, or Rockwool insulation. Windows and lights are available as an optional upgrade when you want a clear view inside. However you configure it, this Illinois-built curing oven is built to deliver consistent, dependable curing across a wide range of industries.
- ✓ Wide 8' x 8' x 6' chamber — gives broad parts and large batches plenty of room to cure evenly
- ✓ Two-section build — built and shipped as front and rear sections that latch together on site, so each piece is easier to move into your shop

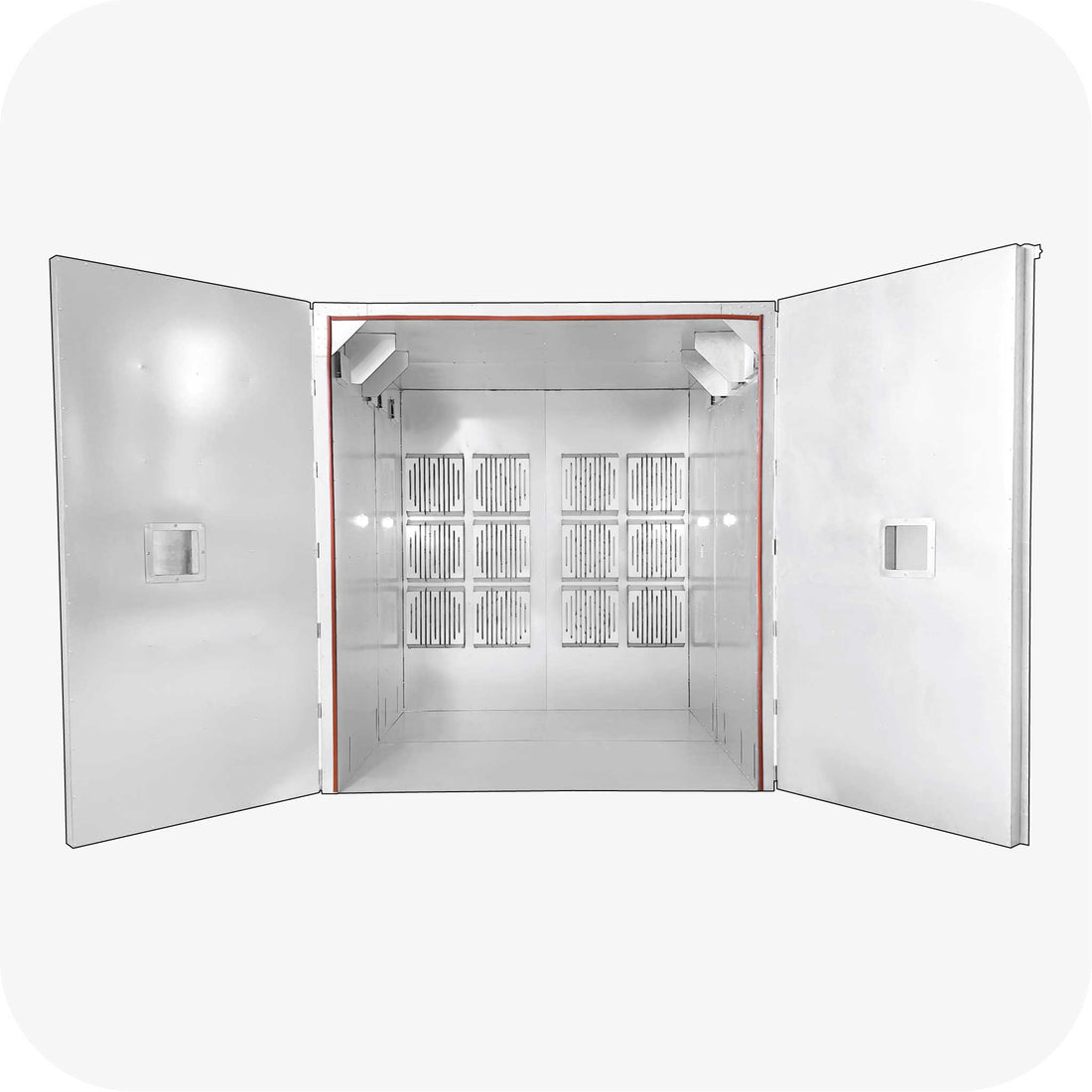

- ✓ Roll-in flat floor — load carts straight in and keep your curing cycles moving
- ✓ Optional windows and lights — add a clear view inside as an upgrade when you want to monitor parts
- ✓ Illinois-built G90 galvanized build — resists rust and holds steady heat for repeatable, reliable results
OVERSIZED ITEM - REQUIRES FORKLIFT AT PLACE OF DELIVERY, UNLESS PICKING UP AT OUR WAREHOUSE. FOR FREIGHT RATE, PLEASE EMAIL US
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
