In-Stock and Loaded LA10K7 Oven (4' x 4' x 7')
In-Stock and Loaded LA10K7 Oven (4' x 4' x 7') is backordered and will ship as soon as it is back in stock.
Pickup available at Main Warehouse
Usually ready in 5+ days

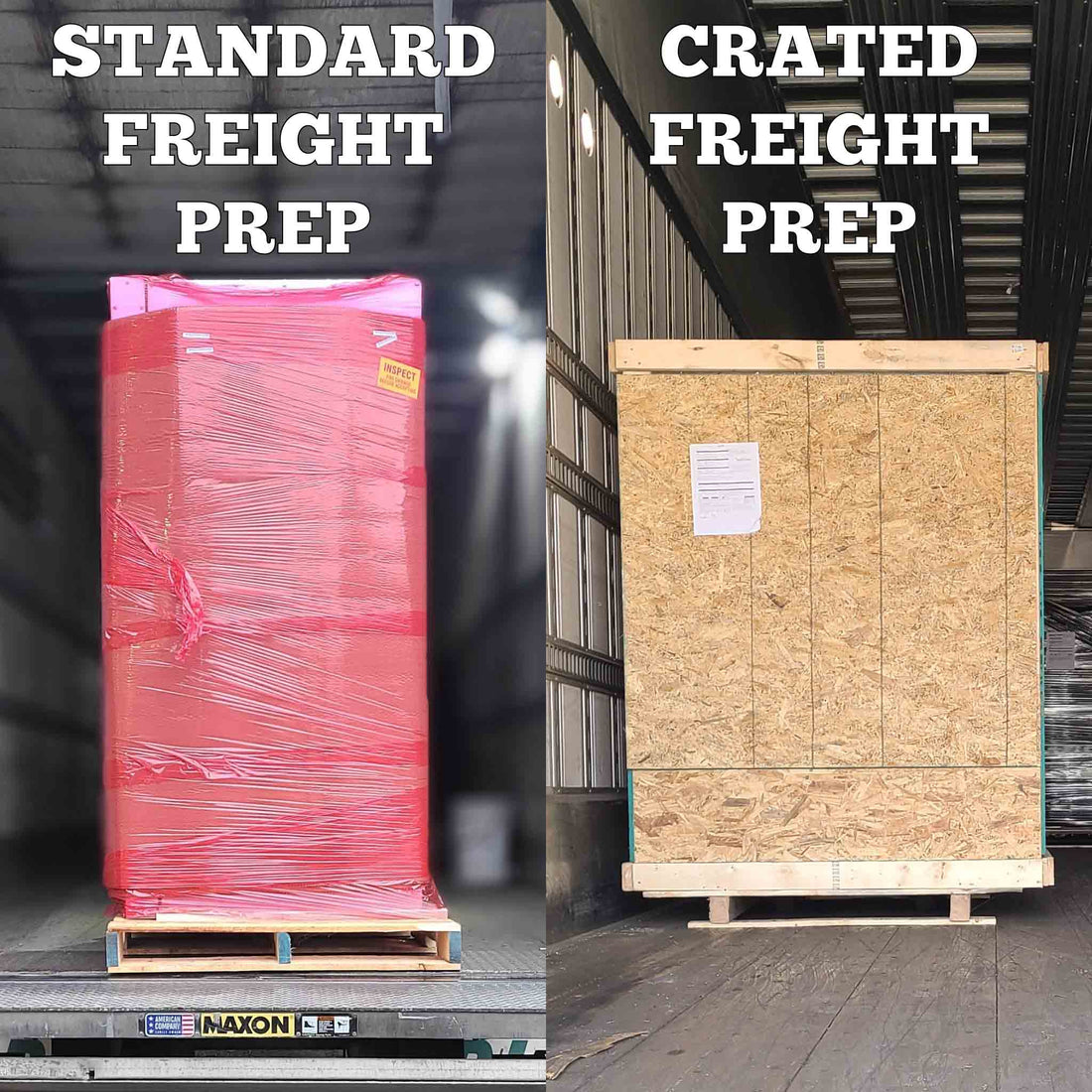

Shipping, Tracking and Delivery
Shipping, Tracking and Delivery
Once your order is picked up by freight, we email you tracking information so that you can follow your shipment in transit. Freight carriers will have your name and number in case they need to contact you ahead of delivering. Be sure to inspect your shipment at delivery and note any damage with the driver before signing the bill of lading.
Description
Description
ā Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
ā LA10K7 Ā· Technical Specifications
Everything You Need To Know
Max Temperature
500Ā°F

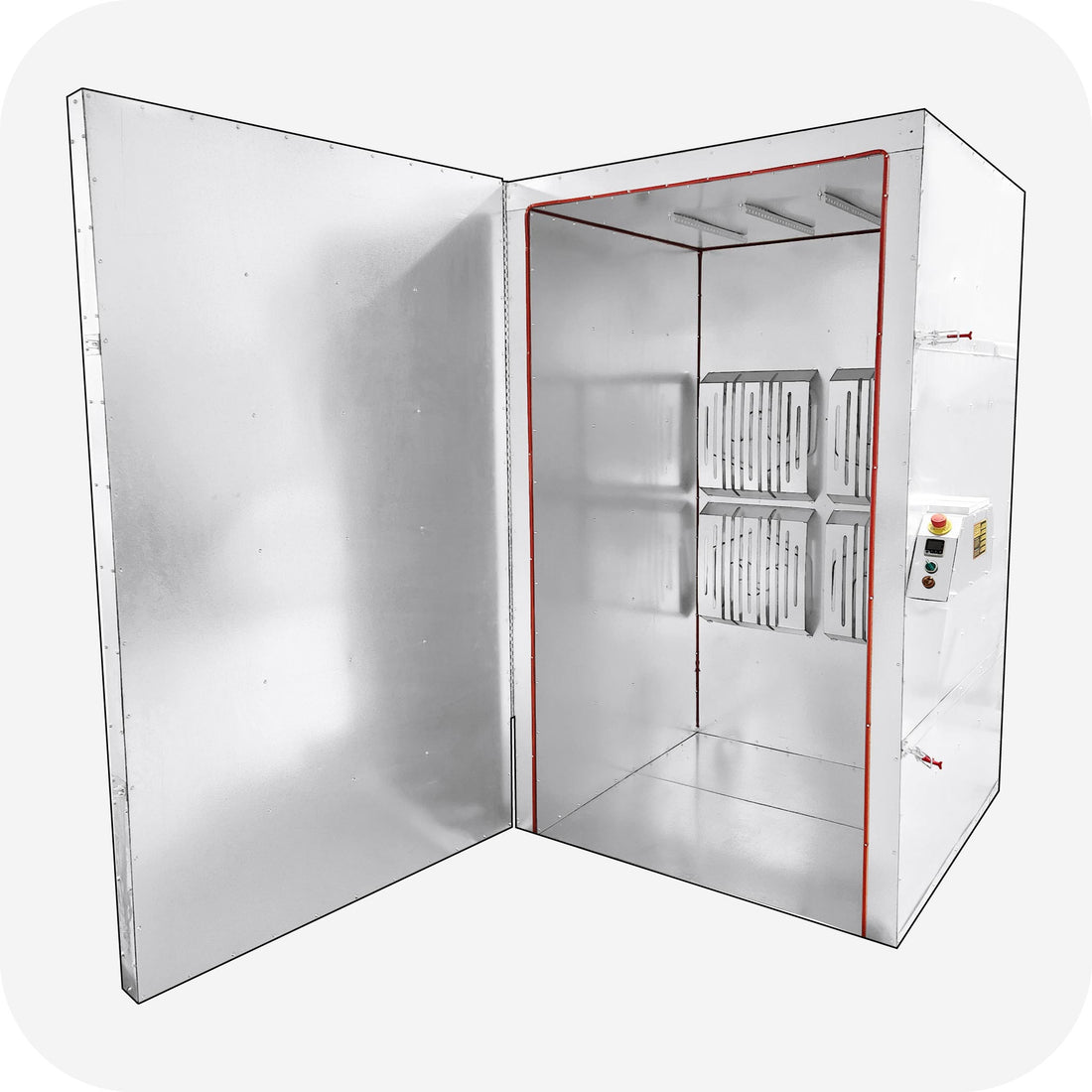

Inside Working Space
45Ć46Ć84ā³
Shipping Weight
~675 lb

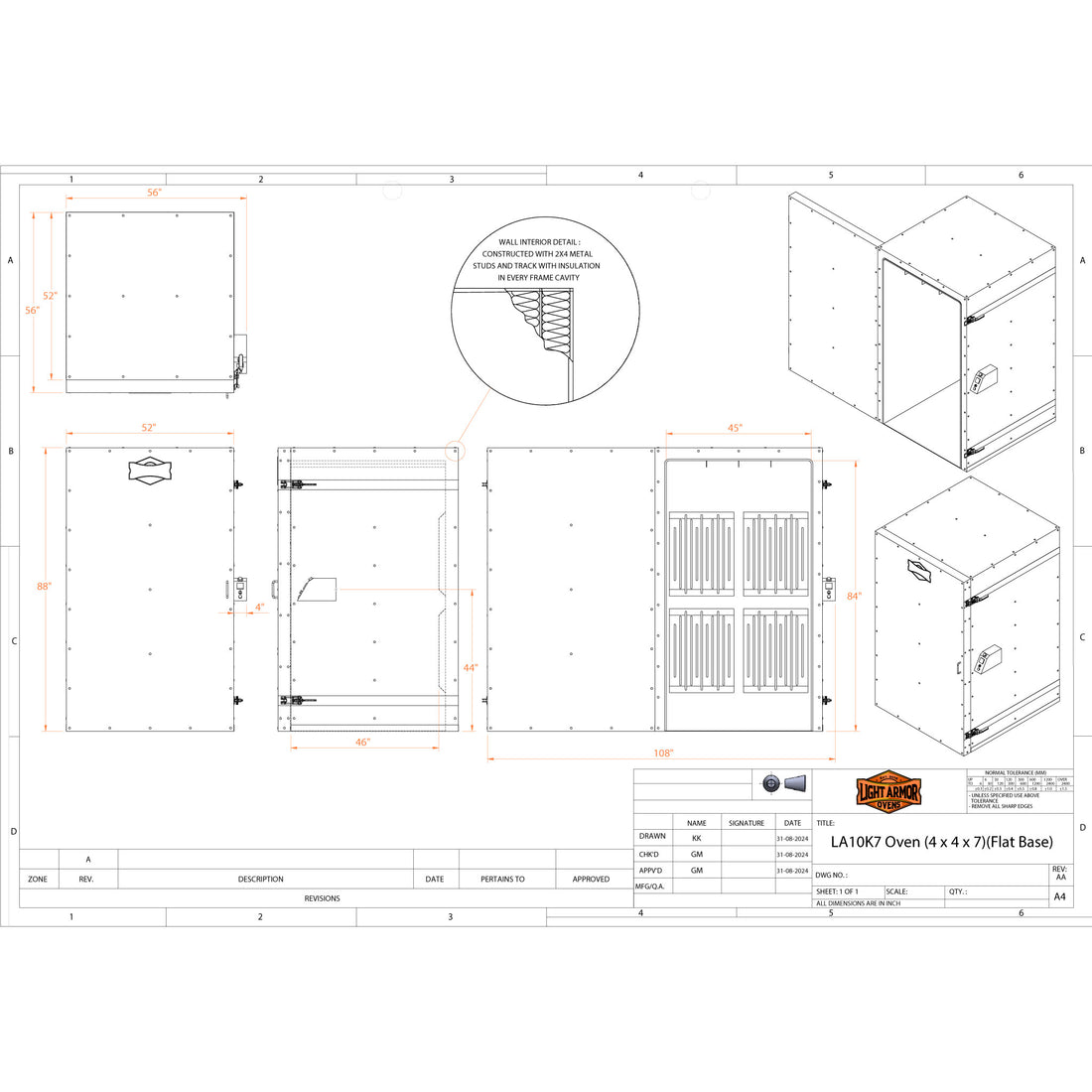

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 45ā³ W Ć 46ā³ D Ć 84ā³ T (Nominal) |
| Outside Footprint | 56ā³ W Ć 56ā³ D Ć 88ā³ T (Nominal) |
| Shipment Size | 5ā² W Ć 5ā² D Ć 8ā² T |
| Recommended Distance from Wall | 3ā³ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 56A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 60A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 2 |
| Performance & Controls | |
| Temperature Range | Ambient ā 500Ā°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |

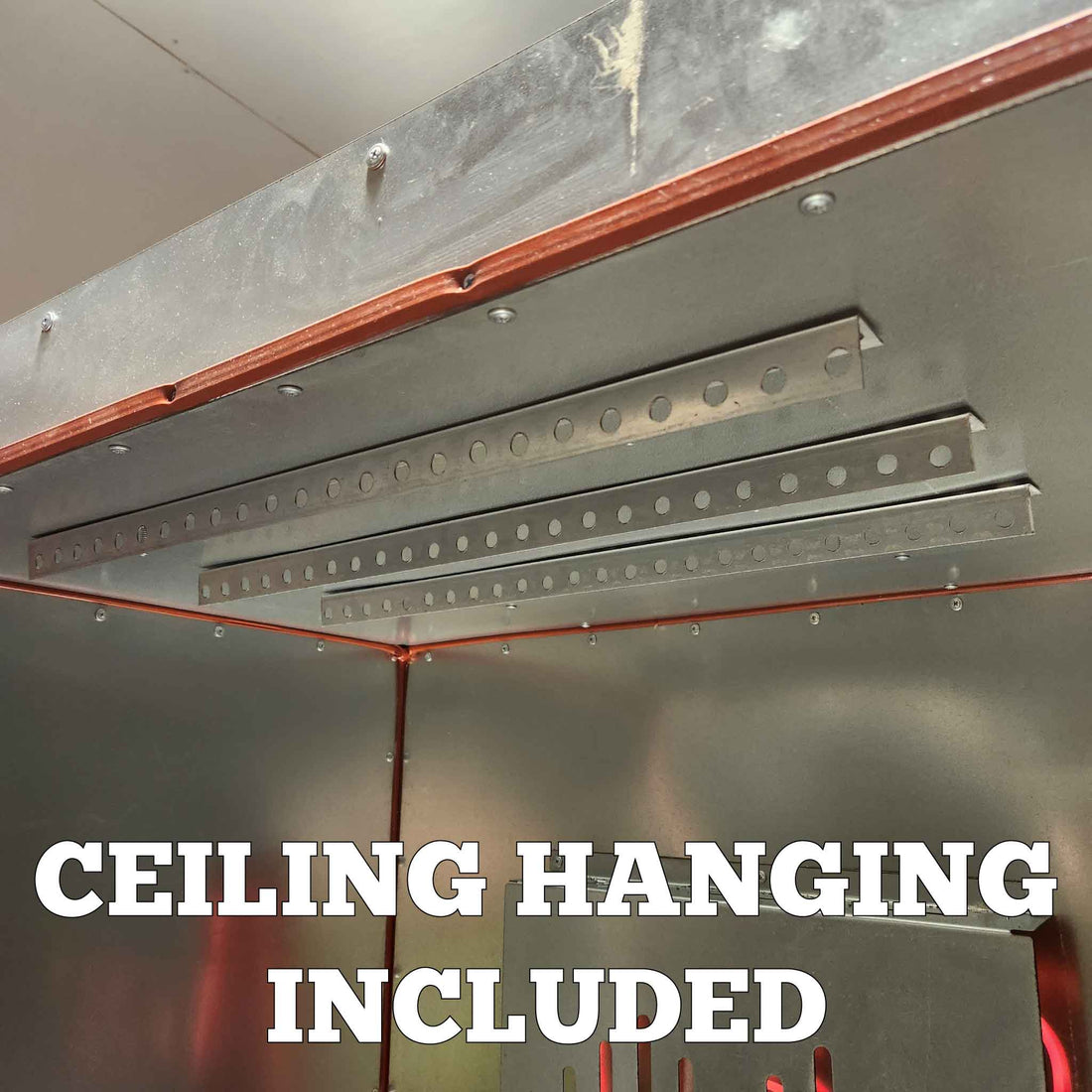

| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
ā Ready To Ship Today

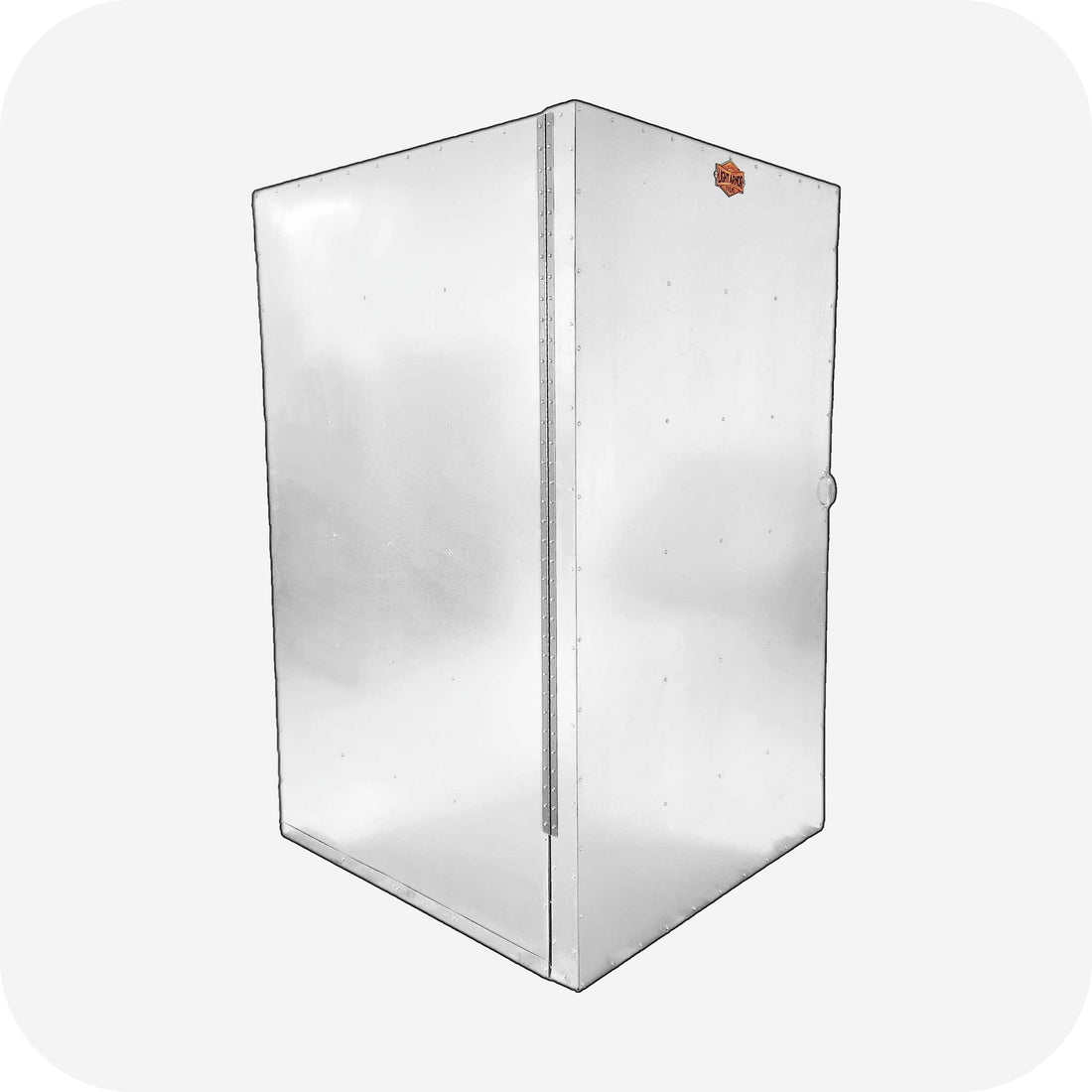

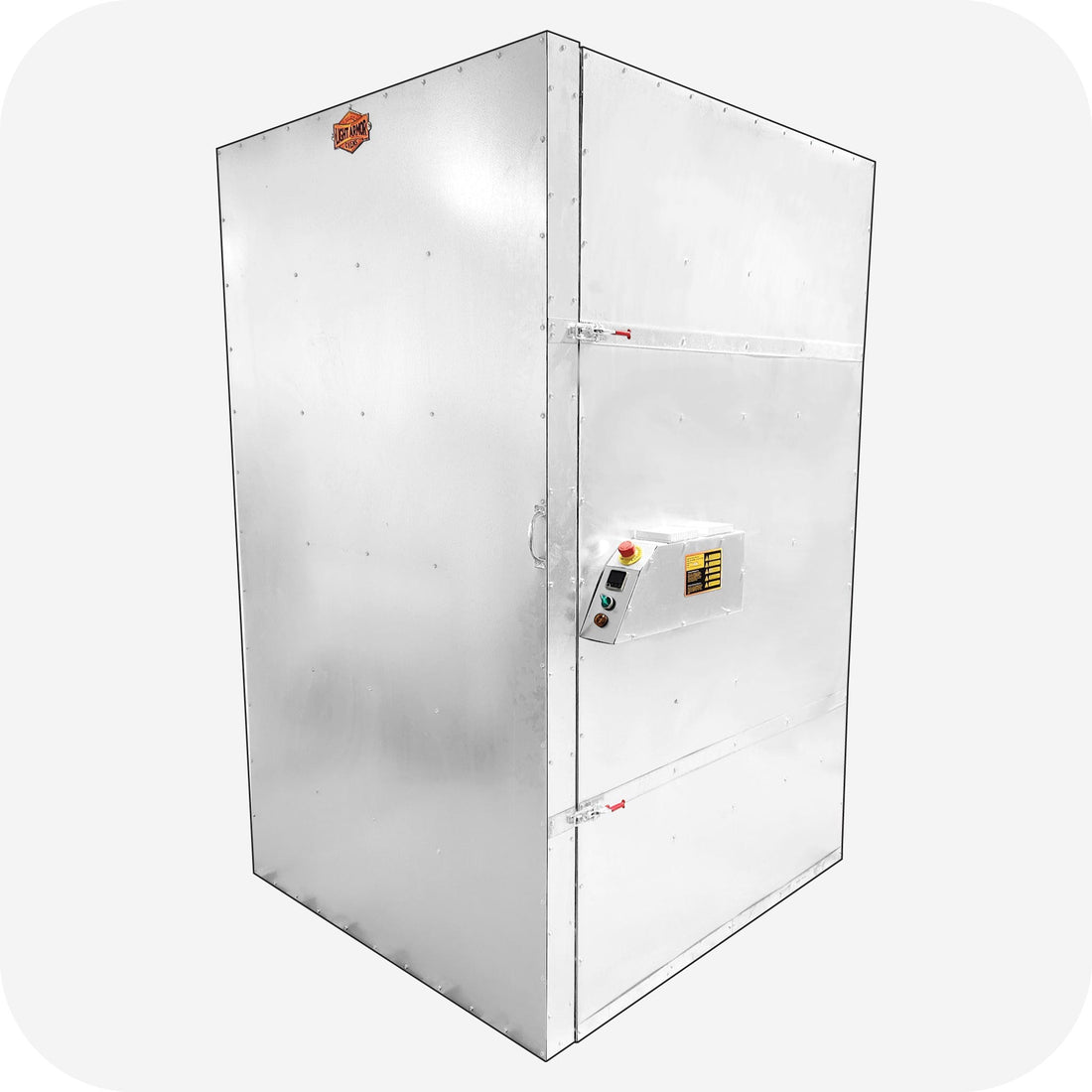

The In-Stock LA10K7 Curing Oven Skips the Wait
Some jobs can't wait on a build queue ā and this one won't make you. The LA10K7 powder coating oven is in-stock and loaded, ready to ship so you can start curing sooner. Its 4' x 4' x 7' chamber gives you generous vertical room for long parts and hanging loads, and every panel is built in the USA from G90 galvanized steel that shrugs off rust for the long haul. Whether you run powder coat or Cerakote, this curing oven holds heat steady for the soak time your chemistry demands, then cools cleanly.
Consistent Cures, Batch After Batch

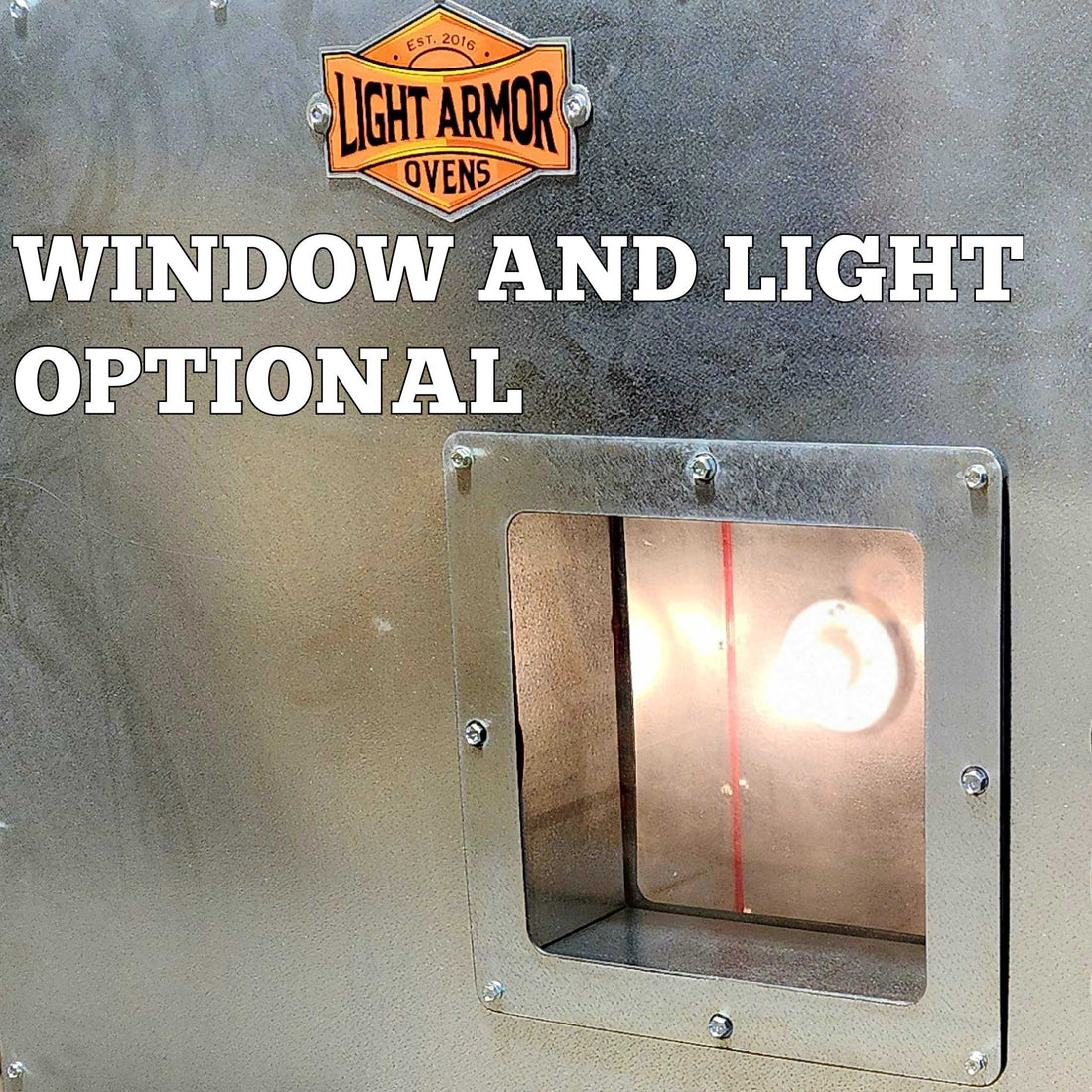

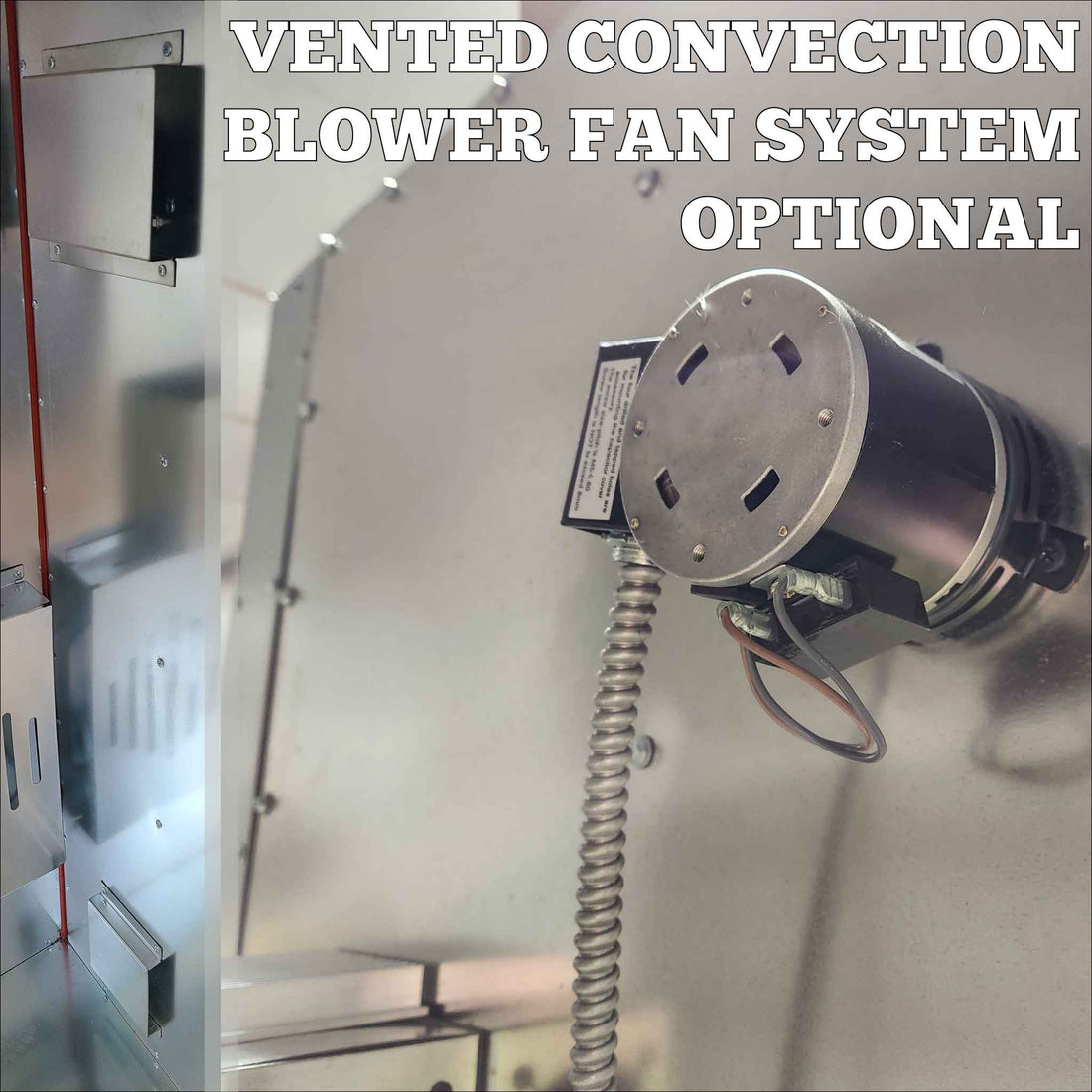

Run it as a batch box or fold it into a continuous process ā the LA10K7 flexes to your workflow and part count. Customize it with a blower fan or interior oven light, and lean on the even, dependable heat that turns out repeatable results every load.
- ā In-stock and loaded ā ships fast so your finishing line keeps moving
- ā Tall 4' x 4' x 7' chamber ā hang long parts upright with room to spare
- ā Made in the USA, G90 galvanized ā rust-resistant build engineered to last
- ā Batch or continuous ready ā add a blower fan or oven light to match your process
