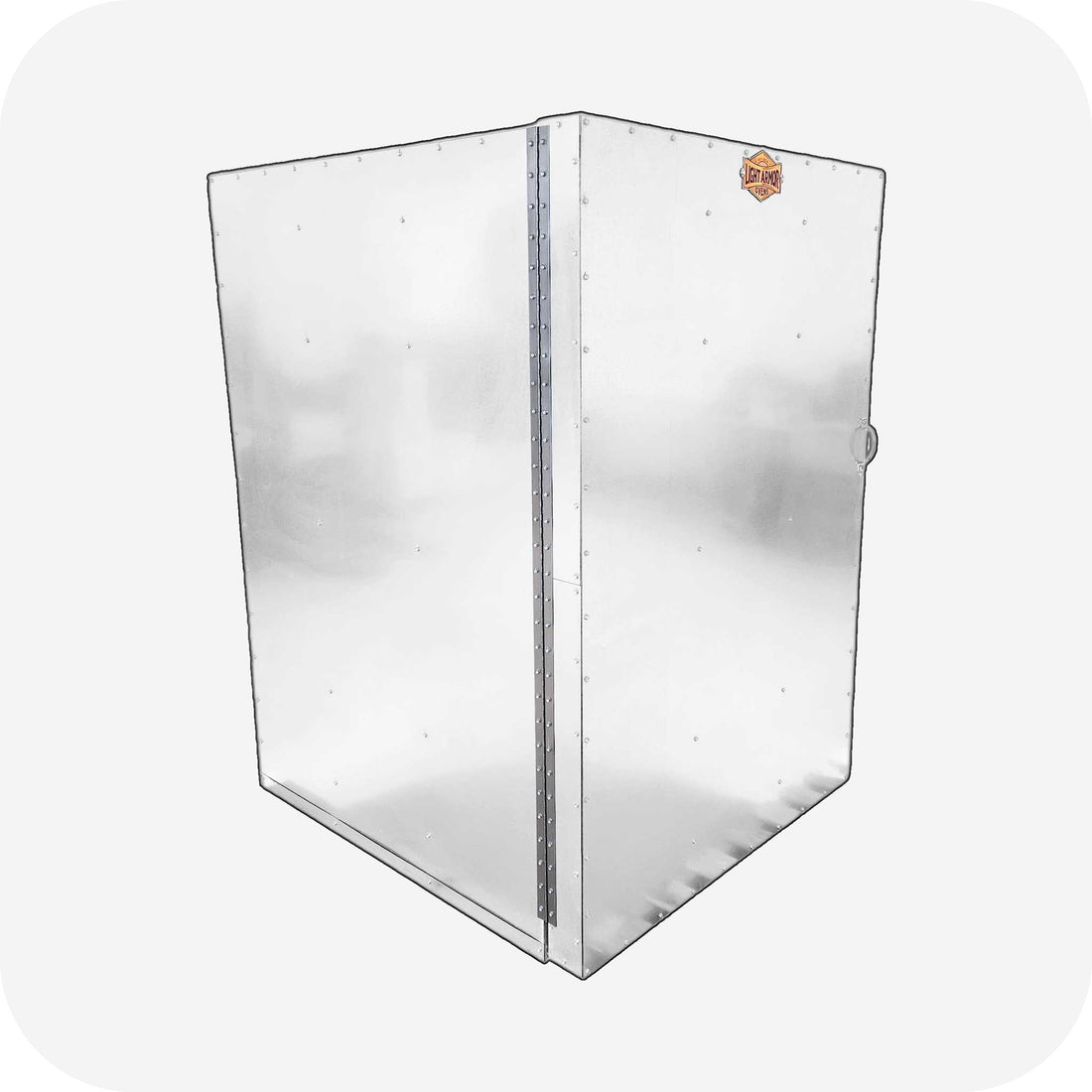

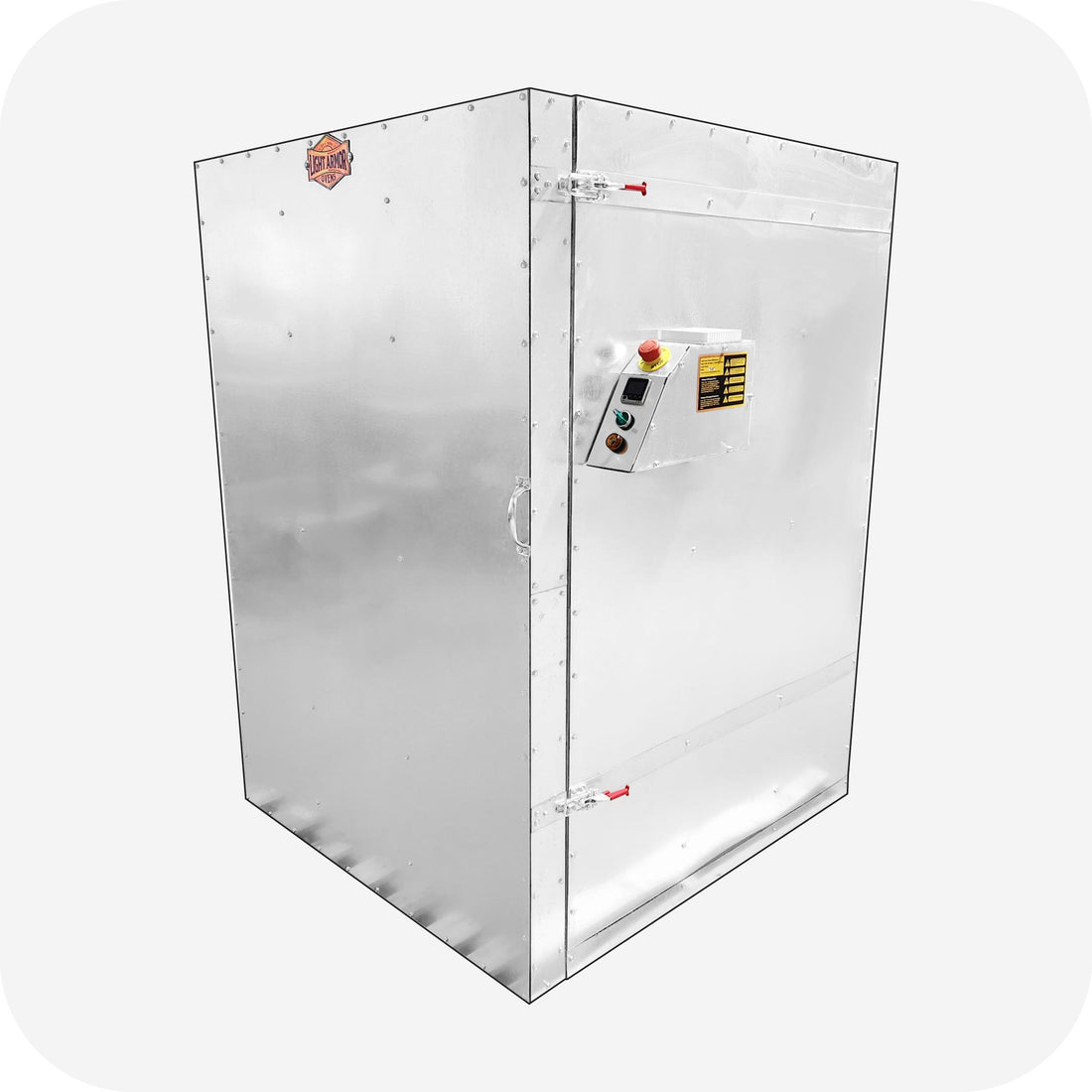

In-Stock and Loaded LA5000D Oven (3' x 3' x 5')
4.9 · 22 ReviewsShips LTL freight, calculated at checkout from your address — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: it's calculated at checkout from your address, or pick it up free in Central Illinois.
Your upgrades go into the cart with your oven.
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
In stock and ready to ship: 3′ x 3′ x 5′ powder coat oven. 36″ x 37″ x 60″ interior, up to 500°F, 240V on a 30A breaker.
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LA5000D · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
36×37×60″
Shipping Weight
~400 lb

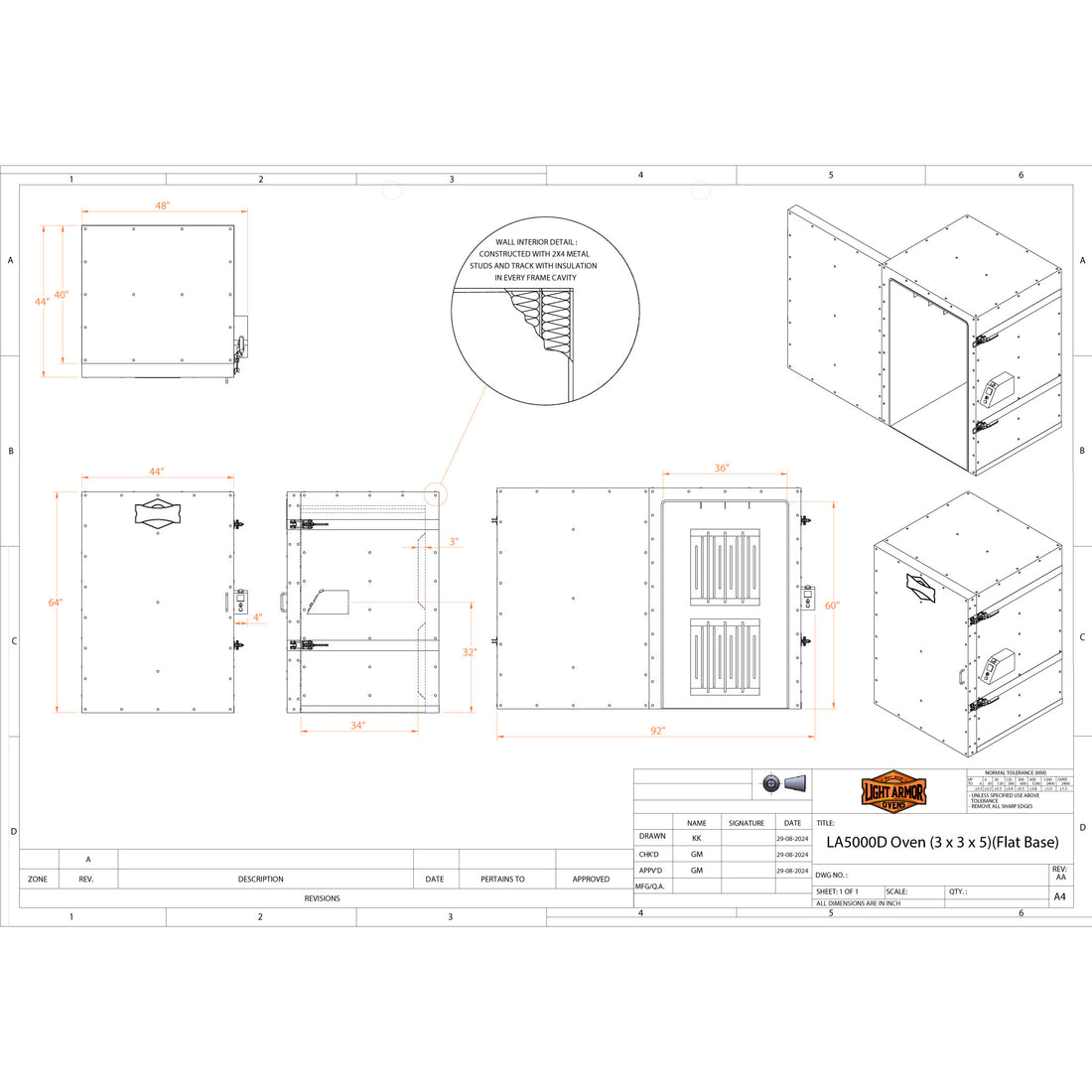

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 36″ W × 37″ D × 60″ T (Nominal) |
| Outside Footprint | 48″ W × 48″ D × 64″ T (Nominal) |
| Shipment Size | 4′ W × 5′ D × 6′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 28A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 30A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 1 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
— Compact Power, Big Results
The LA5000D Curing Oven Packs Pro Performance Into a Tidy Footprint
If you need serious curing capability without giving up half your shop, the LA5000D is built for you. Its 3' x 3' x 5' body — a true 36" x 37" x 60" interior — slots into tight spaces yet handles real production work. And because this powder coating oven is In-Stock and Loaded, it's ready to ship the moment you order.
Faster Cycles, Consistent Cures
Expect shorter cycle times, uniform airflow, and fast cooling on every run. With a maximum 500°F and precise time and temperature control, this curing oven delivers the repeatable, uniform results Cerakote and powder coating demand — while trimming your operating costs.
- ✓ Space-smart 36" x 37" x 60" — full curing power that fits where bigger ovens can't

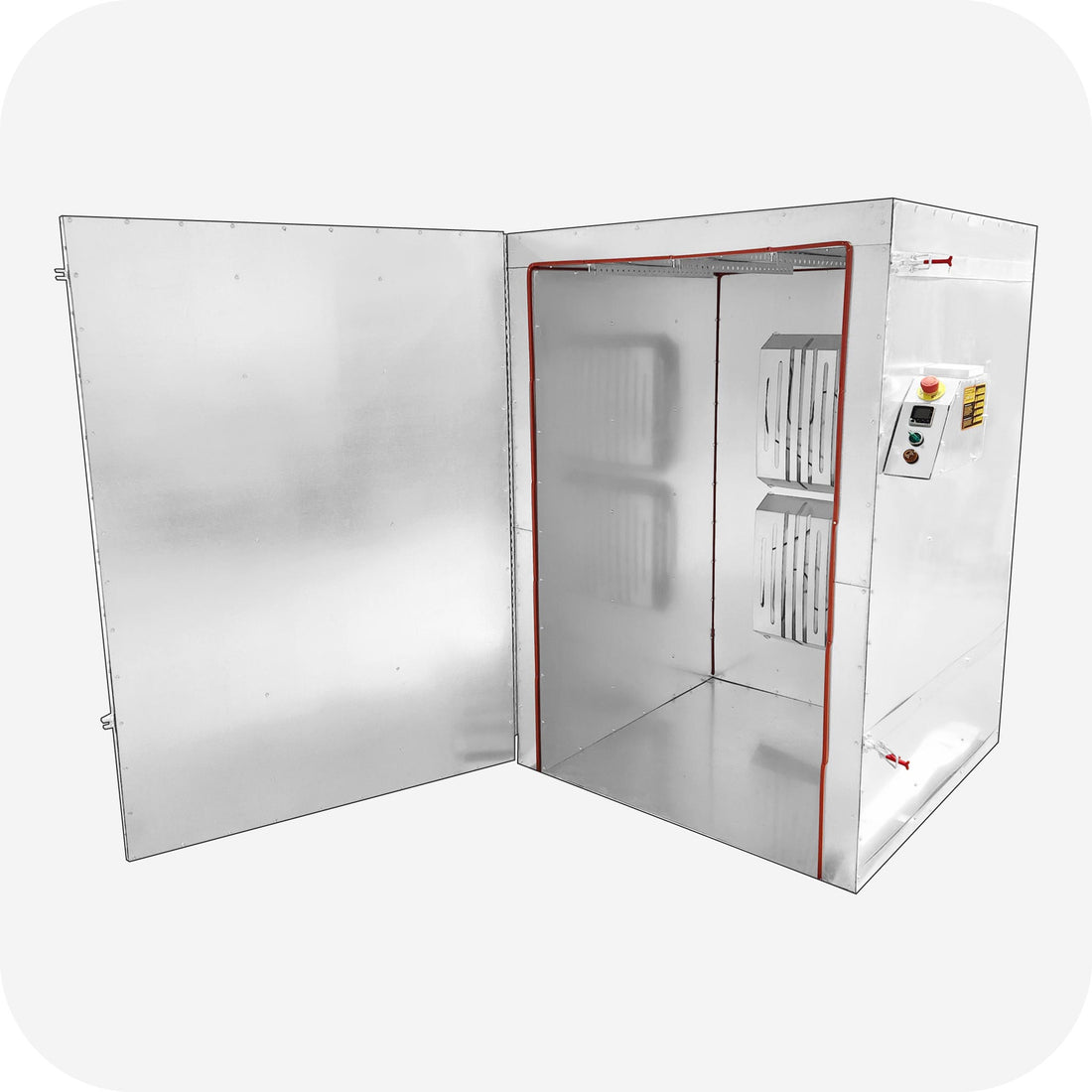

- ✓ Wide door — load and cure materials of all shapes and sizes with ease
- ✓ 500°F with precise control — time and temperature settings for uniform, repeatable finishes
- ✓ Ships now — In-Stock and Loaded, so productivity starts sooner
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
Customer Reviews
So far so good. Couldn’t be happier with my newly purchased oven. I had a bunch of questions prior to purchasing and was able to get in contact with someone in a matter of minutes using the chat button. They were extremely helpful and ultimately is the reason I purchased from them. The unit shipped quickly and arrive very well packaged. Upon placing it and hooking it up it was seamless and the oven works great so far. Couldn’t be happier with it!
We received our oven in about a week and a half from the time I ordered from the time it was delivered. It heats up to 450 in about 10 minutes and is super larger than I expected (great thing) we are able to do much larger projects and have had no issues. I was nervous about delivery due to it being so large but it was perfect. If you are thinking about an oven definitely check them out and you can customize it however you like.
I ordered this oven and was kind of nervous about shipping. The item this big, but it came in perfect condition undamaged and when I turned it on it came on and heated up within 10 minutes. I opted for the 6 feet with the upgraded blowers caster wheels, upgraded element plug and play in ceiling hangers. This oven makes it so much easier for me to Powdercoat large items and has helped us expand our business. I would definitely recommend buying from light armor.
I love this oven. So much better than trying to use a kitchen oven to do Cerakote and powder coating, and a great price. Get all of the upgrades. Trust me, worth the money.
Love this new oven! What an upgrade from what i use to have. This oven is a beast , heats up fast and keeps the temperature stable. I use it for Cerakote so i added the fan upgrade- well worth it! My next oven will be another Light Armor for sure.
We run a small business doing Cerakote and powdercoat and the oven we were using wasn’t big enough to do a lot of the projects we were asked to do, so we were improvising. We saved up and purchased the LA5000 and I’m so glad we did! Not only is this larger than we expected but it fit in the shop perfectly, shipping was amazing, and and it arrived in great condition. Now we have plenty of room to get bigger projects out and get them done faster as well, and we don’t have to wait over an hour for our old oven to heat up to temp. We couldn’t be happier with this oven!
we were able to bring 90% of the power coating we were sending out in-house with this oven and do the coating we were doing in-house in small patches in much larger batches. It is very efficient. We have not noticed much of a difference in the electric bill.
I have to admit, I was nervous about paying the full price (instead of just a downpayment) for something we wouldn't receive until 6 weeks later with a company that I have never done business with before. Everything arrived in great shape, craftsmanship and materials are good overall. The oven heats up very fast which is exciting. It seals up nice and doesn't smell too bad at 325. I didn't realize it would come 220v 4 wire instead of 220v 3 wire so I needed to rework for that but it's probably my fault for not researching that further. Customer service has been great so far, they answer their phones and emails which is awesome.
After spending some time searching the web for the most cost effective powder coating oven I was able to come across Light Armor Ovens' website. After a phone call & a couple emails I was able to connect with the owner. I expressed to him I was looking to add this service to my existing small business. Talking to him for a bit was a great decision, he was super informative, extremely knowledgeable, and nothing short of polite & professional. After our conversation I was very confident in purchasing my LA5000LB. For a small surcharge you can upgrade to the "plug-n-play" package, which takes out most of the setup necessary. The product itself blew my expectations out of the water, it is durable, evenly disperses the heat (I did purchase the convection blower fan & upgraded heating element) and looks great in my shop. They were proactive to help during shipping as well, it even arrived sooner than scheduled. I look forward to promoting such a great brand & business. Light Armor Ovens is a great business to reach out to, whether you're a beginner in this type of service (like myself) or the established professional looking for a custom oven. I couldn't be happier.
We have been working this oven round the clock for about a year now and have been very happy with it. My business Flippin Customized (youtube channel link below). We offer powder coating and wanted an oven that did not eat up to much space in our shop but could handle those custom pieces we have, this has fit the bill, we built a custom roll in rack and do wheels, motorcycle frames and more. We got the 60" tall unit, but if I could do it again I would go for the 72" unit.
Youtube channel:
https://www.youtube.com/channel/UCzVTPxdL7aTs2wf7tjzlAWQ
I bought this oven last year in January. I Cerakote and use it probably 4 days a week. It's on most of the day when I am coating. I has been a great oven for the money spent. I had to brace the bottom and I put rollers on it and it's perfect. I drove to the shop from Louisiana and picked the oven up and it was as ordered. Got home, plugged it in and I was rolling.
Ordered this for an upgrade from regular oven. My son wanted to do his own powder coating. Ordered some upgrades that didn't arrive on the oven but were corrected quickly. It is 2 x 3 foot inside but you have coverings over the heating elements that take up a good 4 inches of space. Kinda limits the hanging area. Overall, oven is working well.
After shopping around we decided to go with Light Armor for our first oven for our new powder coating business. It shipped quickly, was easy to get started and has held up perfectly so far! Financing was also quick and painless. Great oven for starting up!
I purchased the LA500LB for my business as our powder coating needs have outgrown our old house oven. This oven was the perfect match to grow into from the house oven and still not eat up a ton of the shop floor. We purchased with the blowers, the top hangers, and the floor level base so we could role carts into the unit. There customer service has been great in helping us work through a few concerns. We use this oven a couple times a week and still working great! We have our work on YouTube, Instagram and TikTok Flippin Customized
Extremely happy with the quality of the LA5000LB, and even more impressed with the customer support of Light Armor during the ordering and installation process. Made sure that we got exactly what we needed. Lead time was incredibly short given the current shipping situation (Arrived 2 weeks earlier that originally estimated) and Gordon was very fast to respond to questions after oven was delivered. @iambenwillett
Very Happy with my Light Armor oven. Coming from a retrofitted restaurant oven, the light armor oven is drastically increasing my ramp up time, max temperature and the physical size of items I can bake in their. Highly recommend -Alex @wolf_machine_
Will have to say An Excellent oven for both Cerakote and Powder Coat have been using it since the day we purchased it several months ago ..Have not had one issue period..And the customer service was excellent when we went and picked up from them !!Thank You Guys Very Much .Very well pleased!!
This oven has made our business flow smoother than ever before! It is large enough to hold the equipment we are coating and holds perfect temperature! I honestly can't reassure anyone enough how great these ovens are! We added a blower fan, upgraded the heating elements and went with the ramp-soak PID Controller addon. I would urge anyone to get these additions as well! Superior Products with Great customer service!
The controller took some learning but overall this oven has been great. Works perfect for Cerakote and powder coating. Would highly recommend the blower fan upgrade. Lead times were pretty long in height of pandemic but well worth the wait.
Received the oven about three weeks ago. It's great! Right of the skid and put it to work. The temp controller offset was already done, and the set point programmed. Highly recommend. #NLSMetalworks
When we decided it was time to elevate our business and get into powder coating we chose Light Armor to help us with our oven needs, and they came through big time!! We are very happy with quality, ease of use, and great customer service. Anyone looking for a quality powdercoat/cerakote oven I would highly recommend Light Armor!!!
