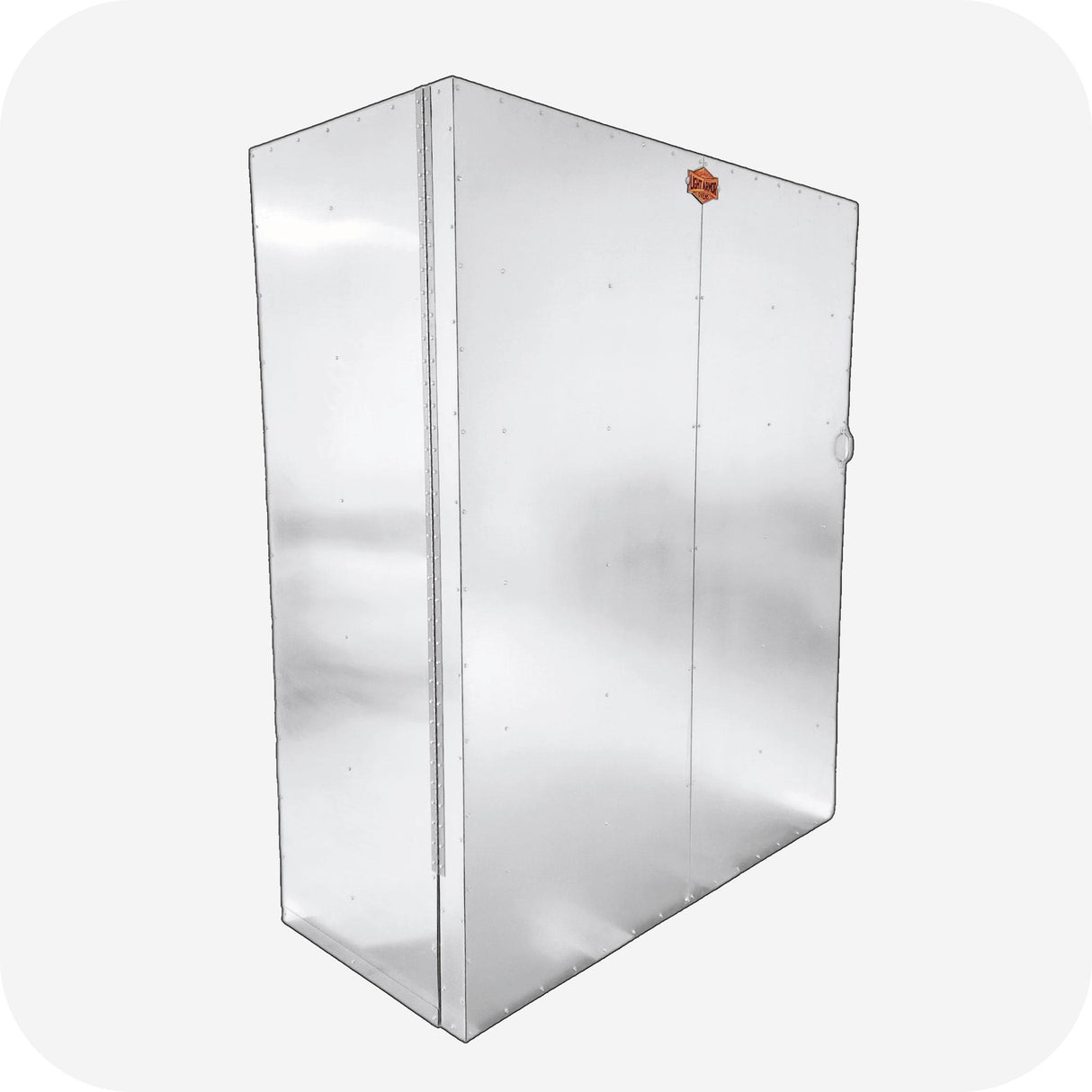

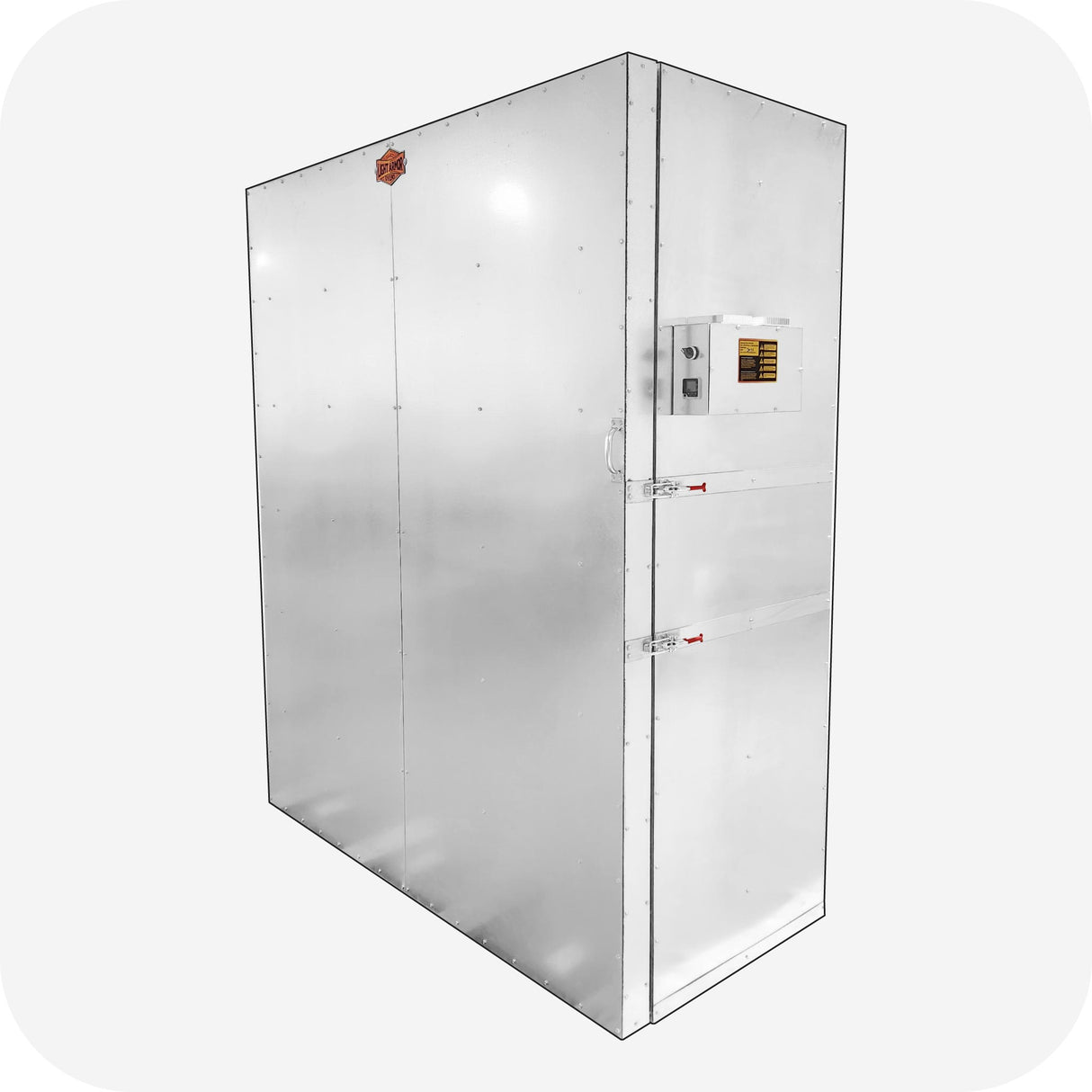

LA10KW7 Powder Coat Oven (6' x 2' x 7')
Weight: 650 lb
Ships LTL freight, calculated at checkout from your address — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: it's calculated at checkout from your address, or pick it up free in Central Illinois.
Your upgrades go into the cart with your oven.
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LA10KW7 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
65×23×84″
Shipping Weight
~650 lb

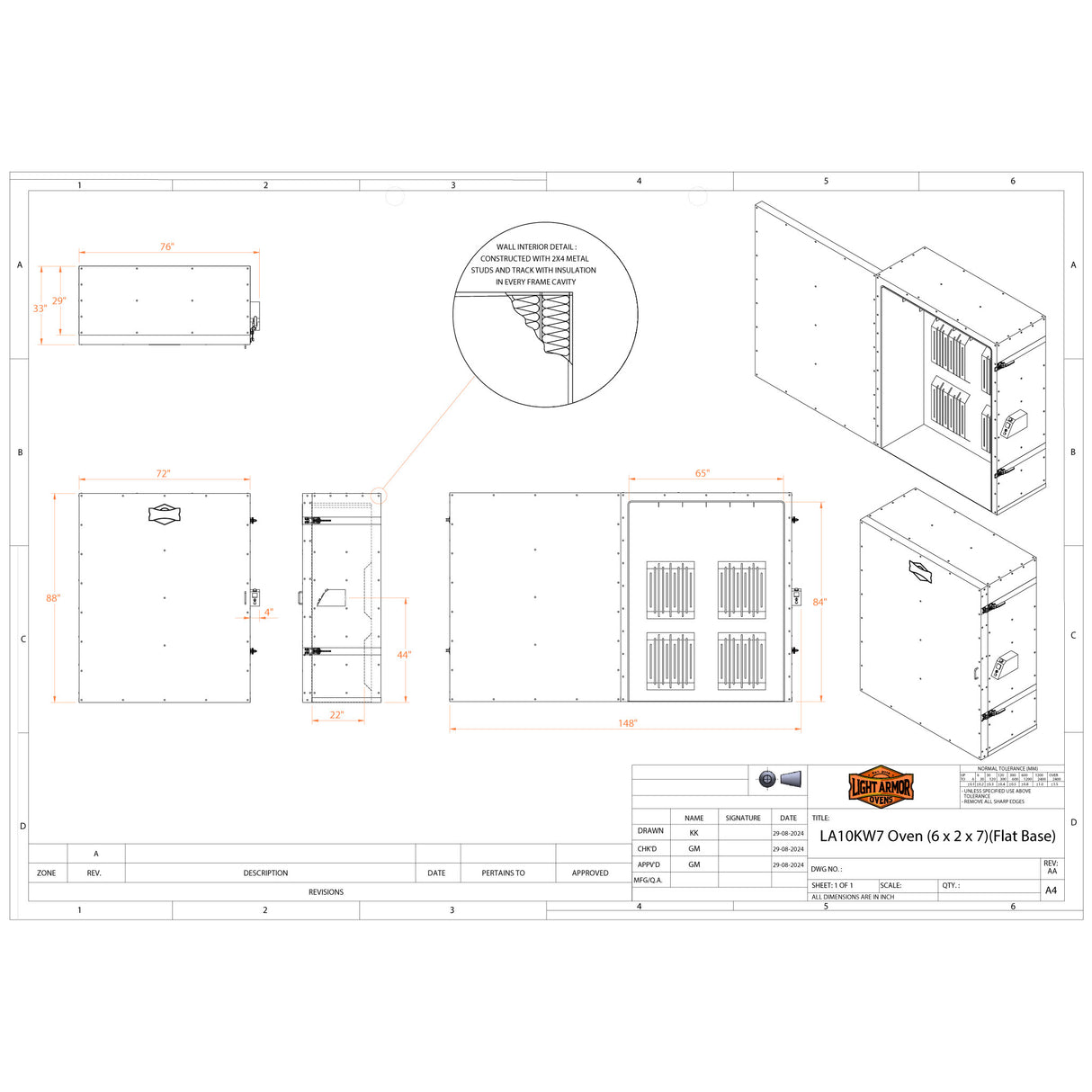

| Dimensions & Shipping | |
|---|---|

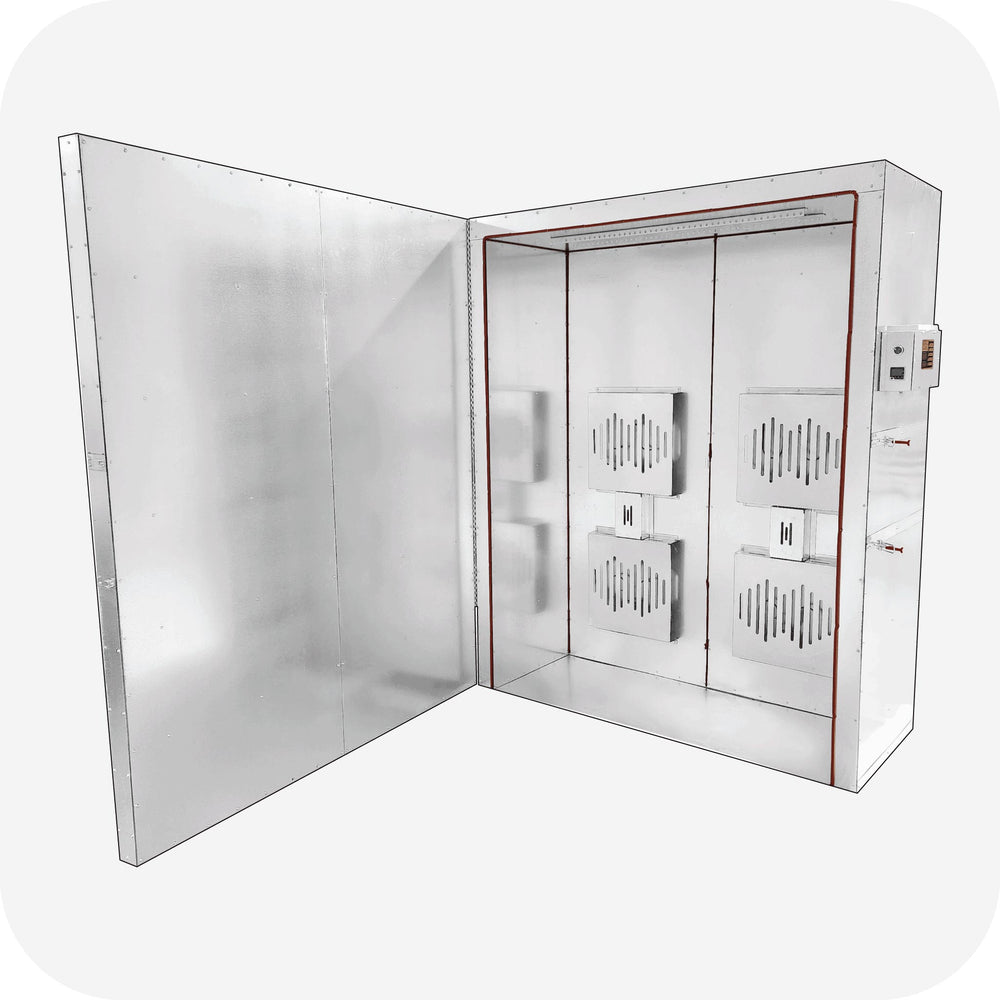

| Inside Working Dimensions | 65″ W × 23″ D × 84″ T (Nominal) |
| Outside Footprint | 76″ W × 33″ D × 88″ T (Nominal) |
| Shipment Size | 4′ W × 7′ D × 8′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 56A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 60A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 2 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |

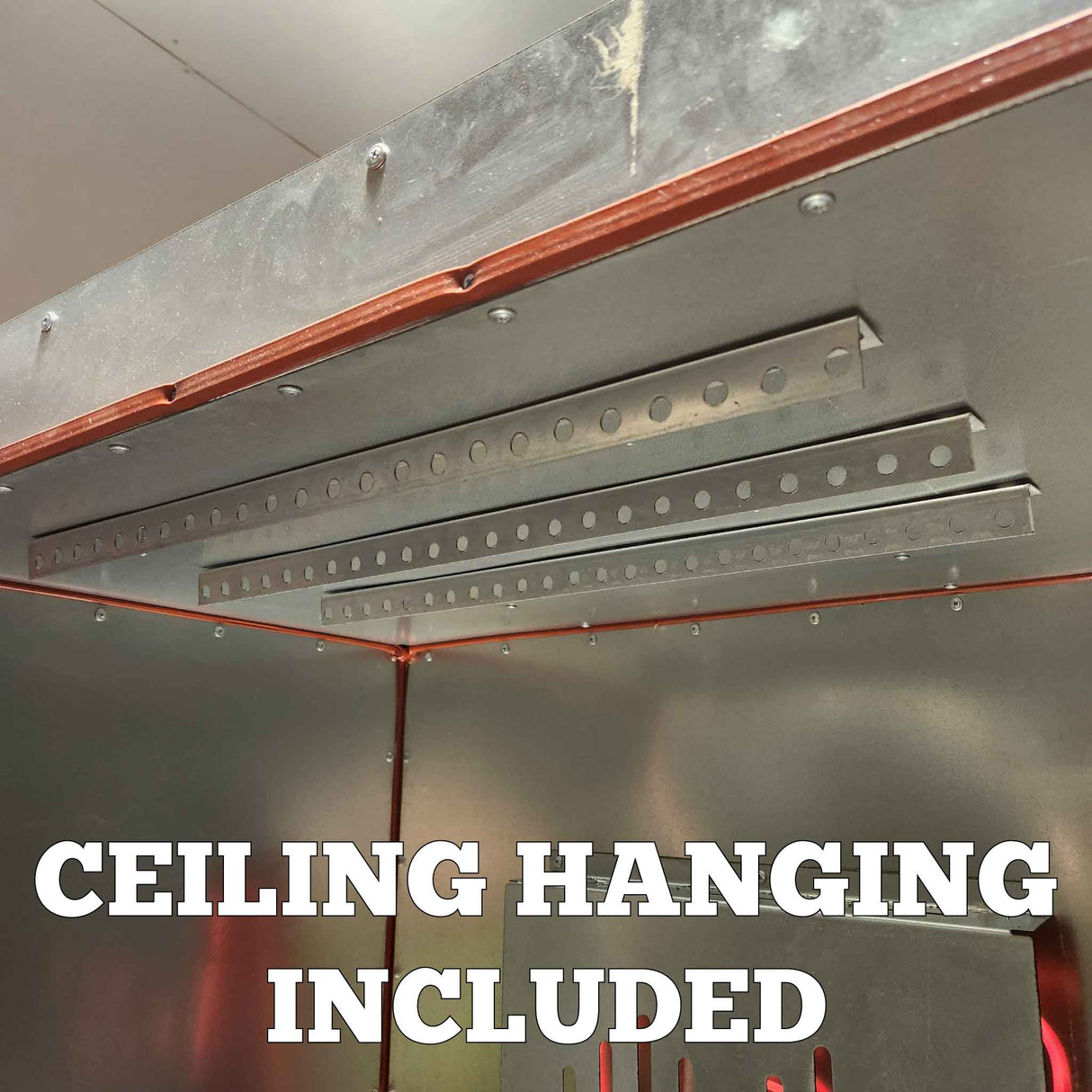

| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
— Mobile-Ready Powder Coating Oven
Roll the LA10KW7 Powder Coat Oven Right Into Your Workflow
Long parts deserve a chamber built to match, and the LA10KW7 Powder Coat Oven delivers with a 6' x 2' x 7' interior tailored for lengthy or tall work. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with G90 galvanized material for lasting rust resistance, this curing oven also offers a mobile base option — so you can position it exactly where your line needs it.
A Curing Oven That Adapts to You

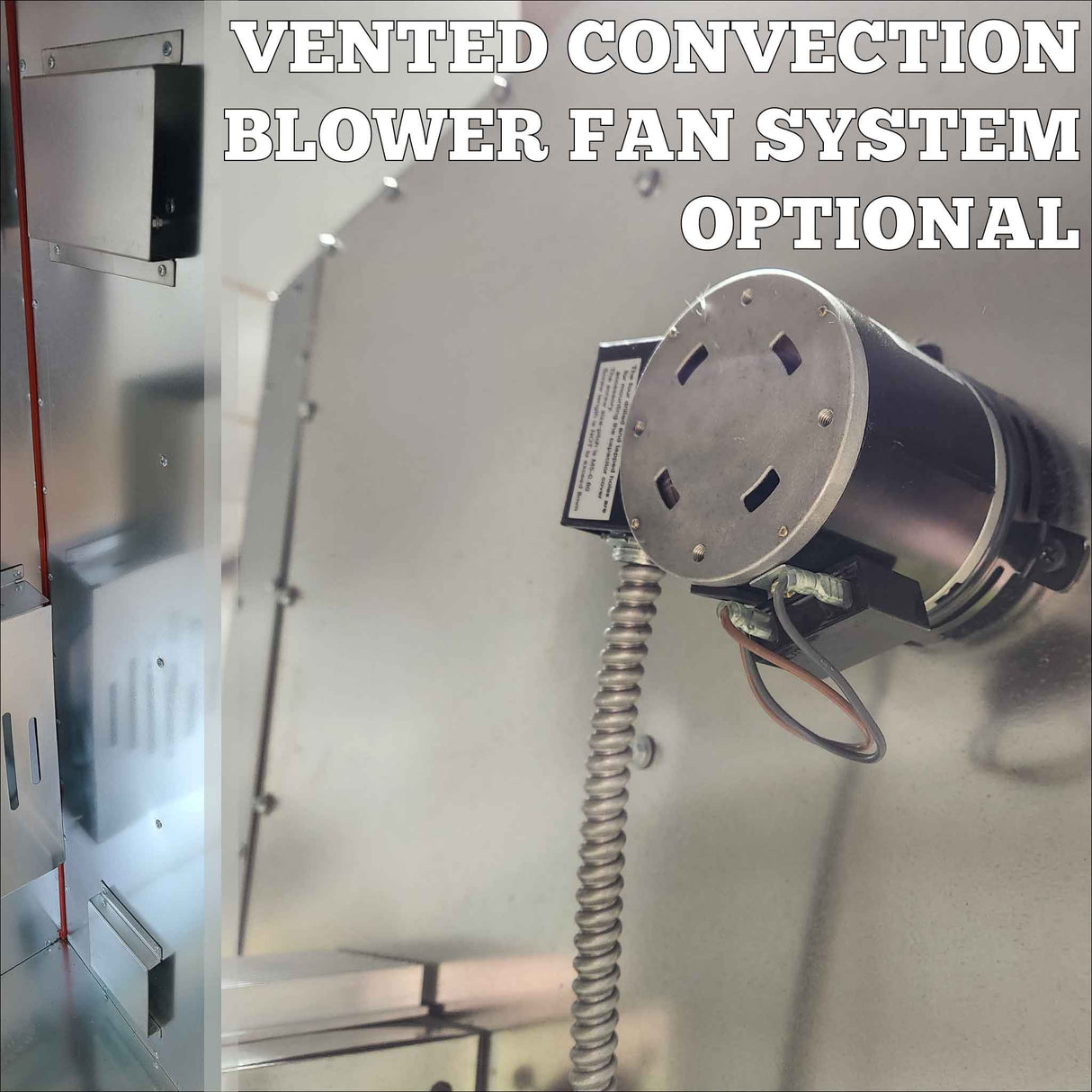

Curing depends on holding heat steady long enough to drive the right chemical reaction, and the LA10KW7 raises your parts to temperature, maintains it, then cools them safely when the cycle ends. Choose batch loading or a continuous process to suit your volume, and customize with a blower fan, oven light, or Rockwool insulation.
- ✓ Optional mobile base — reposition the 6' x 2' x 7' powder coating oven wherever your workflow needs it
- ✓ Long 6-foot chamber — designed to cure lengthy or oversized parts other ovens can’t fit
- ✓ G90 galvanized, Illinois-built — built to resist rust and last through demanding shop use

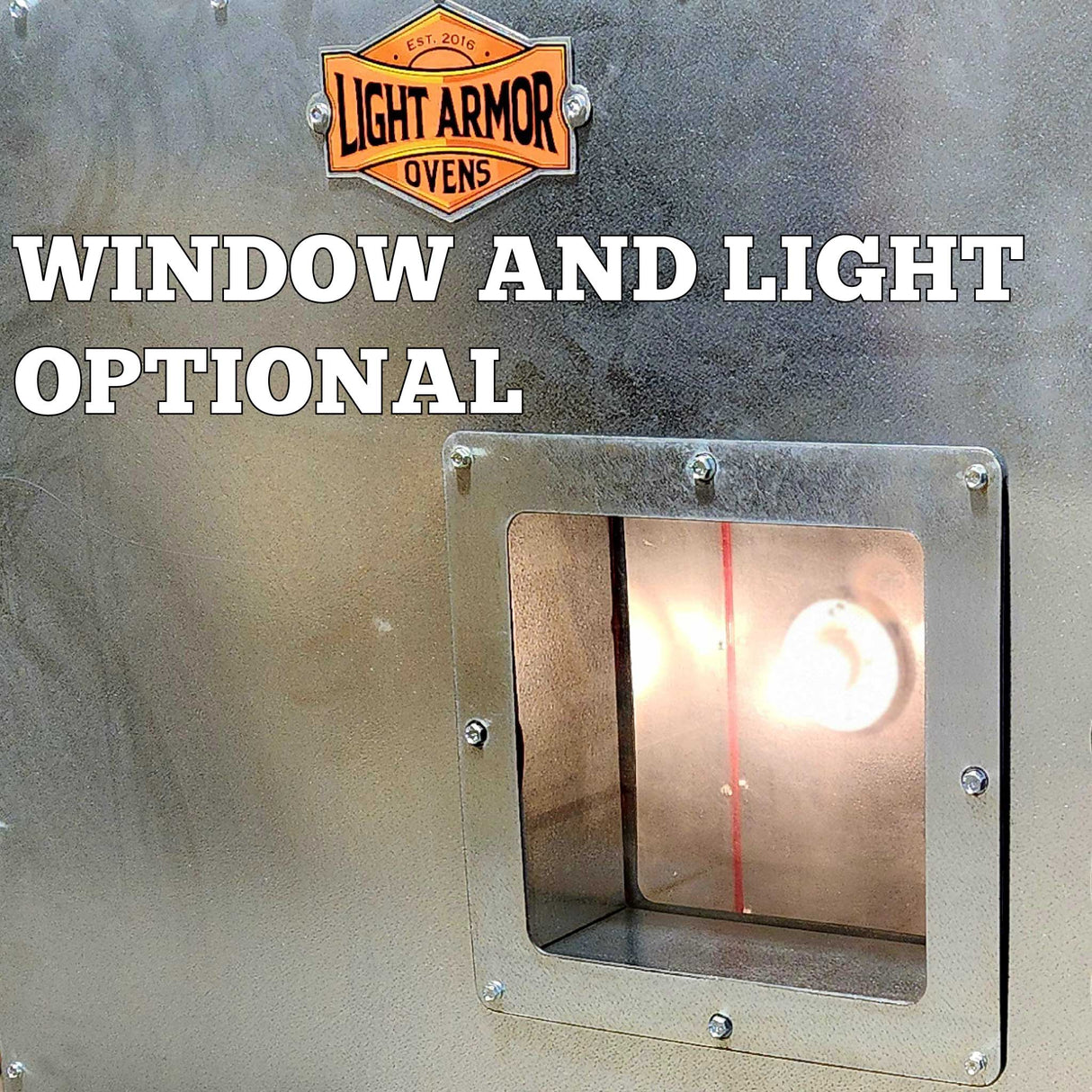

- ✓ Customizable options — add a blower fan, oven light, or Rockwool insulation
***OVERSIZED ITEM - REQUIRES FORKLIFT OR LOADING DOCK AT PLACE OF DELIVERY, UNLESS PICKING UP FROM FREIGHT TERMINAL OR OUR WAREHOUSE***
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
