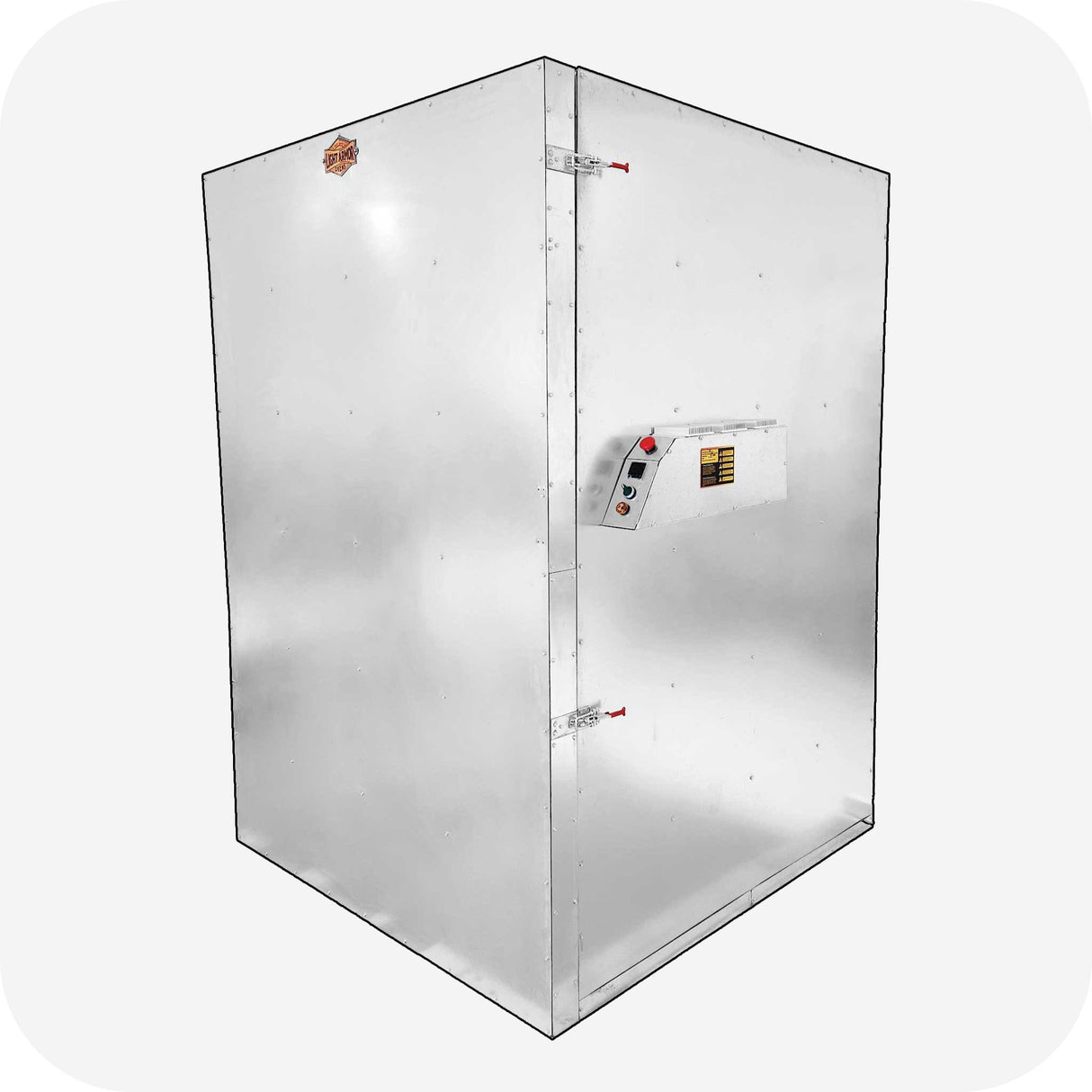

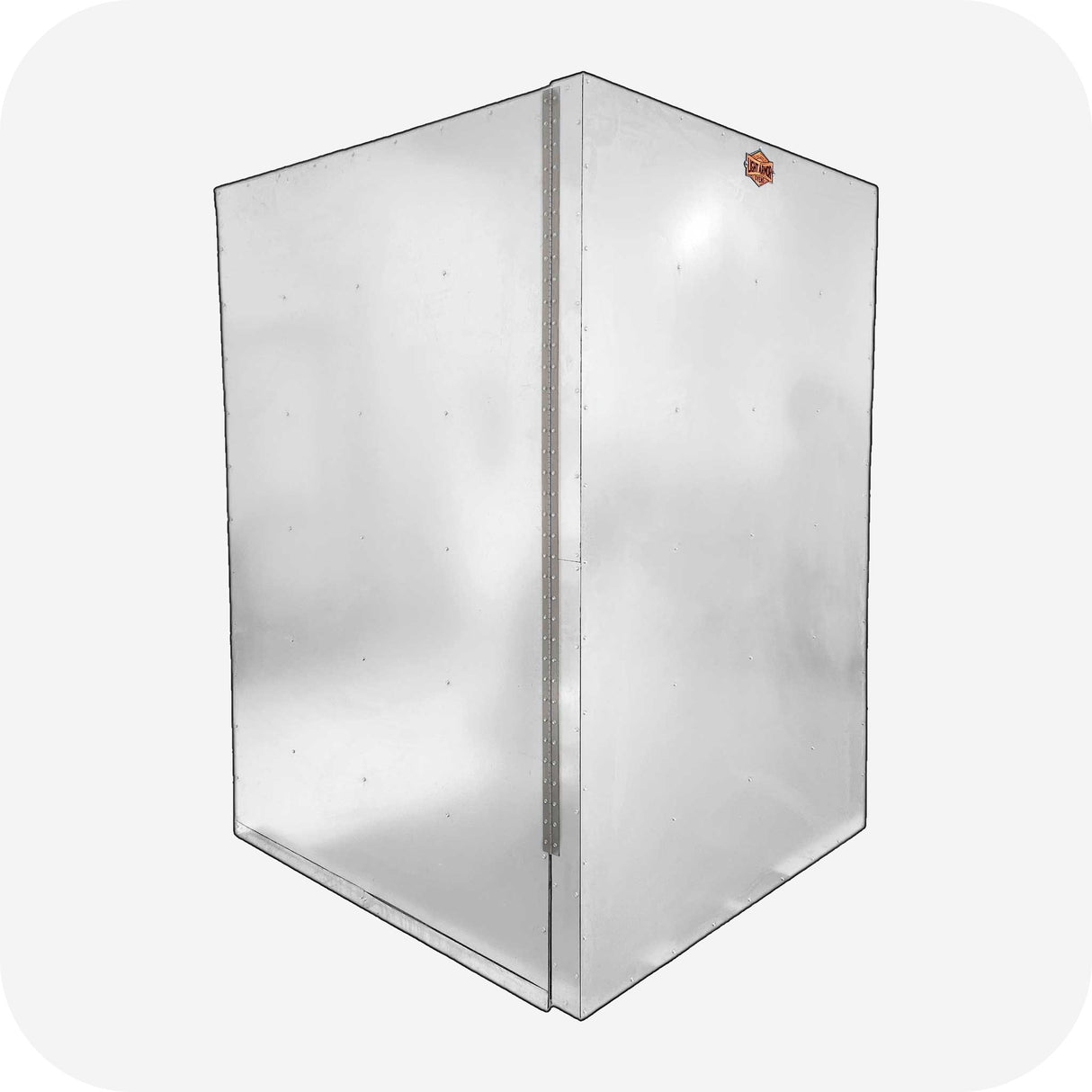

LA15K7 Powder Coat Oven (5' x 5' x 7')
LA15K7 Powder Coat Oven (5' x 5' x 7') is backordered and will ship as soon as it is back in stock.
Shipping, Tracking and Delivery
Shipping, Tracking and Delivery
Once your order is picked up by freight, we email you tracking information so that you can follow your shipment in transit. Freight carriers will have your name and number in case they need to contact you ahead of delivering. All freight that's shipped out is covered by insurance; in the case that your shipment is damaged, we will file an insurance claim on your behalf. Please note these claims can take anywhere between 1-2 months to fully process.
Description
Description
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LA15K7 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
53×54×84″
Shipping Weight
~700 lb

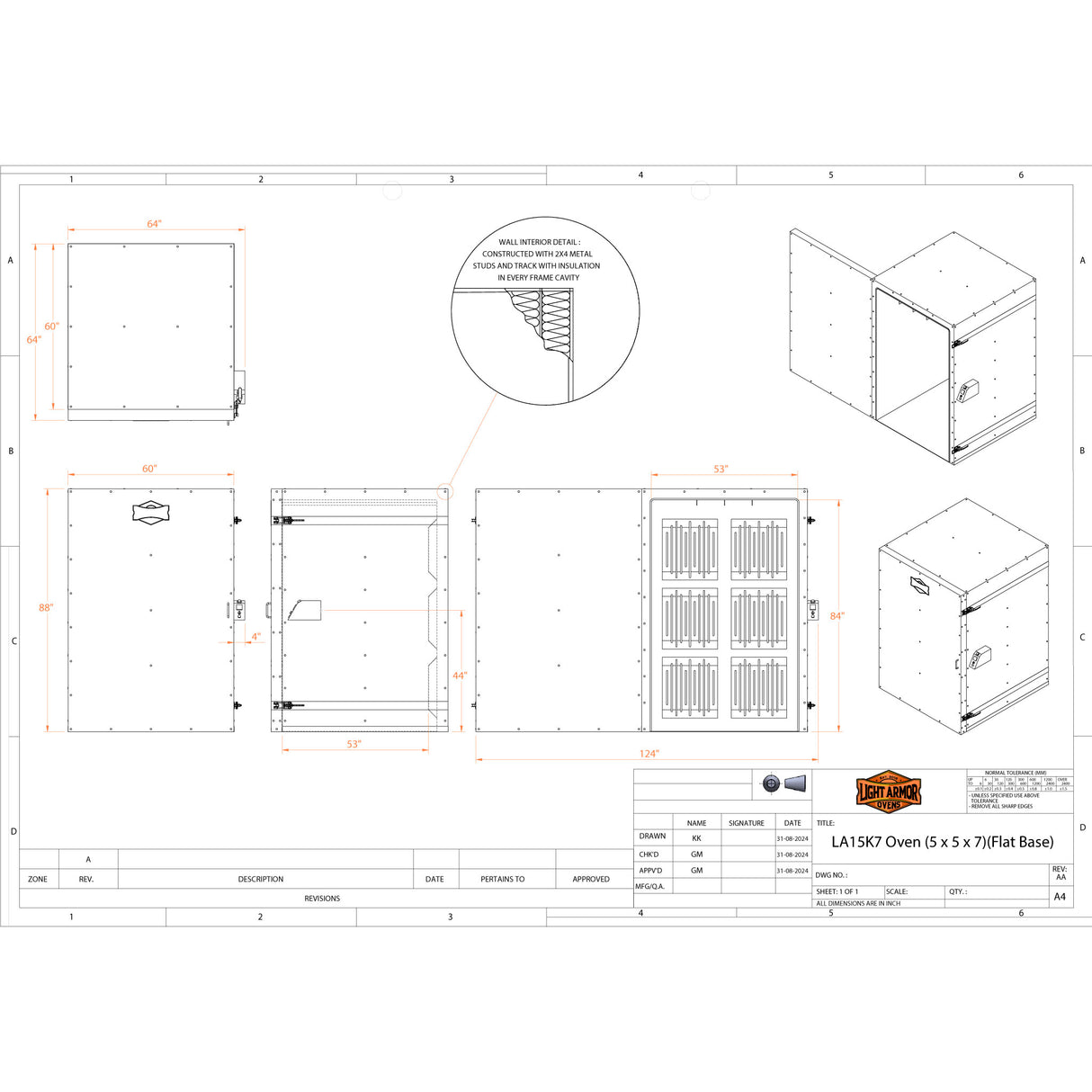

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 53″ W × 54″ D × 84″ T (Nominal) |
| Outside Footprint | 64″ W × 64″ D × 88″ T (Nominal) |
| Shipment Size | 6′ W × 6′ D × 8′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 84A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 90A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 2 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
— Maximum Vertical Reach

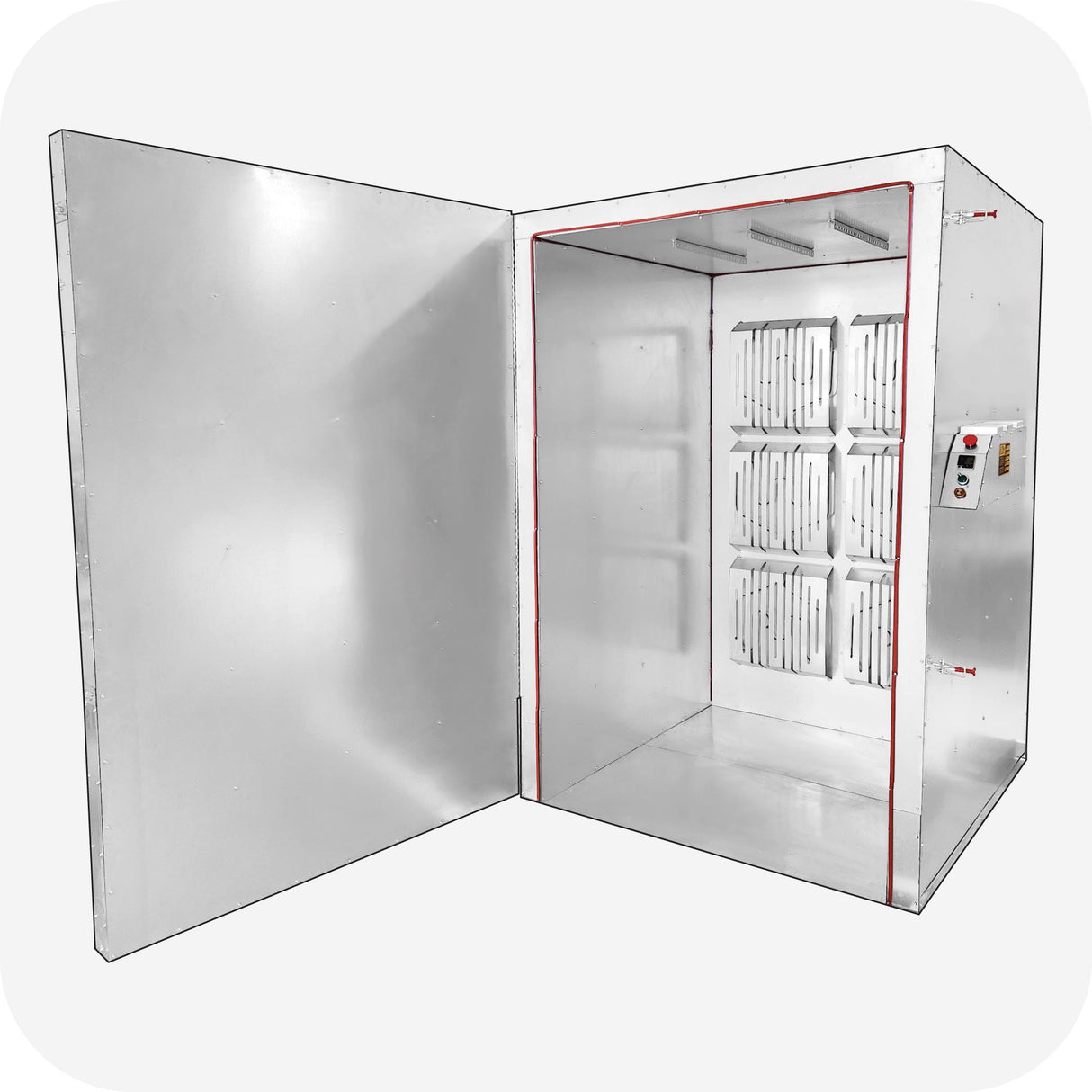

The LA15K7 Powder Coat Oven — 7 Feet of Room to Hang It All
For the tallest jobs in your shop, the LA15K7 delivers a commanding 5′ x 5′ x 7′ curing chamber — a full seven feet of interior height that swallows long racks, oversized frames, and floor-standing parts other ovens can’t take. Built in the USA from G90 galvanized steel, this curing oven pairs rust resistance with the rugged strength to earn its keep in a busy powder coating or Cerakote operation.
The Tall-Order Oven, Made Your Way
The LA15K7 brings parts up to cure temperature and holds that heat for the precise time your finish needs, then cools them for dependable, repeatable results. As a customizable oven, it’s ready for a blower fan to move air evenly around big loads, an interior oven light for high-up inspection, and a color that fits your space. Load it in batches or run it continuously — the choice follows your production.
- ✓ Full 7′ interior height — maximum vertical clearance for the tallest parts and long hanging racks
- ✓ Made in the USA — G90 galvanized construction protects against rust for years of service
- ✓ Spec it to suit you — add a blower fan, oven light, and choose your preferred oven color
- ✓ Reliable curing every load — even heat and controlled cooling deliver consistent finishes across industries
***OVERSIZED ITEM - REQUIRES FORKLIFT OR LOADING DOCK AT PLACE OF DELIVERY, UNLESS PICKING UP FROM FREIGHT TERMINAL OR OUR WAREHOUSE***
