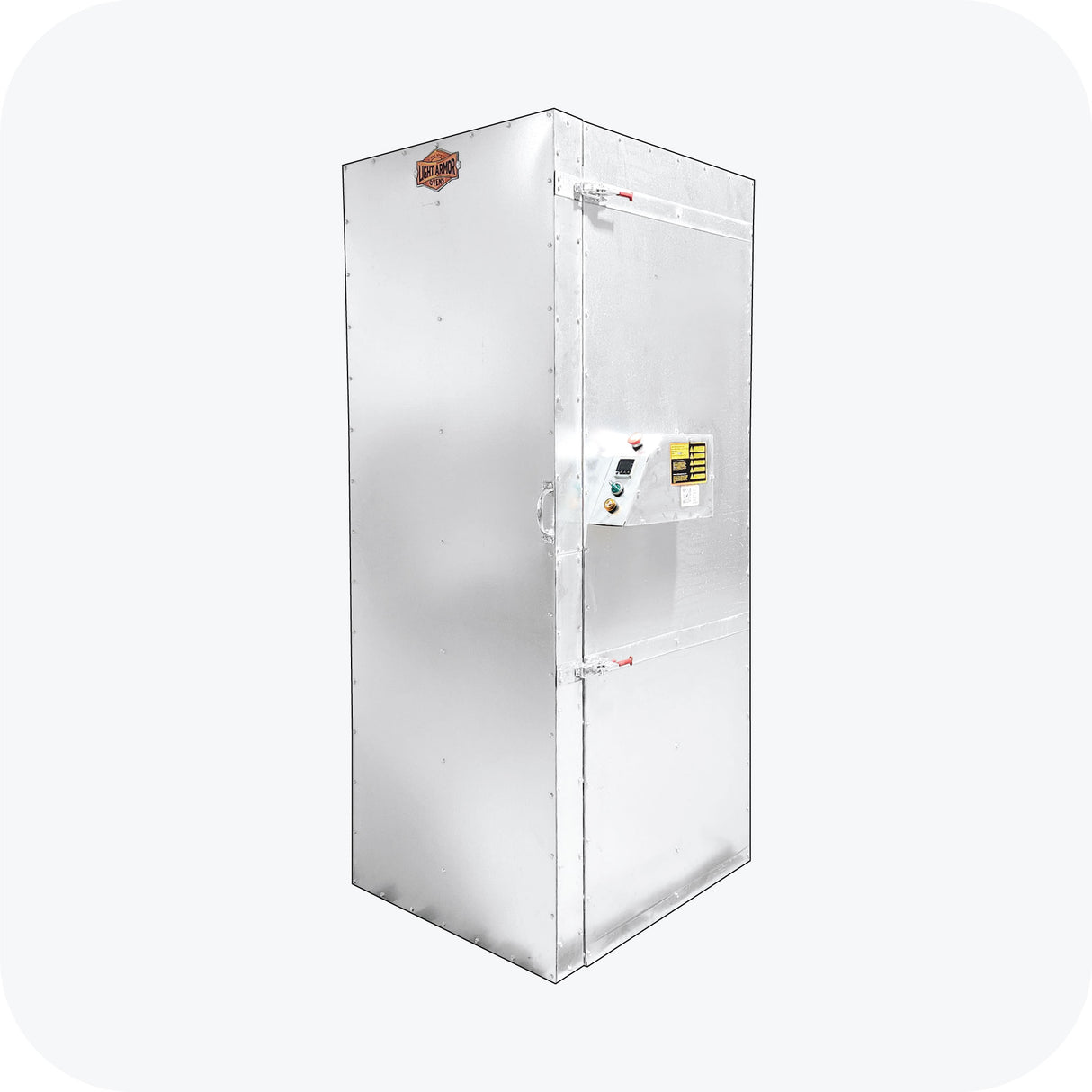

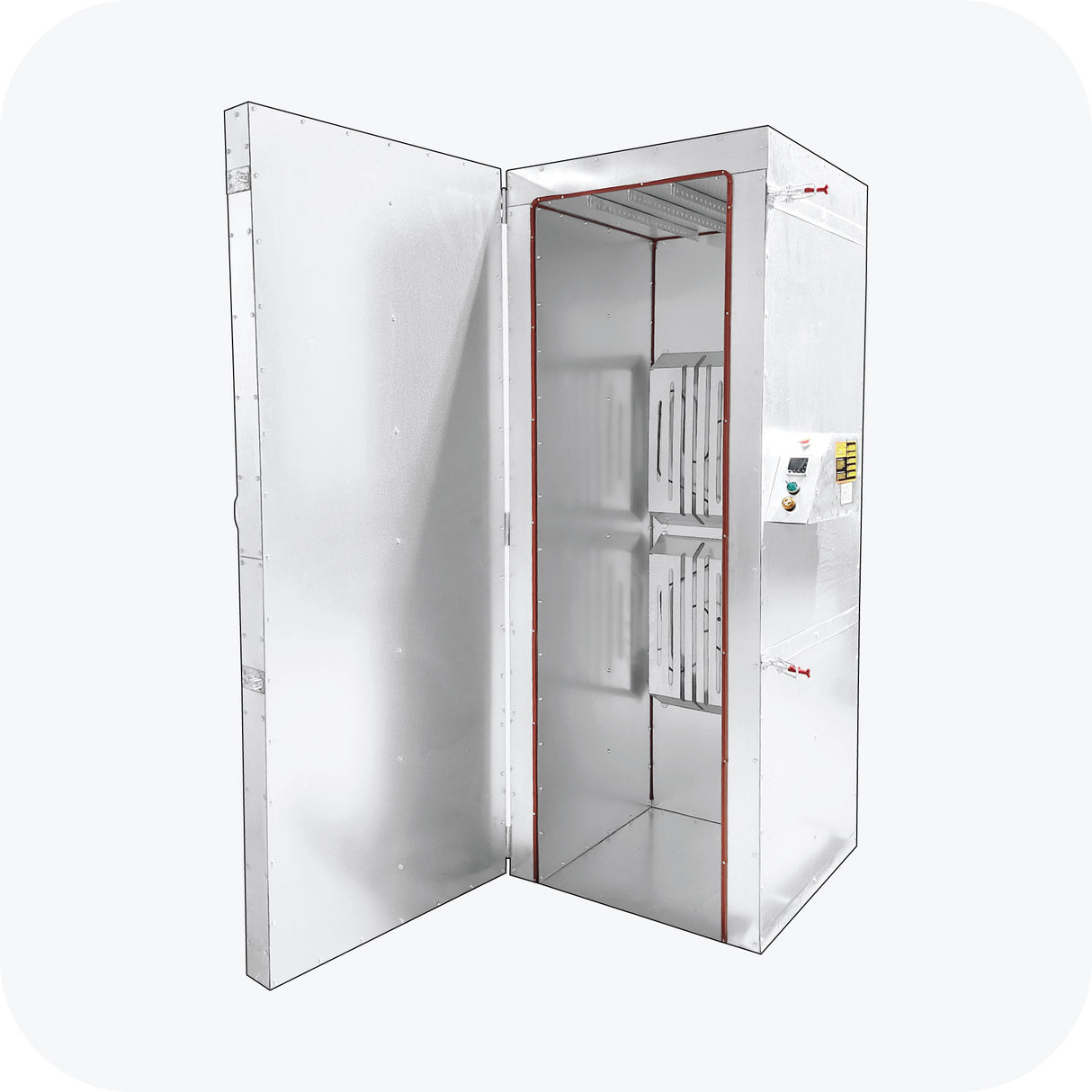

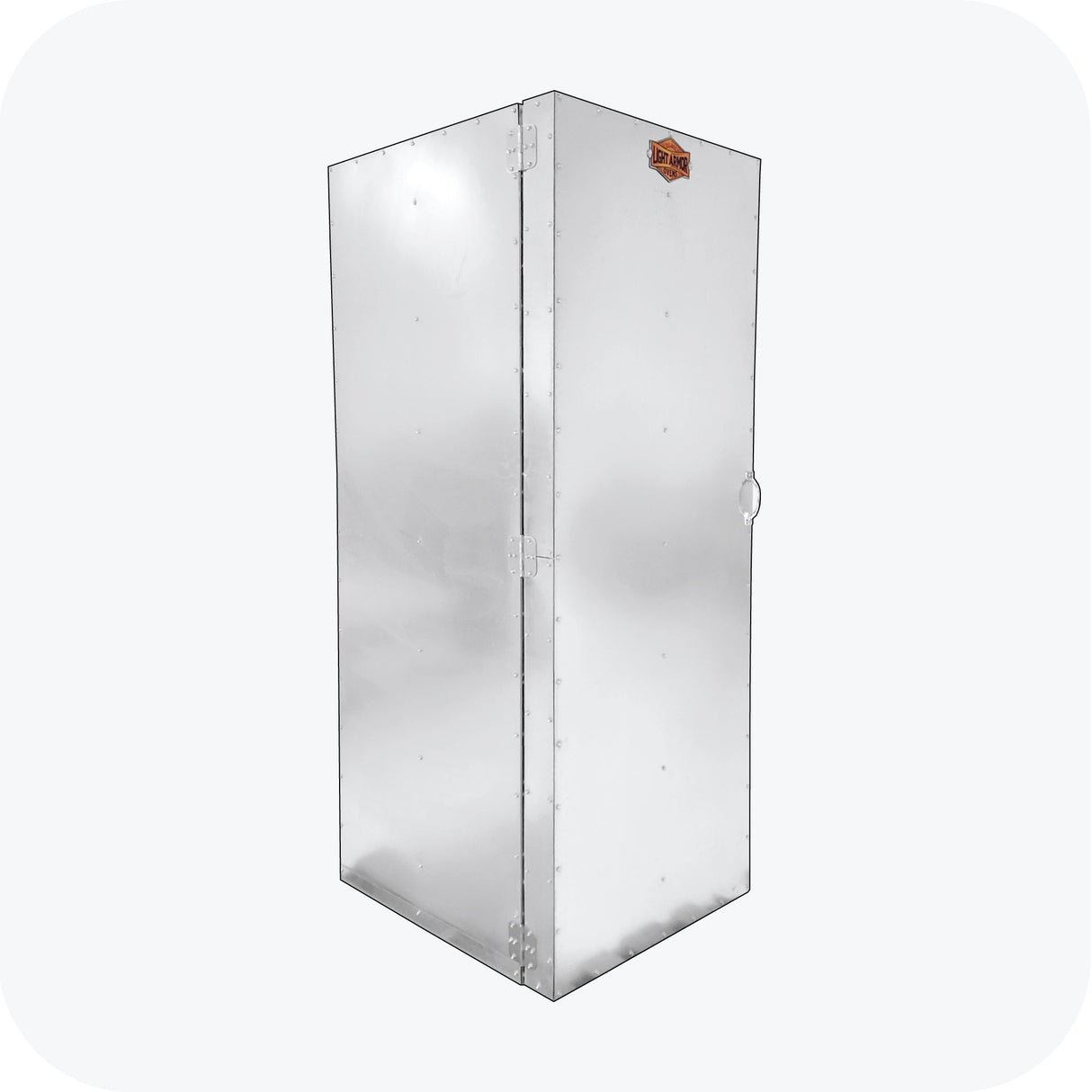

LA2500B6 Powder Coat Oven (2' x 2' x 6')
LA2500B6 Powder Coat Oven (2' x 2' x 6') is backordered and will ship as soon as it is back in stock.
Pickup available at Main Warehouse
Usually ready in 5+ days
Shipping, Tracking and Delivery
Shipping, Tracking and Delivery
Once your order is picked up by freight, we email you tracking information so that you can follow your shipment in transit. Freight carriers will have your name and number in case they need to contact you ahead of delivering. Be sure to inspect your shipment at delivery and note any damage with the driver before signing the bill of lading.
Description
Description
ā Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
ā LA2500B6 Ā· Technical Specifications
Everything You Need To Know
Max Temperature
500Ā°F
Inside Working Space
22Ć23Ć72ā³
Shipping Weight
~325 lb

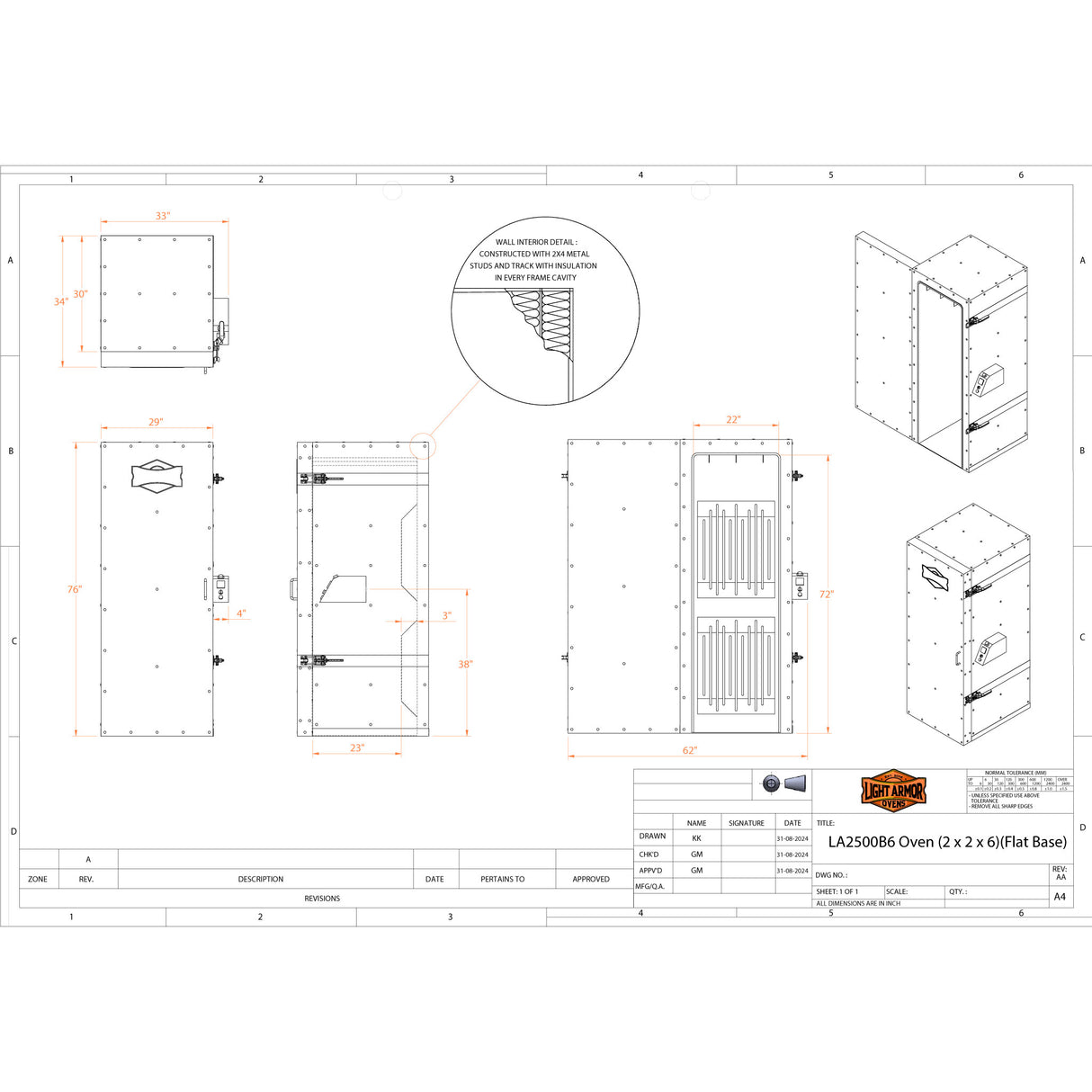

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 22ā³ W Ć 23ā³ D Ć 72ā³ T (Nominal) |
| Outside Footprint | 33ā³ W Ć 33ā³ D Ć 76ā³ T (Nominal) |
| Shipment Size | 4ā² W Ć 4ā² D Ć 7ā² T |
| Recommended Distance from Wall | 3ā³ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 28A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 30A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 1 |
| Performance & Controls | |
| Temperature Range | Ambient ā 500Ā°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
ā Compact Multi-Purpose Curing Oven
Precise, Repeatable Cures from the LA2500B6 Powder Coat Oven
The LA2500B6 is a customizable powder coating and Cerakote curing oven that packs versatility into a 2' x 2' x 6' footprint ā slim enough to fit through a typical 36-inch doorway. Rated for operating temperatures up to 450Ā°F (its element can reach roughly 500Ā°F), this curing oven handles coating, thermoset plastics, adhesives, composites, and rubber.
The Ideal Small Powder Coating Oven
Tight temperature adjustment puts precise control in your hands, so you hit your target and hold it for repeatable, uniform cures no matter the load size. When the cycle finishes, the oven brings temperature down efficiently for safe, faster part cooling, while superior insulation keeps energy costs down.
- ā 450Ā°F operating range ā cures coatings, composites, adhesives, and rubber with an element reaching ~500Ā°F
- ā Fits a 36-inch doorway ā the 2' x 2' x 6' curing oven moves into tight shops with ease
- ā Tight temperature control ā dial in precise, repeatable cures with uniform results across any load
- ā Efficient insulation and cooldown ā lowers operating cost and cools parts safely once curing is done
