LA5000LB6 Powder Coat Oven (3' x 2' x 6')
LA5000LB6 Powder Coat Oven (3' x 2' x 6') is backordered and will ship as soon as it is back in stock.
Pickup available at Main Warehouse
Usually ready in 5+ days
Shipping, Tracking and Delivery
Shipping, Tracking and Delivery
Once your order is picked up by freight, we email you tracking information so that you can follow your shipment in transit. Freight carriers will have your name and number in case they need to contact you ahead of delivering. Be sure to inspect your shipment at delivery and note any damage with the driver before signing the bill of lading.
Description
Description
ā Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
ā LA5000LB6 Ā· Technical Specifications
Everything You Need To Know
Max Temperature
500Ā°F
Inside Working Space
38Ć23Ć72ā³
Shipping Weight
~400 lb

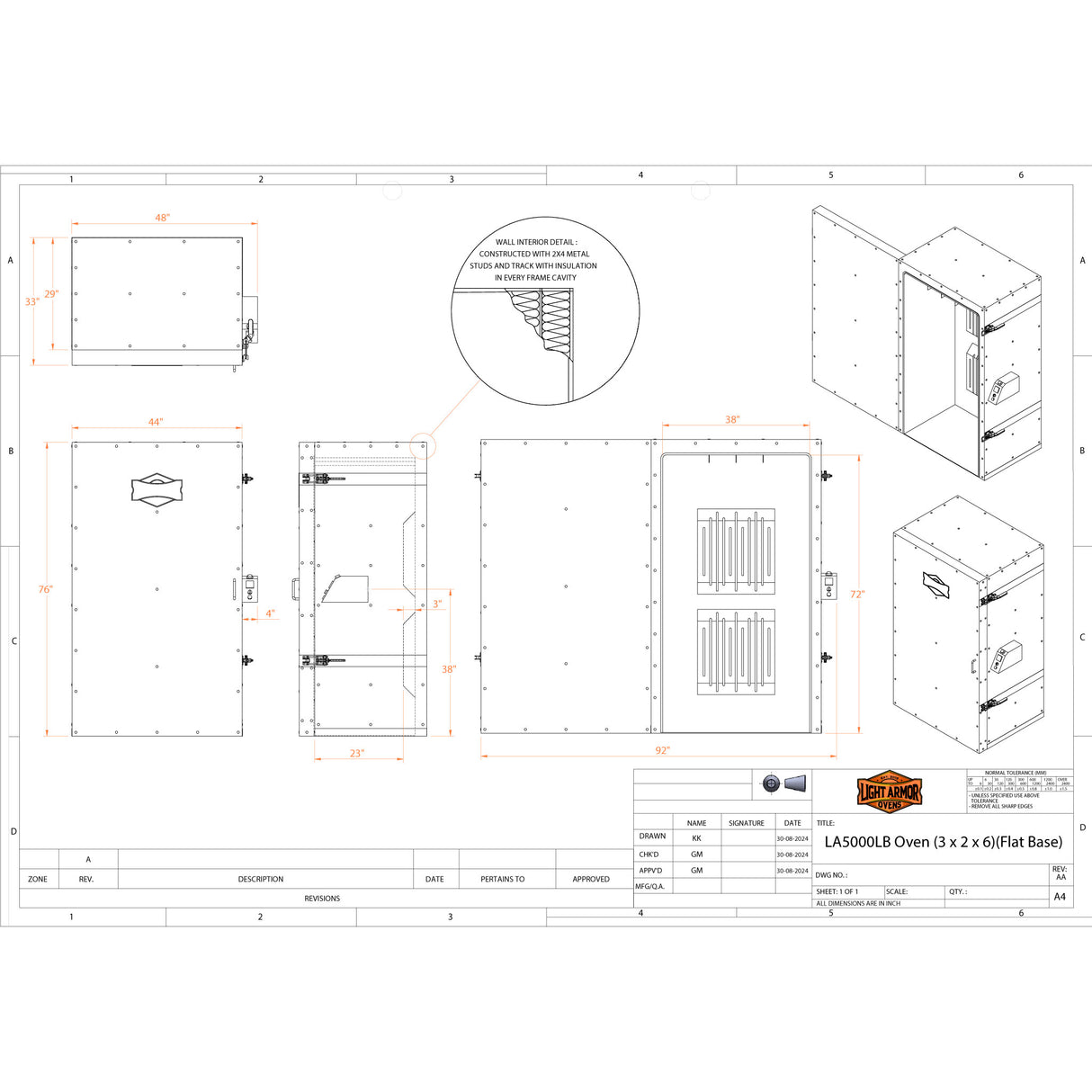

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 38ā³ W Ć 23ā³ D Ć 72ā³ T (Nominal) |
| Outside Footprint | 49ā³ W Ć 33ā³ D Ć 76ā³ T (Nominal) |
| Shipment Size | 4ā² W Ć 5ā² D Ć 7ā² T |
| Recommended Distance from Wall | 3ā³ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 28A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 30A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 1 |
| Performance & Controls | |
| Temperature Range | Ambient ā 500Ā°F |

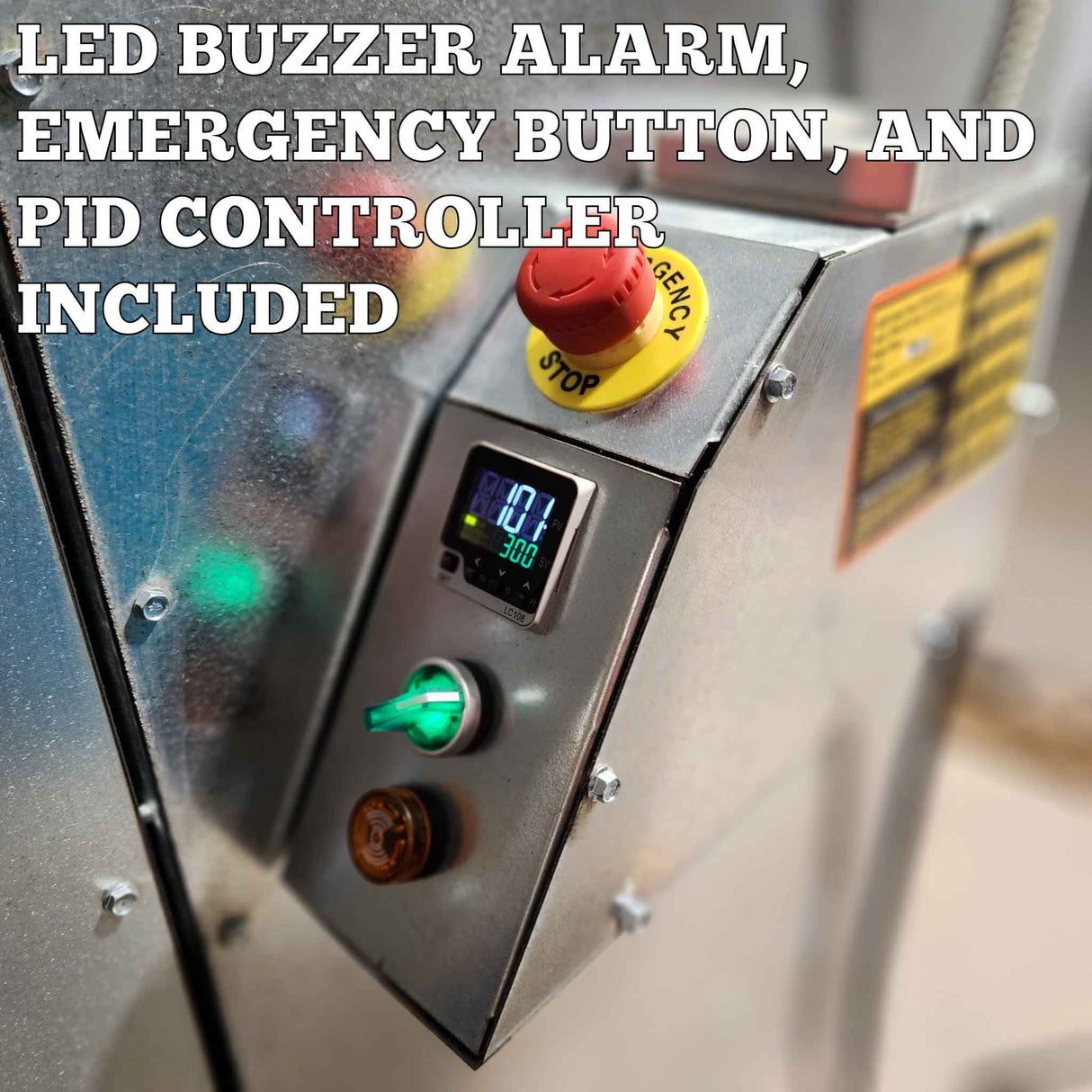

| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
ā Tall Parts, Handled

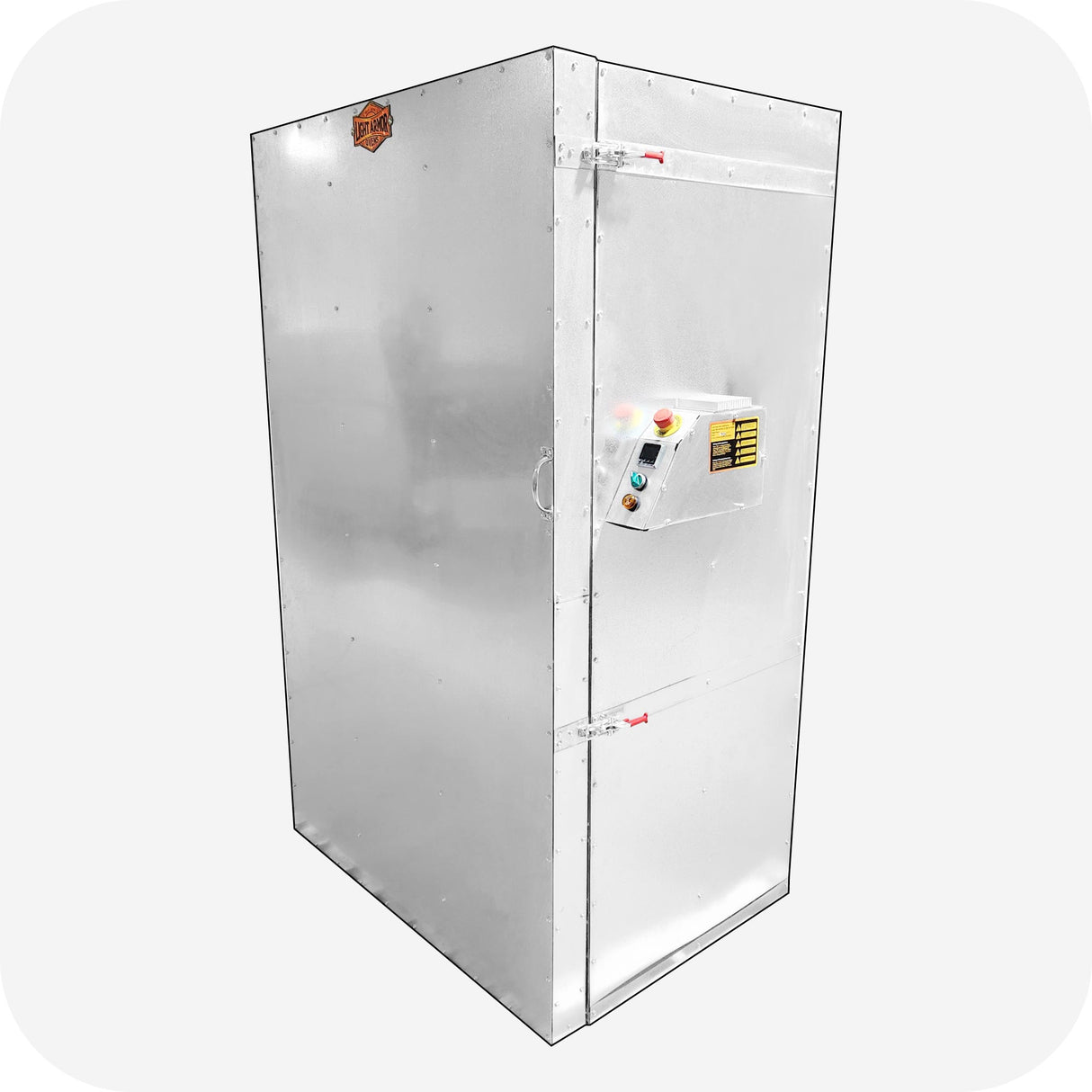

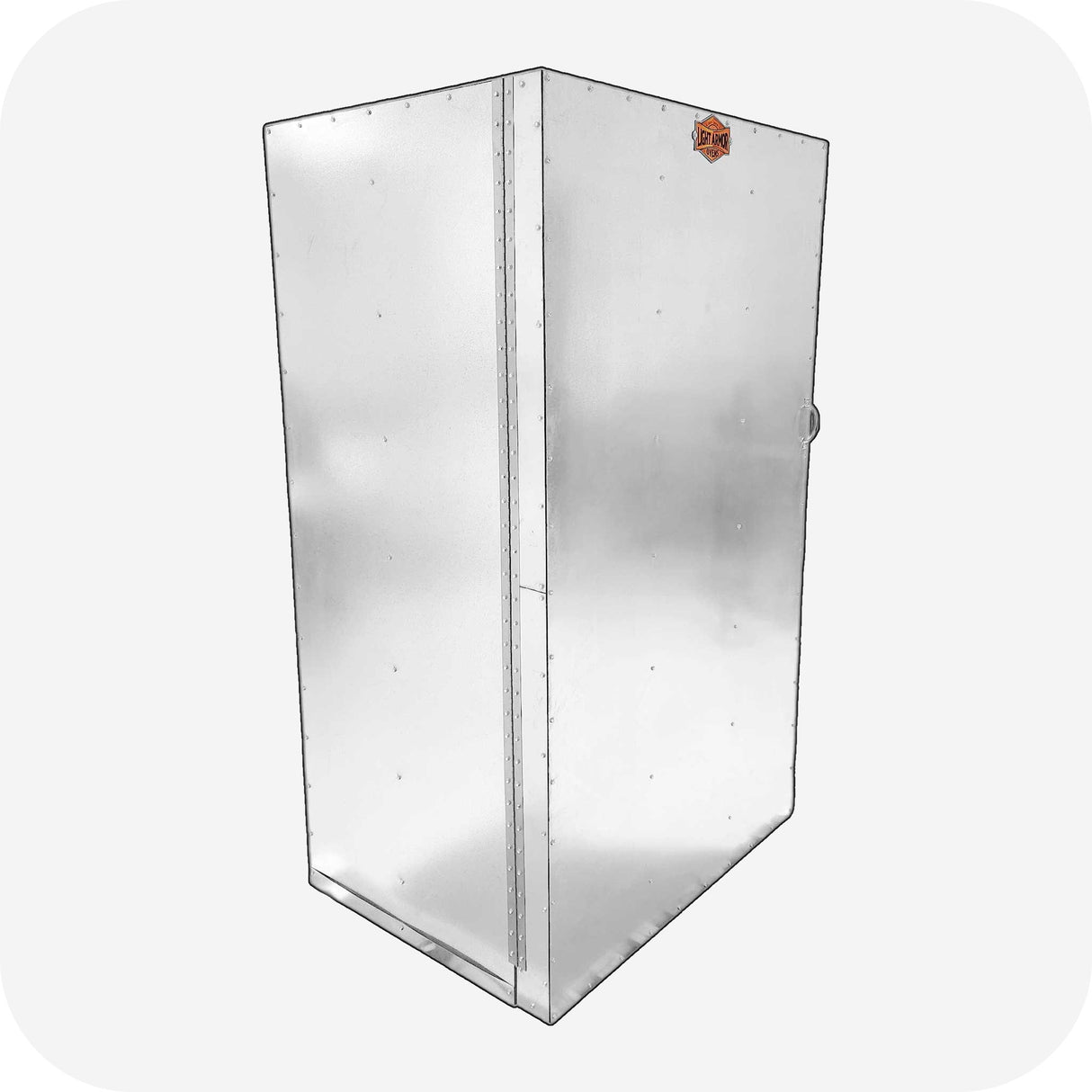

LA5000LB6 Powder Coat Oven ā Extra Height for Longer Loads
Need vertical clearance? The LA5000LB6 powder coating oven stretches to a 3' x 2' x 6' interior, giving you the extra foot of height that longer parts and hanging loads demand. A wide door makes loading simple, and a full 500Ā°F ceiling means you can confidently cure powder coating, Cerakote, adhesives, and rubber to spec.
Customizable Curing, Dependable Output
Advanced thermal engineering and quality insulation drive even, reliable heat for repeatable results and real energy savings. Because it's customizable, you can tailor the LA5000LB6 to your load size and application for a curing oven that fits how you actually work.
- ā 6-Foot Interior Height ā extra clearance for tall parts and long hanging loads
- ā 500Ā°F Max Temperature ā full powder coating and Cerakote curing capability

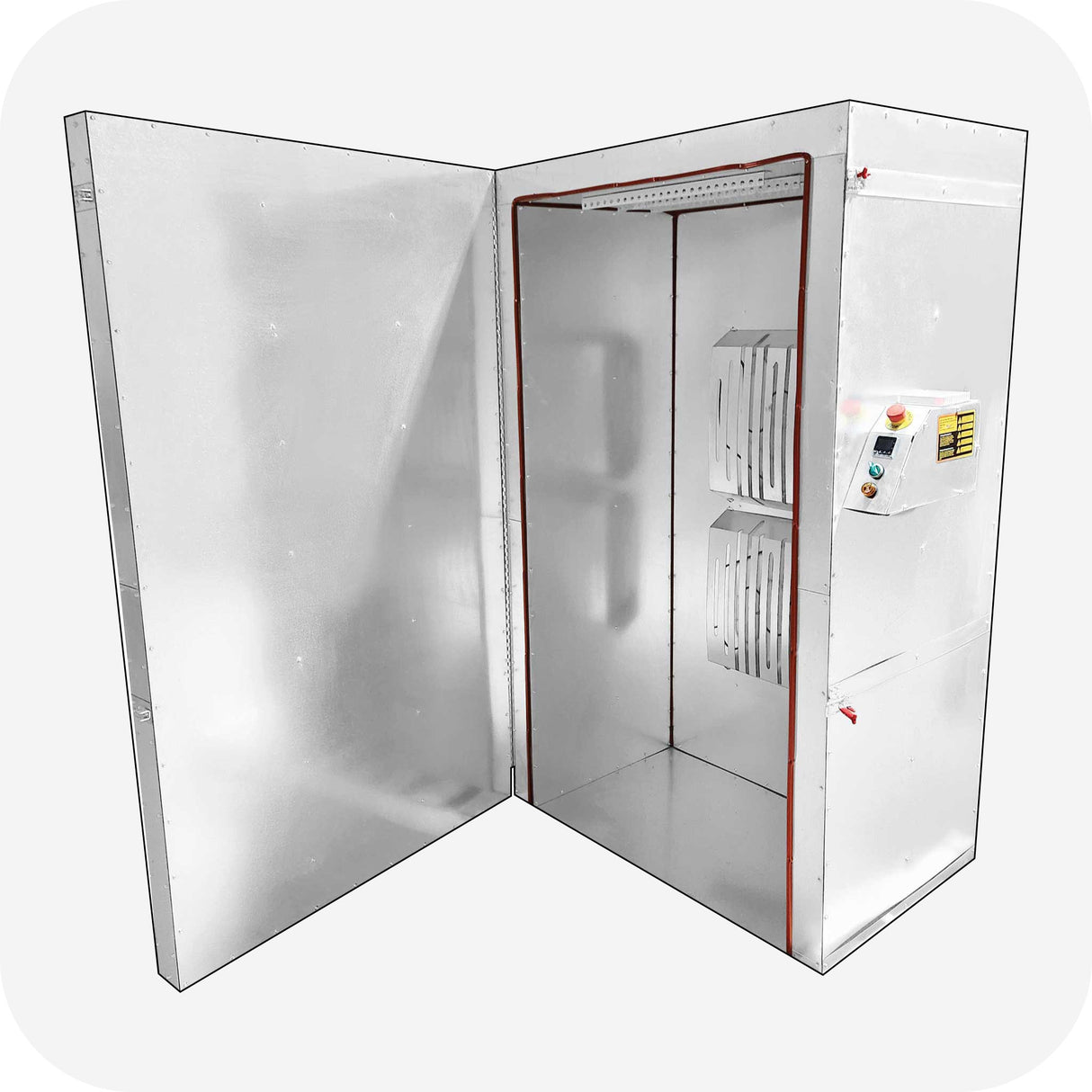

- ā Wide Door ā load and unload materials of all sizes with ease
- ā Fully Customizable ā configure temperature and features around your load and application
