LA7500SB7 Powder Coating Oven (3' x 3' x 7')
5.0 · 6 ReviewsWeight: 650 lb
Ships LTL freight, calculated at checkout from your address — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: it's calculated at checkout from your address, or pick it up free in Central Illinois.
Your upgrades go into the cart with your oven.
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LA7500SB7 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
36×37×84″
Shipping Weight
~600 lb

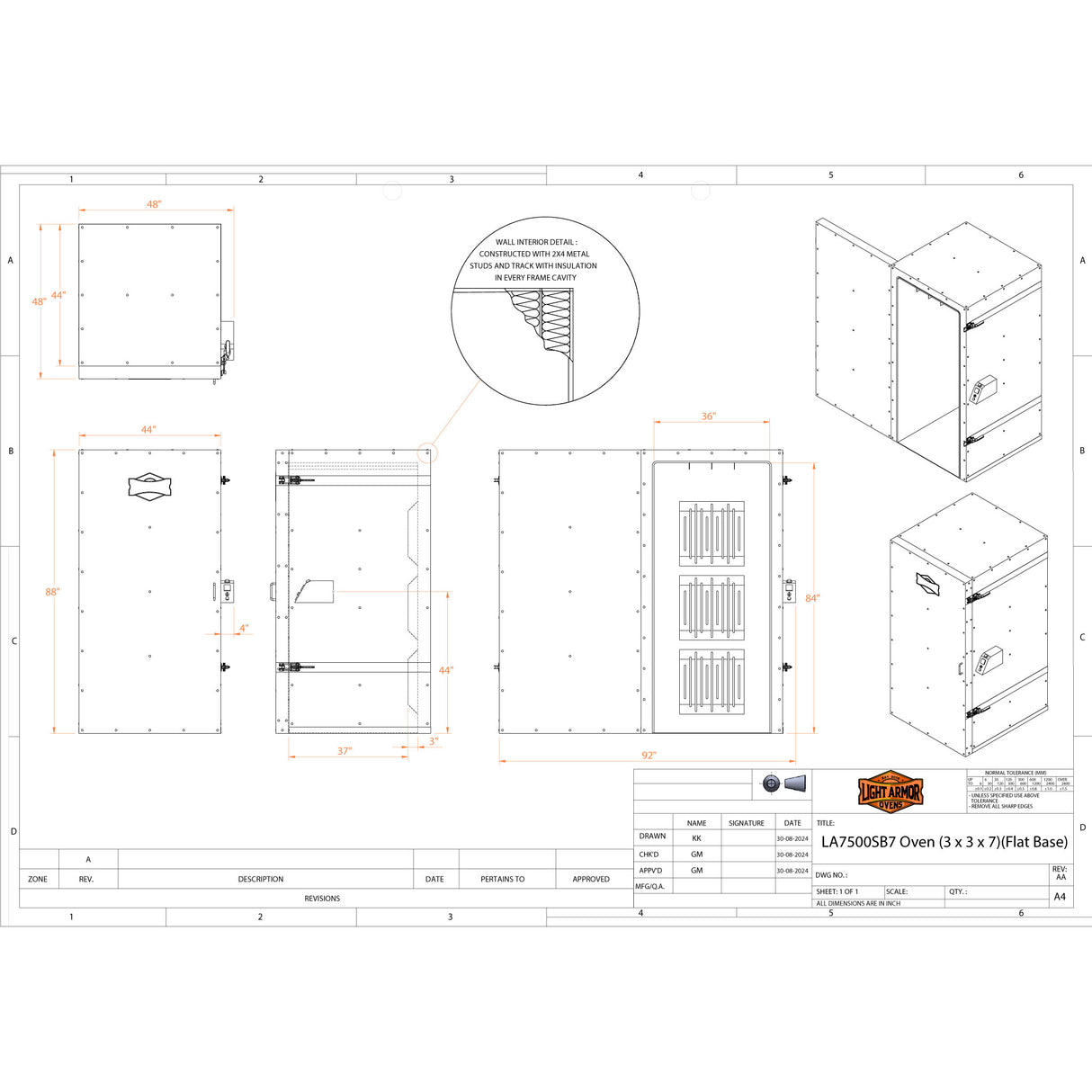

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 36″ W × 37″ D × 84″ T (Nominal) |
| Outside Footprint | 48″ W × 48″ D × 88″ T (Nominal) |
| Shipment Size | 5′ W × 5′ D × 8′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 42A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 45A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 2 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
— Stationary Illinois-Built Curing Oven
Even Heat, 500°F, Illinois-Built — the LA7500SB7 Powder Coating Oven
The LA7500SB7 Powder Coating Oven is an industrial-grade, stationary curing oven with a generous 7' inside height, built for demanding cure cycles. In a 3' x 3' x 7' chamber, it reaches a maximum temperature of 500°F — hot enough to handle virtually any material, from powder coating and epoxy resin to carbon fiber and thermoplastics.
Consistent Cures Across Every Load
Accurate temperature control and even heat distribution mean the LA7500SB7 holds your setpoint through the entire cycle, so composites and coatings come out uniform every time. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with galvanized metal, this curing oven resists rust, withstands tough industrial conditions, and delivers optimal cures with a fast cooling rate.
- ✓ 500°F maximum temperature — cures powder coating, epoxy resin, carbon fiber, polymers, rubber, and more
- ✓ Even heat distribution — holds temperature throughout the cycle for uniform, consistent results
- ✓ Galvanized, Illinois-built construction — resists rust and stands up to harsh industrial environments
- ✓ Tall 7' interior height — the stationary 3' x 3' x 7' oven accommodates taller parts and racks
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
