LABS-5166 Powder Coat Oven (5' x 16' x 6')
Weight: 1500 lb
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LABS-5166 Powder Coat Oven (5' x 16' x 6')
Unit from $10,999.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.

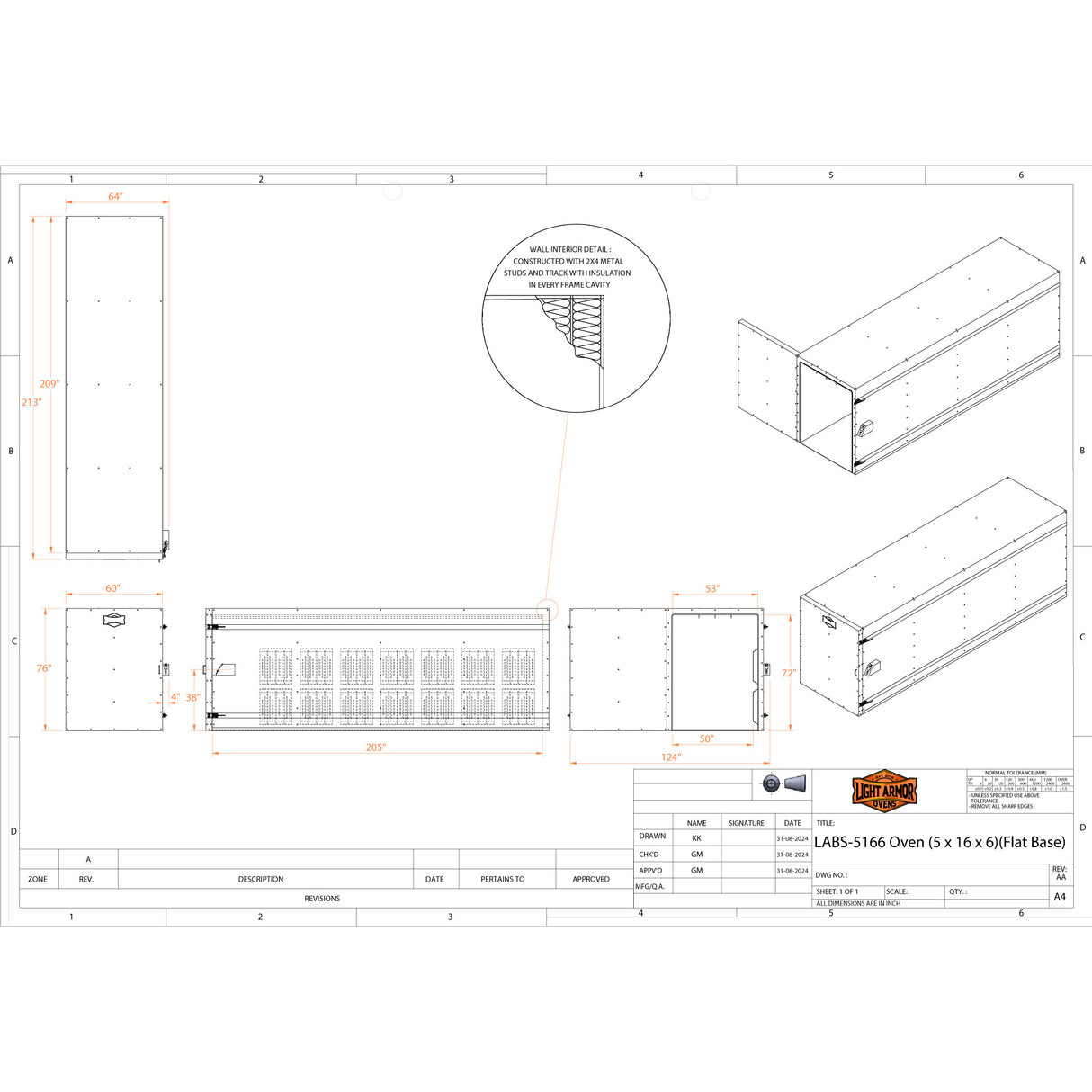

— LABS-5166 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
50×205×72″
Weight
~2100 lb
| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 50″ W × 205″ D × 72″ T (Nominal) |
| Outside Footprint | 64″ W × 213″ D × 76″ T (Nominal) |
| Weight | ~2100 Pounds |
| Shipment Size | x2 Skids, Each 6′ W × 10′ D × 7′ T |
| Recommended Distance from Wall | 3″+ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 196A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 200A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) |
| Recommended # of Blower Fans | 6–8 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty Included |
— High-Volume Production Scale
Scale Up Production with the LABS-5166 Powder Coating Oven
When the orders are big and the parts are bigger, the LABS-5166 keeps pace. This curing oven opens up a commanding 5' x 16' x 6' chamber — room to cure long structural runs or pack in a heavy batch and clear the queue in one cycle. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with rust-resistant G90 galvanized steel, it rolls loaded carts in over a flat floor and holds steady heat so every part in a full load reaches a complete, uniform cure.
Serious Capacity, Reliable Cures
Sixteen feet of length turns bottlenecks into throughput, whether you are coating fencing, frames, or a shop full of mixed parts. Run batch loads or a continuous process and count on the same dependable powder coat and Cerakote results every time.
- ✓ Sixteen-foot chamber — cure the longest runs or the biggest batches in a single load
- ✓ G90 galvanized build — corrosion-resistant, Illinois-built steel for high-use production
- ✓ Flat roll-in floor — stage heavy loads on carts and drive them straight inside
- ✓ Configurable to spec — blower fan, oven light, and Rockwool insulation available
OVERSIZED ITEM - REQUIRES FORKLIFT AT PLACE OF DELIVERY, UNLESS PICKING UP AT OUR WAREHOUSE. FOR FREIGHT RATE, PLEASE EMAIL US
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
