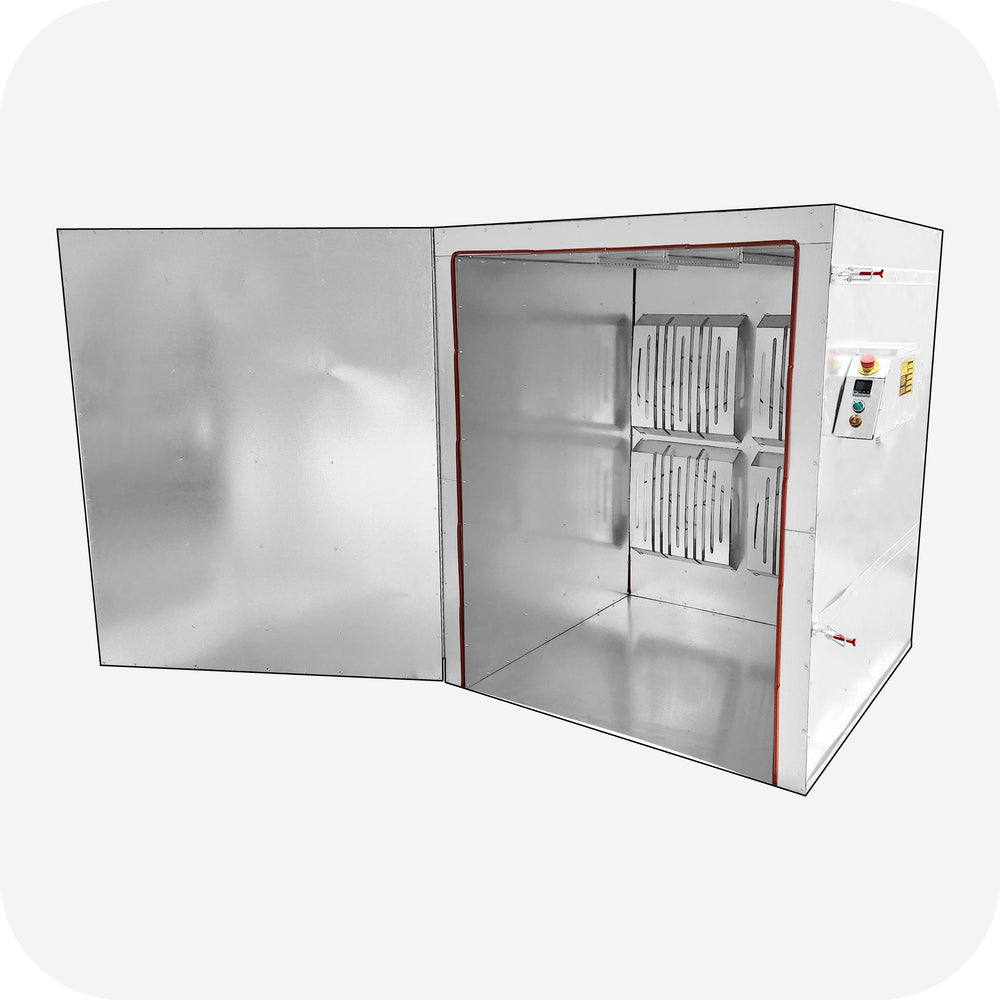

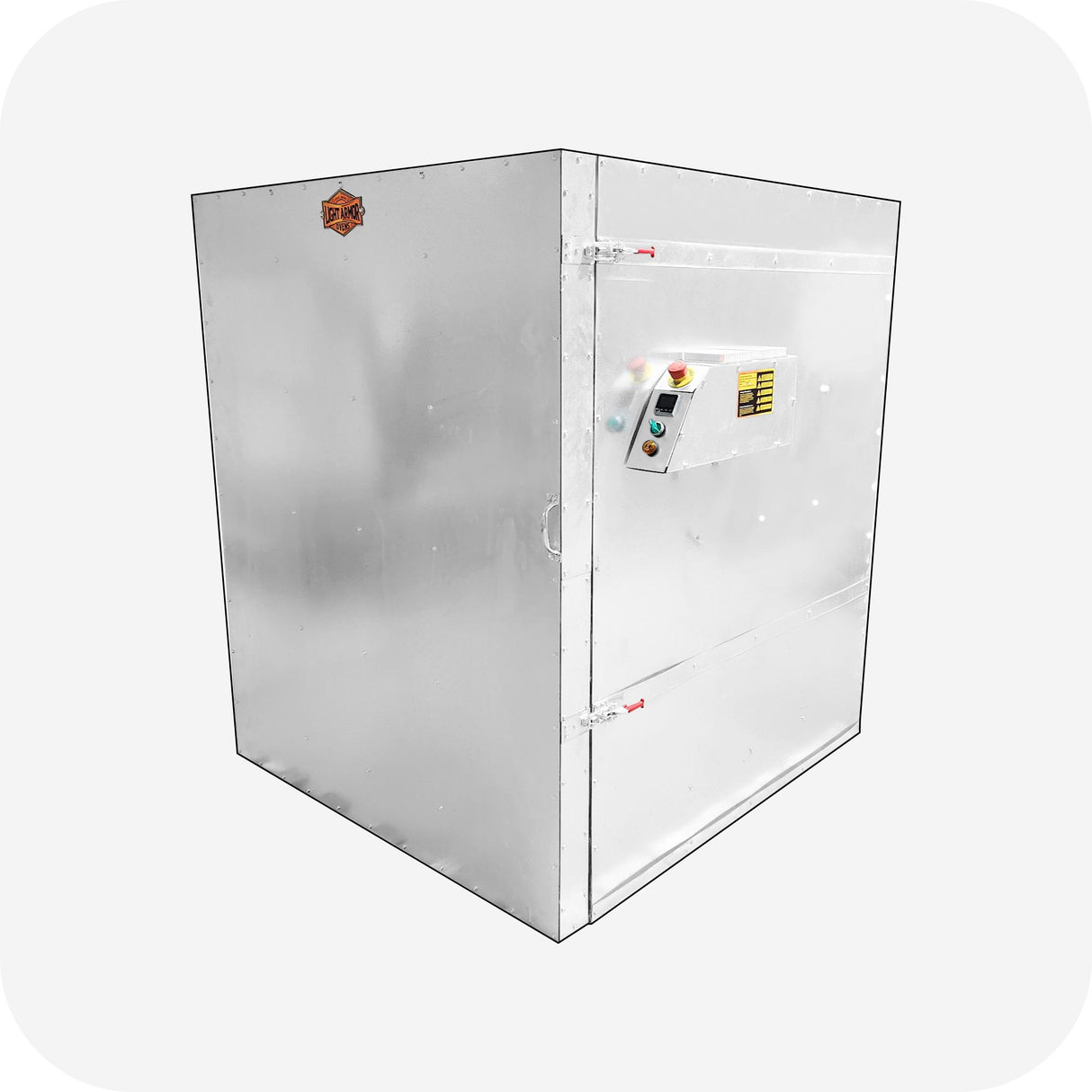

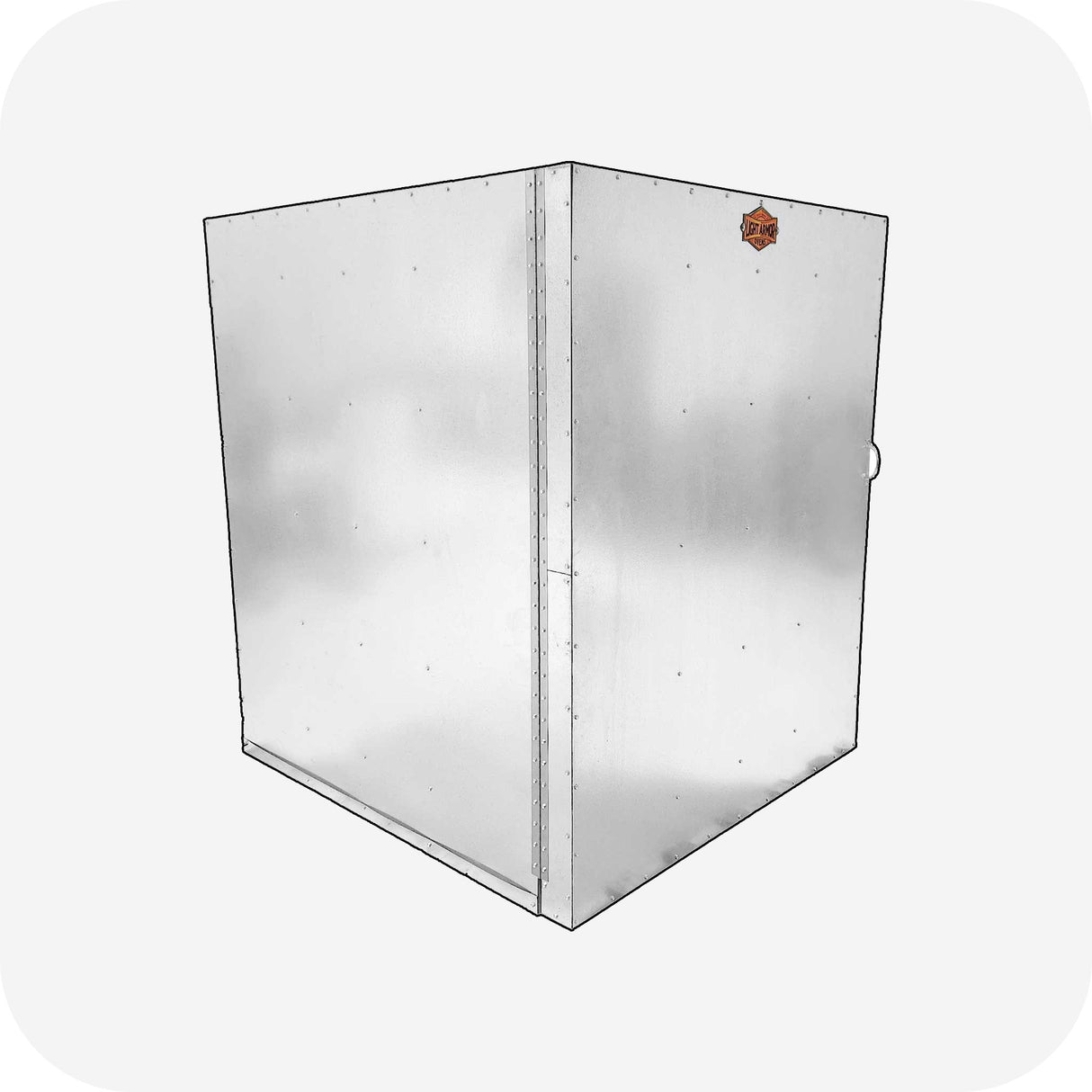

LA10K Powder Coat Oven (4' x 4' x 5')
LA10K Powder Coat Oven (4' x 4' x 5') is backordered and will ship as soon as it is back in stock.
Pickup available at Main Warehouse
Usually ready in 5+ days
Shipping, Tracking and Delivery
Shipping, Tracking and Delivery
Once your order is picked up by freight, we email you tracking information so that you can follow your shipment in transit. Freight carriers will have your name and number in case they need to contact you ahead of delivering. All freight that's shipped out is covered by insurance; in the case that your shipment is damaged, we will file an insurance claim on your behalf. Please note these claims can take anywhere between 1-2 months to fully process.
Description
Description
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LA10K · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
45×46×60″
Shipping Weight
~550 lb

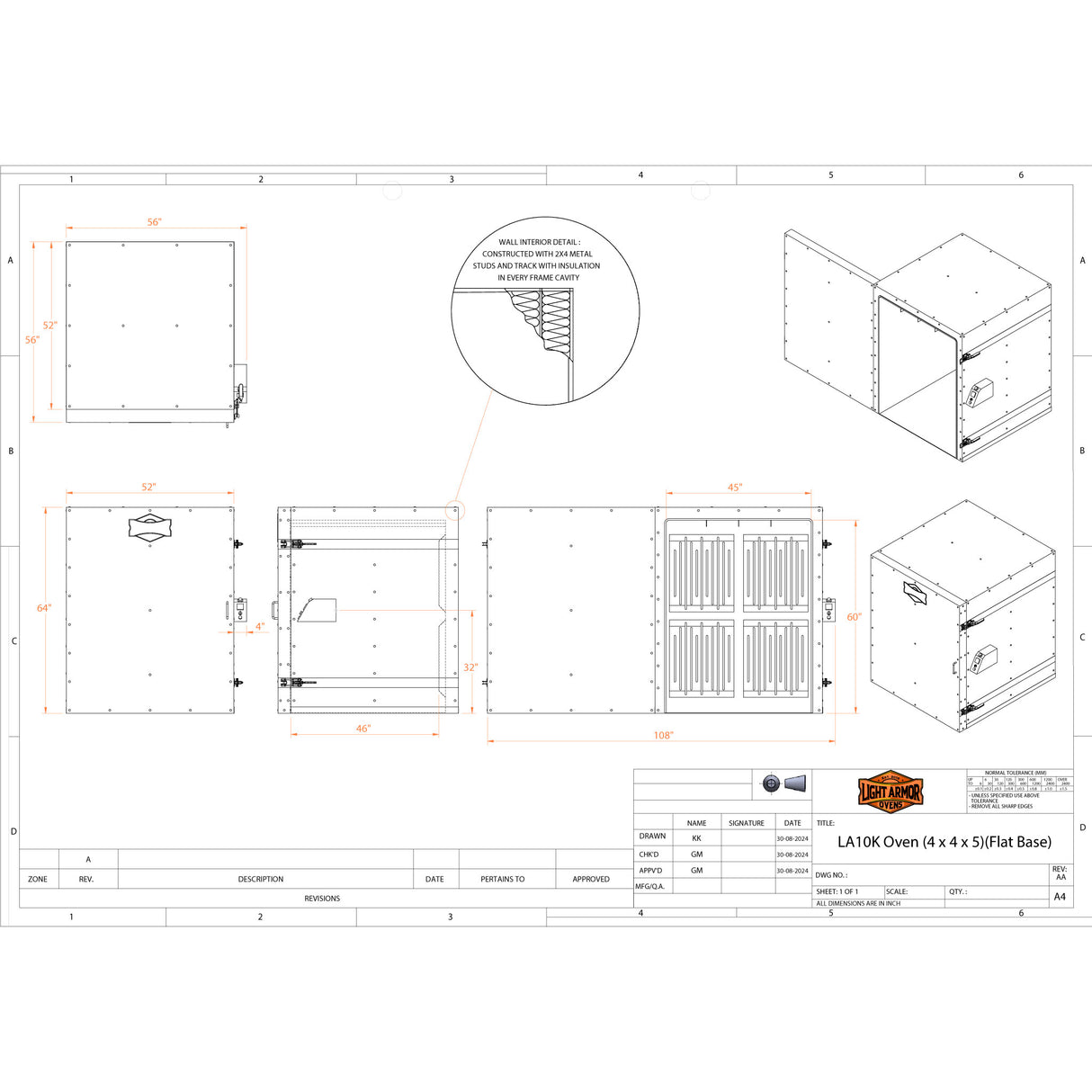

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 45″ W × 46″ D × 60″ T |
| Outside Footprint | 56″ W × 56″ D × 64″ T |
| Shipment Size | 5′ W × 5′ D × 6′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 56A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 60A+ / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 1 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |

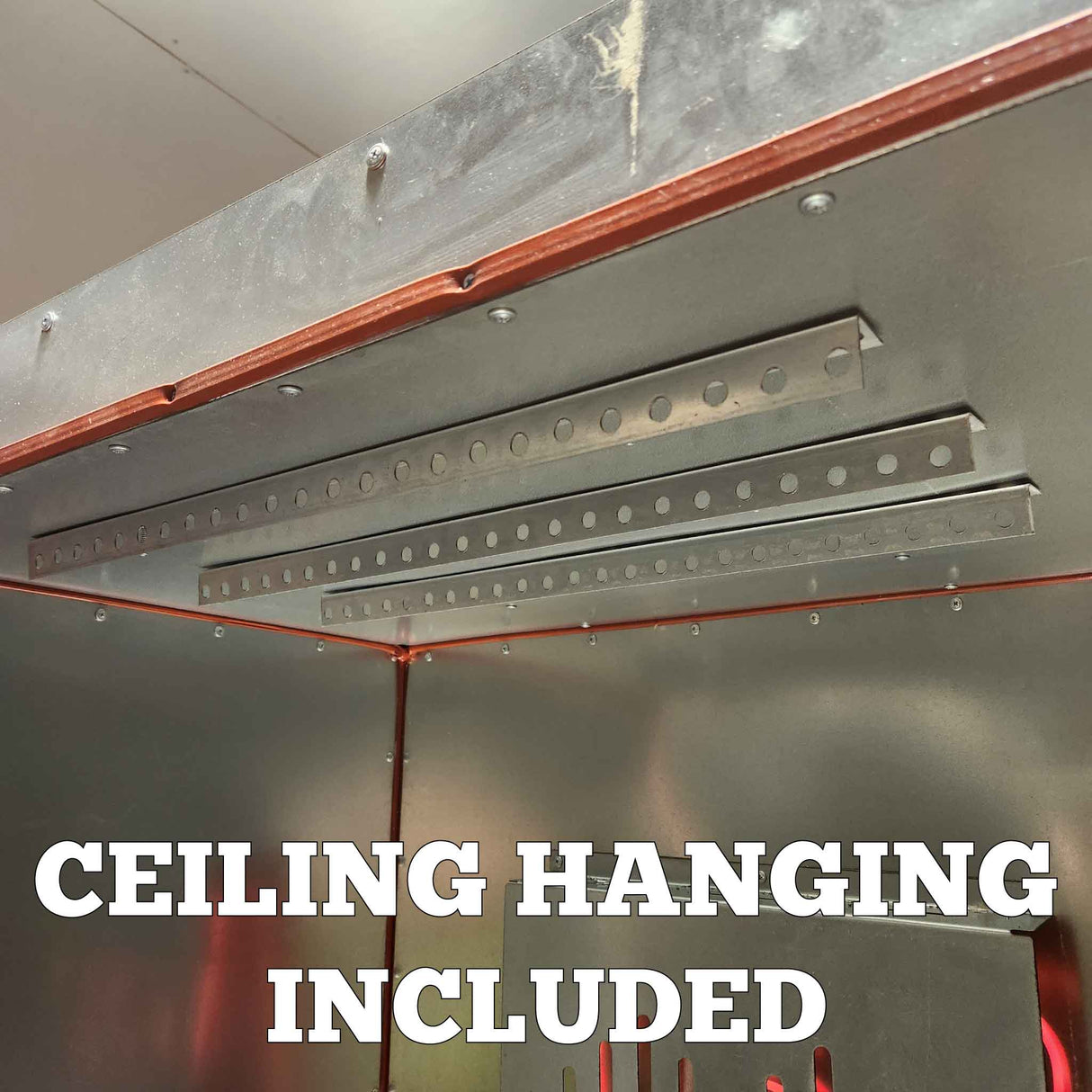

| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
— Built To Your Spec

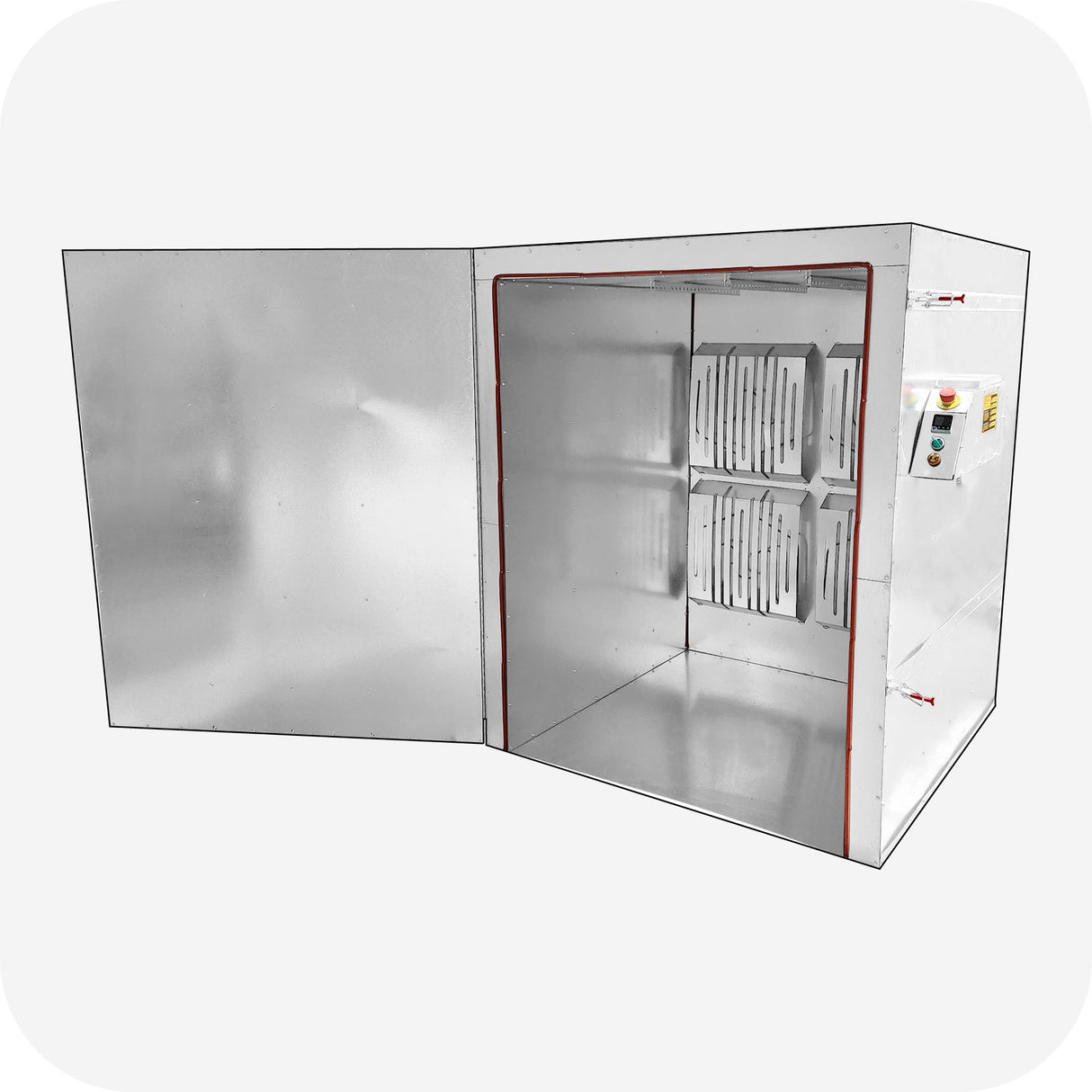

The LA10K Powder Coating Oven, Made in the USA for Curing That Fits Your Shop
Give your finishing line room to grow with the LA10K powder coating oven, a generous 4' x 4' x 5' curing oven built in the USA from G90 galvanized steel that resists rust load after load. Whether you run powder coating, Cerakote, or broader industrial curing, the LA10K brings a part up to temperature, holds it steady for a full cure, then cools it down for handling — the exact heat cycle dependable finishes demand.
A Curing Oven Configured Around Your Parts

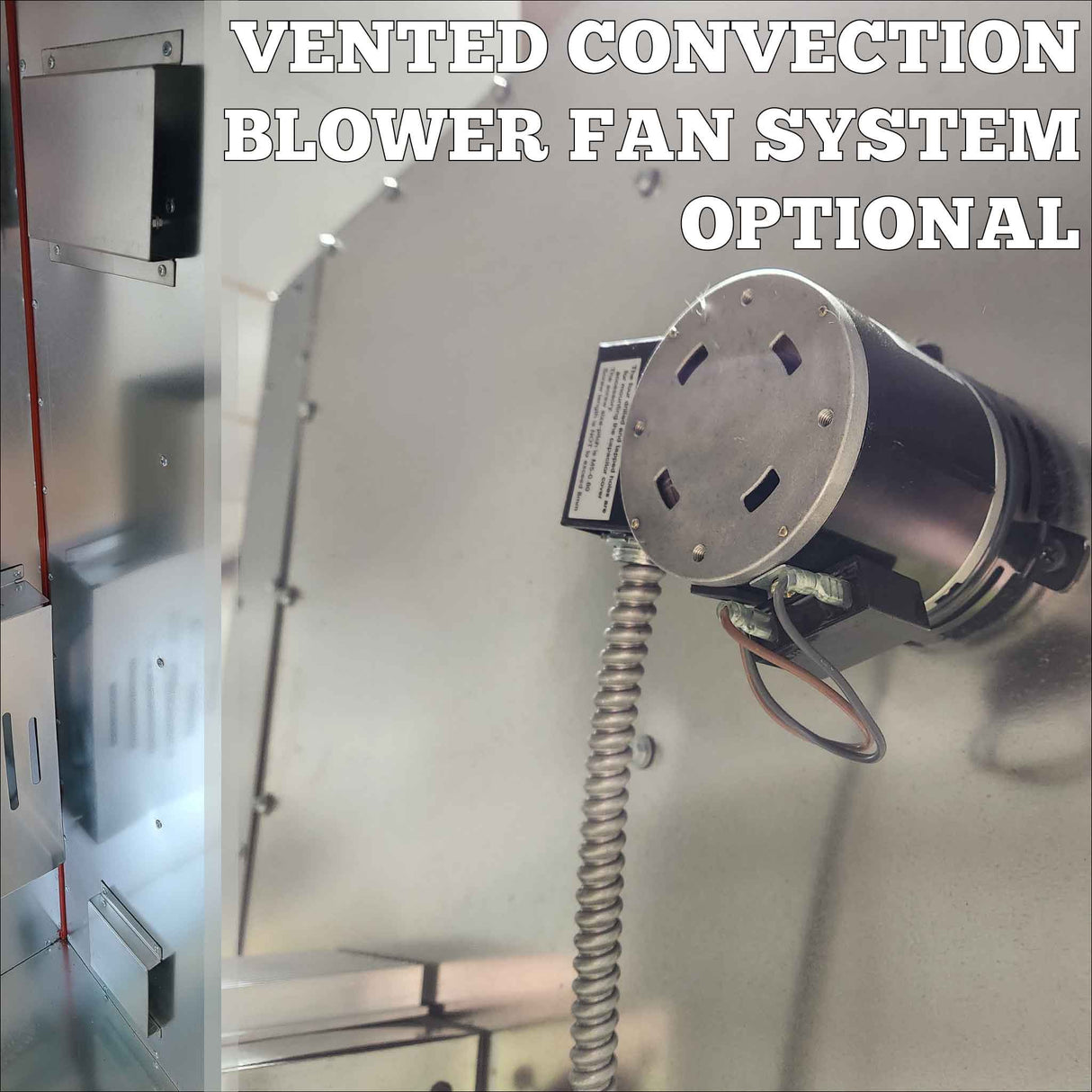

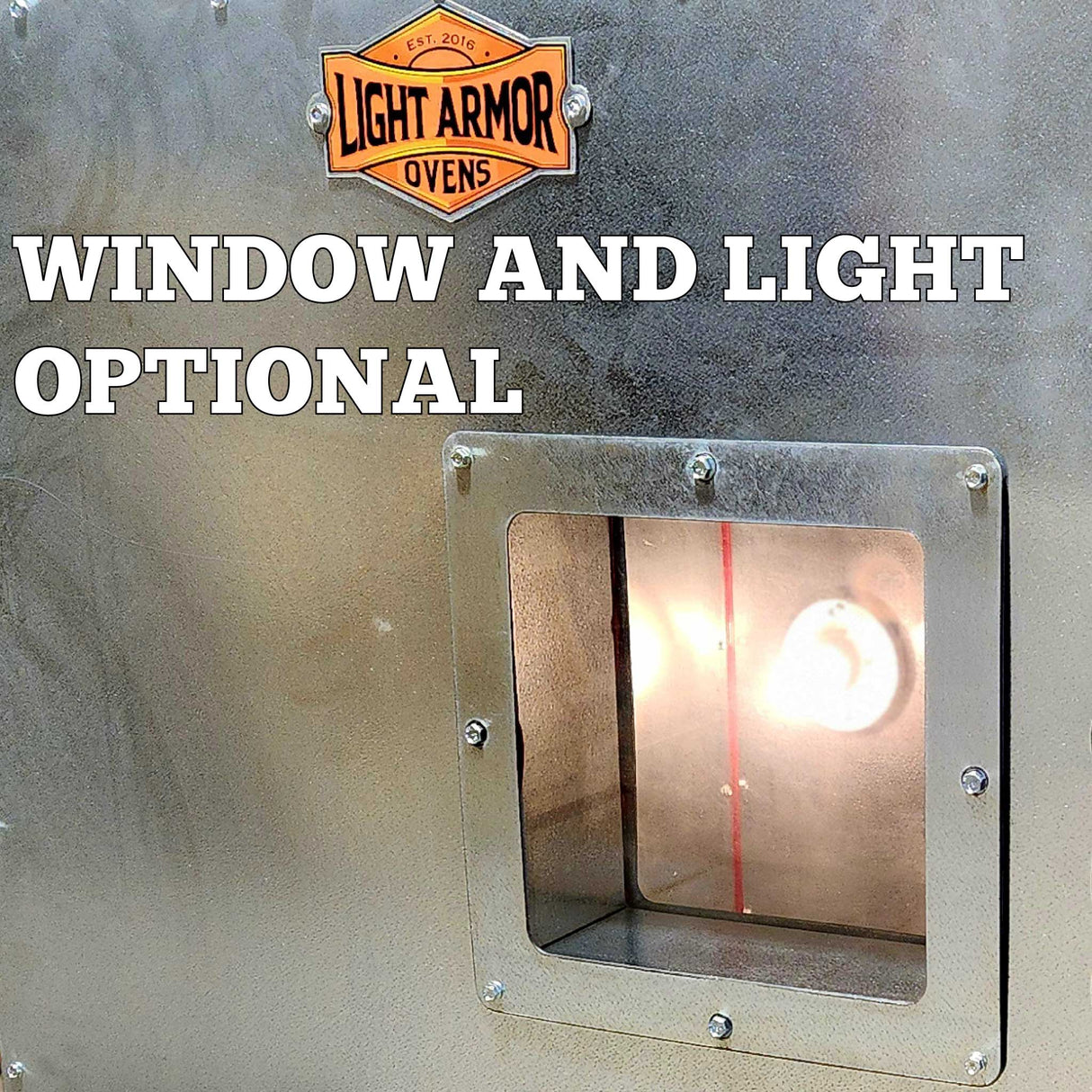

Because the LA10K is fully customizable, you can add a blower fan for even heat, an interior oven light, an optional mobile base, and even choose your oven color. Run it as a batch oven or set it up for a continuous process — the choice follows your part count and production goals, not the other way around.
- ✓ Made in the USA — constructed from G90 galvanized material that stands up to rust and years of industrial use
- ✓ Spacious 4' x 4' x 5' chamber — cures larger batches and bulkier parts in a single load
- ✓ Customizable build — add a blower fan, oven light, mobile base, or your preferred color
- ✓ Batch or continuous — configure the LA10K for one-off runs or nonstop production flow
