Shows the options you pick. Drag to spin, scroll or pinch to zoom.
Weight: 550 lb
Ships LTL freight, calculated at checkout from your address — or free pickup at our warehouse in Central Illinois.
Freight isn't in this price: it's calculated at checkout from your address, or pick it up free in Central Illinois.
Your upgrades go into the cart with your oven.
💰 Earn up to $500 back with the Feedback Promo. How It Works
— Approved Applications
Customers rely on our products across the full range of protective and performance coatings.
— LA10K · Technical Specifications
Max Temperature
500°F
Inside Working Space
45×46×60″
Shipping Weight
~550 lb
| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 45″ W × 46″ D × 60″ T |
| Outside Footprint | 56″ W × 56″ D × 64″ T |
| Shipment Size | 5′ W × 5′ D × 6′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 56A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 60A+ / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 1 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |

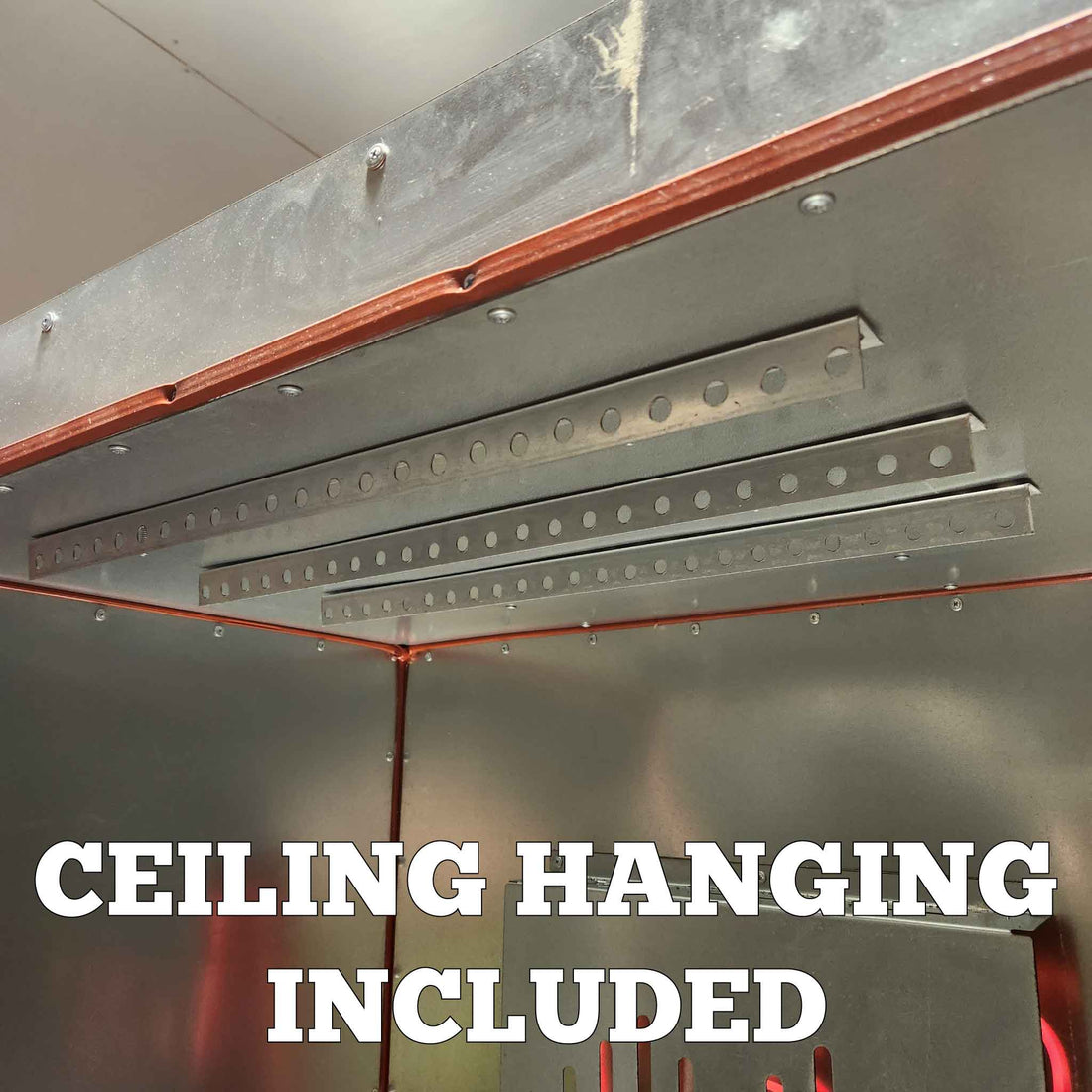

| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
— Built To Your Spec

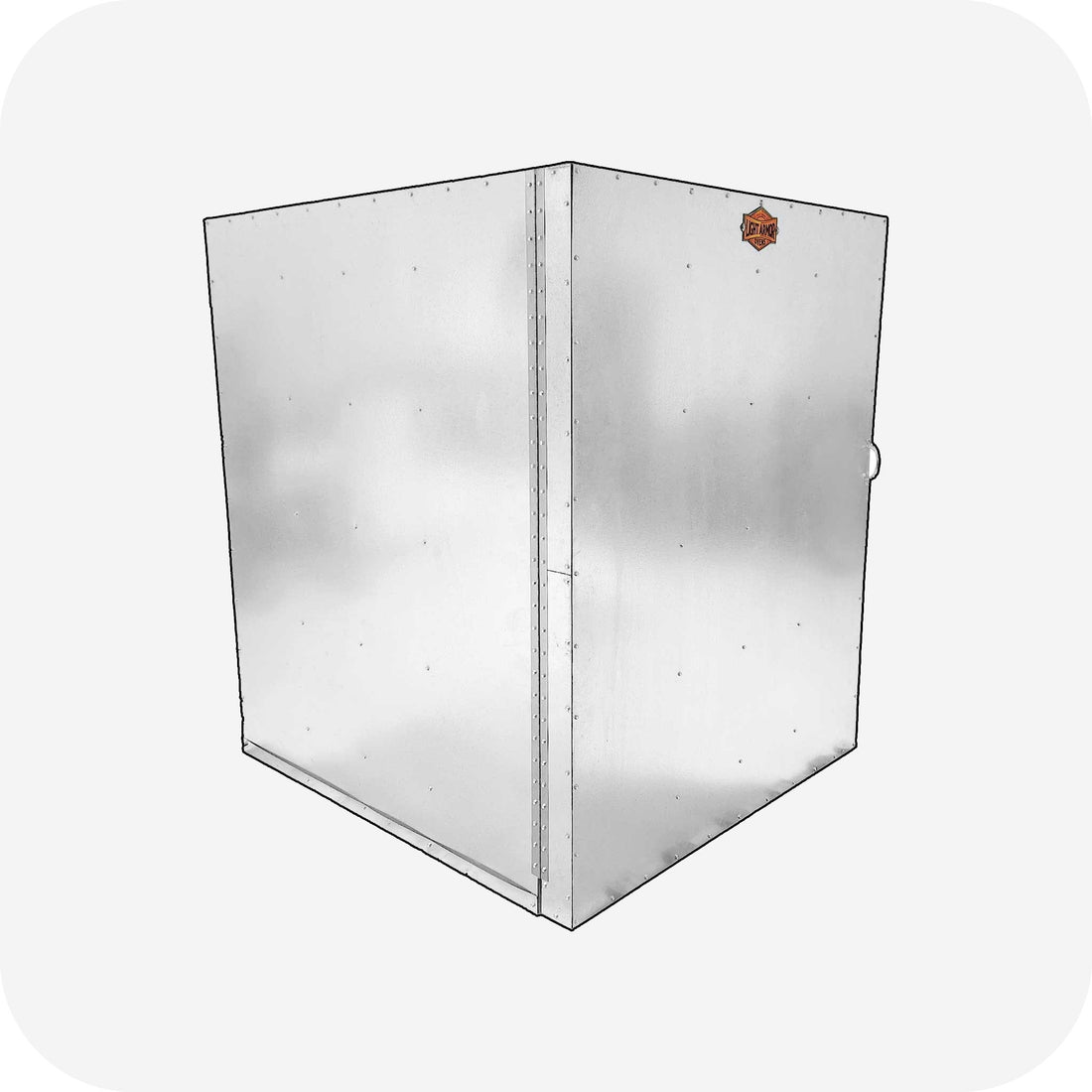

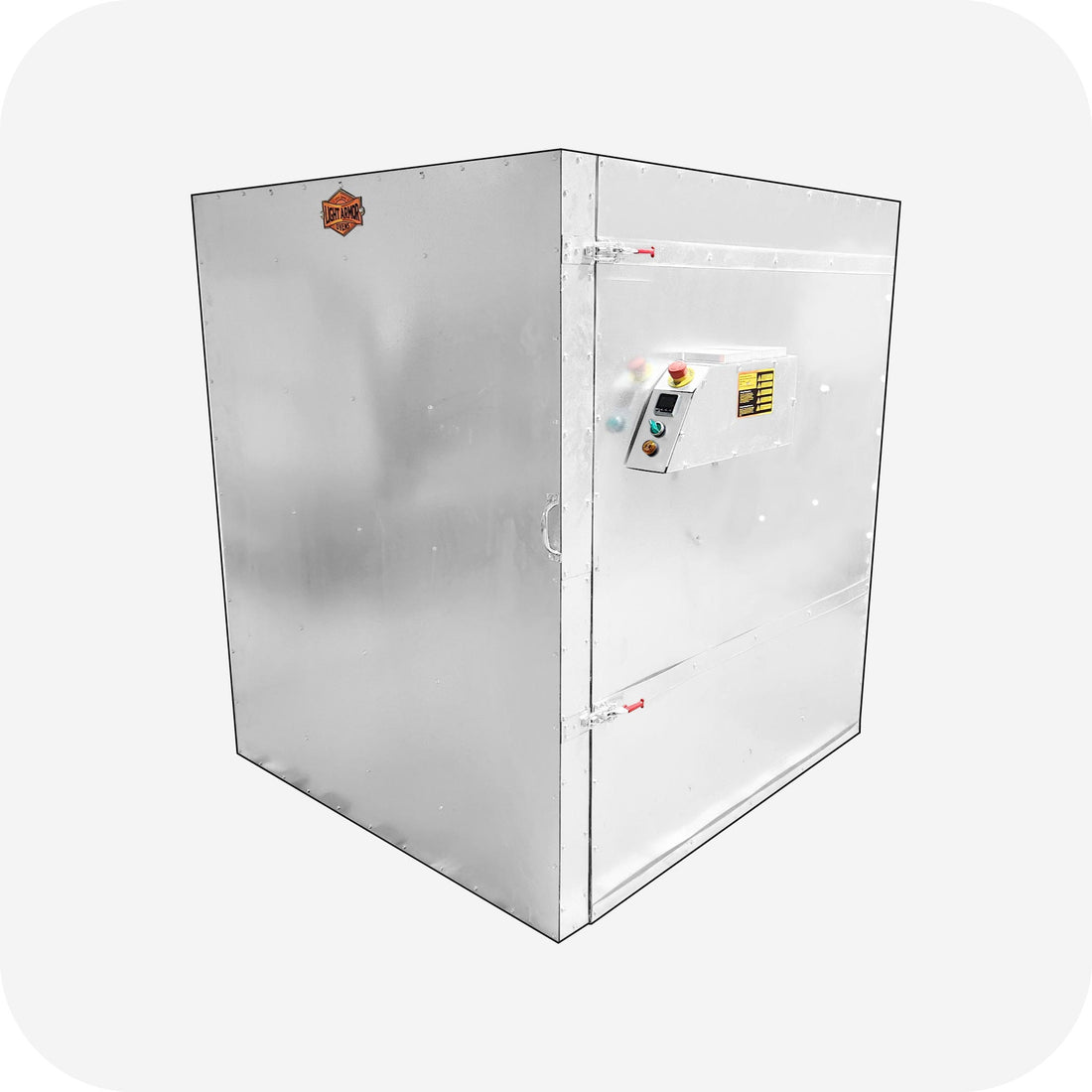

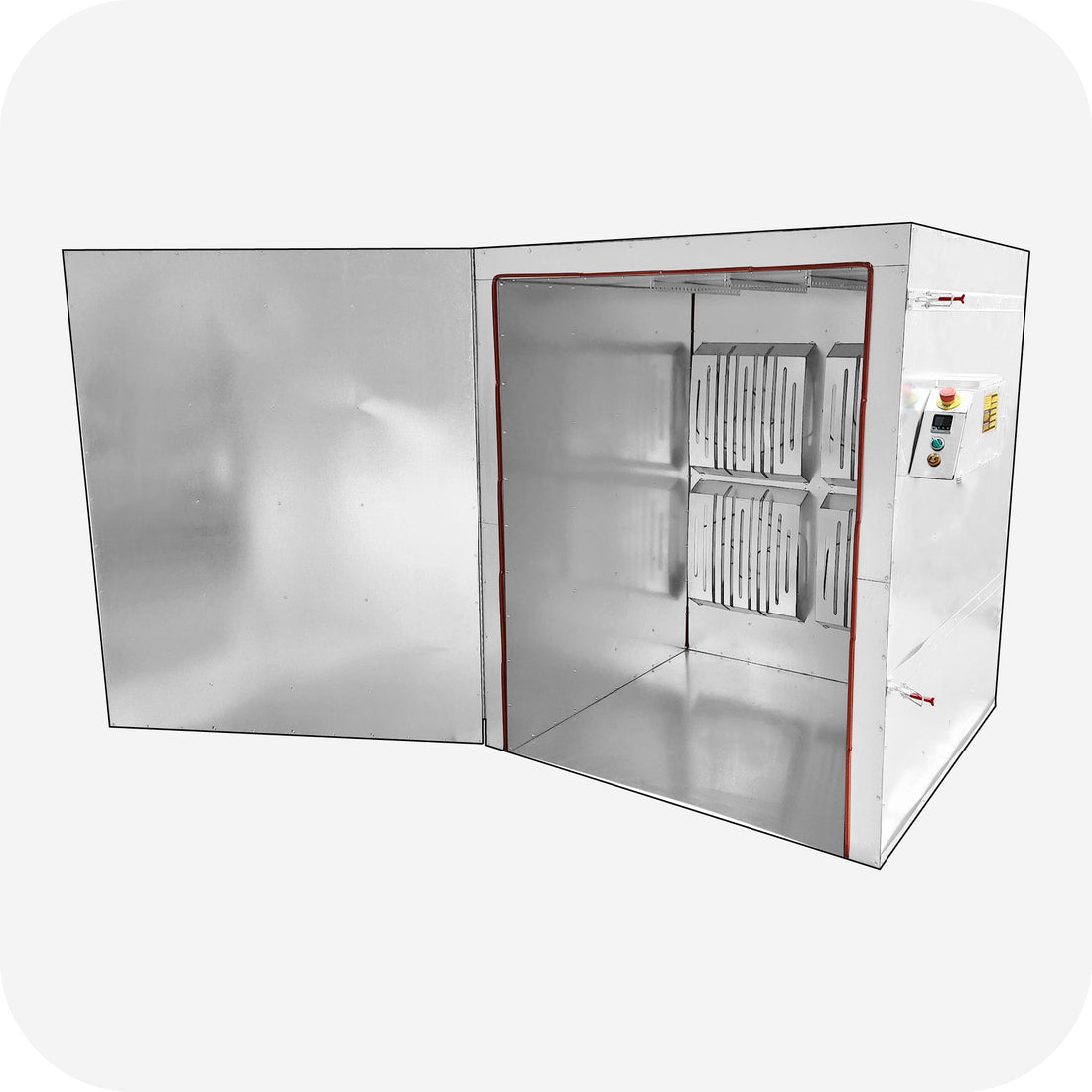

Give your finishing line room to grow with the LA10K powder coating oven, a generous 4' x 4' x 5' curing oven assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with G90 galvanized steel that resists rust load after load. Whether you run powder coating, Cerakote, or broader industrial curing, the LA10K brings a part up to temperature, holds it steady for a full cure, then cools it down for handling — the exact heat cycle dependable finishes demand.

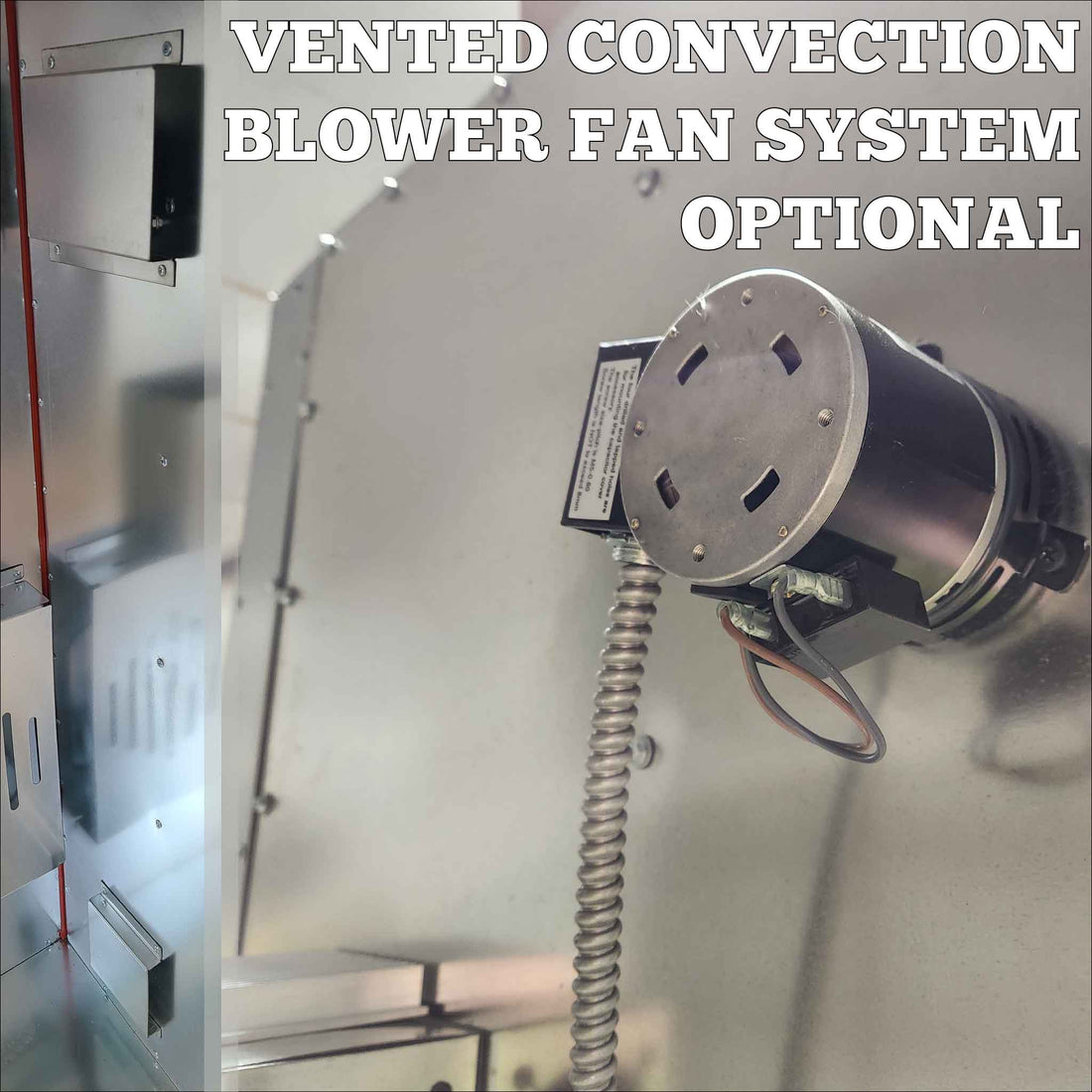

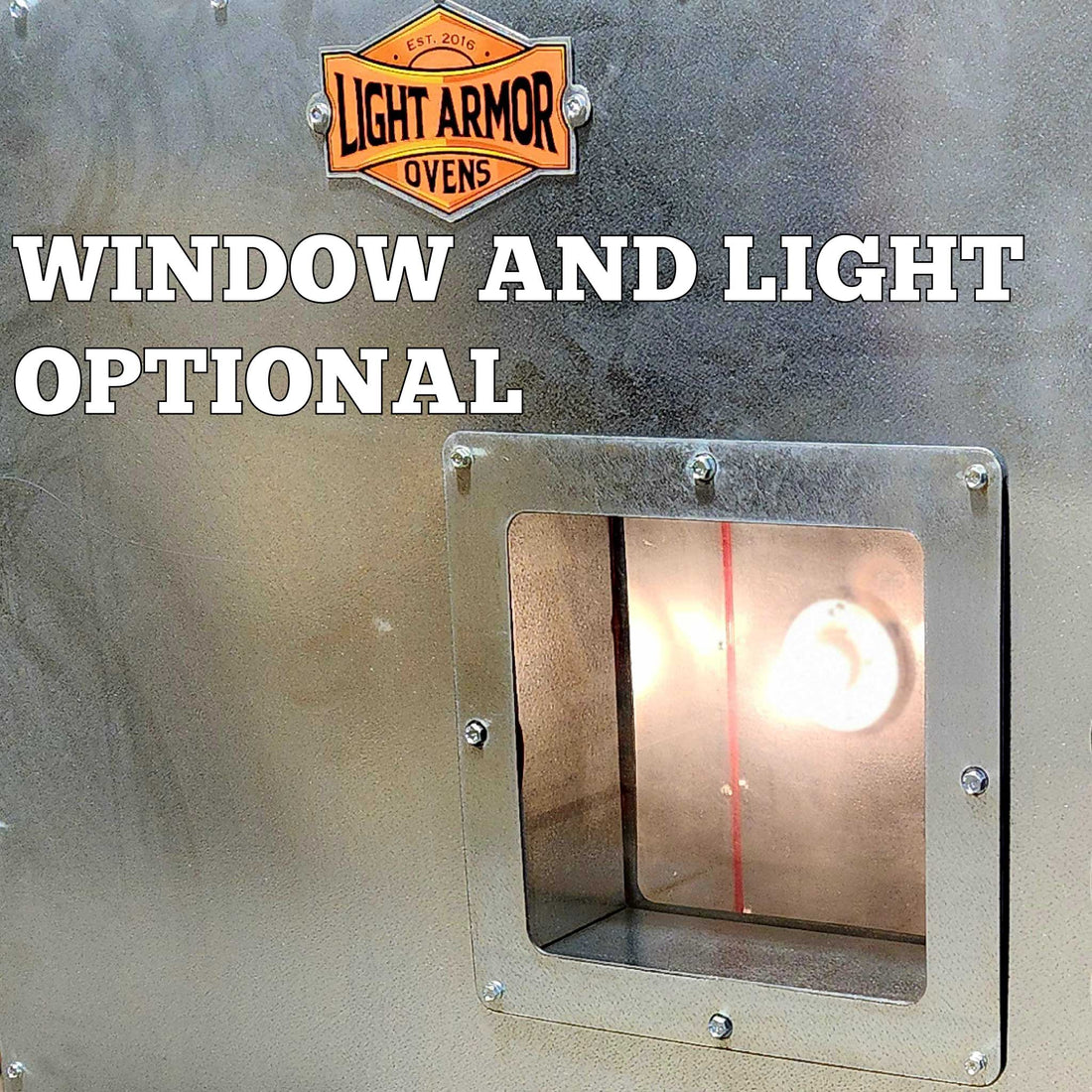

Because the LA10K is fully customizable, you can add a blower fan for even heat, an interior oven light, an optional mobile base, and even upgrade to Rockwool insulation. Run it as a batch oven or set it up for a continuous process — the choice follows your part count and production goals, not the other way around.
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
I bought this in a package with a 4x4x6 spray booth. This oven is pretty awesome for what they charge. Make sure you tighten up all the screws because they will loosen during transit. Oven maintains temp within 5 degrees once warmed up and leveled out. The controller is difficult to operate initially. Research in depth on the controller and figure out all the settings.
I ordered the 10K with 6ft ceilings, Gordon walked me through everything I would need to support my business operations in terms of power requirements and best setup for our needs. Definitely the best purchase we could have made. This oven is a beast!
Instagram @broadswordcomposites
Couldn't be happier. With the 6ftLA10K I'll be able to paint a lot more!! Oven works great and looks awesome!
We took a huge step going from using a regular kitchen oven to ordering the LA10K. Gordon answered every question along the way. Customer service is excellent. Such a well built product. After only using for a week, we are so satisfied. Never going back to the hassle of spray paint or kitchen ovens! Thank you, Gordon and Light Armor for an excellent product!!
This is our second oven. The first oven was a bad purchase from a company in Iowa, and we were a little gun shy. We had heard from quite a few people in our network about Lightarmor, and reached out to Gordon about having an oven made. Great guy, great company. Our oven came in and we couldn't be happier with it. Night and day over the slapped together oven we got from the other company. Solid construction, quality electronics. If you need a big oven for powdercoat or Cerakote, you can't go wrong with this oven.
