ABSOLUTE GAME CHANGER. Finally stepped up my game in my home shop after powder coating dirtbikes, 3 wheelers and snowmobiles for me and my kids (plus several restoration builds). And I cannot tell you how amazing Light Armor booth and ovens are. The 4x4x7 oven is HUGE and I love everything about it. The quality and fit is top notch. The upgrades I added make it even better. This is going to change my life and I cannot wait to pump out more builds for the family.












Shows the options you pick. Drag to spin, scroll or pinch to zoom.

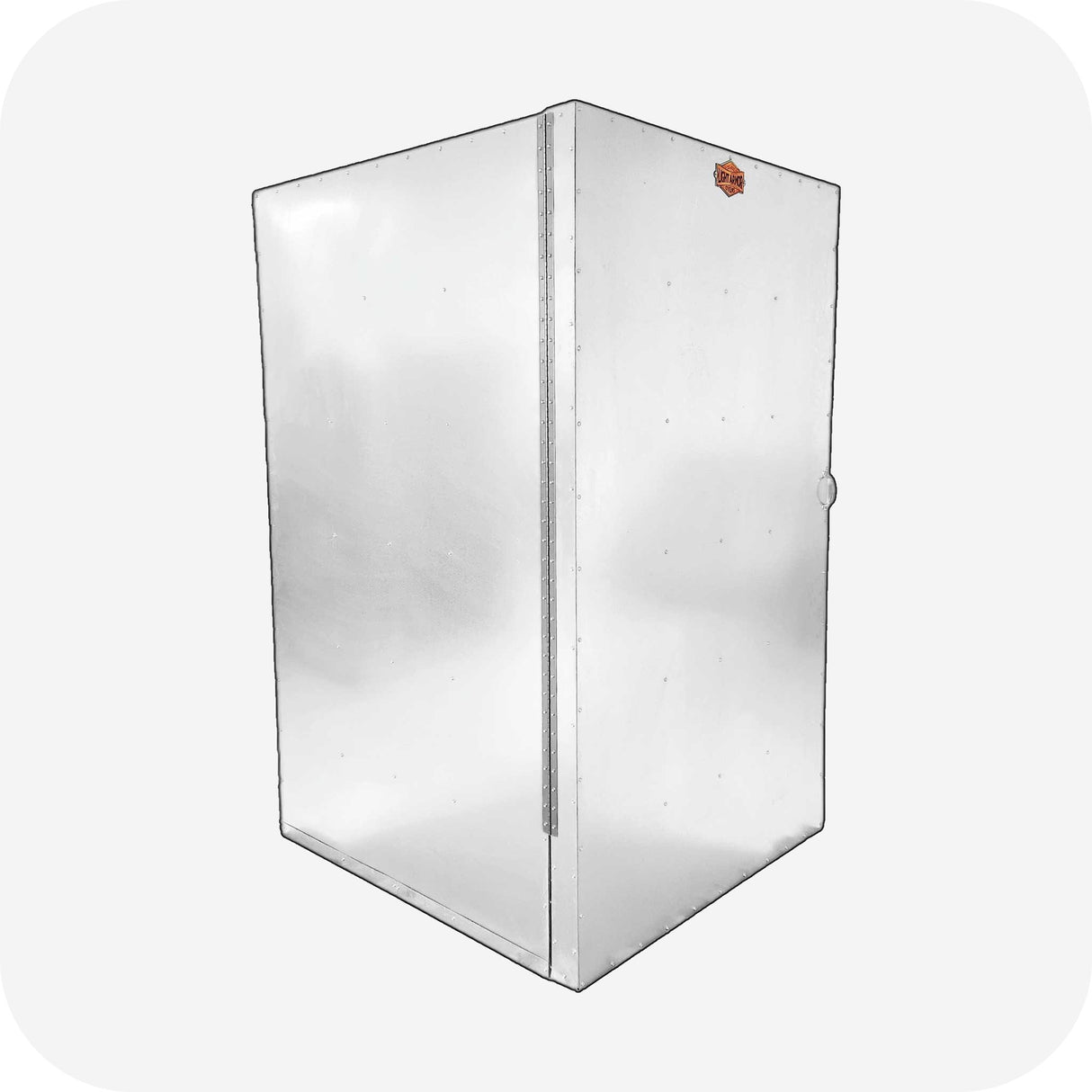

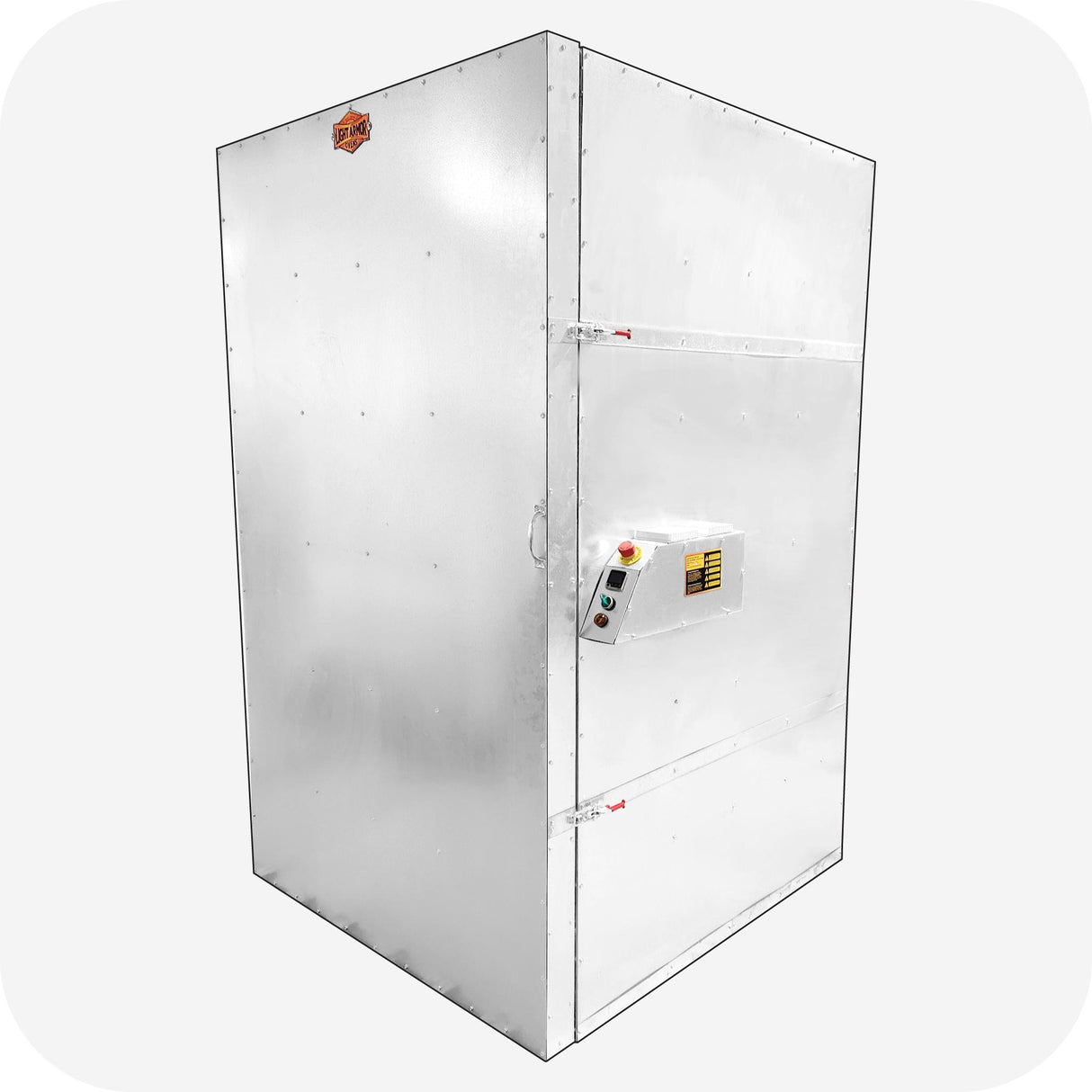

LA10K7 Powder Coating Oven (4' x 4' x 7')
5.0 · 10 ReviewsWeight: 700 lb

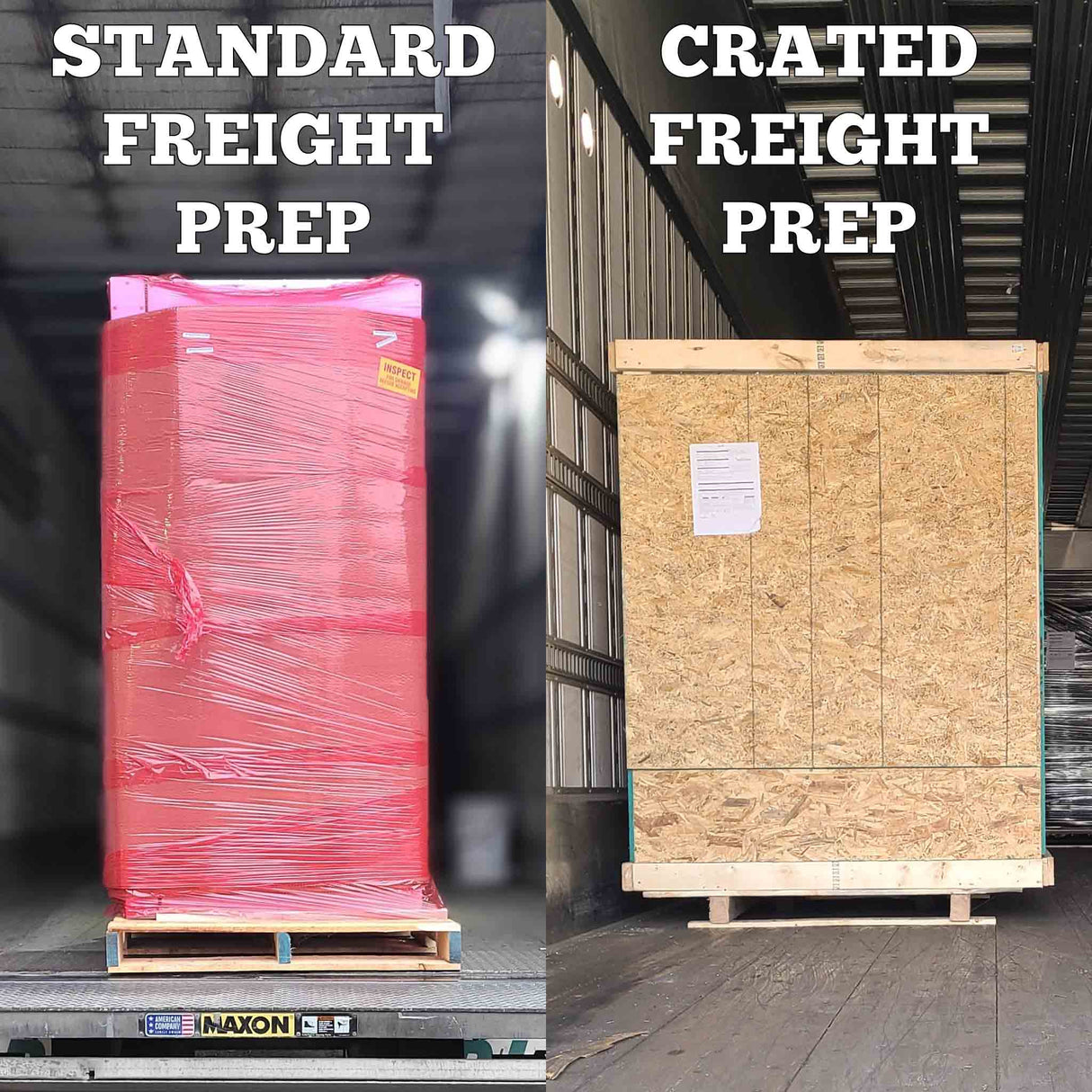

Ships LTL freight, calculated at checkout from your address — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: it's calculated at checkout from your address, or pick it up free in Central Illinois.
Your upgrades go into the cart with your oven.
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents

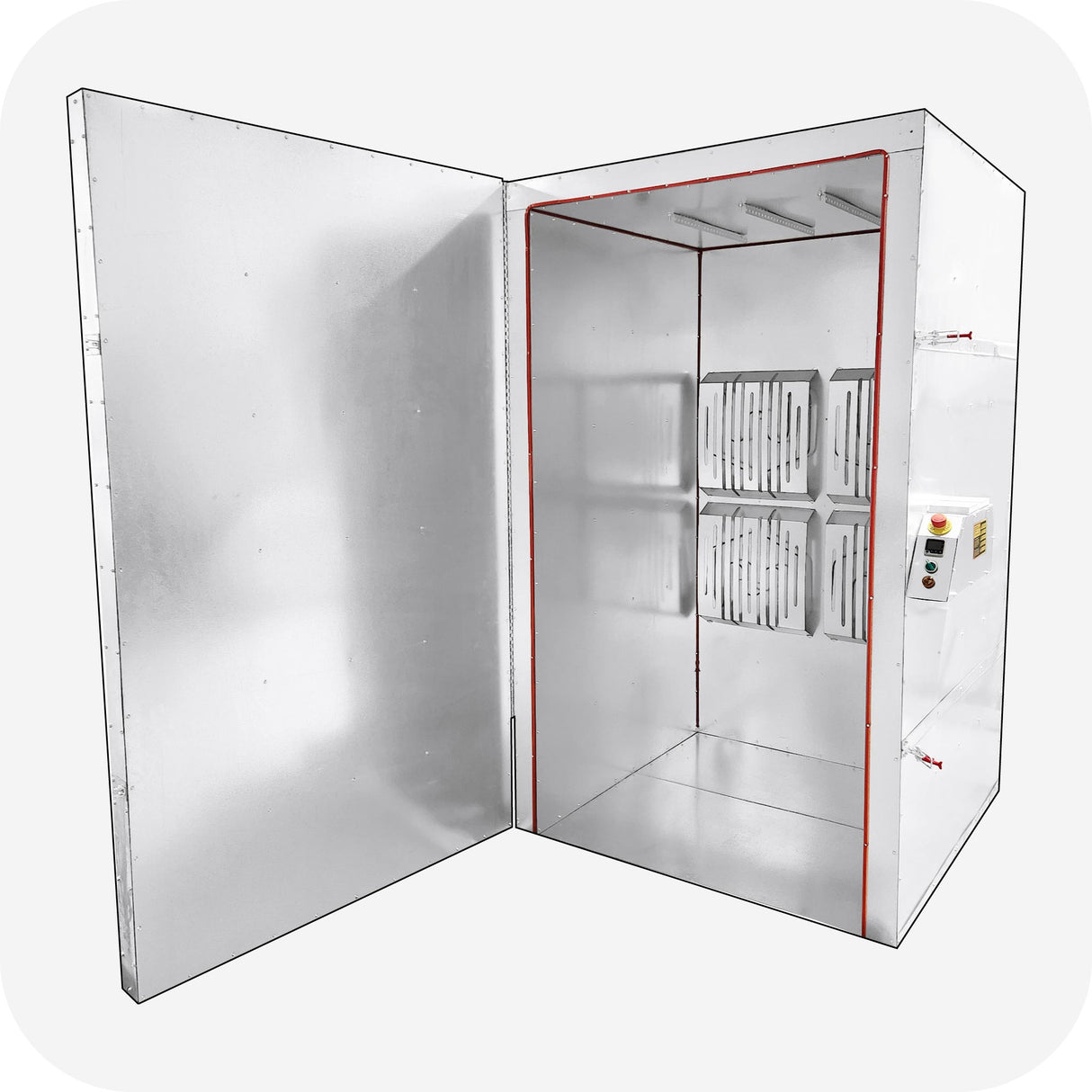

Tall 4′ x 4′ x 7′ powder coat oven for long parts and hanging loads. 45″ x 46″ x 84″ interior, up to 500°F, 240V single phase on a 60A breaker.
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LA10K7 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
45×46×84″
Shipping Weight
~675 lb

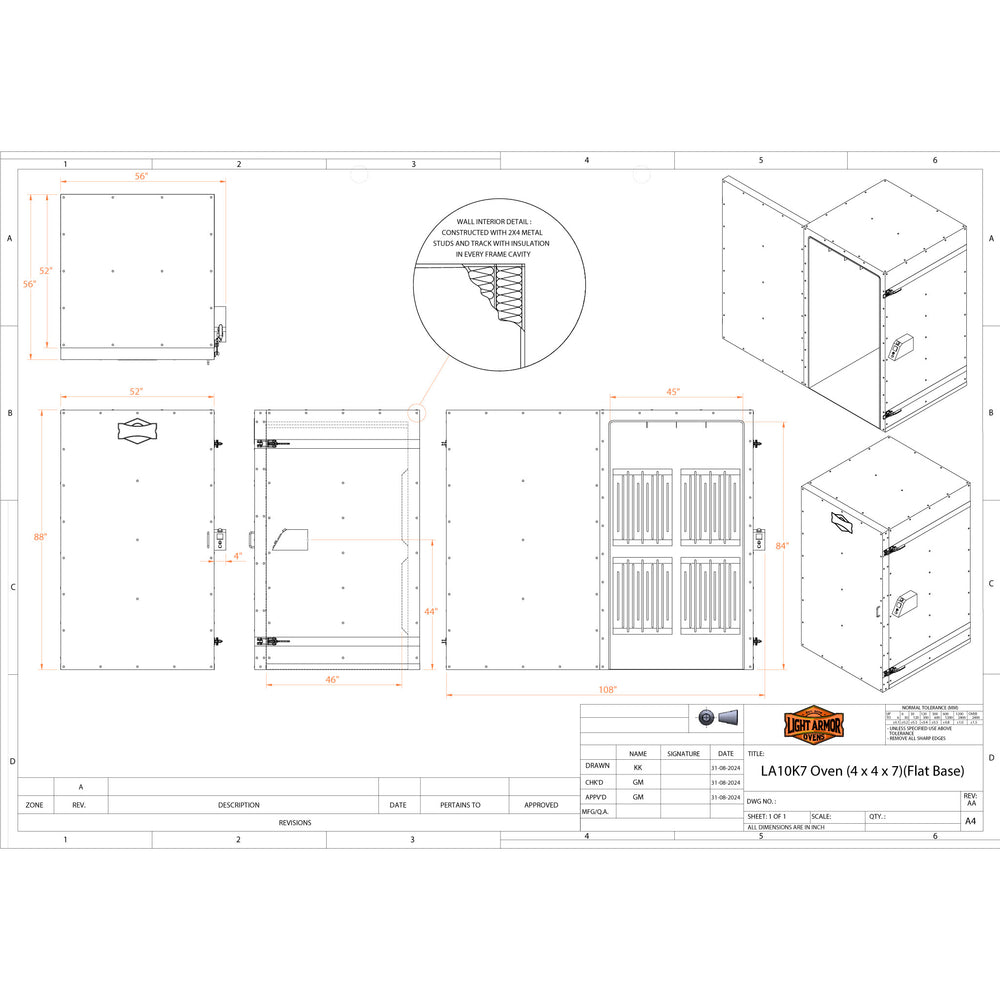

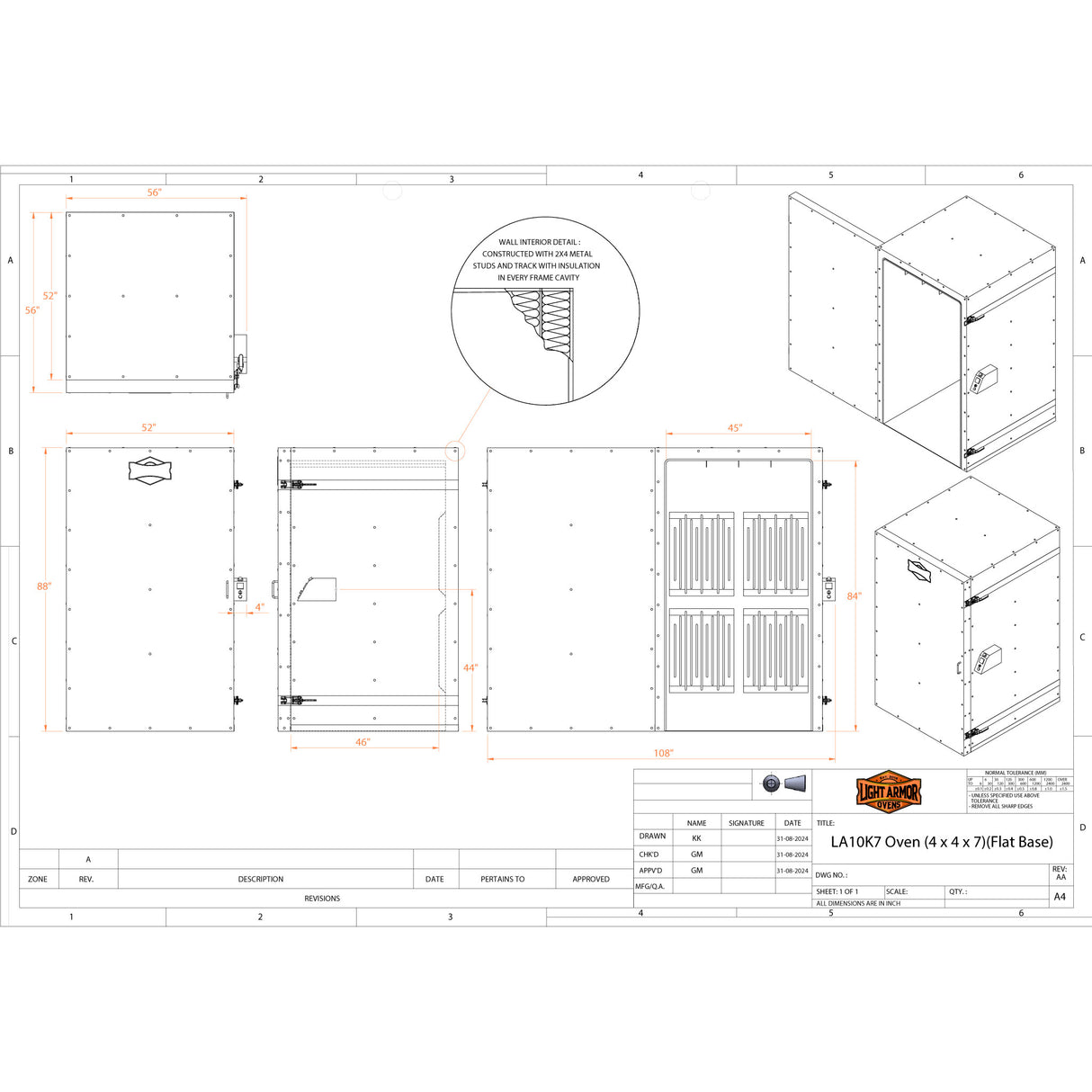

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 45″ W × 46″ D × 84″ T (Nominal) |
| Outside Footprint | 56″ W × 56″ D × 88″ T (Nominal) |
| Shipment Size | 5′ W × 5′ D × 8′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 56A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 60A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 2 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |

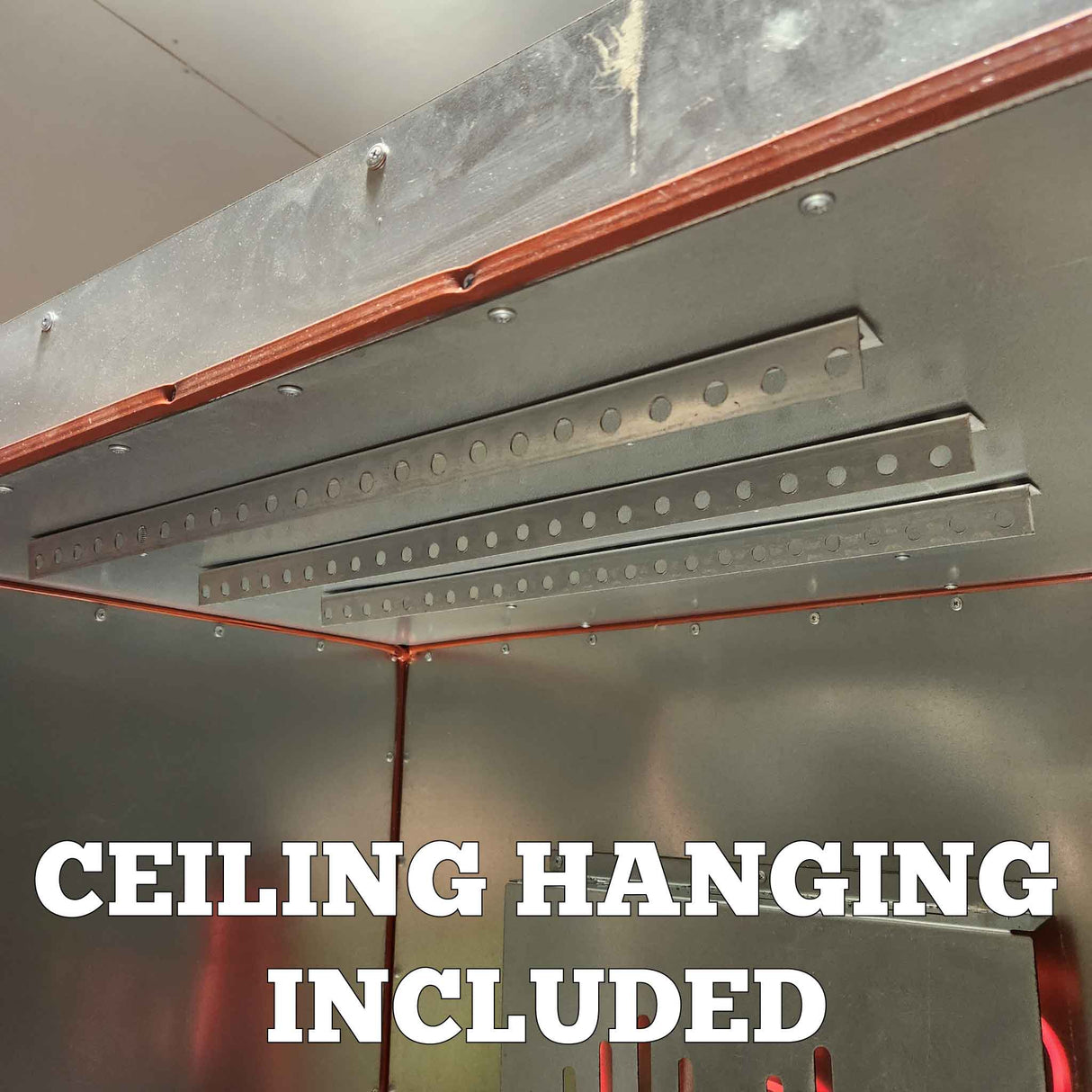

| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
— Tall & Tough, Built in Illinois
LA10K7 Powder Coating Oven — Seven Feet of U.S.-Designed, Illinois-Built Capacity
When your parts need serious height, the LA10K7 answers. This 4' x 4' x 7' powder coating oven is designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with G90 galvanized material to fight off rust, giving you a tall, rugged curing oven for large components and long hanging loads. It heats your parts and holds that temperature steadily to drive the exact chemical reaction a proper cure demands, then cools them down when the cycle is done.
Flexible Enough for Any Line
Run batch loads or a continuous process, and add a blower fan or oven light to match your workflow. Engineered for consistent, dependable results across many industries, the customizable LA10K7 is built around how you actually produce.
- ✓ Towering 4' x 4' x 7' — extra height for tall parts and long vertical hanging loads
- ✓ Designed and Assembled in the USA — from U.S. and imported parts; G90 galvanized build resists rust for lasting durability
- ✓ Batch or Continuous — configure the process to your product volume and needs

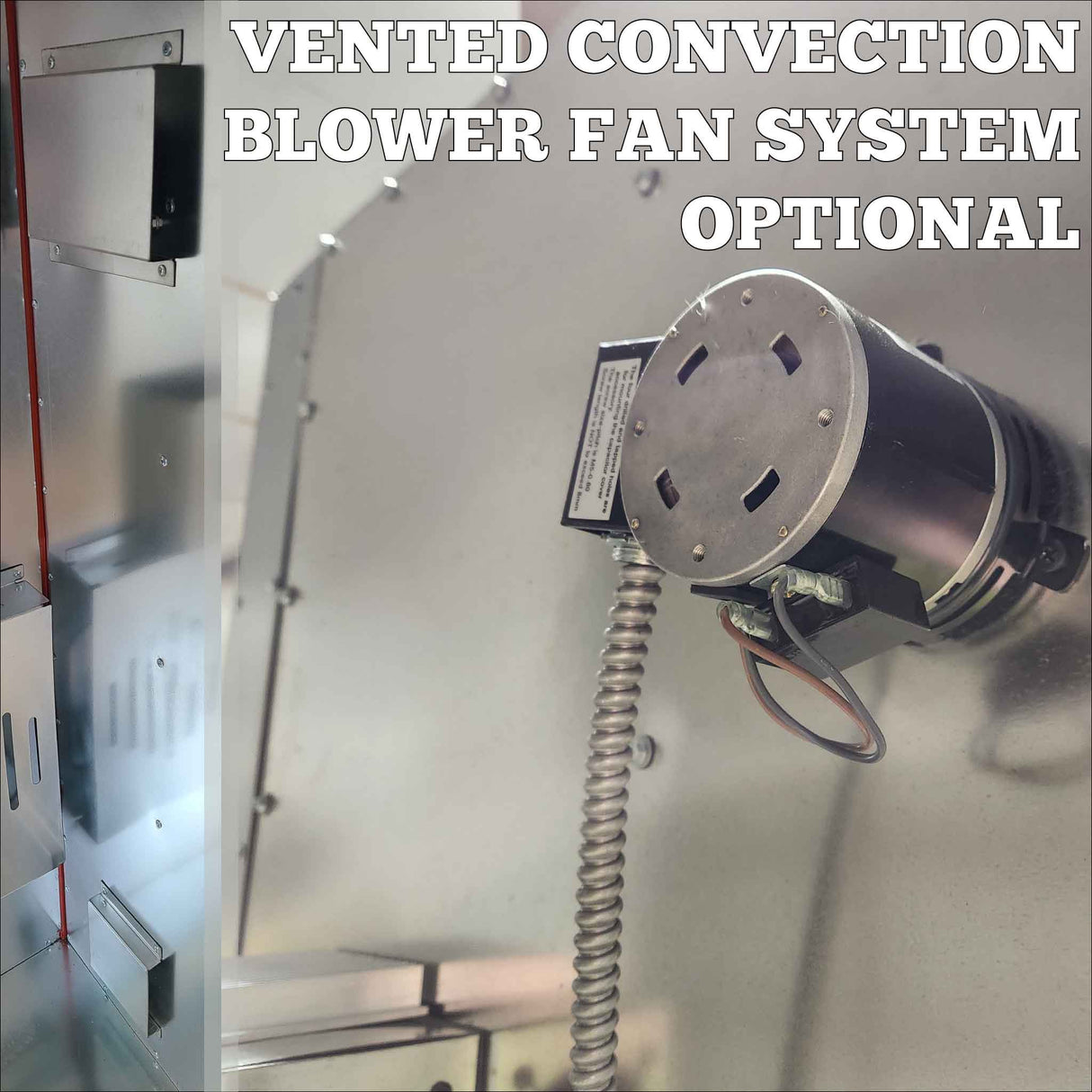

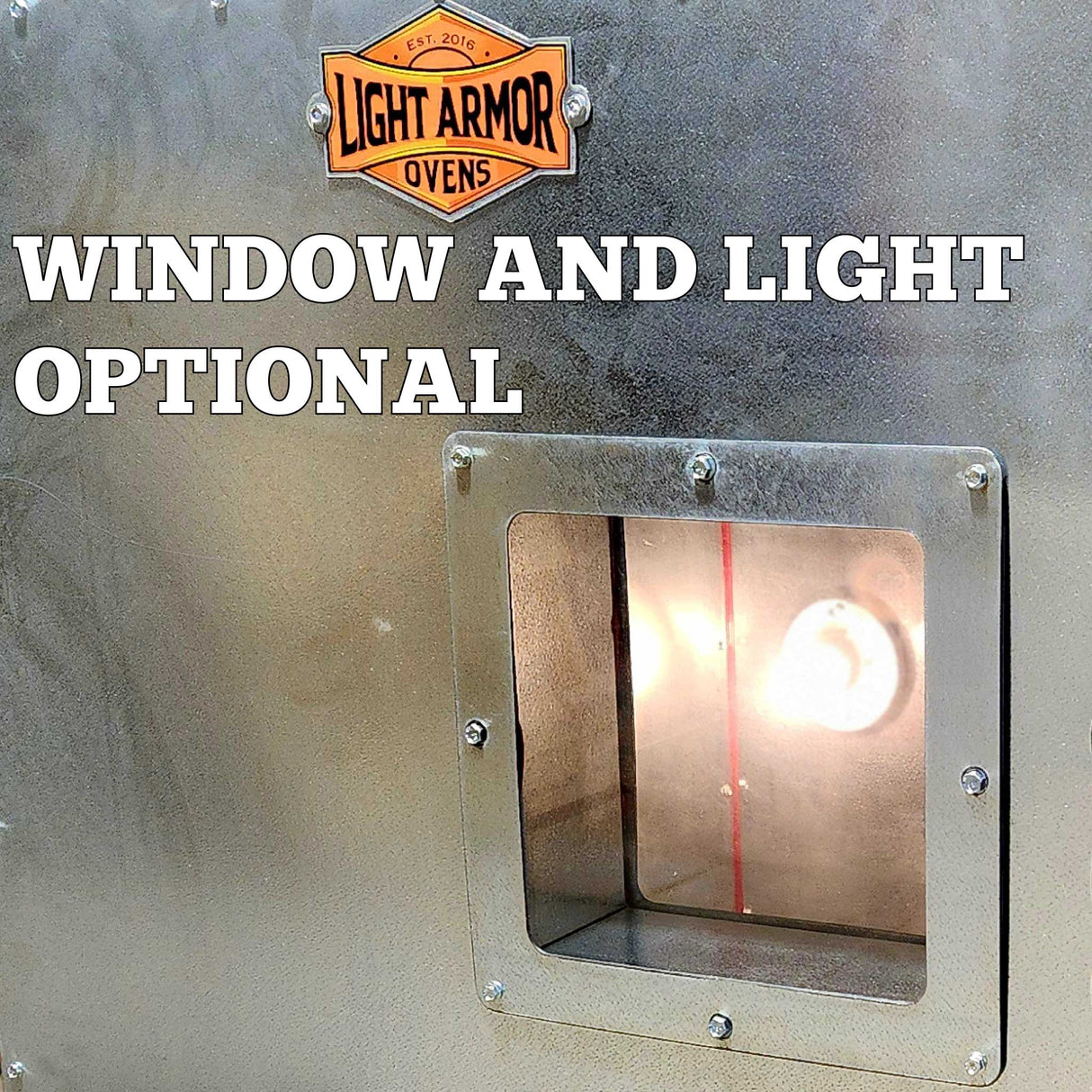

- ✓ Customizable Options — add a blower fan or oven light to tailor it to your shop
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
Customer Reviews
Upgraded from their 5x3x2 oven so we could fit bigger parts. The 7x4x4 is a beast! Underestimated the size but made it fit and the ramp up time is insane!! So excited and happy with this purchase!
Just received my 4x4x7 ft curing oven and let me say this thing is stout! Shown here on moving dollies until final placement. Looking forward to adding powder coating service to Bench and Bolt’s product offering.
This is an amazing product that meets our needs. Customer service is A+ and I highly recommend these guys.
This is an amazing product that meets our needs. The customer service is A+ and I highly recommend Light Armor.
I bought this in a package with a 4x4x6 spray booth. This oven is pretty awesome for what they charge. Make sure you tighten up all the screws because they will loosen during transit. Oven maintains temp within 5 degrees once warmed up and leveled out. The controller is difficult to operate initially. Research in depth on the controller and figure out all the settings.
I ordered the 10K with 6ft ceilings, Gordon walked me through everything I would need to support my business operations in terms of power requirements and best setup for our needs. Definitely the best purchase we could have made. This oven is a beast!
Instagram @broadswordcomposites
Couldn't be happier. With the 6ftLA10K I'll be able to paint a lot more!! Oven works great and looks awesome!
We took a huge step going from using a regular kitchen oven to ordering the LA10K. Gordon answered every question along the way. Customer service is excellent. Such a well built product. After only using for a week, we are so satisfied. Never going back to the hassle of spray paint or kitchen ovens! Thank you, Gordon and Light Armor for an excellent product!!
This is our second oven. The first oven was a bad purchase from a company in Iowa, and we were a little gun shy. We had heard from quite a few people in our network about Lightarmor, and reached out to Gordon about having an oven made. Great guy, great company. Our oven came in and we couldn't be happier with it. Night and day over the slapped together oven we got from the other company. Solid construction, quality electronics. If you need a big oven for powdercoat or Cerakote, you can't go wrong with this oven.
