LA10KW Powder Coating Oven (6' x 2' x 5')
LA10KW Powder Coating Oven (6' x 2' x 5') is backordered and will ship as soon as it is back in stock.
Pickup available at Main Warehouse
Usually ready in 5+ days
Shipping, Tracking and Delivery
Shipping, Tracking and Delivery
Once your order is picked up by freight, we email you tracking information so that you can follow your shipment in transit. Freight carriers will have your name and number in case they need to contact you ahead of delivering. All freight that's shipped out is covered by insurance; in the case that your shipment is damaged, we will file an insurance claim on your behalf. Please note these claims can take anywhere between 1-2 months to fully process.
Description
Description
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LA10KW · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
65×23×60″
Shipping Weight
~450 lb

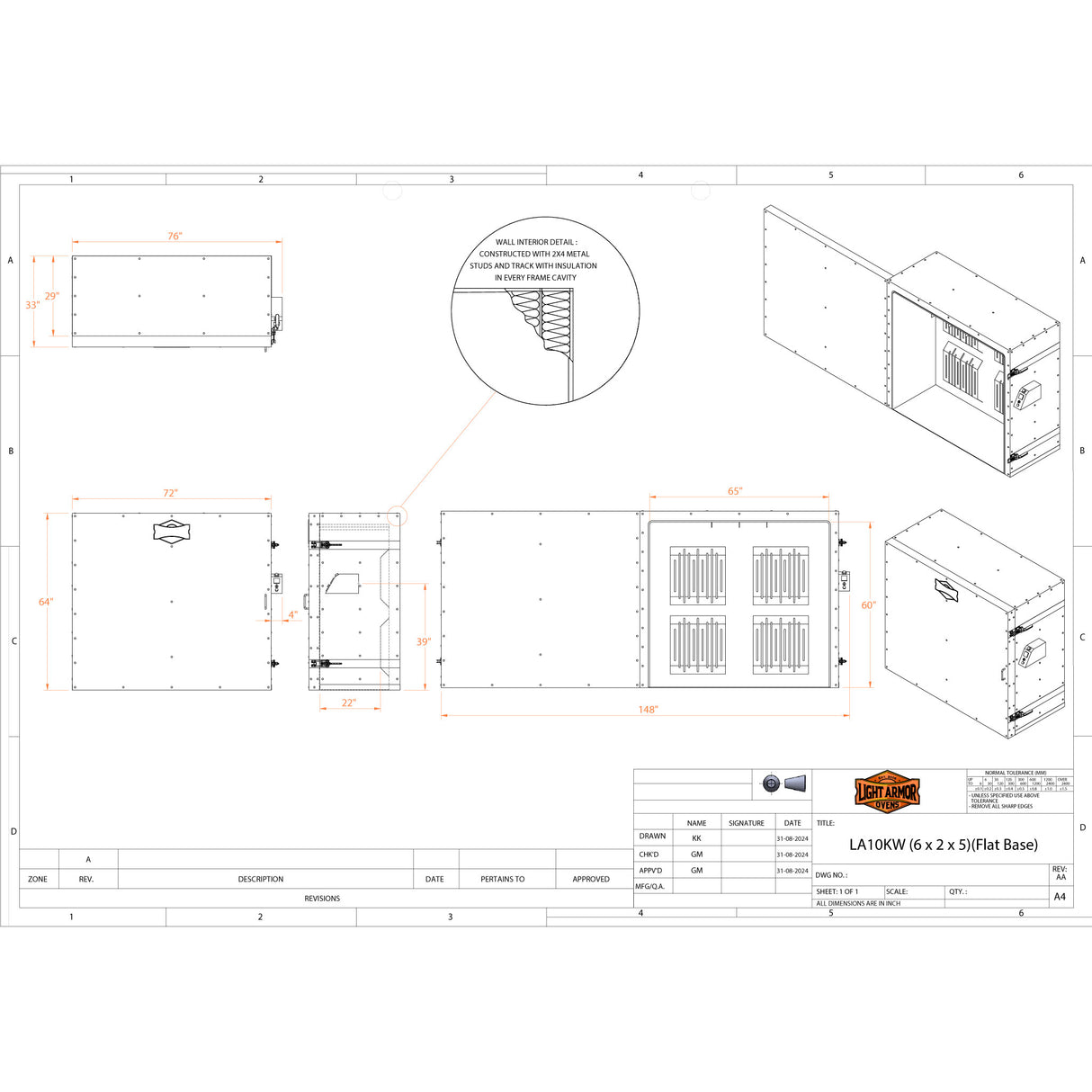

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 65″ W × 23″ D × 60″ T (Nominal) |
| Outside Footprint | 76″ W × 33″ D × 64″ T (Nominal) |
| Shipment Size | 4′ W × 7′ D × 6′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 56A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 60A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 2 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
— Built Your Way

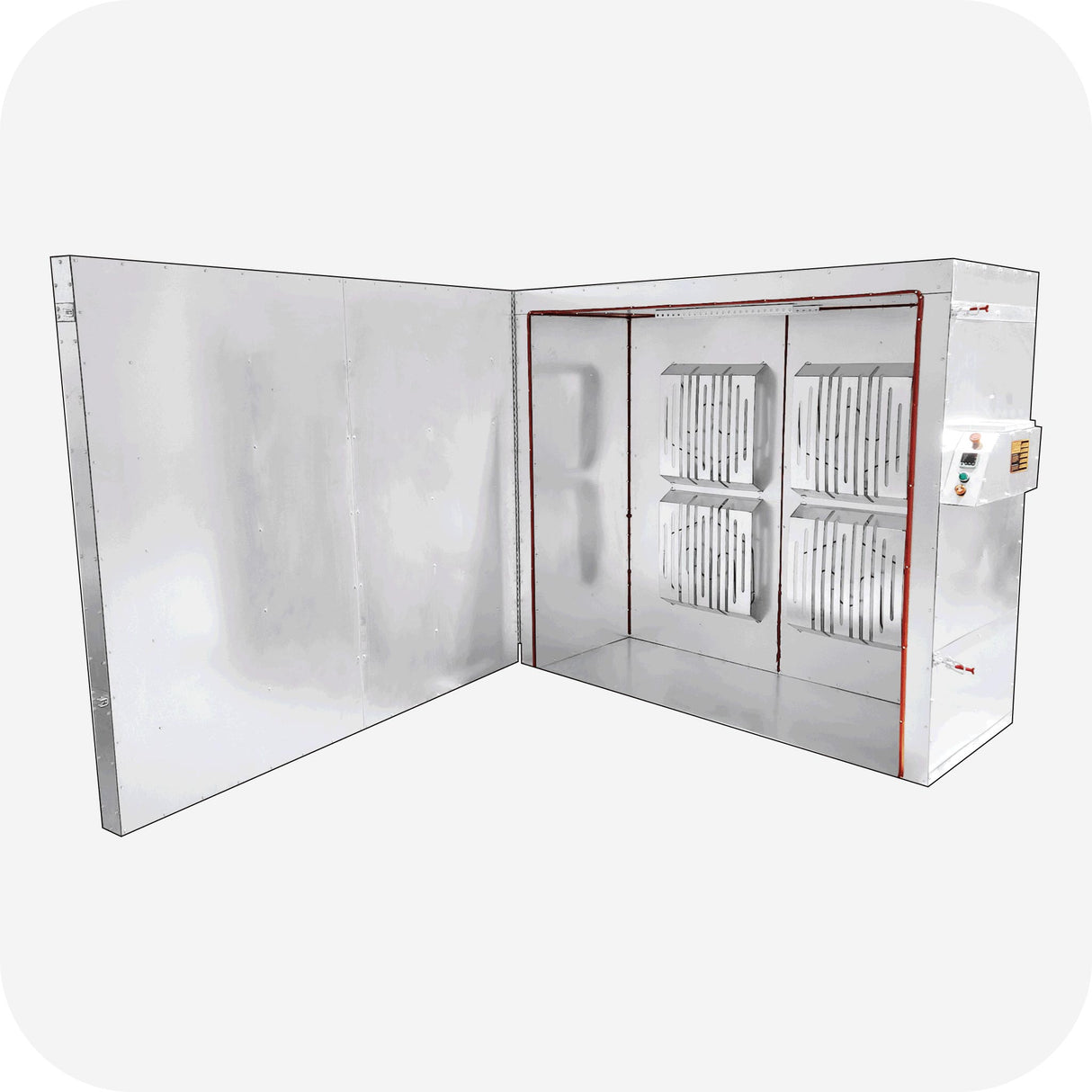

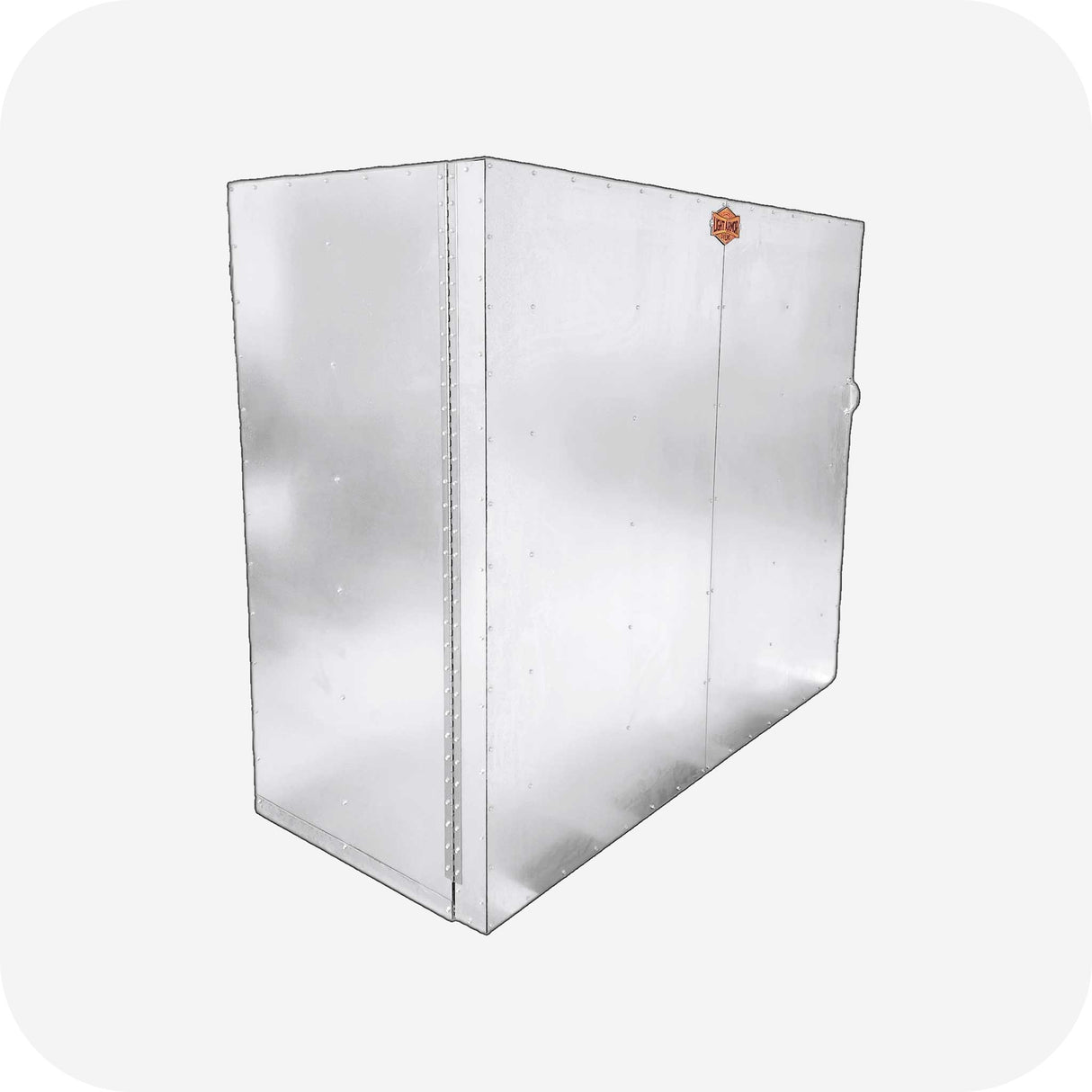

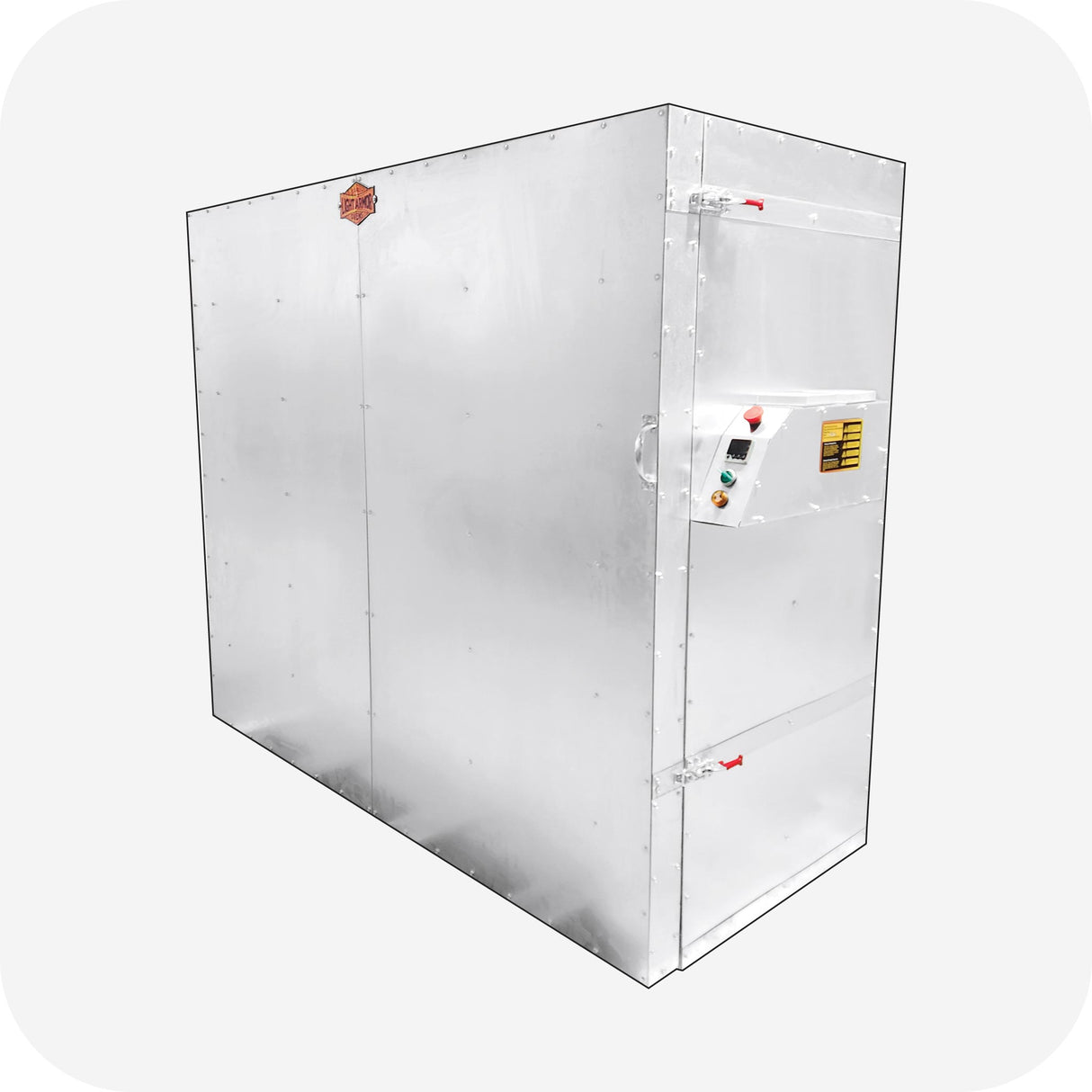

The LA10KW Curing Oven — Tailored to the Way You Coat
When your finish quality depends on repeatable heat, the LA10KW gives you a 6′ x 2′ x 5′ curing chamber you can shape around your workflow. This powder coating oven is made in the USA from G90 galvanized steel that fights rust from the inside out, and it can raise a part’s temperature and hold it steady for the exact dwell time your chemistry demands — the heart of every reliable cure.
One Oven, Configured for Your Shop
Whether you’re curing powder coating, Cerakote, or another heat-set finish, the LA10KW adapts. Order it with a mobile base to roll it where you need it, add a blower fan for stronger circulation, drop in an oven light for visibility, and pick a color that fits your space. Run it as a batch oven or fold it into a continuous process — it flexes with your part count and your production goals.
- ✓ Made in the USA — engineered and built domestically from durable, rust-resistant G90 galvanized material
- ✓ Truly customizable — add a blower fan, oven light, mobile base, or choose your own oven color
- ✓ Batch or continuous — load parts in batches or feed a continuous process to match your throughput
- ✓ Consistent, dependable cures — holds heat then cools your parts for repeatable results across many industries
***OVERSIZED ITEM - REQUIRES FORKLIFT OR LOADING DOCK AT PLACE OF DELIVERY, UNLESS PICKING UP FROM FREIGHT TERMINAL OR OUR WAREHOUSE***
