LA10KW Powder Coating Oven (6' x 2' x 5')
Weight: 550 lb
Ships LTL freight, calculated at checkout from your address — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: it's calculated at checkout from your address, or pick it up free in Central Illinois.
Your upgrades go into the cart with your oven.
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LA10KW · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
65×23×60″
Shipping Weight
~450 lb

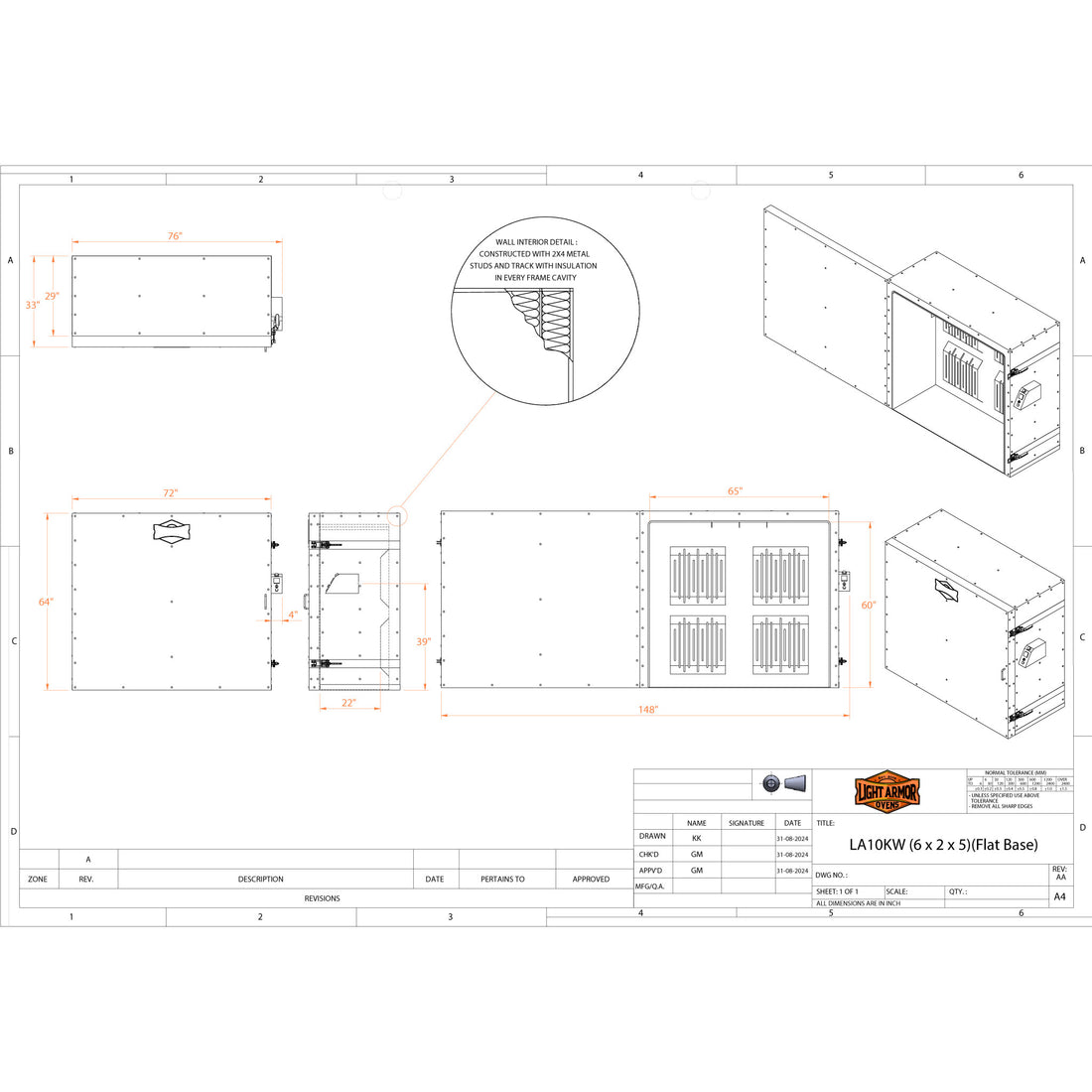

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 65″ W × 23″ D × 60″ T (Nominal) |
| Outside Footprint | 76″ W × 33″ D × 64″ T (Nominal) |
| Shipment Size | 4′ W × 7′ D × 6′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 56A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 60A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 2 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |

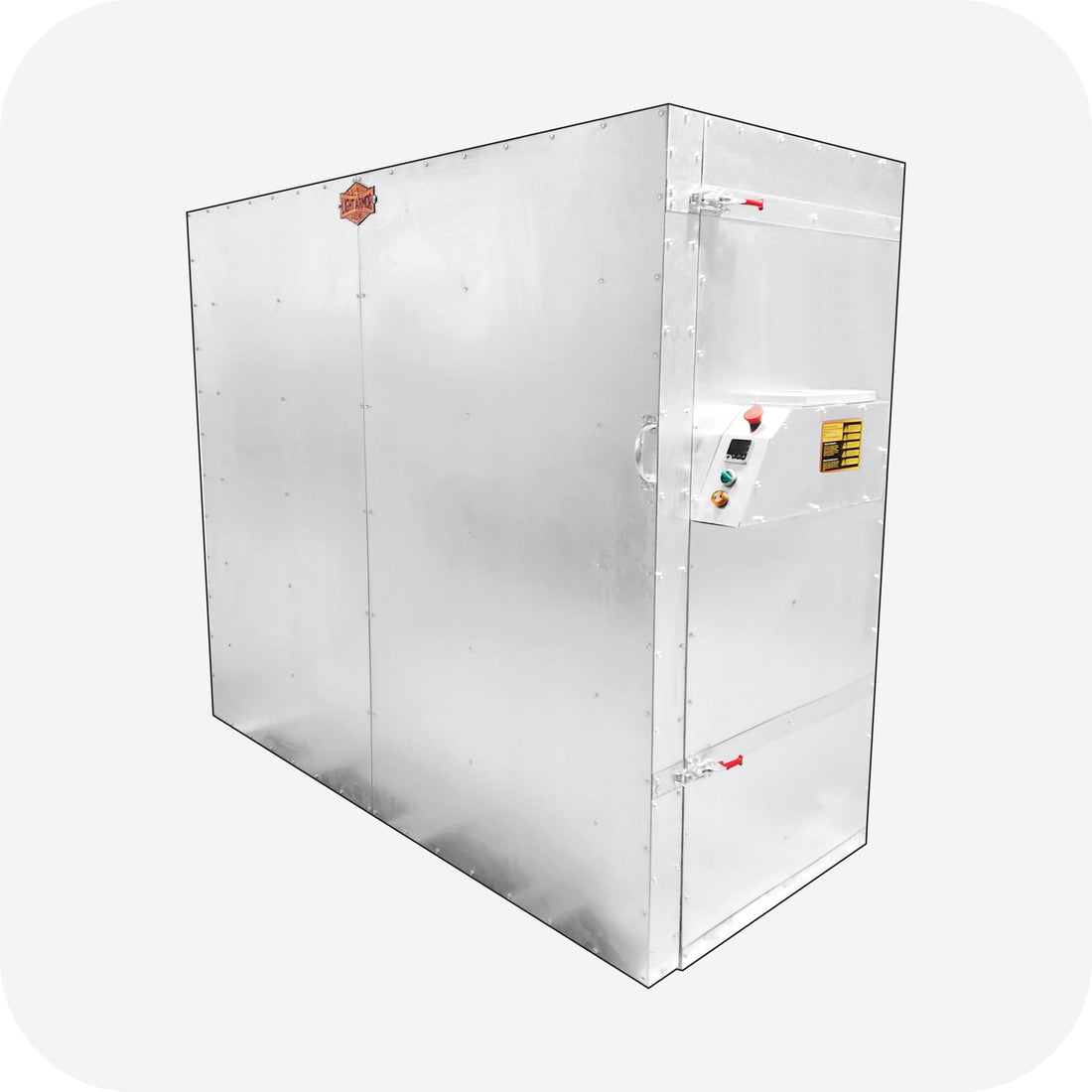

| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |

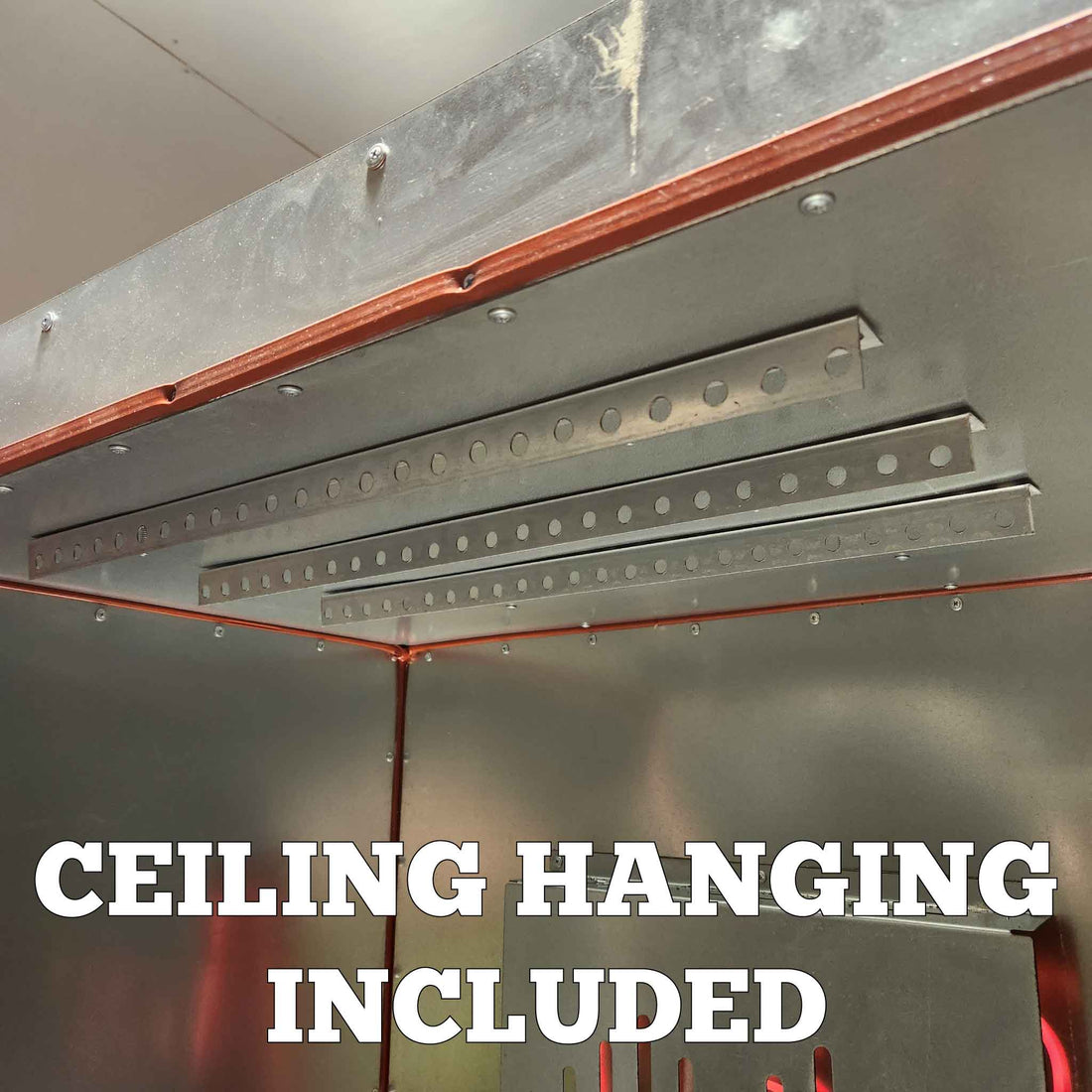

| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
— Built Your Way

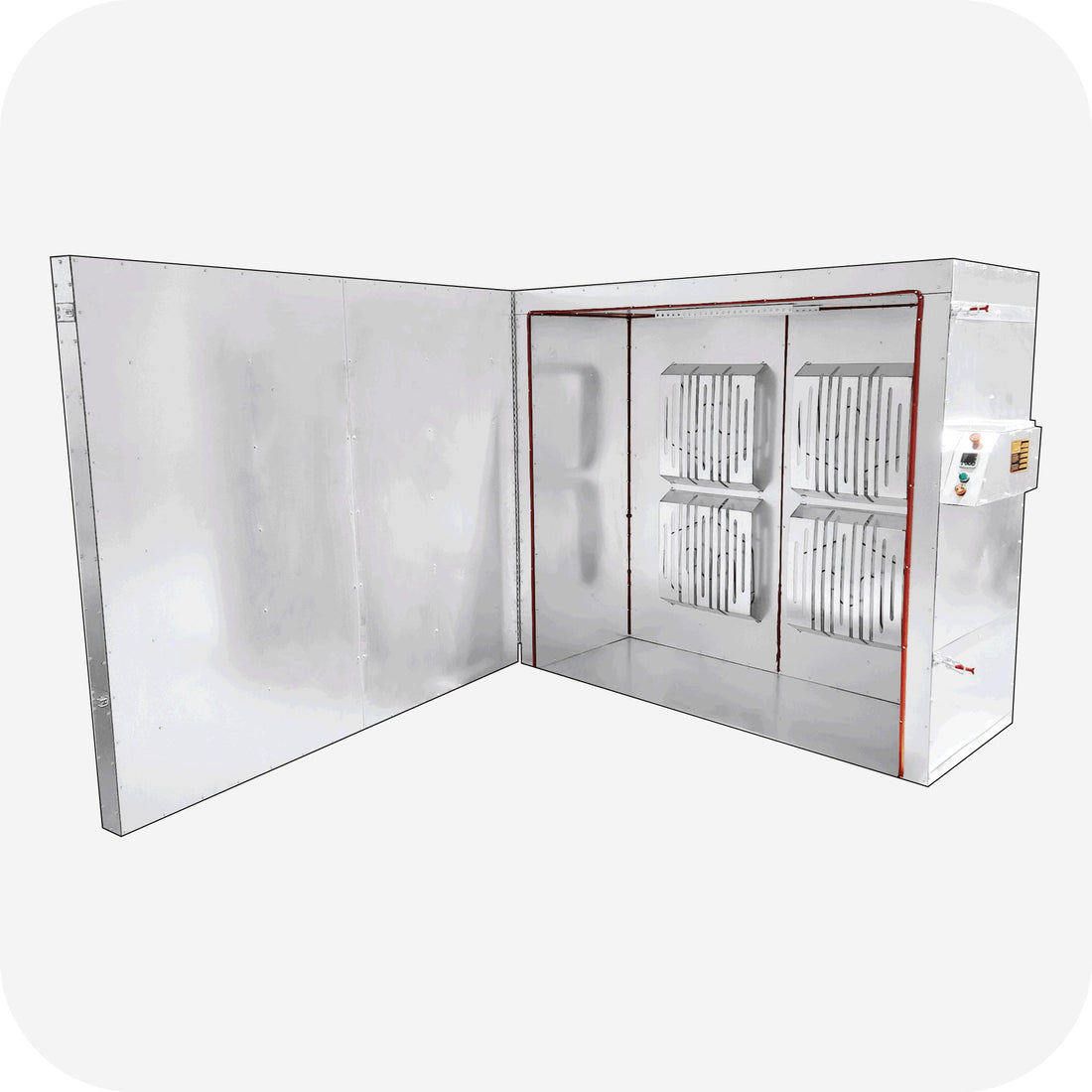

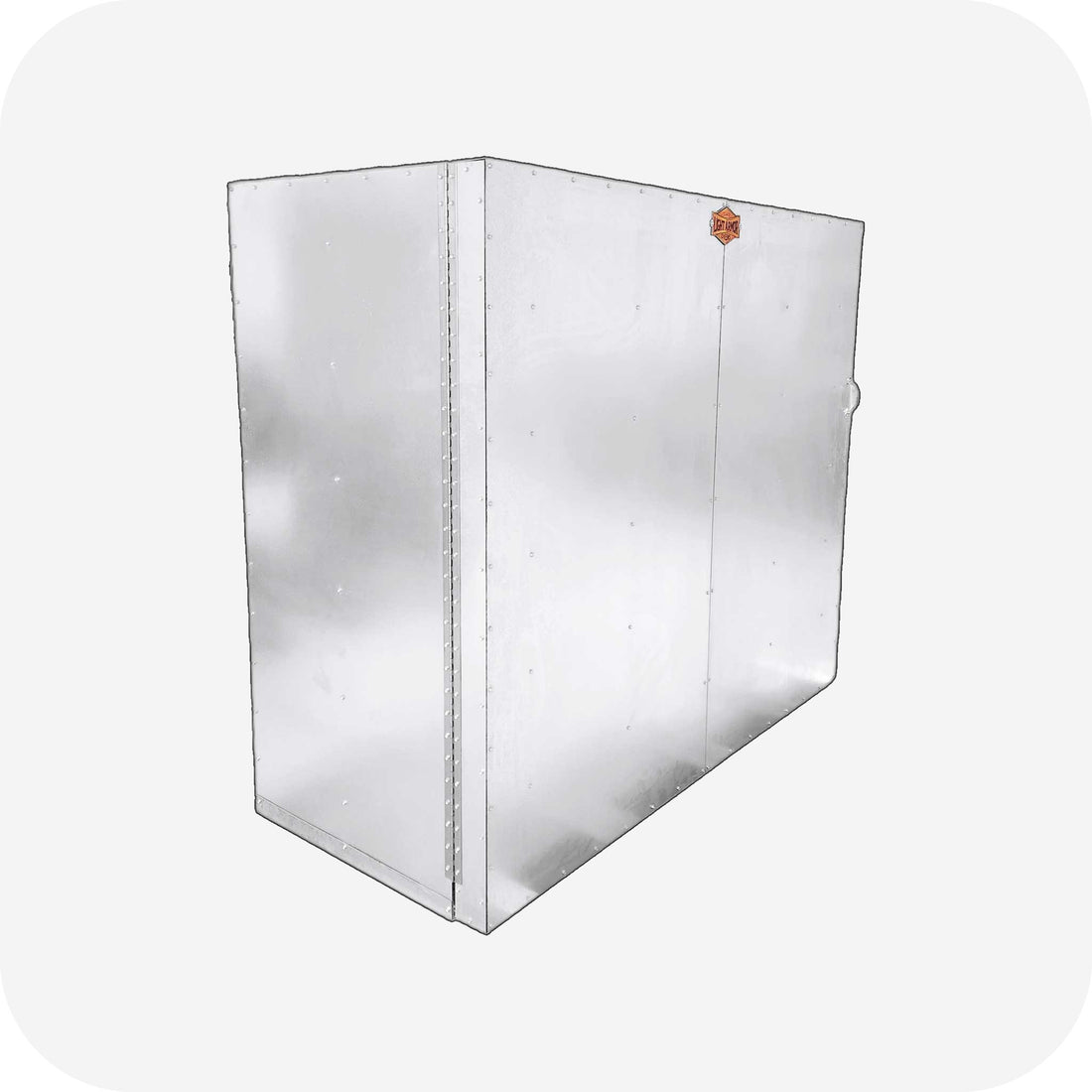

The LA10KW Curing Oven — Tailored to the Way You Coat
When your finish quality depends on repeatable heat, the LA10KW gives you a 6′ x 2′ x 5′ curing chamber you can shape around your workflow. This powder coating oven is designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with G90 galvanized steel that fights rust from the inside out, and it can raise a part’s temperature and hold it steady for the exact dwell time your chemistry demands — the heart of every reliable cure.
One Oven, Configured for Your Shop

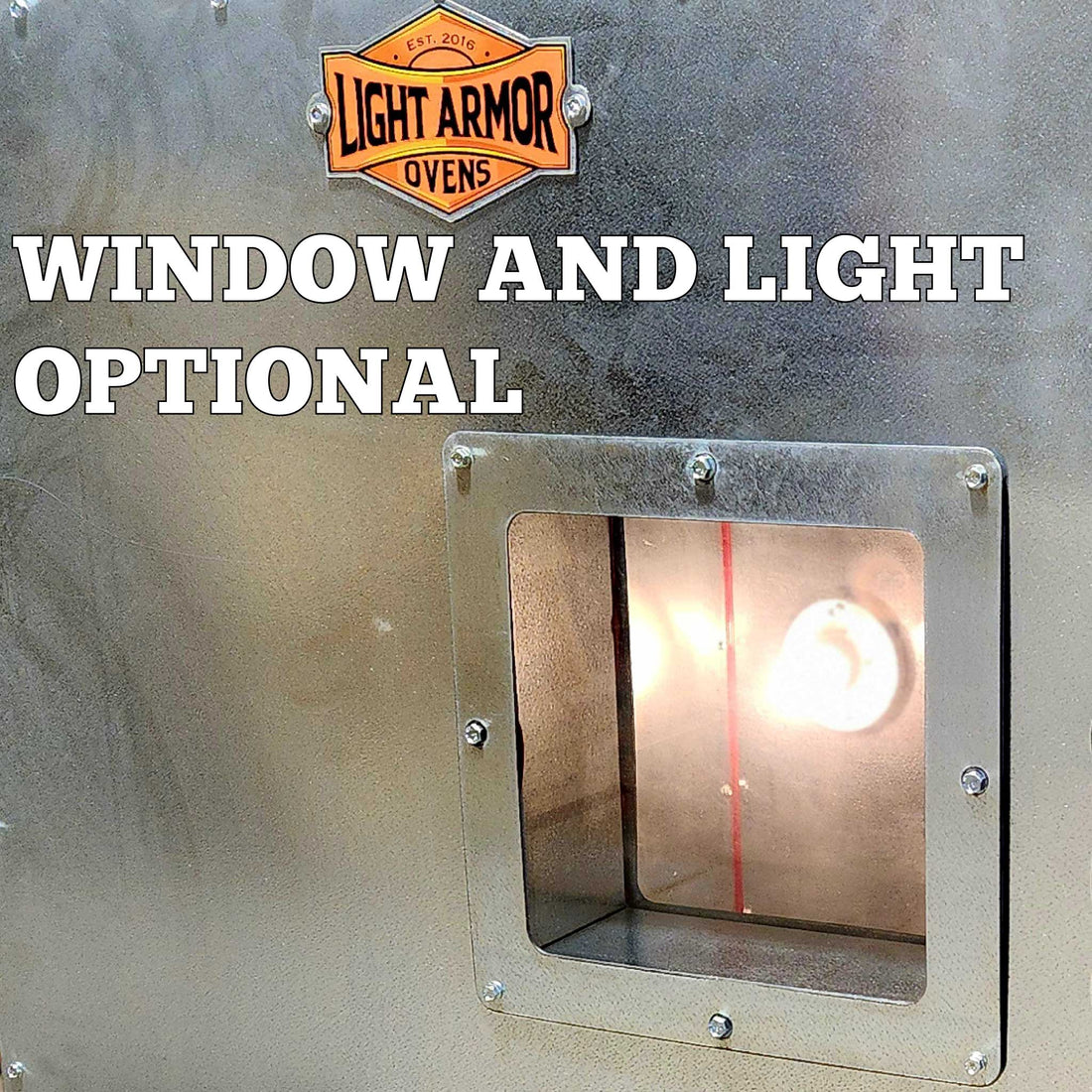

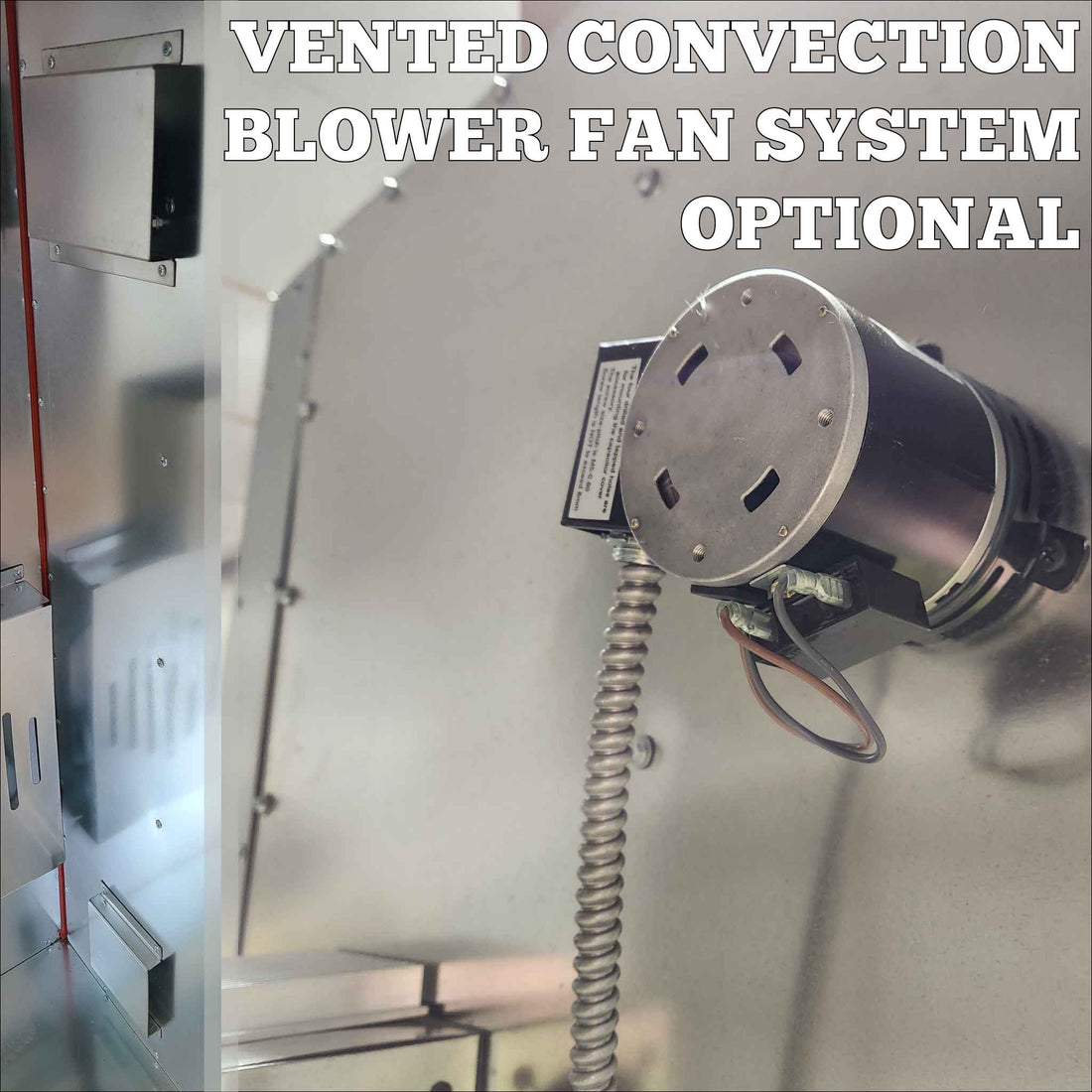

Whether you’re curing powder coating, Cerakote, or another heat-set finish, the LA10KW adapts. Order it with a mobile base to roll it where you need it, add a blower fan for stronger circulation, drop in an oven light for visibility, and upgrade to Rockwool insulation to hold heat in. Run it as a batch oven or fold it into a continuous process — it flexes with your part count and your production goals.
- ✓ Designed and Assembled in the USA — from U.S. and imported parts, with durable, rust-resistant G90 galvanized material
- ✓ Truly customizable — add a blower fan, oven light, mobile base, or Rockwool insulation
- ✓ Batch or continuous — load parts in batches or feed a continuous process to match your throughput
- ✓ Consistent, dependable cures — holds heat then cools your parts for repeatable results across many industries

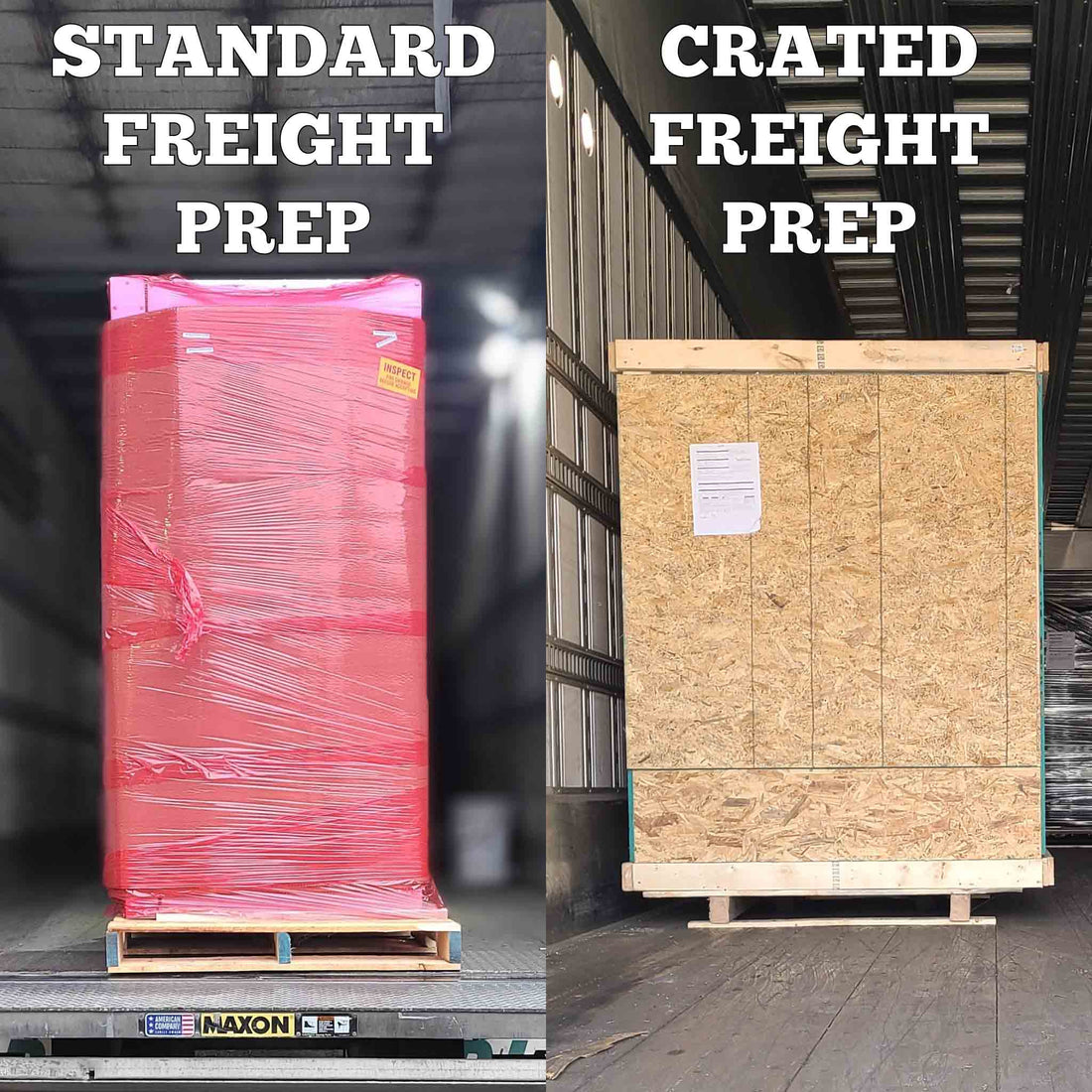

***OVERSIZED ITEM - REQUIRES FORKLIFT OR LOADING DOCK AT PLACE OF DELIVERY, UNLESS PICKING UP FROM FREIGHT TERMINAL OR OUR WAREHOUSE***
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
