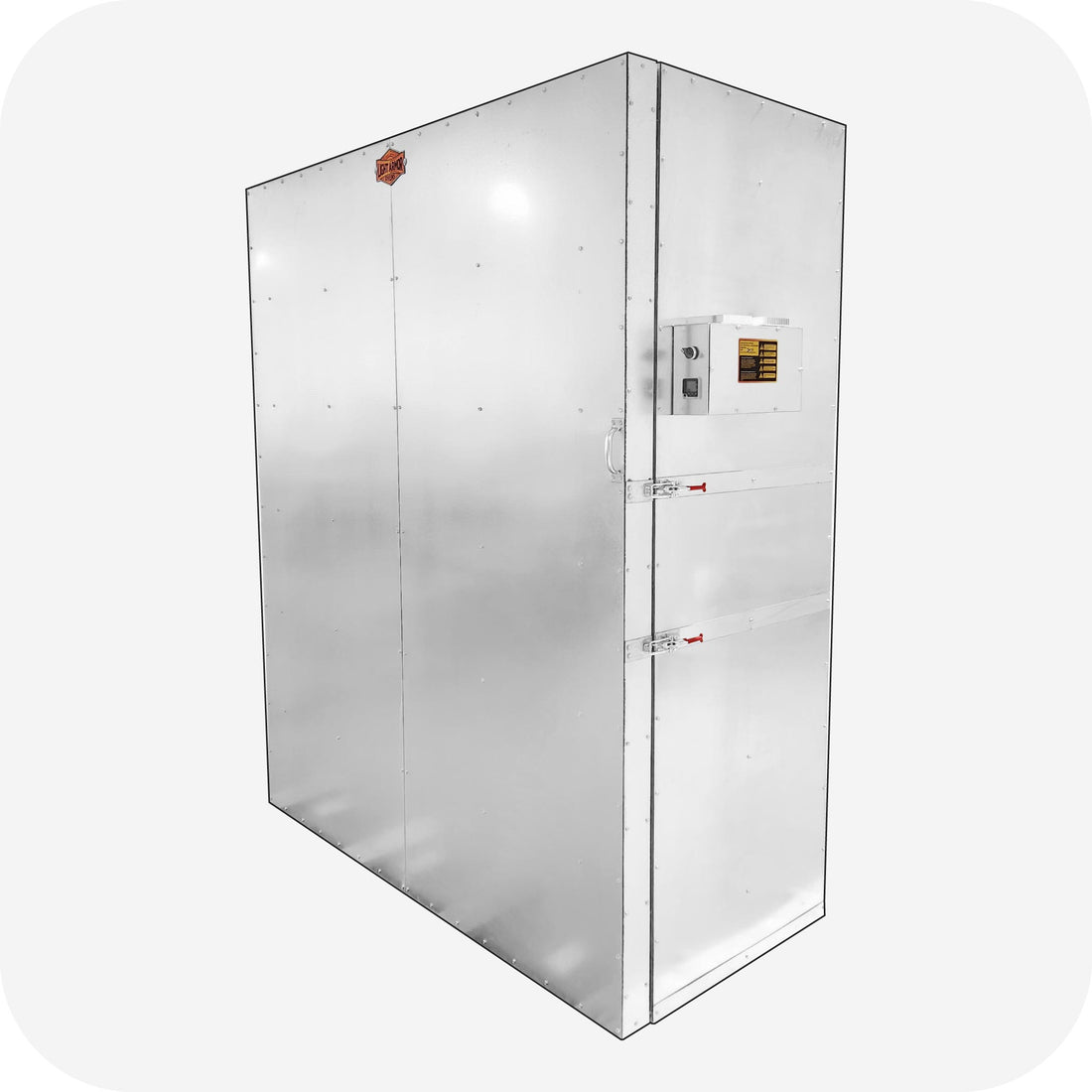

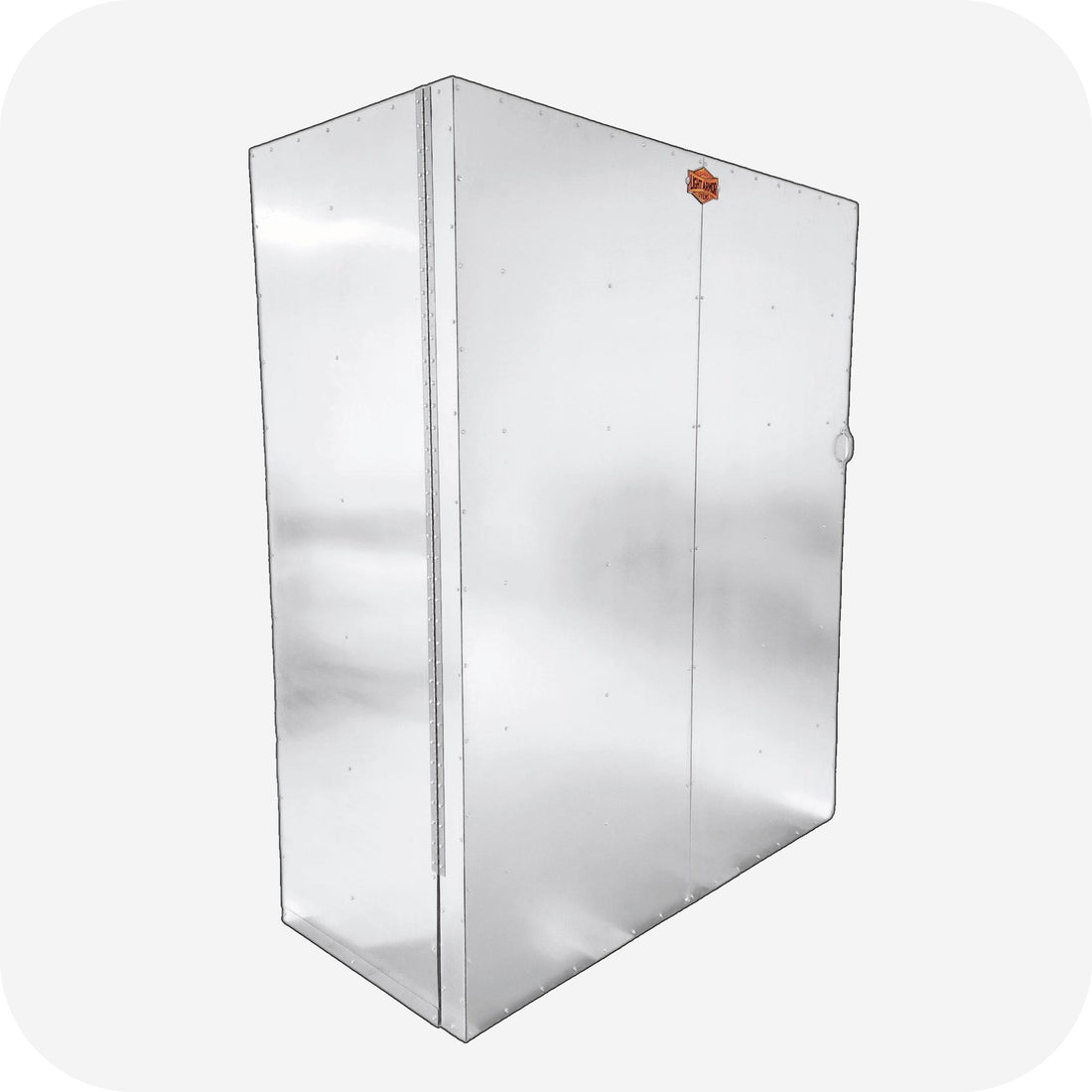

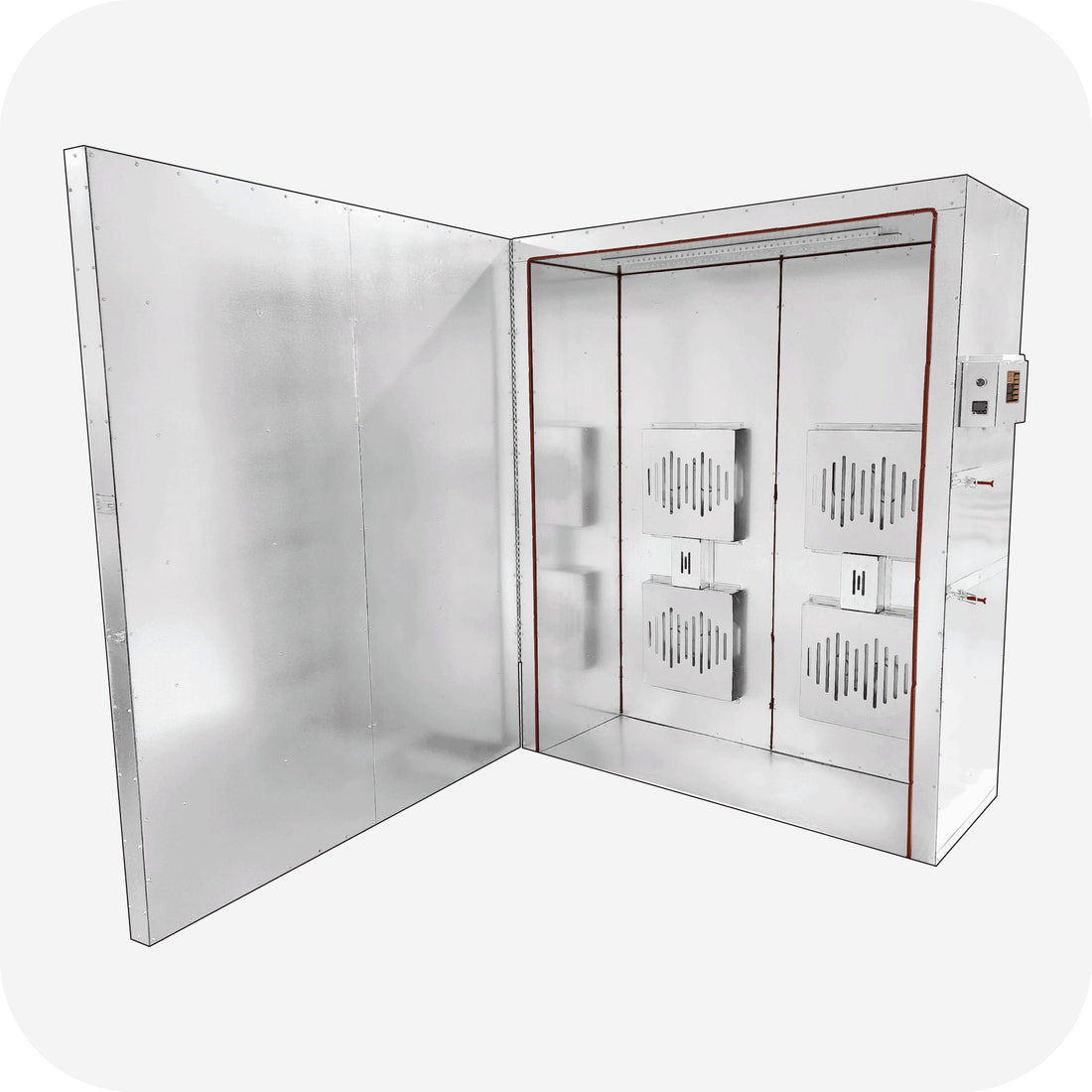

LA10KW6 Powder Coating Oven (6' x 2' x 6')
Weight: 600 lb
Ships LTL freight, calculated at checkout from your address — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: it's calculated at checkout from your address, or pick it up free in Central Illinois.
Your upgrades go into the cart with your oven.
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LA10KW6 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
65×23×72″
Shipping Weight
~550 lb

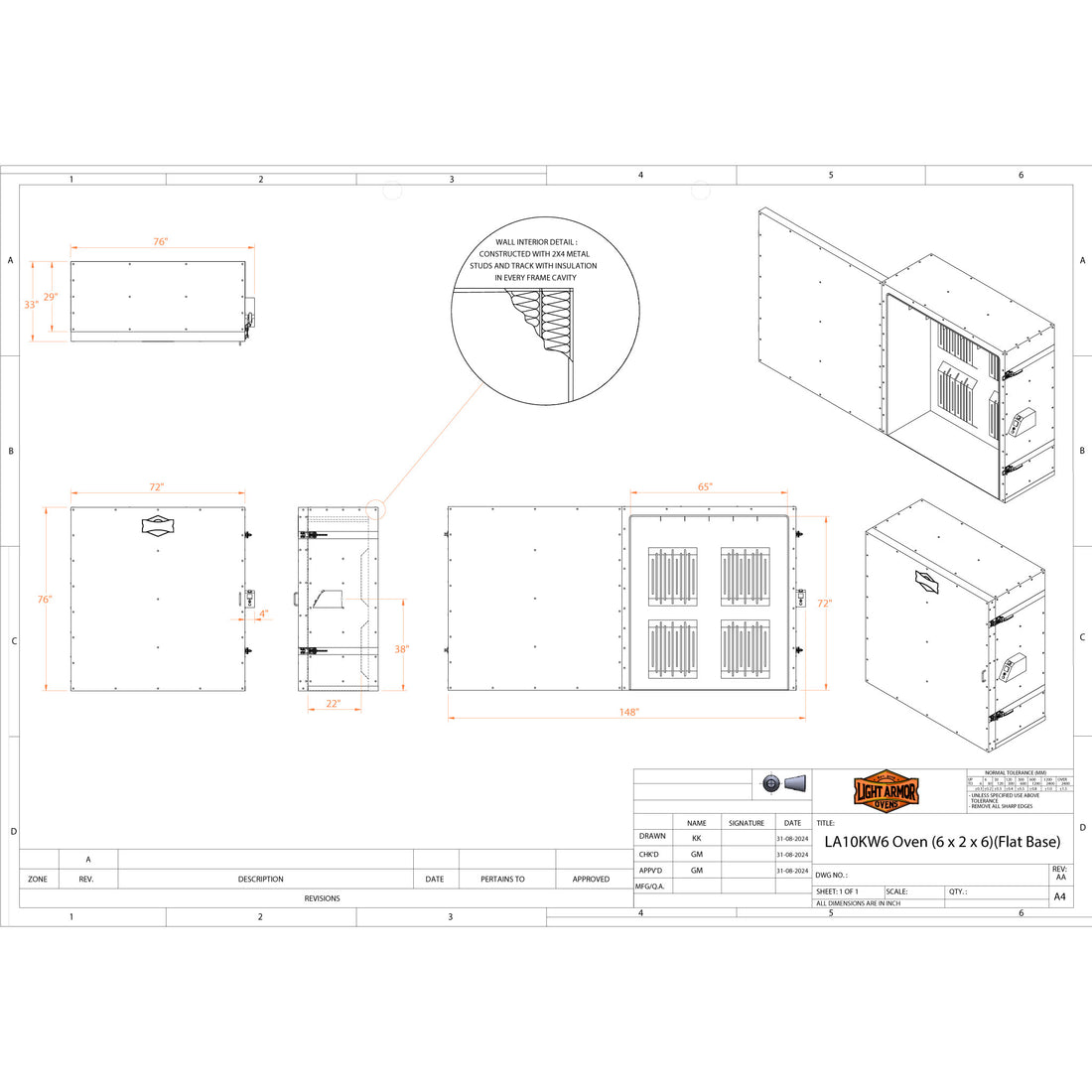

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 65″ W × 23″ D × 72″ T (Nominal) |
| Outside Footprint | 76″ W × 33″ D × 76″ T (Nominal) |
| Shipment Size | 4′ W × 7′ D × 7′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 56A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 60A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 2 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |

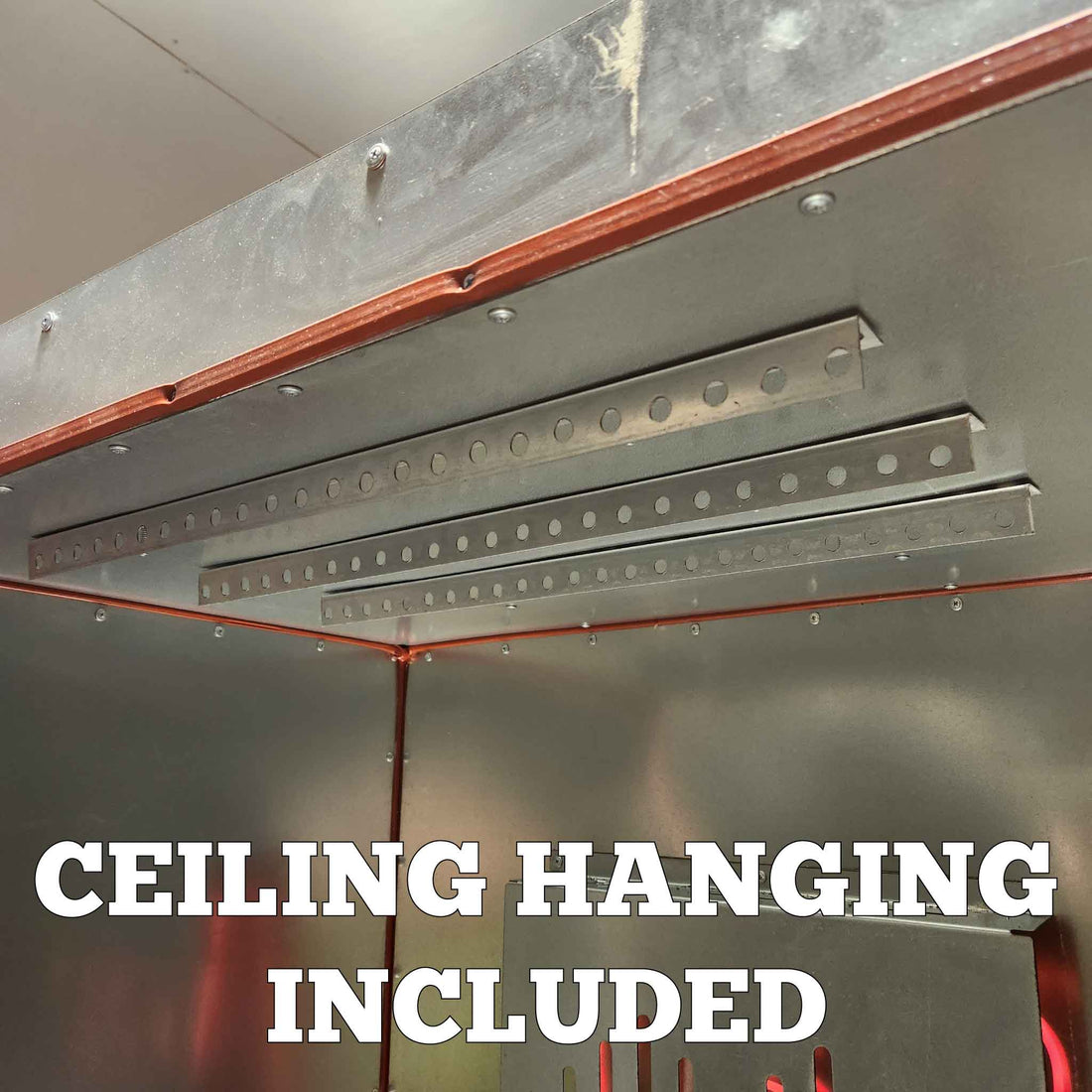

| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
— Movable Long-Part Curing Oven
The LA10KW6 Powder Coating Oven — Long Reach, On the Move
Need to cure long parts without a towering ceiling? The LA10KW6 Powder Coating Oven pairs a 6-foot length with a 6-foot height in a 6' x 2' x 6' chamber, giving you room for extended work in a compact vertical profile. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with G90 galvanized material, this curing oven fights rust from day one and includes a mobile base option so it goes where the work is.
Dependable Cures, Configured Around Your Shop
Heat held steady is what turns a coating into a lasting finish — and the LA10KW6 brings parts up to temperature, maintains it through the cure, then lets them cool safely afterward. Set it up for batch loading or a continuous process to suit your production, and personalize it with a blower fan, oven light, or Rockwool insulation.
- ✓ Long 6' x 2' x 6' chamber — cures extended parts while keeping a more compact overall height
- ✓ Mobile base option — move the powder coating oven to wherever your production line runs
- ✓ G90 galvanized, assembled in the USA — from U.S. and imported parts; engineered to resist rust and endure tough industrial conditions

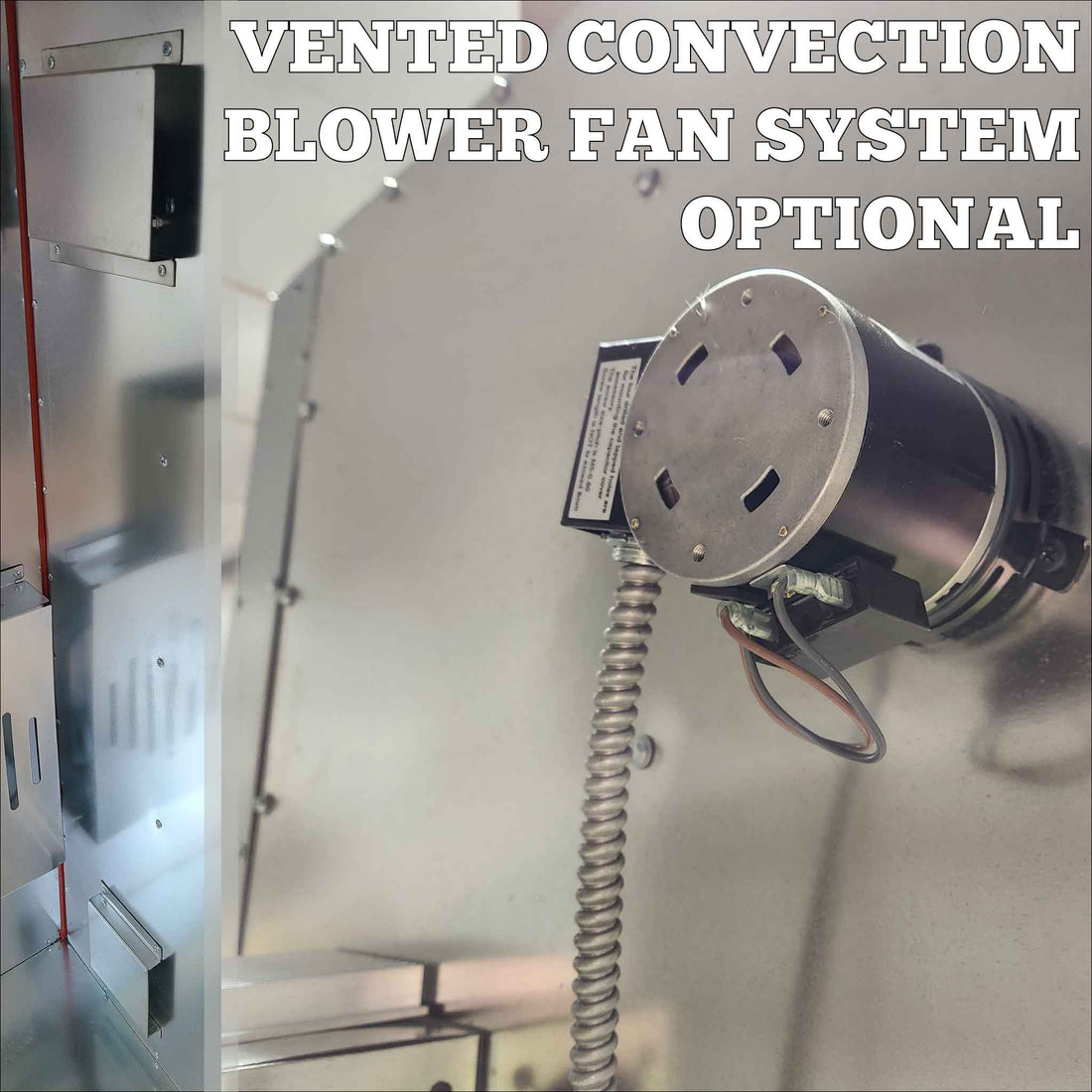

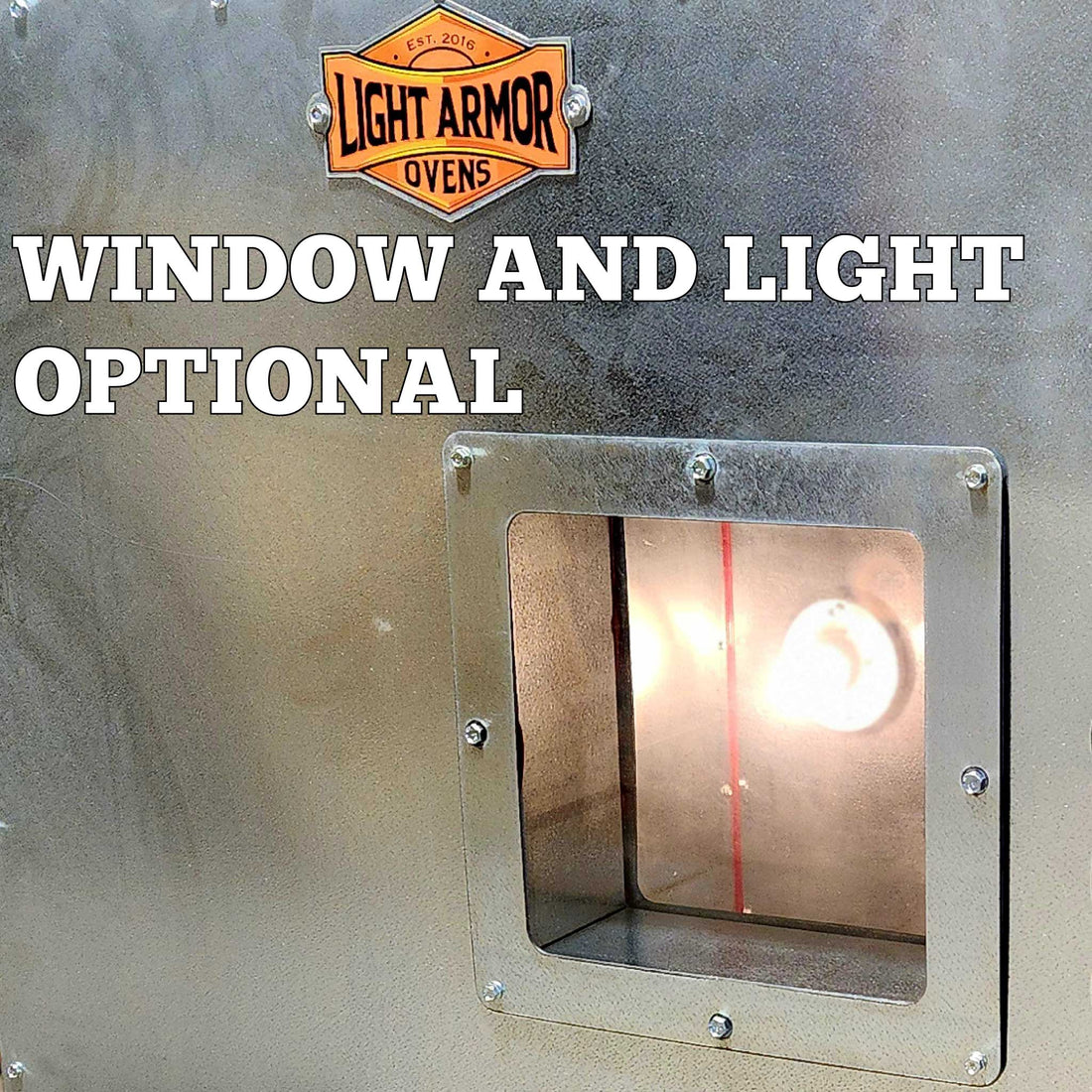

- ✓ Batch or continuous setup — customize with a blower fan, oven light, or Rockwool insulation to fit your process

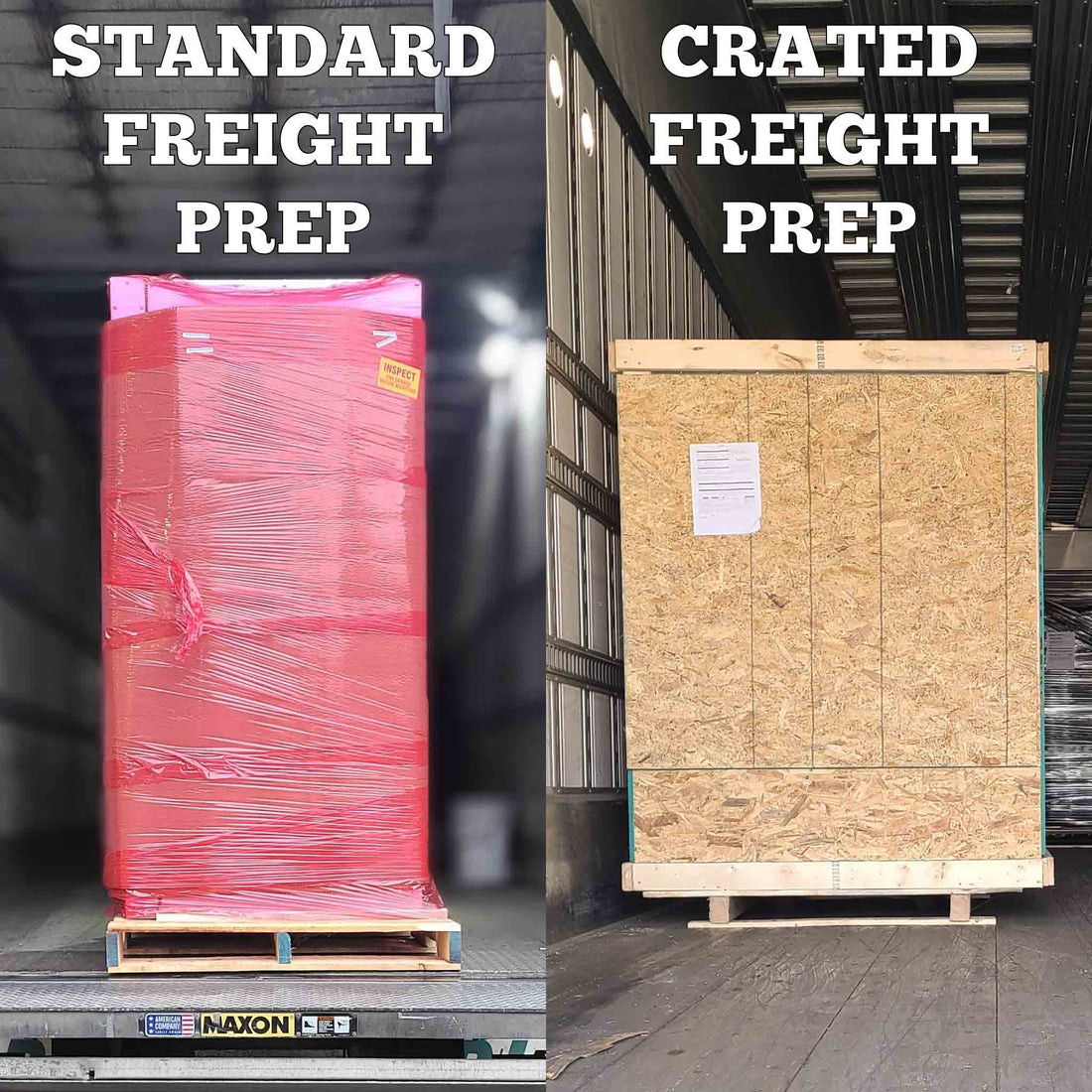

***OVERSIZED ITEM - REQUIRES FORKLIFT OR LOADING DOCK AT PLACE OF DELIVERY, UNLESS PICKING UP FROM FREIGHT TERMINAL OR OUR WAREHOUSE***
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
Customer Reviews
No reviews yet. Own one of these? We'd love to hear how it's working in your shop.
