LA15K6 Powder Coat Oven (5' x 5' x 6')
5.0 · 1 Review$3,199.99 USDBuilt to Order
Weight: 800 lb
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Your Oven$3,199.99
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Ships by dedicated truck
This unit is too large for standard LTL carriers, so freight is quoted per order
rather than rated at checkout. Tell us where it's going and we'll price the
delivery with it — nothing gets guessed at the last step.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LA15K6 Powder Coat Oven (5' x 5' x 6')
Unit from $3,199.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
✓ Powder CoatingDurable, high-build finishes
✓ CerakoteThin-film ceramic protection
✓ Carbon FiberLightweight composite coating
✓ And MoreCustom & specialty applications
— LA15K6 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
53×54×72″
Shipping Weight
~625 lb

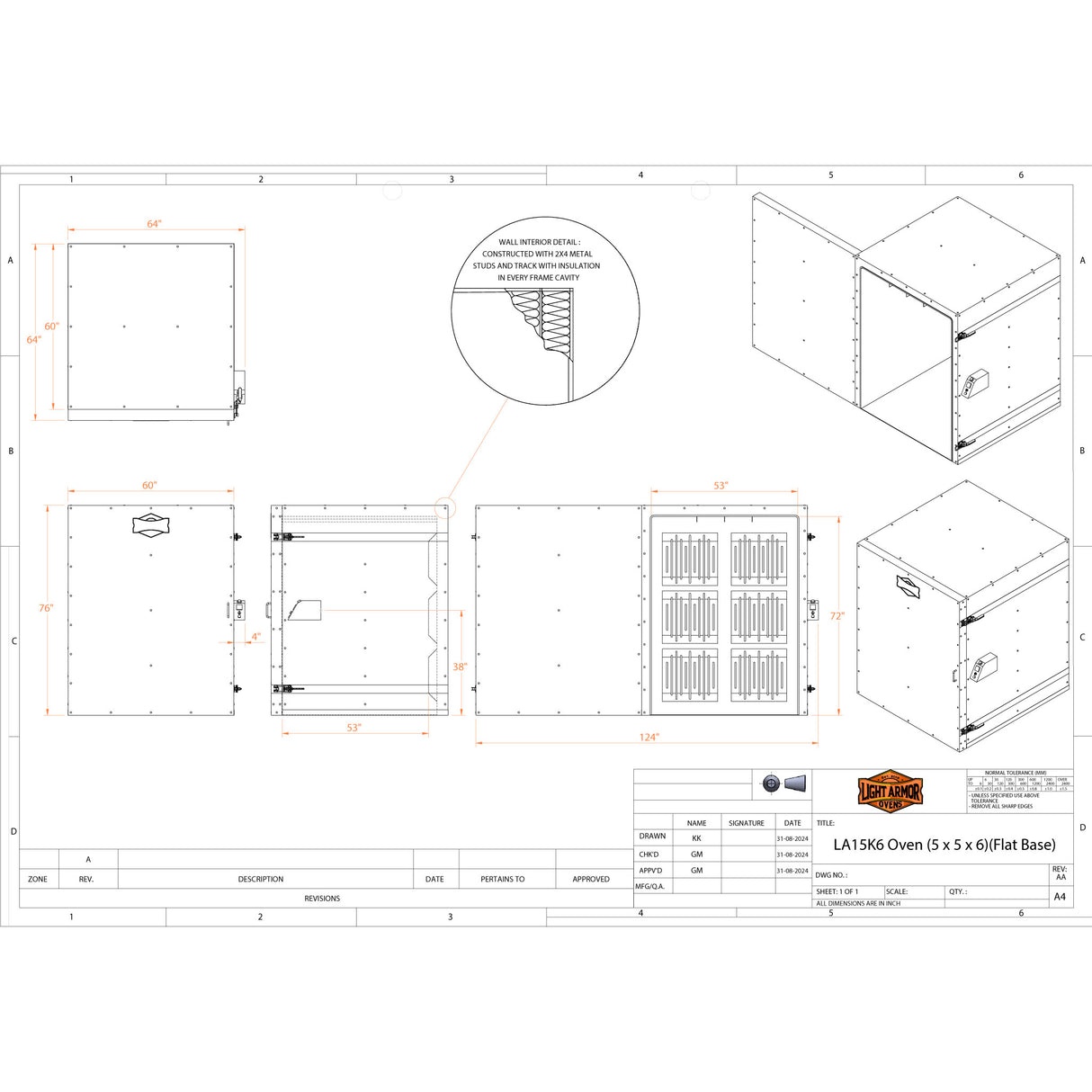

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 53″ W × 54″ D × 72″ T (Nominal) |
| Outside Footprint | 64″ W × 64″ D × 76″ T (Nominal) |
| Shipment Size | 6′ W × 6′ D × 7′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 84A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 90A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) |
| Recommended # of Blower Fans | 2 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
— Extra Height for Taller Work
The LA15K6 Powder Coat Oven — When 6 Feet of Clearance Matters
Some parts just need more headroom. The LA15K6 gives you a 5′ x 5′ x 6′ chamber, adding a full extra foot of vertical clearance over the standard cube so long shafts, tall frames, and hanging assemblies clear the racks with ease. This powder coating oven is designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with G90 galvanized steel, delivering the rust resistance and structural strength an industrial curing oven demands.
Configured Around Your Longest Parts
Heat is non-negotiable in curing — the LA15K6 raises your part’s temperature and holds it steady through the full dwell, then lets it cool for a clean finish. Because it’s customizable, you can add a blower fan for stronger circulation around taller loads, an oven light to inspect work up high, and upgrade to Rockwool insulation. Run it as a batch oven or wire it into a continuous line to suit your volume.
- ✓ 6-foot interior height — the added vertical clearance handles tall parts and hanging assemblies
- ✓ Illinois-built construction — G90 galvanized steel resists rust and stands up to industrial use
- ✓ Customizable options — blower fan, oven light, and Rockwool insulation to match your shop
- ✓ Batch or continuous curing — flexible configuration adapts to your part count and process
***OVERSIZED ITEM - REQUIRES FORKLIFT OR LOADING DOCK AT PLACE OF DELIVERY, UNLESS PICKING UP FROM FREIGHT TERMINAL OR OUR WAREHOUSE***
What Owners Say
From Light Armor owners.
Test Batch Planner
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Drag to spin · scroll or pinch to zoom
The 3D view needs WebGL, which this browser has turned off. The batch numbers on the right still work.
1Oven
2Upgradestap one to see it
Oven as shown
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
3Load
Hang parts from
Rows hung below each other
4Part
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
