LA7500SB8 Powder Coating Oven (3' x 3' x 8')
Freight quoted separately.
LA7500SB8 Powder Coating Oven (3' x 3' x 8') is backordered and will ship as soon as it is back in stock.
Interior
Max Temp
500°F
Power
240V 60A breaker
Availability
Build to Order
“I received the oven quickly, and it was packaged very well — there was no damage. Setup was a breeze.” ★★★★★— 76 Gunworks LLC, verified buyer
“I received the oven quickly, and it was packaged very well — there was no damage. Setup was a breeze.”
“Mounted mine on casters for mobility, and it's been great in a tight space.” ★★★★★— Ryan Powell · Cara Cara Metal, verified buyer
“Mounted mine on casters for mobility, and it's been great in a tight space.”
“It's a great quality oven, and I am ecstatic to have this upgrade in our shop!” ★★★★★— Daniel Kelly, verified buyer
“It's a great quality oven, and I am ecstatic to have this upgrade in our shop!”
“Absolutely in love with my new Light Armor oven, super easy to install with the plug and play kit.” ★★★★★— David Walls, verified buyer
“Absolutely in love with my new Light Armor oven, super easy to install with the plug and play kit.”
“Very impressed with heat up times … was also impressed with build quality.” ★★★★★— Dunham Gunworks, verified buyer
“Very impressed with heat up times … was also impressed with build quality.”
“Plenty of space for any project — combined with the fixtures from Cerakote I can easily knock out projects at volume.” ★★★★★— Fort Whistle LLC, verified buyer
“Plenty of space for any project — combined with the fixtures from Cerakote I can easily knock out projects at volume.”
“It also heats up quickly, reaching our required 350–400°F temperature in just about 15 minutes.” ★★★★★— Kyle Cook, verified buyer
“It also heats up quickly, reaching our required 350–400°F temperature in just about 15 minutes.”
“Ordered it on a Saturday and received it on Friday — faster than we expected.” ★★★★★— MK3 Metalworks, verified buyer
“Ordered it on a Saturday and received it on Friday — faster than we expected.”
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LA7500SB8 Powder Coating Oven (3' x 3' x 8')
Unit from $2,999.99 · freight quoted to your address
Description
Description
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LA7500SB8 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
36×37×96″
Shipping Weight
~675 lb

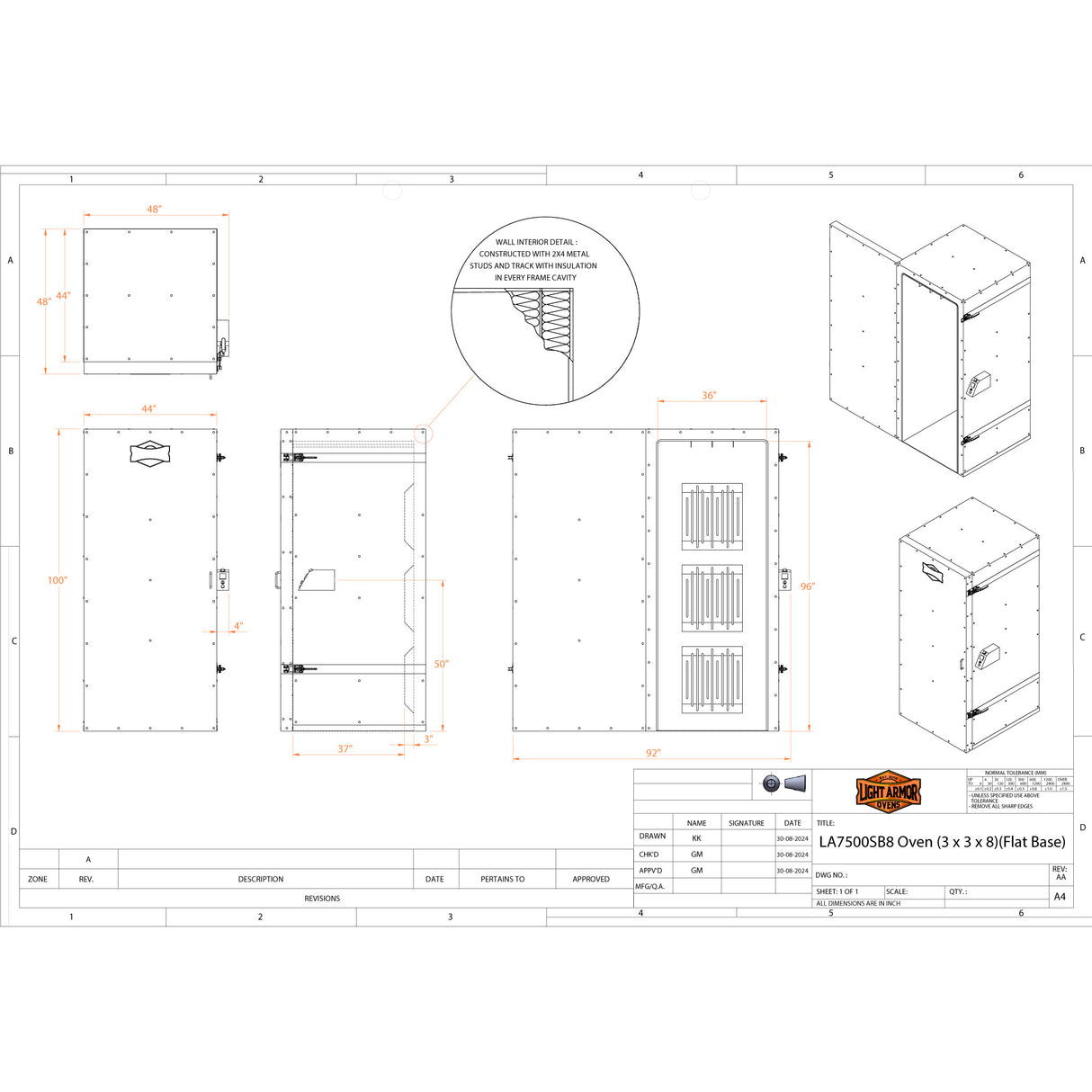

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 36″ W × 37″ D × 96″ T (Nominal) |
| Outside Footprint | 48″ W × 48″ D × 100″ T (Nominal) |
| Shipment Size | 5′ W × 10′ D × 5′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 56A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 60A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 2 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
— Tall, Stationary, Serious
The LA7500SB8 Curing Oven — 8 Feet of Industrial-Grade Cure Space
Standing 3′ x 3′ x 8′, the LA7500SB8 is a stationary curing oven built for vertical loads and demanding, high-volume work. This powder coating oven reaches a maximum temperature of 500°F and holds it with accurate control and even heat distribution — so every part in the chamber sees the same cure, from the bottom rack to the top.
One Oven, Many Materials
Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with galvanized metal for rust resistance and long life, the LA7500SB8 stands up to the rigors of an industrial setting. Its temperature uniformity and fast cooling rate let you cure a remarkable range of materials — epoxy resin, powder coating, carbon fiber, polymers, plastic composites, rubber, adhesives, and thermoplastics — with the optimal, repeatable result you’re after on every load.
- ✓ 500°F maximum temperature — accurate control and even heat distribution for a uniform cure top to bottom
- ✓ Tall 8′ stationary design — 3′ x 3′ x 8′ chamber built for vertical and long parts
- ✓ Designed and Assembled in the USA — from U.S. and imported parts; galvanized construction resists rust and withstands tough industrial conditions
- ✓ Cures many materials — epoxy, carbon fiber, powder, composites, rubber, adhesives, thermoplastics and more
