LABS-586-GAS Powder Coat Oven (5 x 8 x 6)
LABS-586-GAS Powder Coat Oven (5 x 8 x 6) is backordered and will ship as soon as it is back in stock.
Shipping, Tracking and Delivery
Shipping, Tracking and Delivery
Once your order is picked up by freight, we email you tracking information so that you can follow your shipment in transit. Freight carriers will have your name and number in case they need to contact you ahead of delivering. All freight that's shipped out is covered by insurance; in the case that your shipment is damaged, we will file an insurance claim on your behalf. Please note these claims can take anywhere between 1-2 months to fully process.
Description
Description
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LABS-586-GAS · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
53×96×72″
Weight
~1200 lb
| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 53″ W × 96″ D × 72″ T (Nominal) |
| Outside Footprint | 64″ W × 108″ D × 76″ T (Nominal) |
| Weight | ~1200 Pounds |
| Shipment Size | 6′ W × 10′ D × 7′ T |
| Recommended Distance from Wall | +1 Foot |
| Power & Gas | |
| Power Requirements | 120V / Single Phase / Up to 10A Draw |
| BTU Output | 50K–300K BTU w/ Propane or Natural Gas Supply |
| Gas Supply Line Size | 3/4″ |
| Recommended # of Blower Fans | 3–4 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |

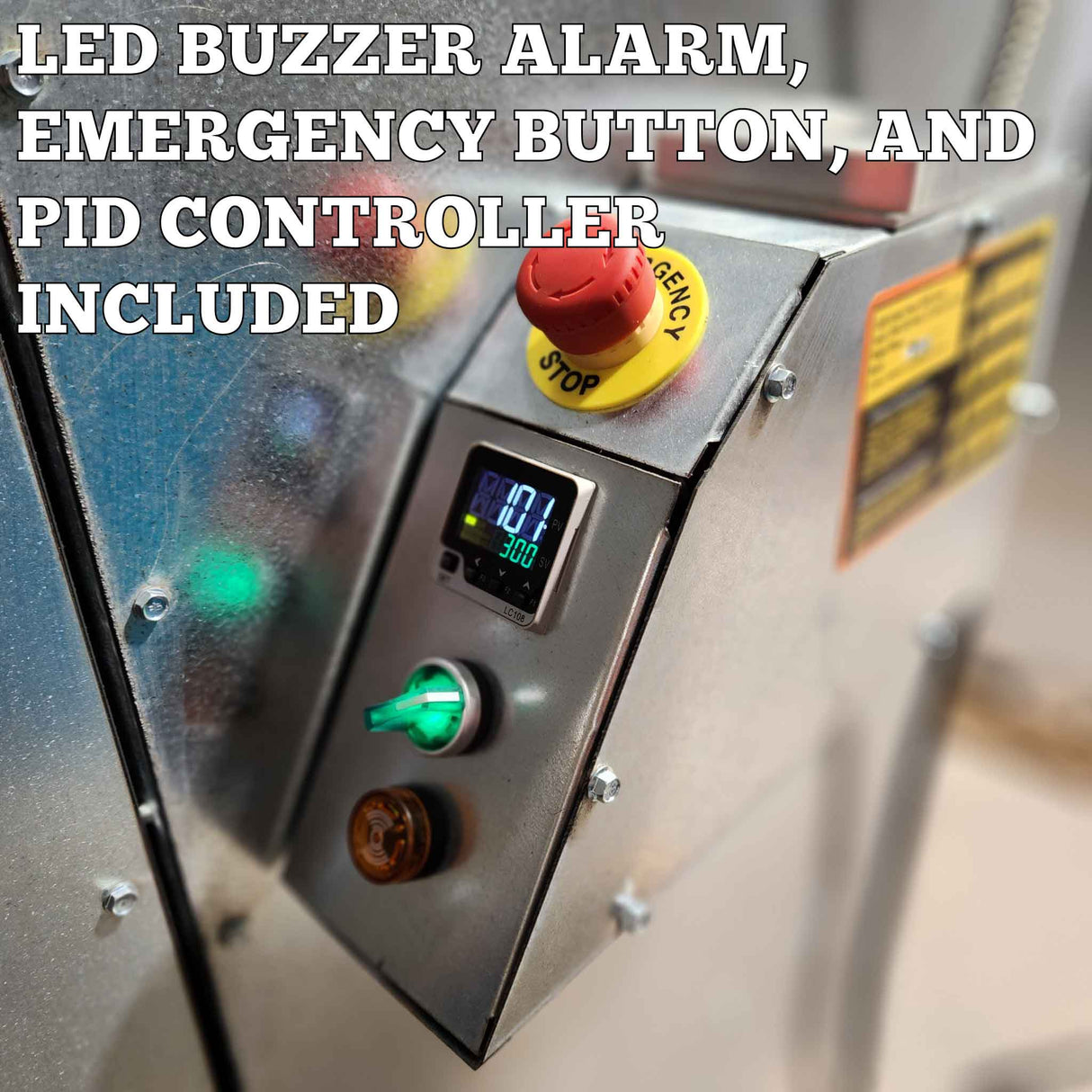

| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty Included |
— More Width, More Throughput
Cure Wider Loads With the LABS-586-GAS Powder Coating Oven
When a single extra foot of width means an extra rack of parts, the LABS-586-GAS pays off. Its gas-fired 5' x 8' x 6' chamber gives you the room to cure wide, long, and bulky work in one shot. Made in the USA from G90 galvanized steel, this curing oven resists rust and is built to hold up under the demands of a hardworking shop.
Reliable Cures, Batch After Batch
Powder coating and Cerakote need heat held steady long enough to complete the cure, and this oven maintains temperature before letting parts cool. Run it as a dedicated batch loader or fold it into a continuous process shaped around your output.
- ✓ Wide 5' x 8' x 6' chamber — fit more parts per cycle and get more done each shift
- ✓ Roll-in flat floor — load carts straight in and skip wrestling heavy parts through the door
- ✓ Rust-resistant G90 build — made in the USA to stand up to years of industrial service
- ✓ Your choice of setup — add a blower fan, oven light, or custom color, and run batch or continuous
OVERSIZED ITEM - REQUIRES FORKLIFT AT PLACE OF DELIVERY, UNLESS PICKING UP AT OUR WAREHOUSE. FOR FREIGHT RATE, PLEASE EMAIL US
