LABS-686 Powder Coat Oven (6 x 8 x 6)
LABS-686 Powder Coat Oven (6 x 8 x 6) is backordered and will ship as soon as it is back in stock.
Shipping, Tracking and Delivery
Shipping, Tracking and Delivery
Once your order is picked up by freight, we email you tracking information so that you can follow your shipment in transit. Freight carriers will have your name and number in case they need to contact you ahead of delivering. All freight that's shipped out is covered by insurance; in the case that your shipment is damaged, we will file an insurance claim on your behalf. Please note these claims can take anywhere between 1-2 months to fully process.
Description
Description
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LABS-686 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
62×100×72″
Weight
~1500 lb

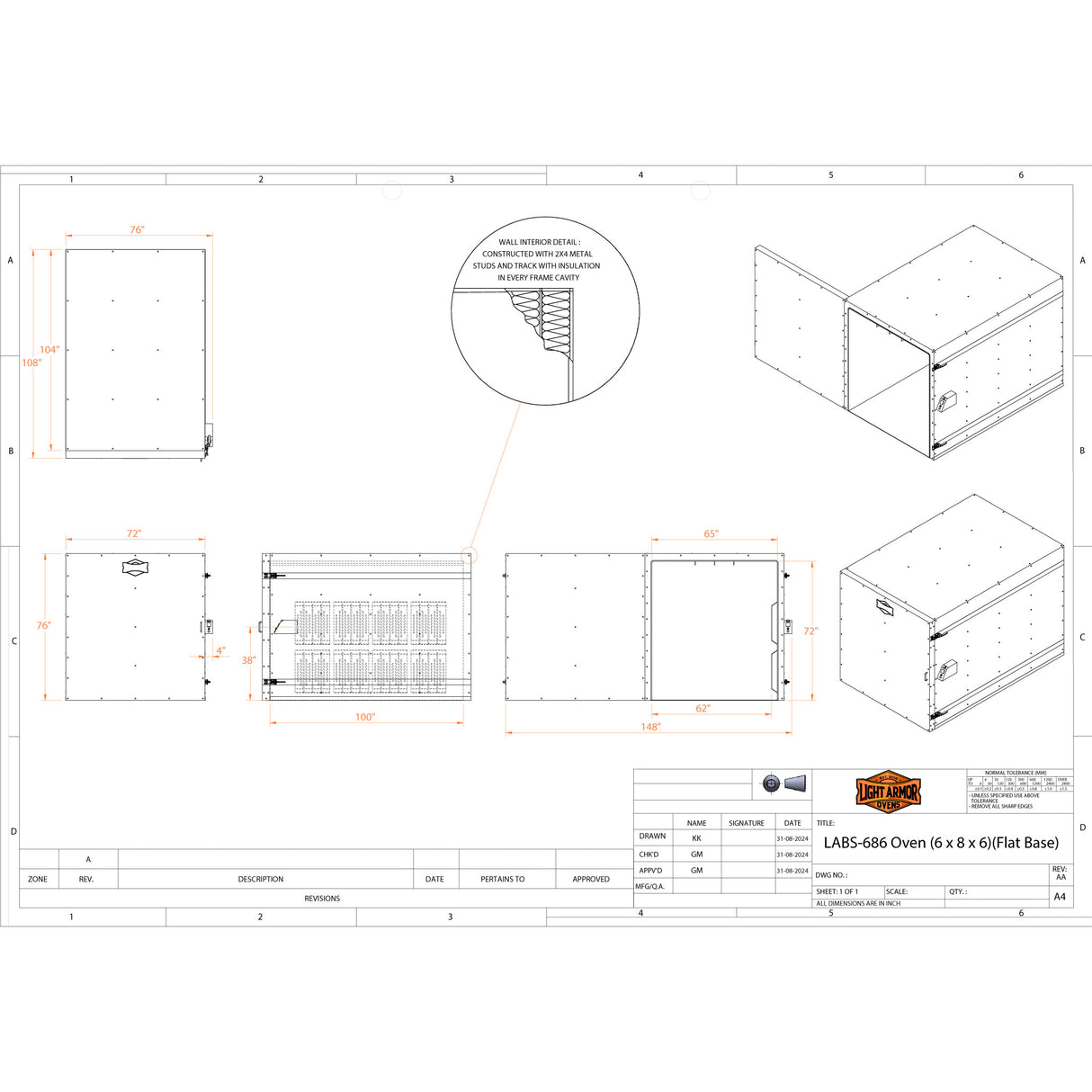

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 62″ W × 100″ D × 72″ T (Nominal) |
| Outside Footprint | 76″ W × 108″ D × 76″ T (Nominal) |
| Weight | ~1500 Pounds |
| Shipment Size | 7′ W × 10′ D × 7′ T |
| Recommended Distance from Wall | 3″+ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 112A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 120A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) |
| Recommended # of Blower Fans | 3–4 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty Included |
— Made in the USA
The LABS-686 Powder Coating Oven: Room to Cure Big Jobs Right
When your parts outgrow the small stuff, the LABS-686 curing oven gives you a generous 6' x 8' x 6' chamber to work in — deep enough to roll carts of frames, panels, and long assemblies straight through the door. Built in the US from G90 galvanized steel that stands up to rust year after year, this powder coating oven holds the steady, even heat that a proper cure demands, so every Cerakote and powder finish sets hard and stays that way.
A Curing Oven That Works the Way You Do
Powder coating is all about consistency: bring the part up to temperature, hold it, then let it cool. The LABS-686 does exactly that, batch after batch, whether you're running one-off custom pieces or feeding a steady production line. And because it's customizable, you can spec it to match your shop instead of bending your workflow around the equipment.
- ✓ Flat floor design — roll loaded carts in and out with ease — no lifting heavy racks over thresholds
- ✓ G90 galvanized build — corrosion-resistant steel keeps this oven working hard for the long haul
- ✓ Made in the USA — American-built quality with support you can actually reach
- ✓ Customize it your way — add a blower fan, interior oven light, or choose a custom color to fit your space
OVERSIZED ITEM - REQUIRES FORKLIFT AT PLACE OF DELIVERY, UNLESS PICKING UP AT OUR WAREHOUSE. FOR FREIGHT RATE, PLEASE EMAIL US
