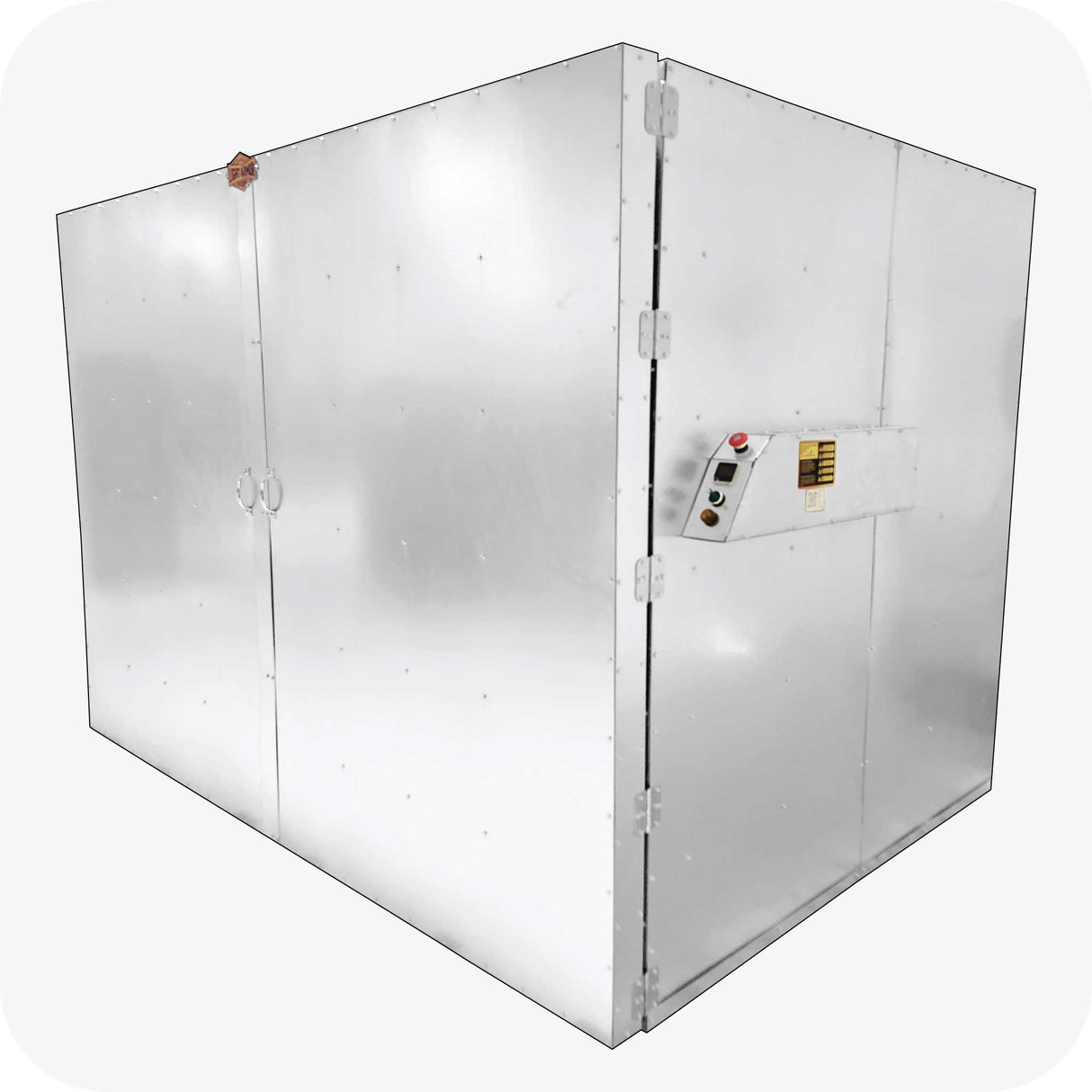

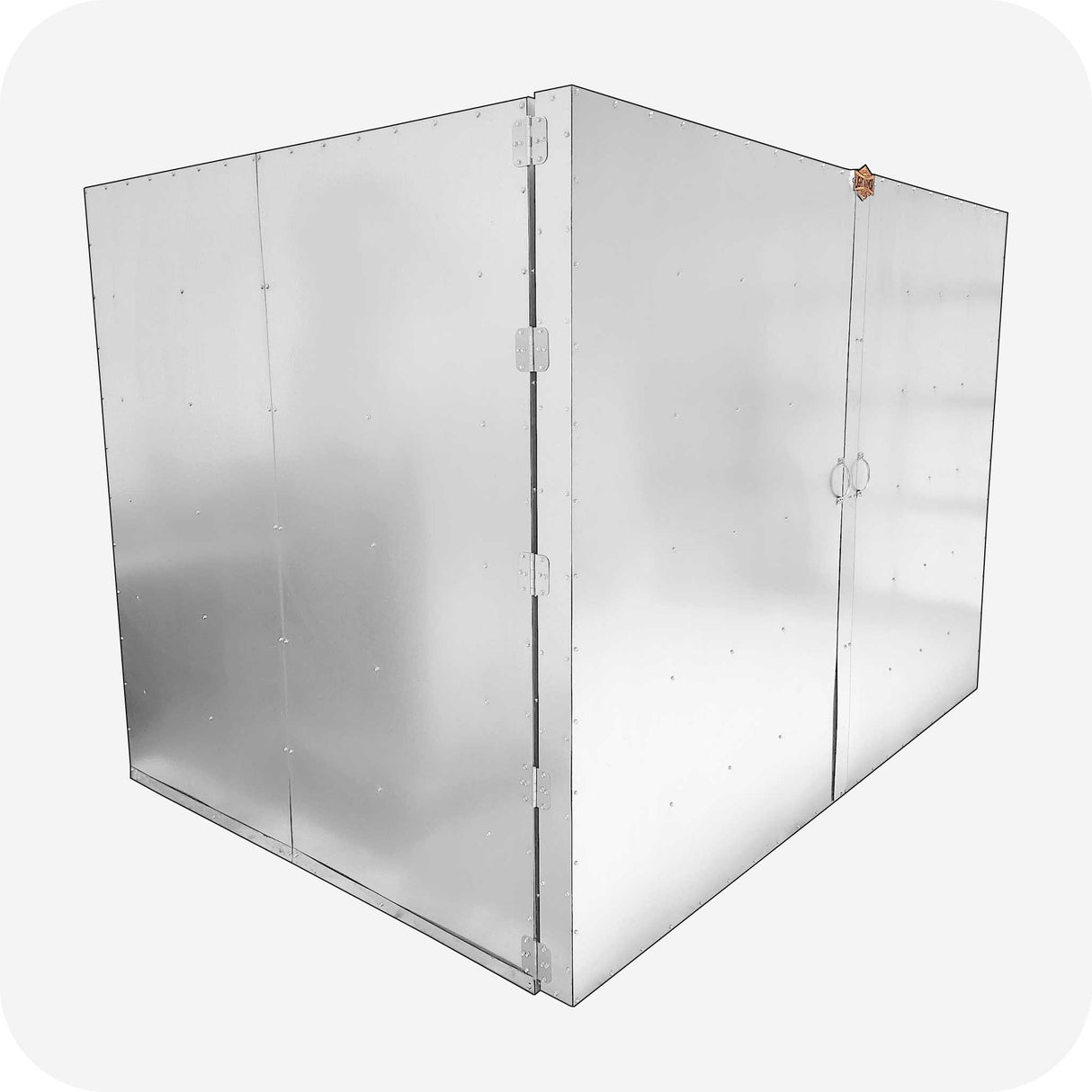

LABS-866 Powder Coat Oven (8 x 6 x 6)
LABS-866 Powder Coat Oven (8 x 6 x 6) is backordered and will ship as soon as it is back in stock.
Shipping, Tracking and Delivery
Shipping, Tracking and Delivery
Once your order is picked up by freight, we email you tracking information so that you can follow your shipment in transit. Freight carriers will have your name and number in case they need to contact you ahead of delivering. All freight that's shipped out is covered by insurance; in the case that your shipment is damaged, we will file an insurance claim on your behalf. Please note these claims can take anywhere between 1-2 months to fully process.
Description
Description
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LABS-866 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
96×64×72″
Weight
~1500 lb

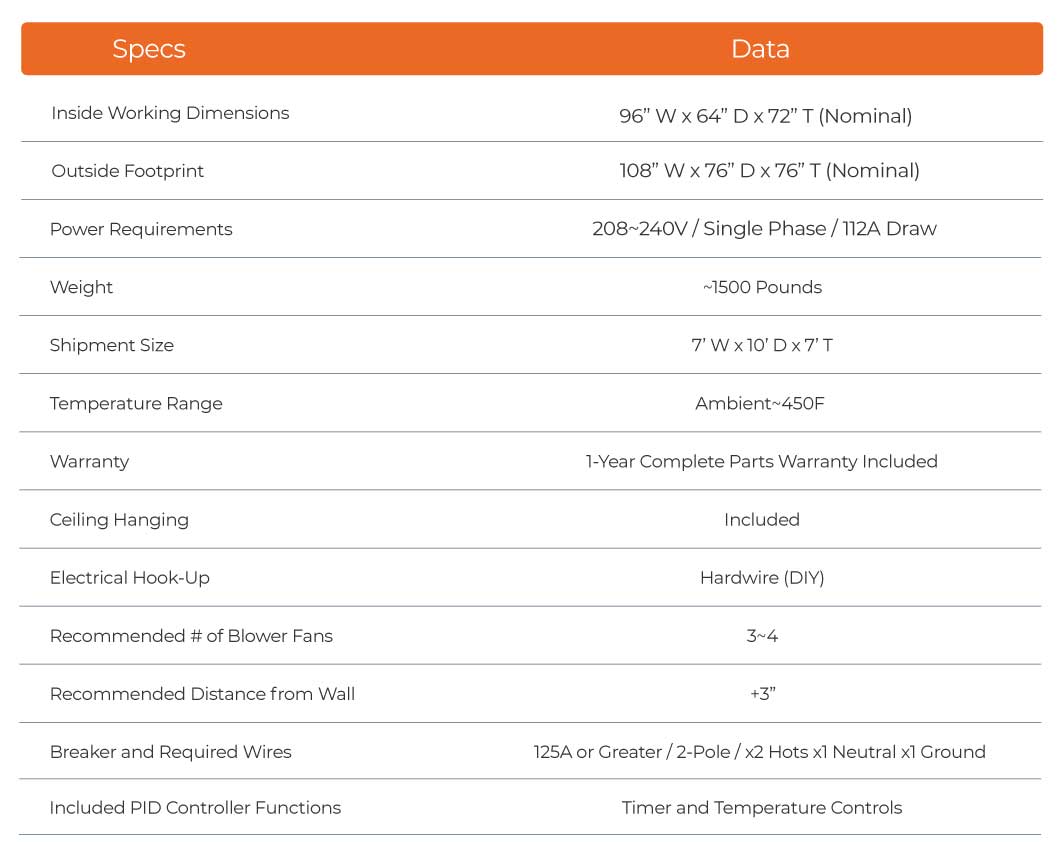

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 96″ W × 64″ D × 72″ T (Nominal) |
| Outside Footprint | 108″ W × 76″ D × 76″ T (Nominal) |
| Weight | ~1500 Pounds |
| Shipment Size | 7′ W × 10′ D × 7′ T |
| Recommended Distance from Wall | 3″+ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 112A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 125A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) |
| Recommended # of Blower Fans | 3–4 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty Included |
— Customizable Curing Oven
The LABS-866 Powder Coating Oven Rolls Big Batches In and Cures Them Right

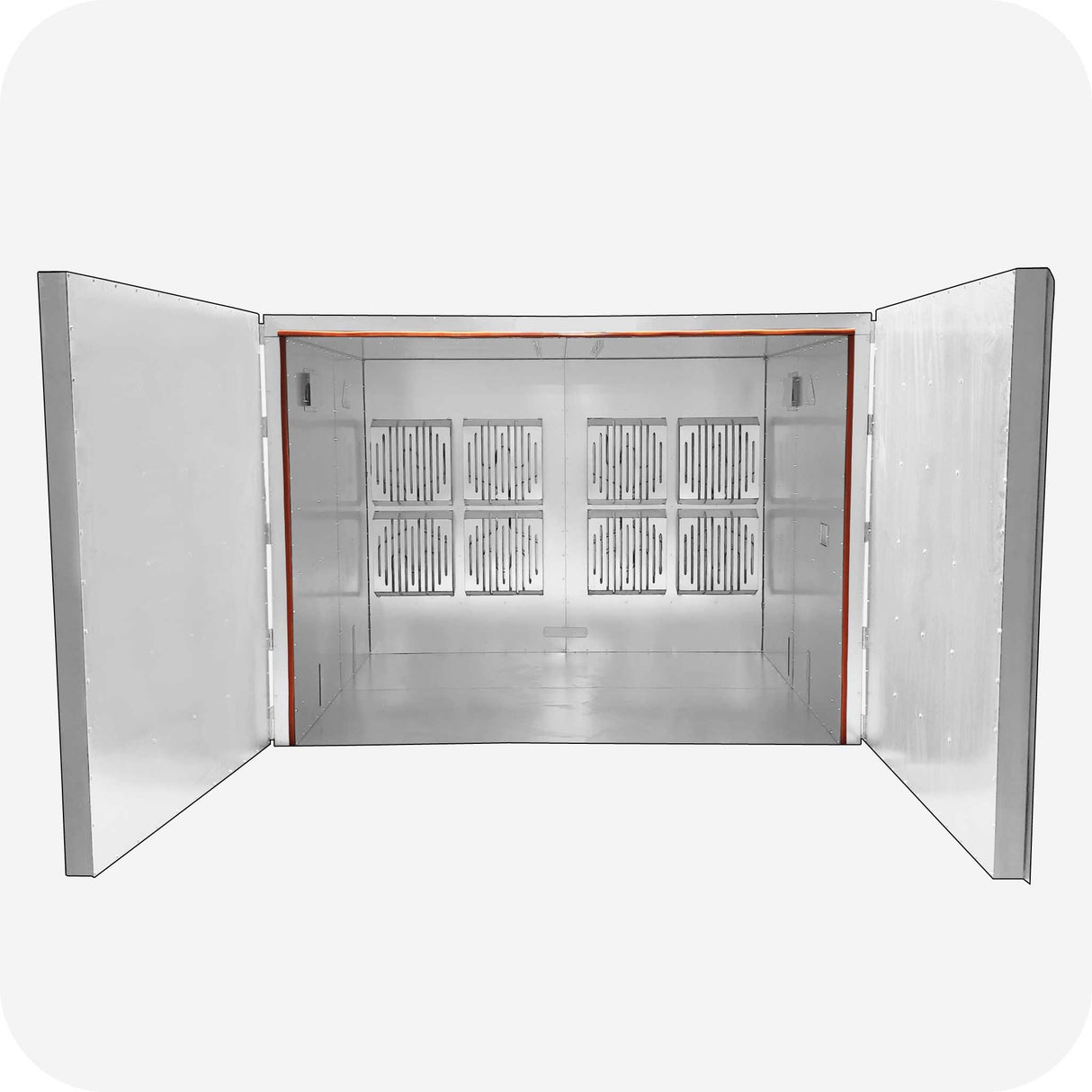

Cure more in every cycle with the LABS-866, a customizable curing oven built around a roomy 8' x 6' x 6' chamber. A flat floor lets you roll loaded carts straight in, so heavy or bulky parts go from rack to heat without lifting. Made in the USA with rust-resisting G90 galvanized material, this powder coating oven is engineered to hold steady, even heat through the full curing cycle for consistent, dependable results on every part.
Built Your Way for Your Parts
The LABS-866 adapts to how you work — configure it for batch loading or a continuous process, and add options like a blower fan, an oven light, or your choice of exterior color. Whether you run powder coating or Cerakote, this made-in-the-USA curing oven is designed to deliver the reliable, repeatable heat your finishes depend on.
- ✓ Spacious 8' x 6' x 6' chamber — cures large parts and full batches in a single efficient load
- ✓ Flat roll-in floor — wheel loaded carts directly inside — no awkward lifting of heavy parts
- ✓ G90 galvanized, made in the USA — resists rust and stands up to years of shop use
- ✓ Customizable configuration — add a blower fan, oven light, or custom color to match your workflow
OVERSIZED ITEM - REQUIRES FORKLIFT AT PLACE OF DELIVERY, UNLESS PICKING UP AT OUR WAREHOUSE. FOR FREIGHT RATE, PLEASE EMAIL US
