LABS-486 Powder Coat Oven (4 x 8 x 6)
LABS-486 Powder Coat Oven (4 x 8 x 6) is backordered and will ship as soon as it is back in stock.
Shipping, Tracking and Delivery
Shipping, Tracking and Delivery
Once your order is picked up by freight, we email you tracking information so that you can follow your shipment in transit. Freight carriers will have your name and number in case they need to contact you ahead of delivering. All freight that's shipped out is covered by insurance; in the case that your shipment is damaged, we will file an insurance claim on your behalf. Please note these claims can take anywhere between 1-2 months to fully process.
Description
Description
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LABS-486 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
42×100×72″
Weight
~1000 lb

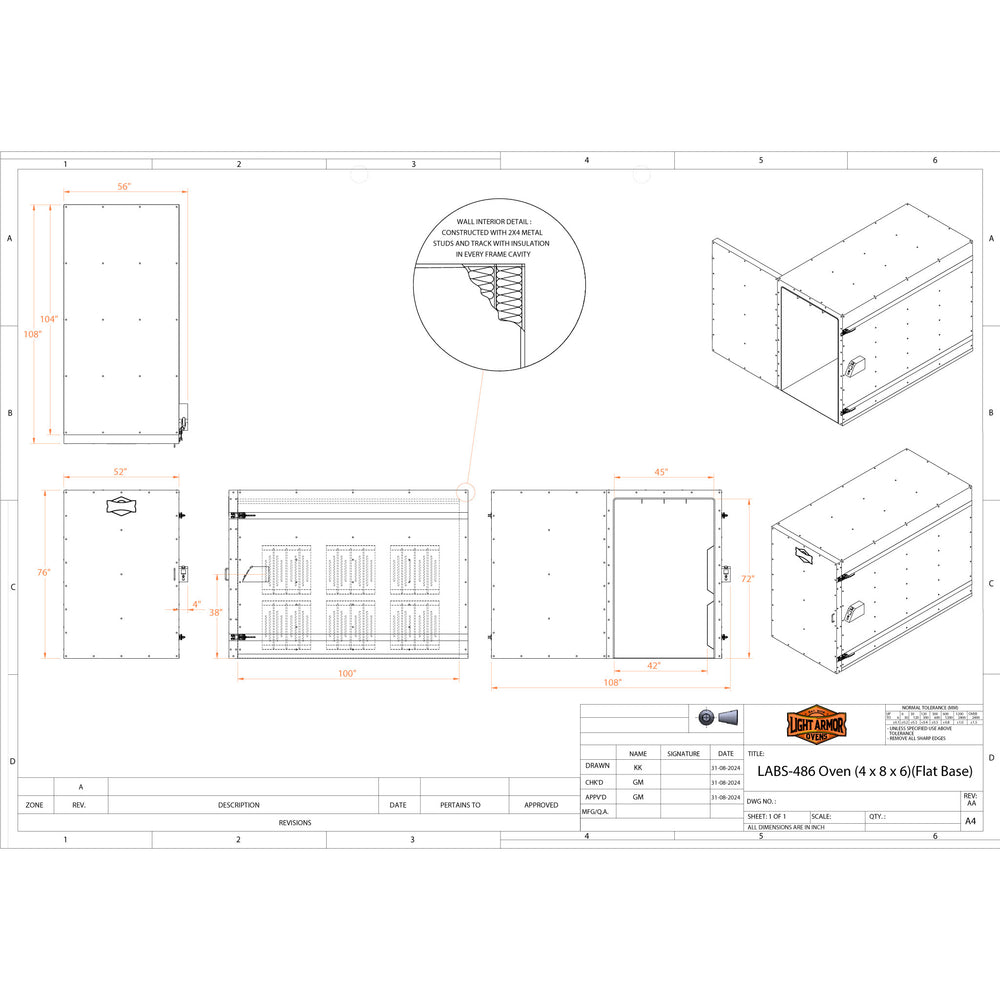

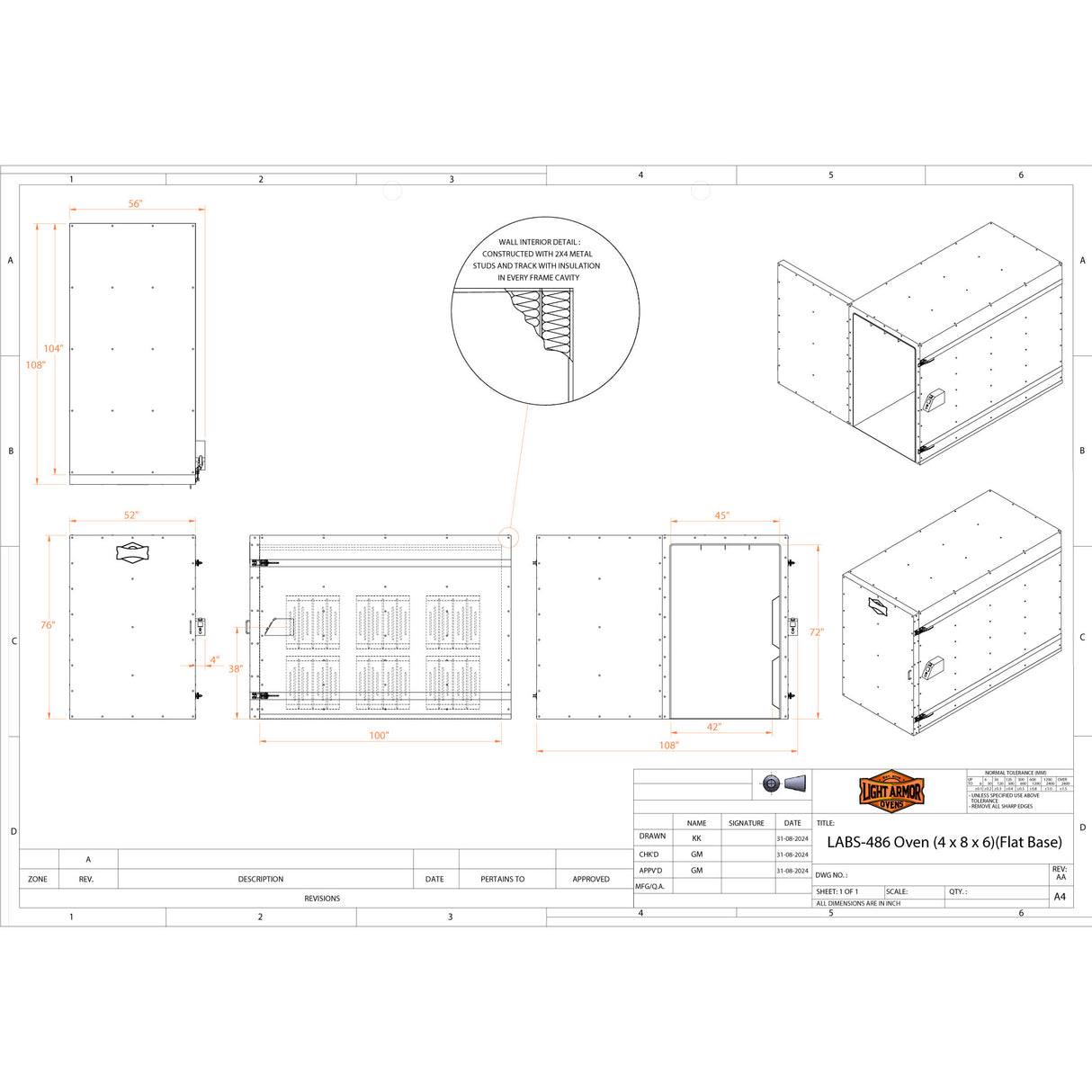

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 42″ W × 100″ D × 72″ T (Nominal) |
| Outside Footprint | 56″ W × 108″ D × 76″ T (Nominal) |
| Weight | ~1000 Pounds |
| Shipment Size | 6′ W × 10′ D × 7′ T |
| Recommended Distance from Wall | 3″+ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 84A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 90A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) |
| Recommended # of Blower Fans | 3–4 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty Included |
— Your Everyday Workhorse Oven
Cure with Confidence in the LABS-486 Powder Coating Oven

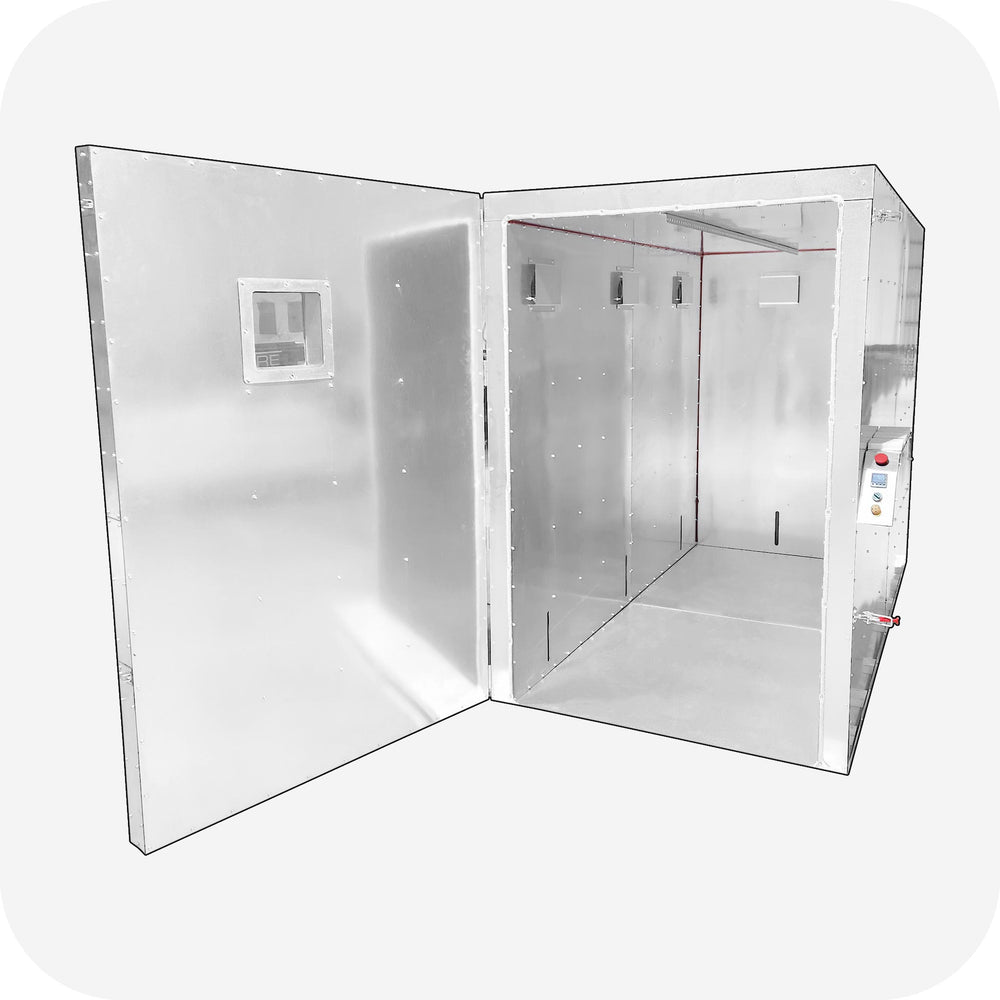

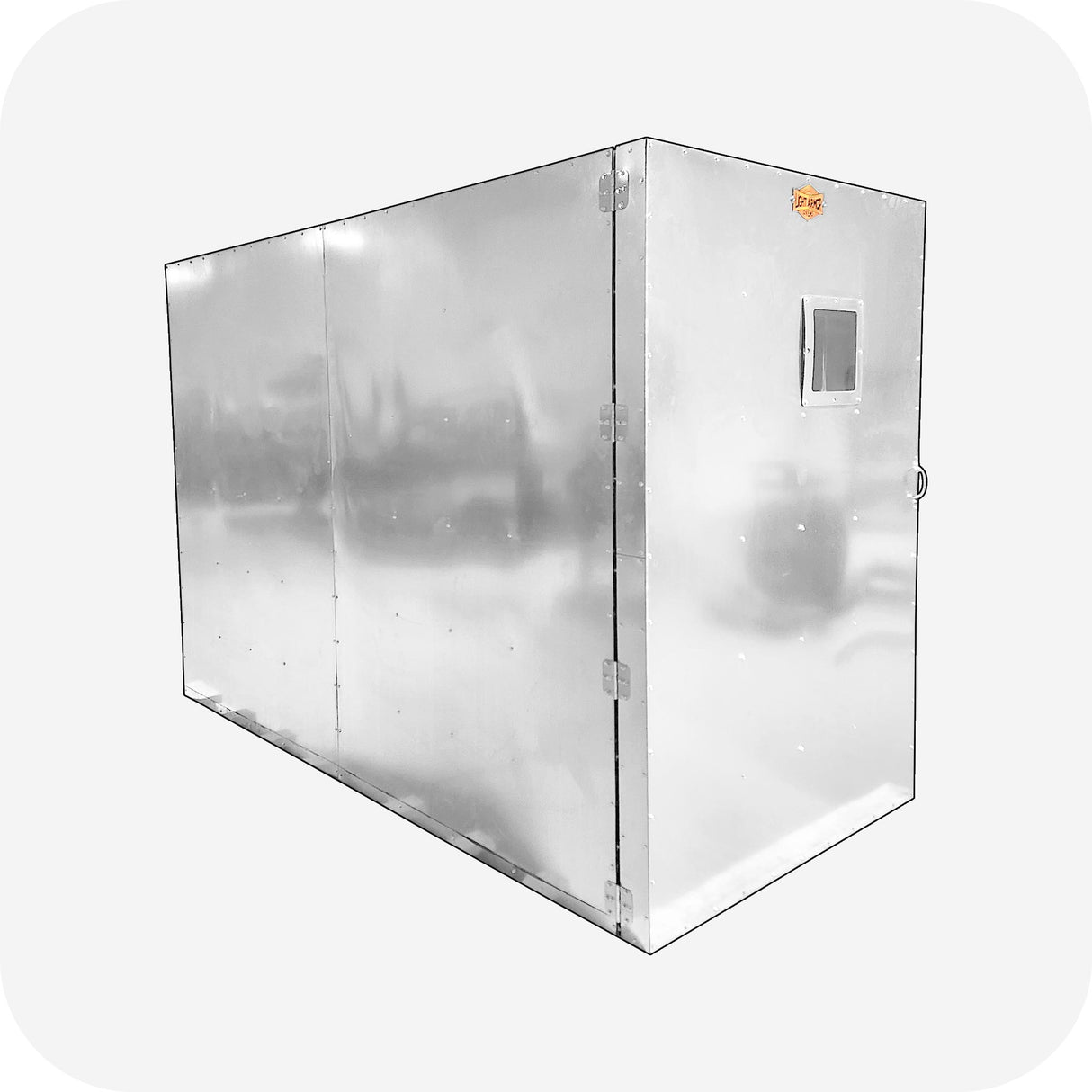

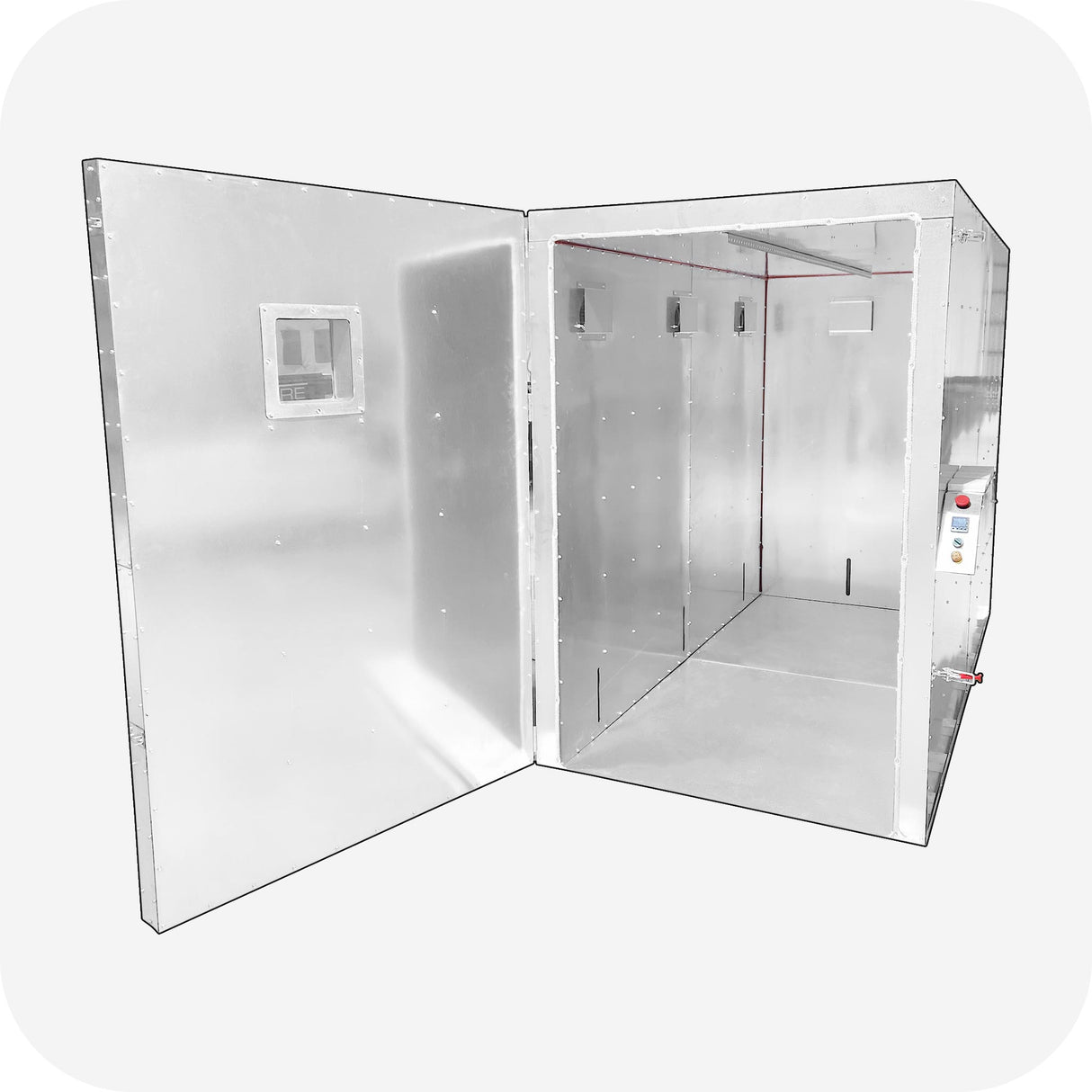

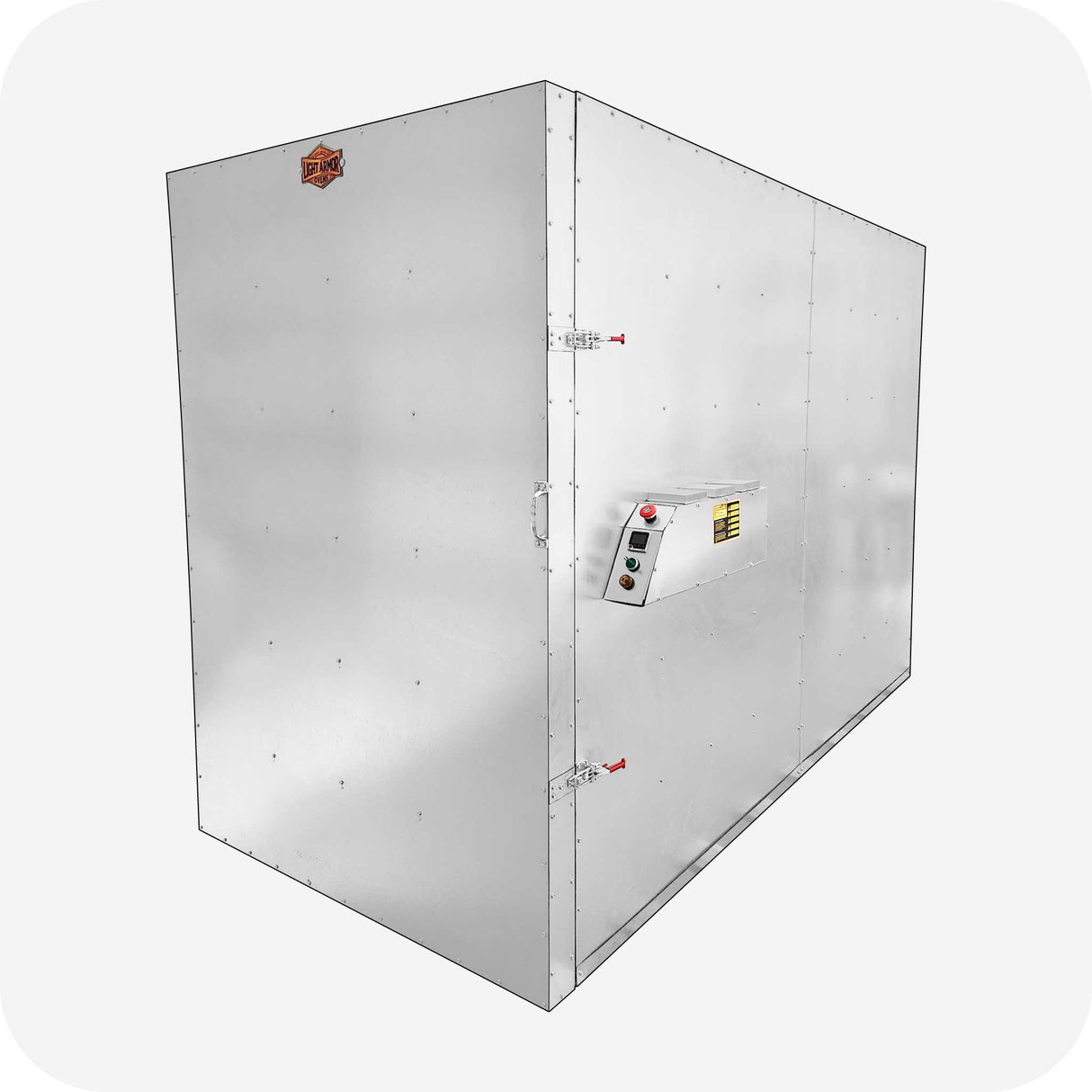

The LABS-486 is the powder coating oven that fits the way most shops actually work. With a 4' x 8' x 6' chamber, it swallows wheels, bumpers, gates, and long parts while its flat floor lets you roll carts straight in and out. Made in the USA from G90 galvanized steel that resists rust, this curing oven is built to hold heat steadily so your Cerakote and powder finishes reach a complete, dependable cure every cycle.
Consistent Heat, Consistent Results
Hold temperature for the full dwell time and you get the chemical reaction a lasting finish demands. Run it for batch loads or as part of a continuous process — the LABS-486 adapts to your volume, not the other way around.
- ✓ G90 galvanized construction — rust-resistant steel that stands up to years of daily curing
- ✓ Flat roll-in floor — wheel loaded carts directly inside and save your back on heavy parts
- ✓ Customizable to your shop — add a blower fan, oven light, or pick your oven color
- ✓ Batch or continuous ready — configure the cure process around your production needs
OVERSIZED ITEM - REQUIRES FORKLIFT AT PLACE OF DELIVERY, UNLESS PICKING UP AT OUR WAREHOUSE. FOR FREIGHT RATE, PLEASE EMAIL US
