We recently purchased a 4’ x 4’ x 6’ powder coating oven from Light Armor Ovens, and we couldn’t be happier with it. The oven has performed flawlessly from day one, maintaining consistent temperatures and operating exactly as advertised.
The build quality is excellent, and it’s been a great addition to our shop. On top of that, their technical support has been outstanding responsive, knowledgeable, and always willing to help whenever we’ve had questions.
If you’re looking for a quality powder coating oven backed by great customer service, we highly recommend Light Armor Ovens. Thank you for everything! The Wagenmasters Team












Shows the options you pick. Drag to spin, scroll or pinch to zoom.

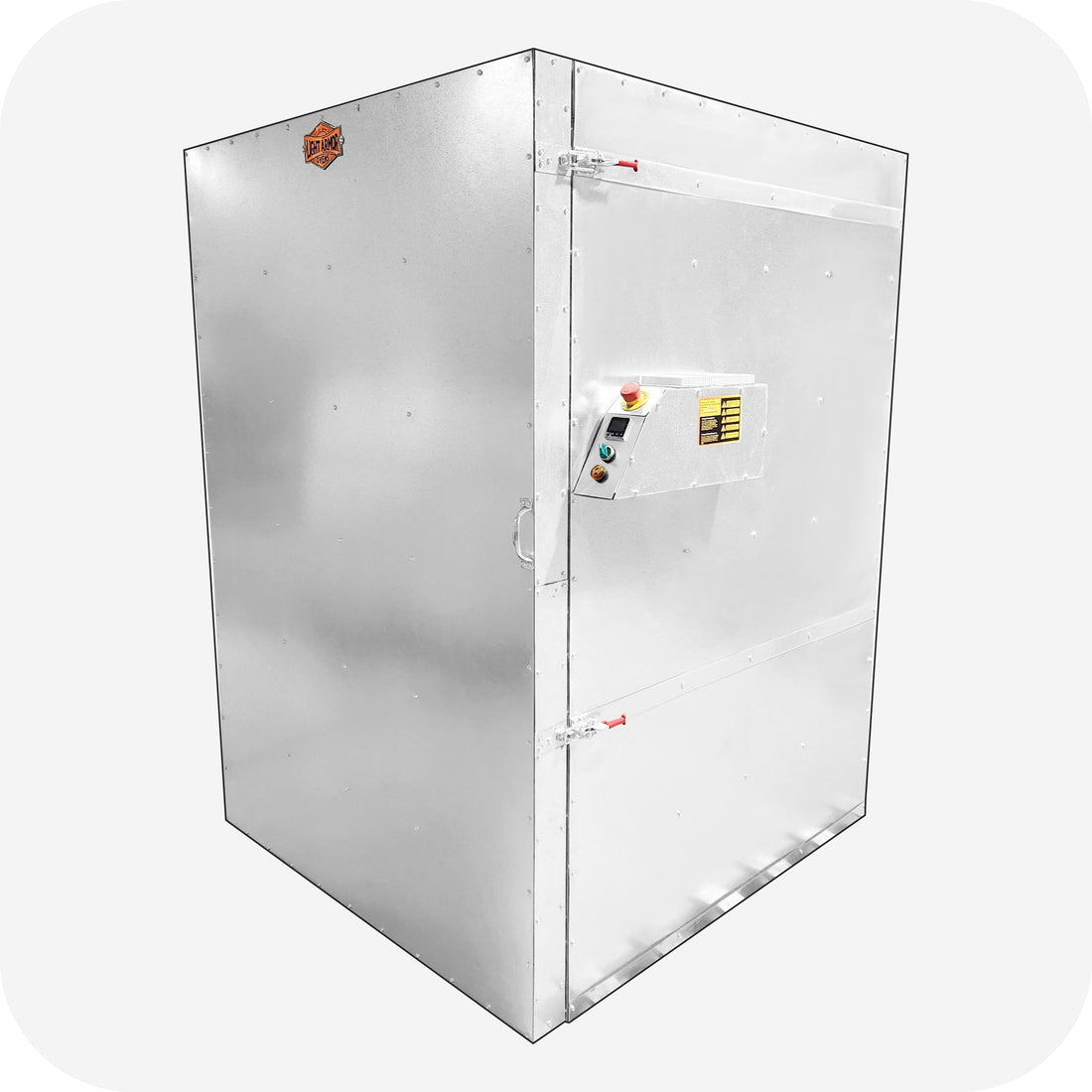

In-Stock and Loaded LA10K6 Oven (4' x 4' x 6')
5.0 · 8 ReviewsShips LTL freight, calculated at checkout from your address — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: it's calculated at checkout from your address, or pick it up free in Central Illinois.
Your upgrades go into the cart with your oven.
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
In stock and ready to ship: 4′ x 4′ x 6′ powder coat oven. 45″ x 46″ x 72″ interior, up to 500°F, 240V on a 60A breaker.
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LA10K6 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
45×46×72″
Shipping Weight
~625 lb

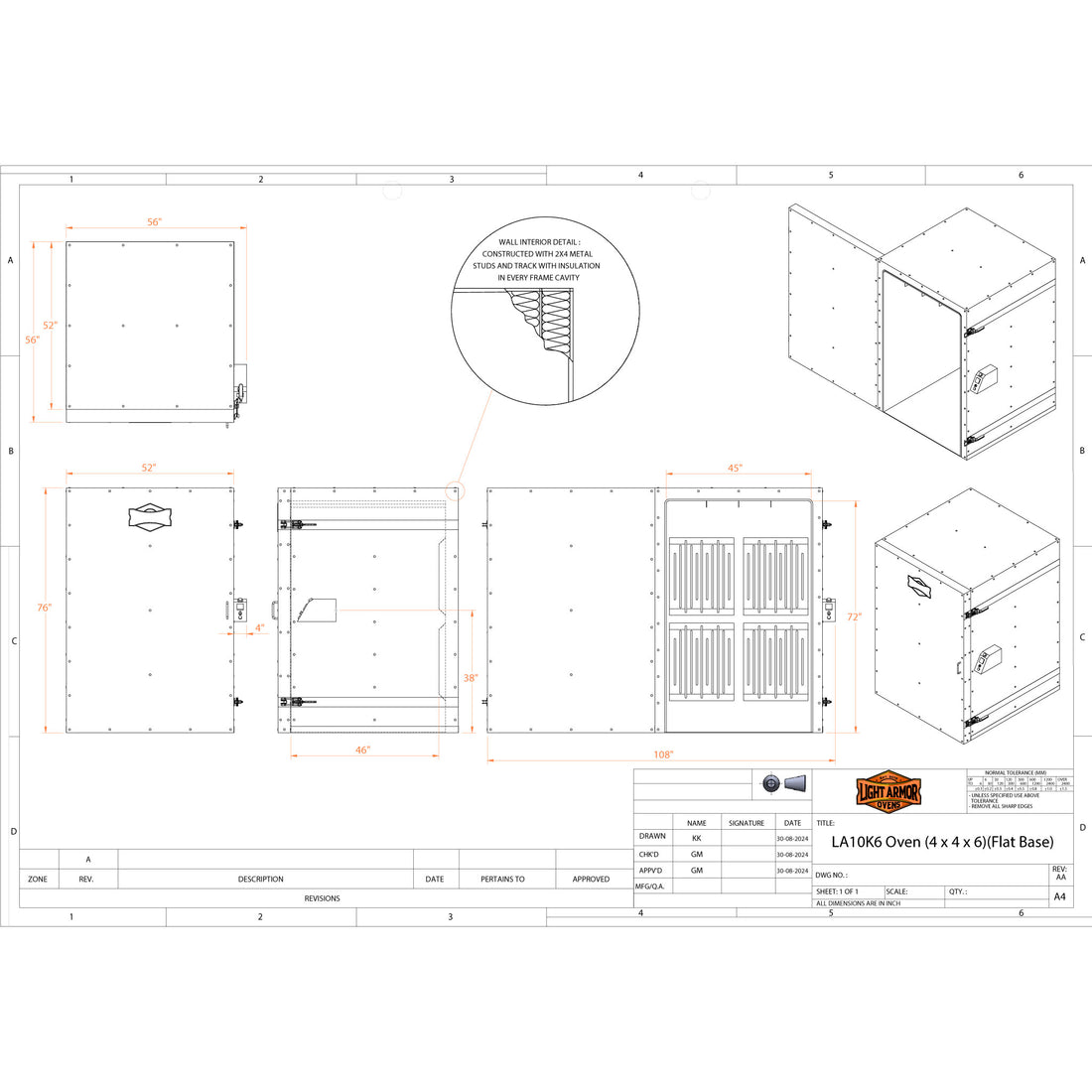

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 45″ W × 46″ D × 72″ T (Nominal) |
| Outside Footprint | 56″ W × 56″ D × 76″ T (Nominal) |
| Shipment Size | 5′ W × 5′ D × 7′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 56A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 60A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 2 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
— Scale Up Your Output
The LA10K6 Powder Coating Oven Gives You Room to Grow
Ready to move more parts per batch? The LA10K6 and its roomy 4' x 4' x 6' chamber let you load taller racks and bigger assemblies, so you spend less time swapping loads and more time producing. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with G90 galvanized material, this curing oven resists rust and holds up shift after shift — and it's In-Stock and Loaded to ship right away.
Dependable Cures for Any Industry
Heat is the heart of the curing process, and this oven maintains it steadily to drive the chemical reaction your coating needs before easing back down for cooling. Run powder coating, Cerakote, and more in batch or continuous configurations tuned to your volume.
- ✓ Generous 4' x 4' x 6' chamber — load more parts per cycle and lift your throughput
- ✓ Rust-resistant G90 steel — an Illinois-built construction engineered for a long working life
- ✓ Customize it your way — add a blower fan, oven light, or exhaust ports to match your process
- ✓ In-Stock and Loaded — skip the build queue and start curing sooner
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
Customer Reviews
We ordered this oven to start our powder coating business, Patriot Powder Worx in Lubbock, TX. I did a lot of research with other brands like Eastwood, but I kept coming back to LightArmor because I wanted to support an American business, and if I needed any help I could talk to an actual person. Before I purchased this oven, I was looking at a 3x3x5. I called LightArmor with a few questions about what I would need to get ready on my end breaker and power wise, and they were very helpful answering all my questions. While my wife and I were on the phone with them, We mentioned the "in stock" options and how they had a lot of upgrades over buying one custom made. My wife said "buy once, cry once" so we ended up going with this 4x4x6 beast. About a week later it was delivered to our shop. It was packaged well, as you can see in the photo. Our shop needed the oven to be mobile, for the time being, so I had to fabricate a dolly to be able to move it. All in all, I am very impressed with this company and the oven, and I can't wait to keep feeding the beast!
I ordered the LA10K6 (4x4x6). This is an awesome oven. I can't wait to use this oven for years to come for all of my cerakote projects. The shipping was supper fast and well packed. Although they are a little hard to speak to on the phone sometimes they are awesome to work with when you get them. I had a slight issue with the unit and they were more than happy to help with the problem. #RBN CERAKOTE #RBN Performance Parts
I bought this in a package with a 4x4x6 spray booth. This oven is pretty awesome for what they charge. Make sure you tighten up all the screws because they will loosen during transit. Oven maintains temp within 5 degrees once warmed up and leveled out. The controller is difficult to operate initially. Research in depth on the controller and figure out all the settings.
I ordered the 10K with 6ft ceilings, Gordon walked me through everything I would need to support my business operations in terms of power requirements and best setup for our needs. Definitely the best purchase we could have made. This oven is a beast!
Instagram @broadswordcomposites
Couldn't be happier. With the 6ftLA10K I'll be able to paint a lot more!! Oven works great and looks awesome!
We took a huge step going from using a regular kitchen oven to ordering the LA10K. Gordon answered every question along the way. Customer service is excellent. Such a well built product. After only using for a week, we are so satisfied. Never going back to the hassle of spray paint or kitchen ovens! Thank you, Gordon and Light Armor for an excellent product!!
This is our second oven. The first oven was a bad purchase from a company in Iowa, and we were a little gun shy. We had heard from quite a few people in our network about Lightarmor, and reached out to Gordon about having an oven made. Great guy, great company. Our oven came in and we couldn't be happier with it. Night and day over the slapped together oven we got from the other company. Solid construction, quality electronics. If you need a big oven for powdercoat or Cerakote, you can't go wrong with this oven.
