LA10K8 Powder Coat Oven (4' x 4' x 8')
Unit from $3,199.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
— Approved Applications
Customers rely on our products across the full range of protective and performance coatings.

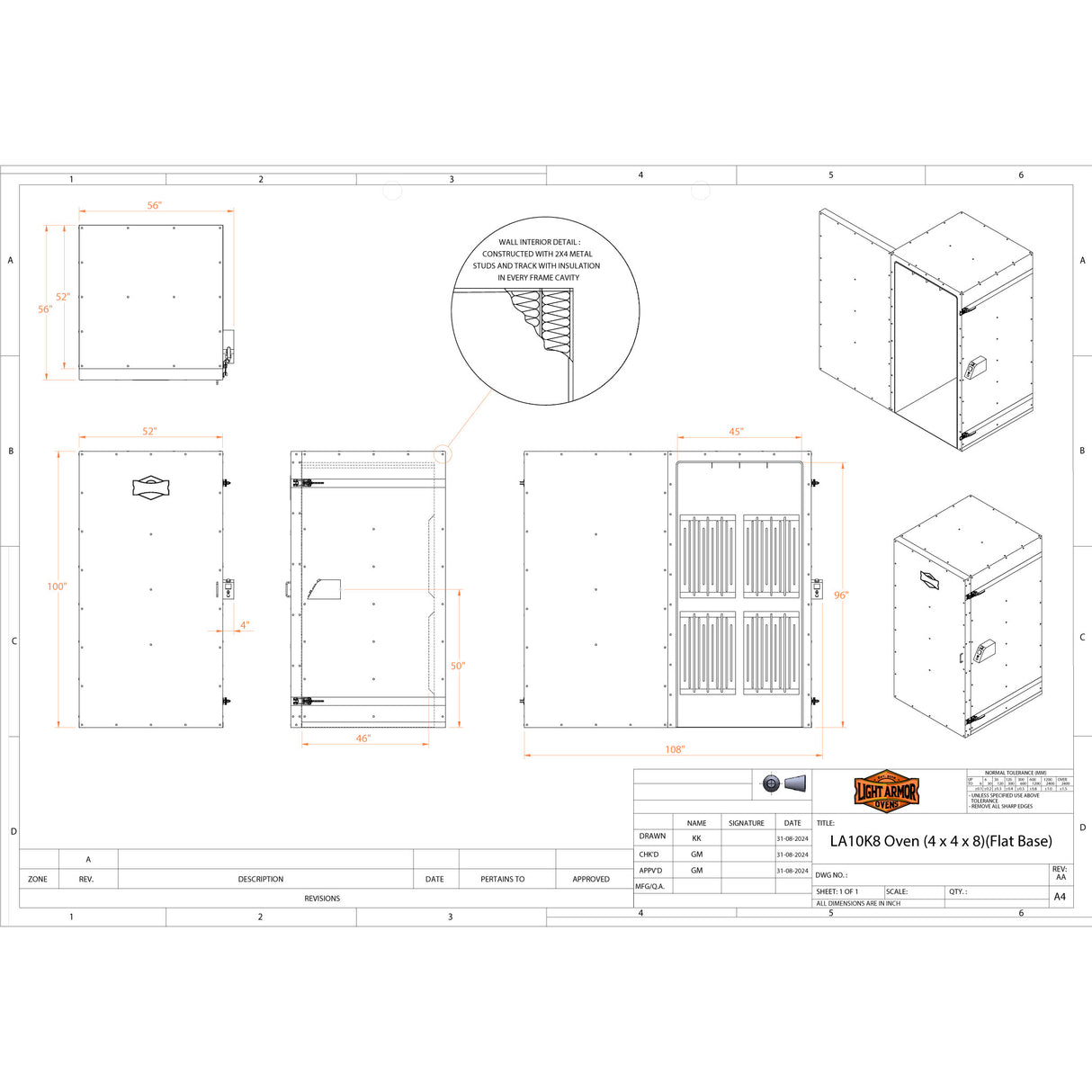

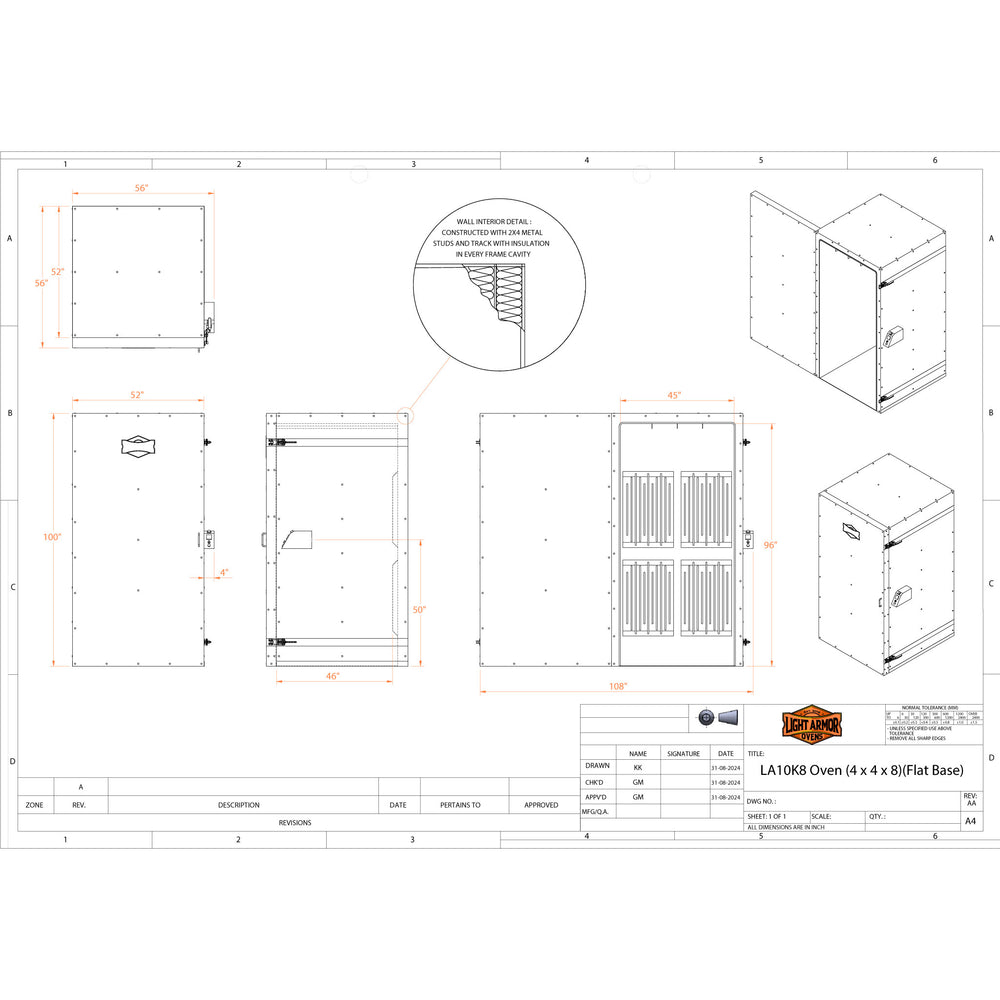

— LA10K8 · Technical Specifications
Max Temperature
500°F
Inside Working Space
45×46×96″
Shipping Weight
~750 lb
| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 45″ W × 46″ D × 96″ T (Nominal) |
| Outside Footprint | 56″ W × 56″ D × 100″ T (Nominal) |
| Shipment Size | 5′ W × 10′ D × 5′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 56A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 60A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 2 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |

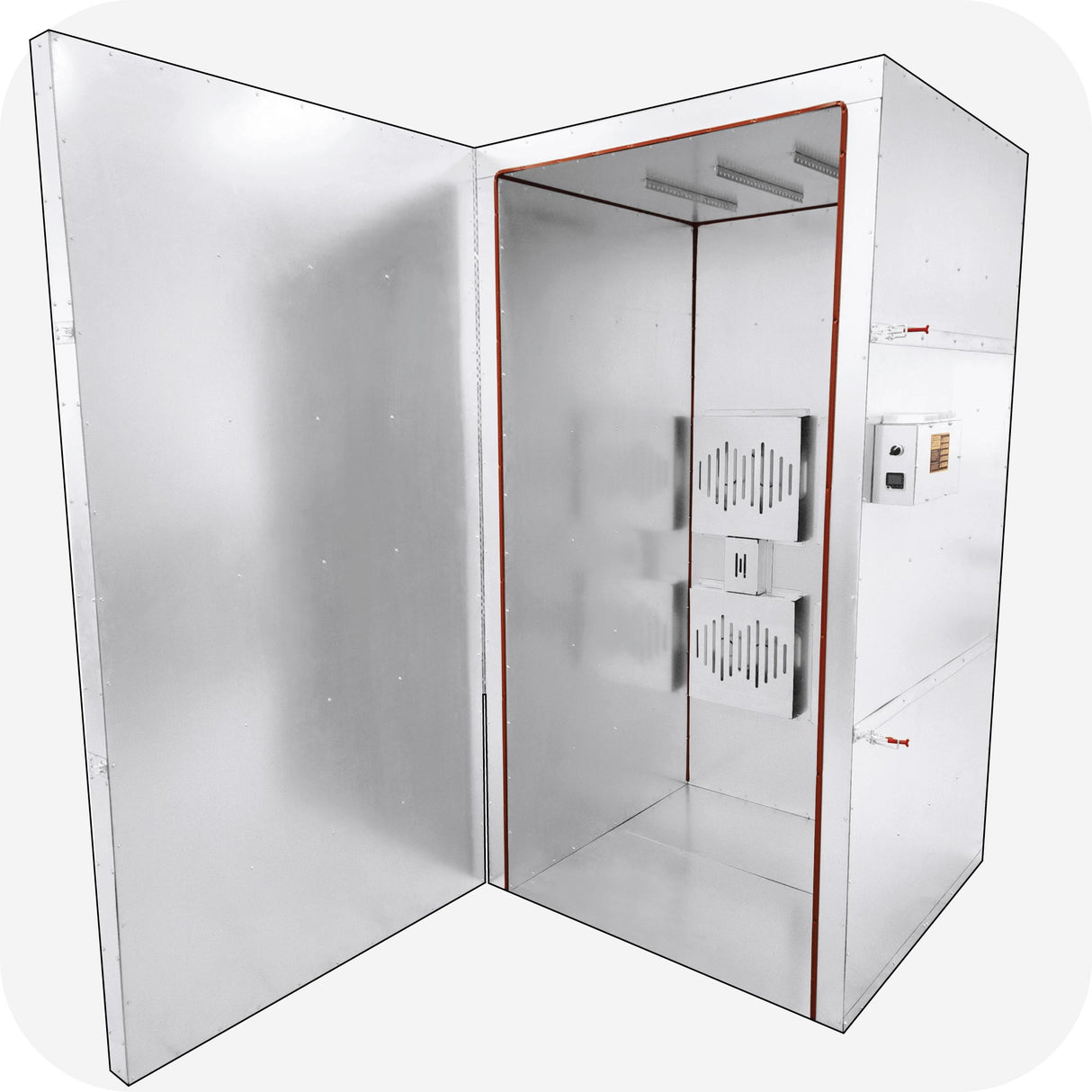

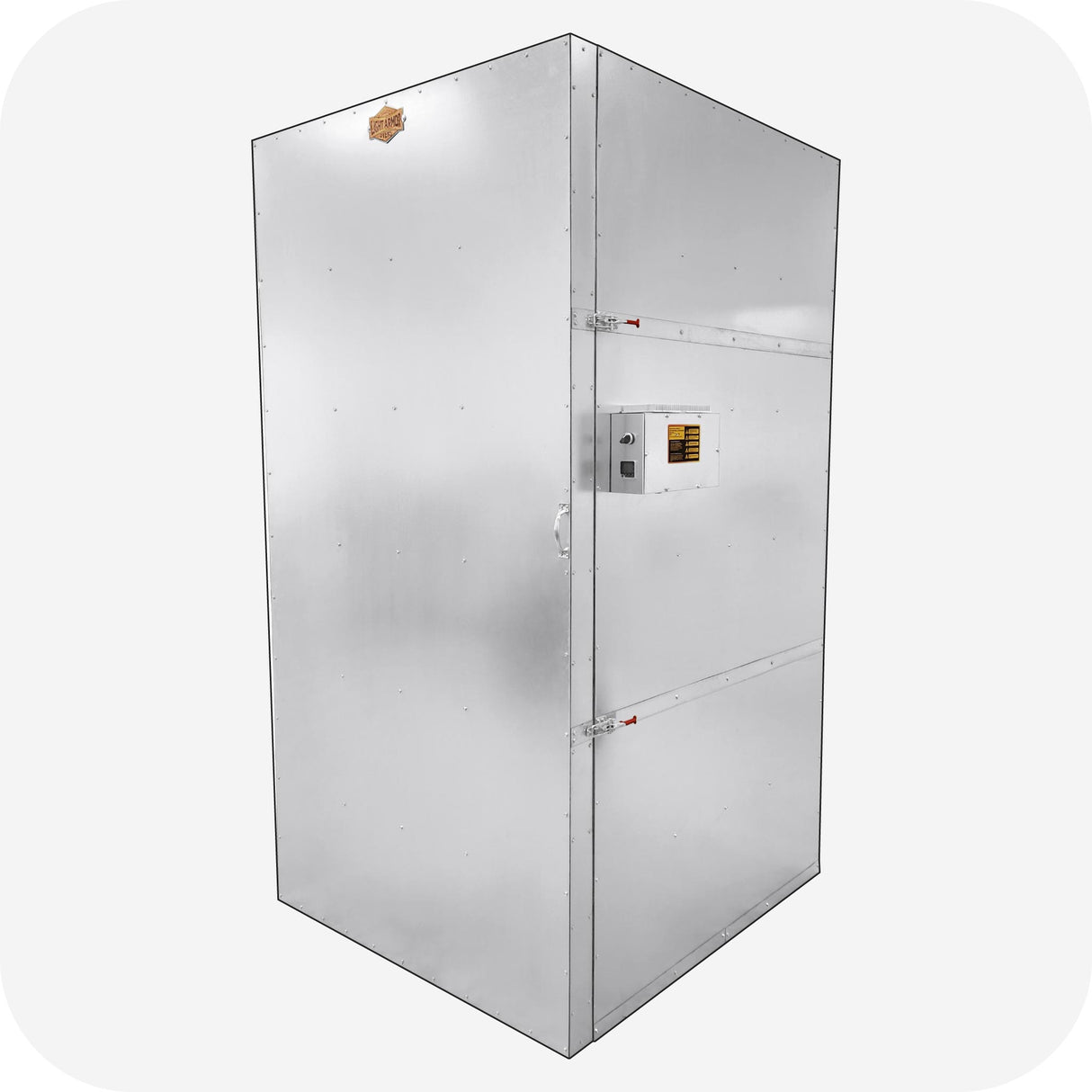

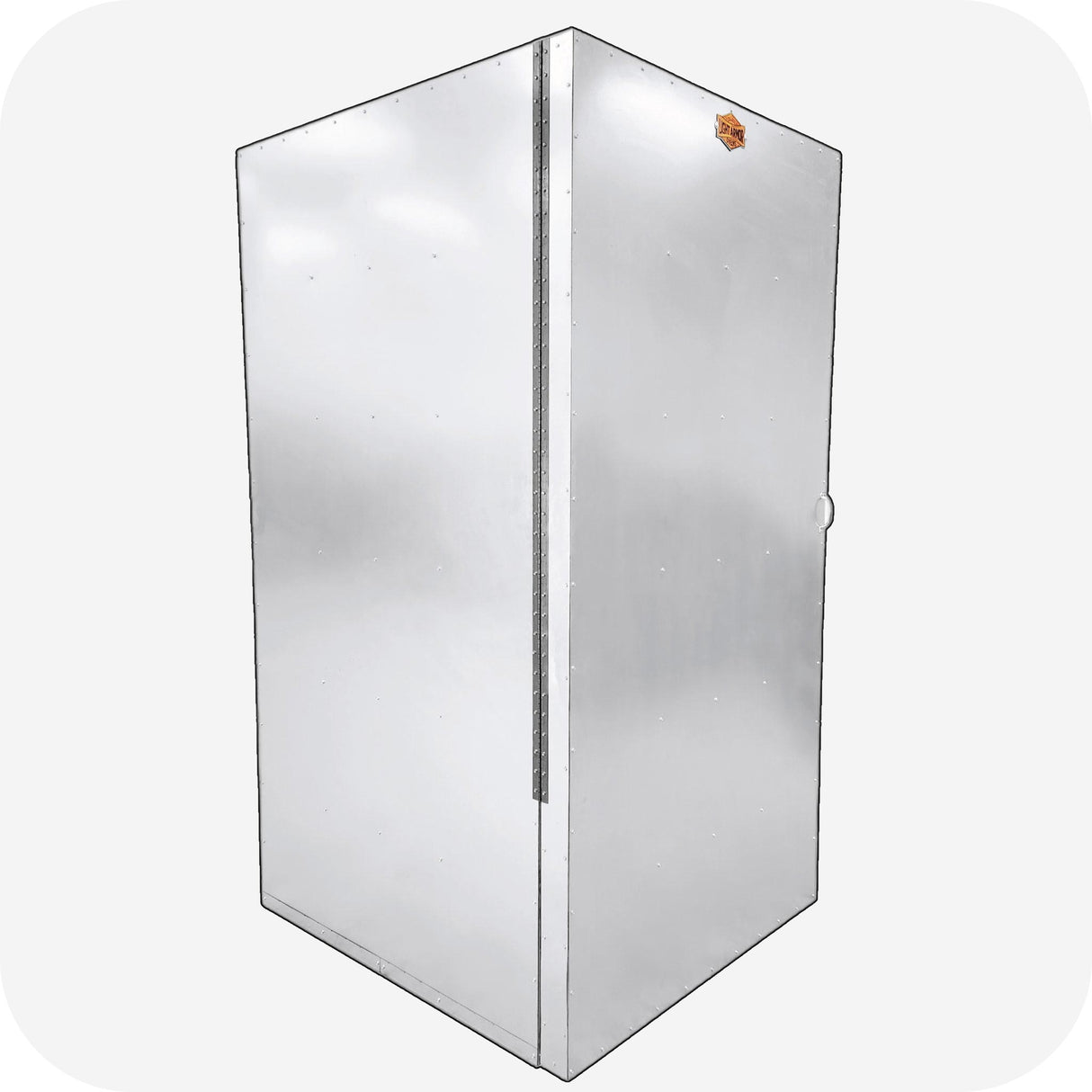

— Customizable Powder Coating Oven
When your parts run large, the LA10K8 Powder Coat Oven gives you room to work — a full 4' x 4' x 8' curing chamber ready for serious batch loads. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with G90 galvanized material, this powder coating oven shrugs off rust and holds up to the demands of a busy shop for years, and because it’s customizable, it tailors to how you run your line.
Curing is heat held steady over time, and the LA10K8 raises your parts to temperature and maintains it to drive the chemical reaction that locks in a durable finish, then cools them safely afterward. Run it as a batch oven or configure it for a continuous process to match your product mix and volume.
OVERSIZED ITEM - REQUIRES FORKLIFT OR LOADING DOCK AT PLACE OF DELIVERY, UNLESS PICKING UP FROM FREIGHT TERMINAL OR OUR WAREHOUSE
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
