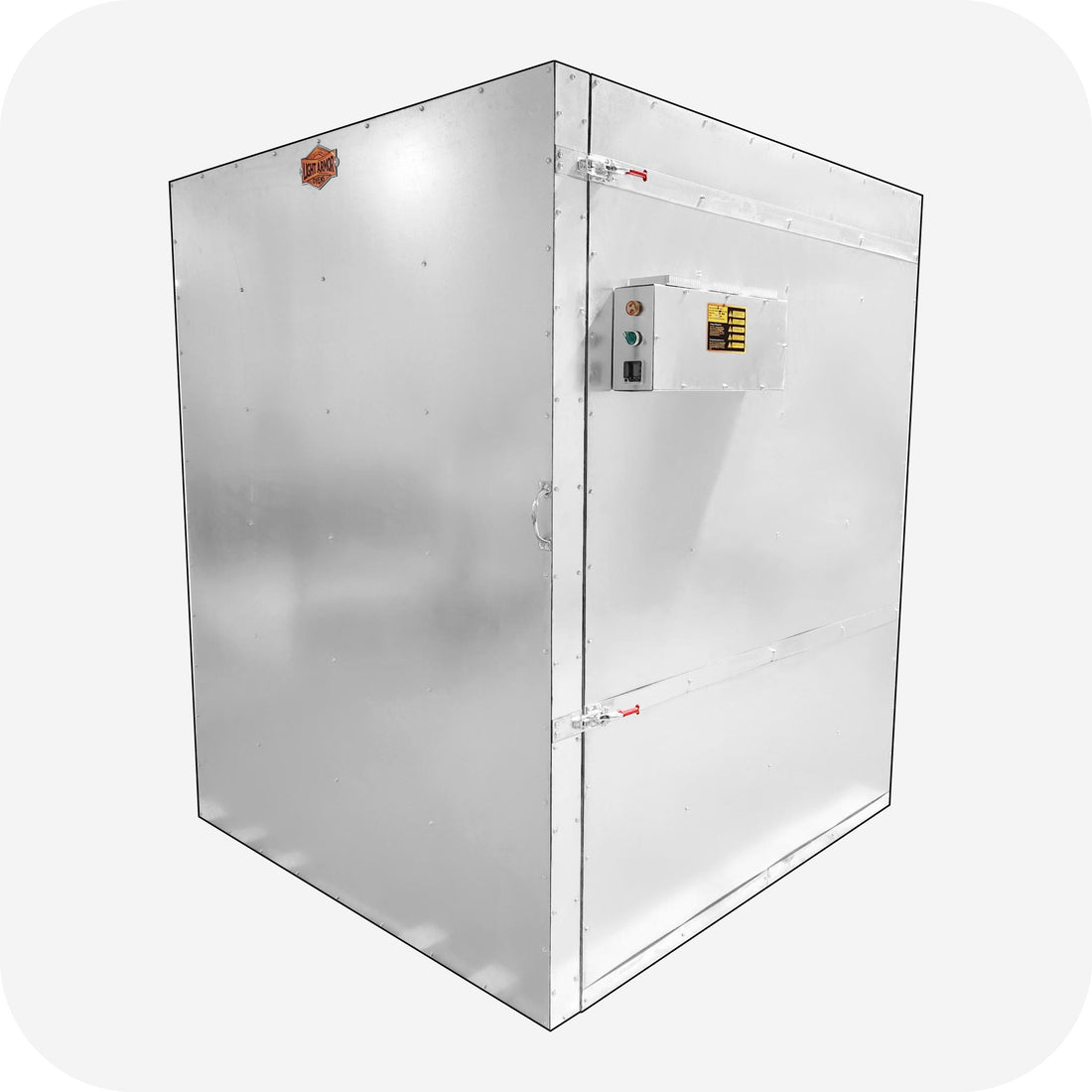

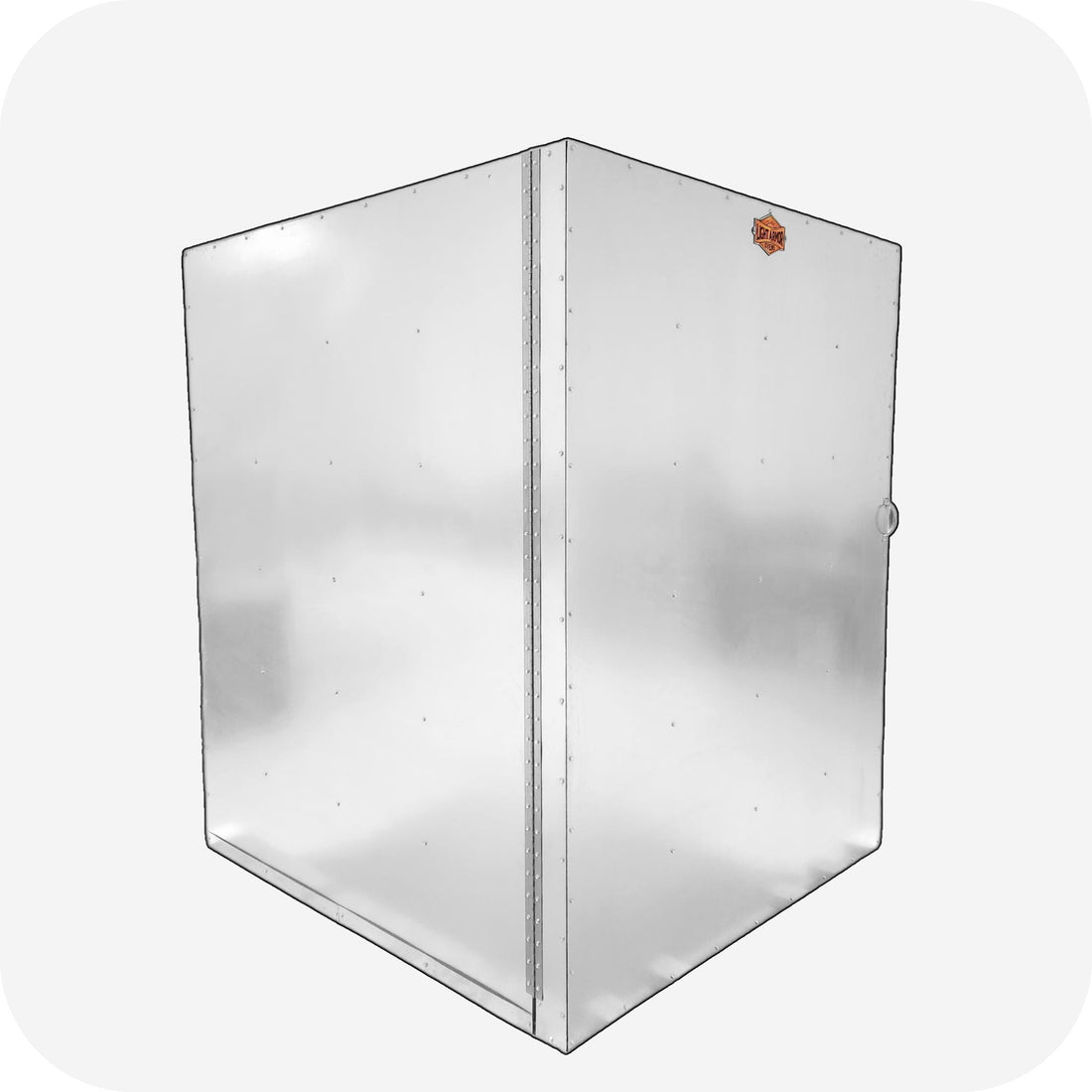

LA15K Powder Coating Oven (5' x 5' x 5')
5.0 · 2 Reviews$2,999.99 USDBuilt to Order
Weight: 700 lb
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Your Oven$2,999.99
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Ships by dedicated truck
This unit is too large for standard LTL carriers, so freight is quoted per order
rather than rated at checkout. Tell us where it's going and we'll price the
delivery with it — nothing gets guessed at the last step.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LA15K Powder Coating Oven (5' x 5' x 5')
Unit from $2,999.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
✓ Powder CoatingDurable, high-build finishes
✓ CerakoteThin-film ceramic protection
✓ Carbon FiberLightweight composite coating
✓ And MoreCustom & specialty applications
— LA15K · Technical Specifications
Everything You Need To Know
Max Temperature
500°F

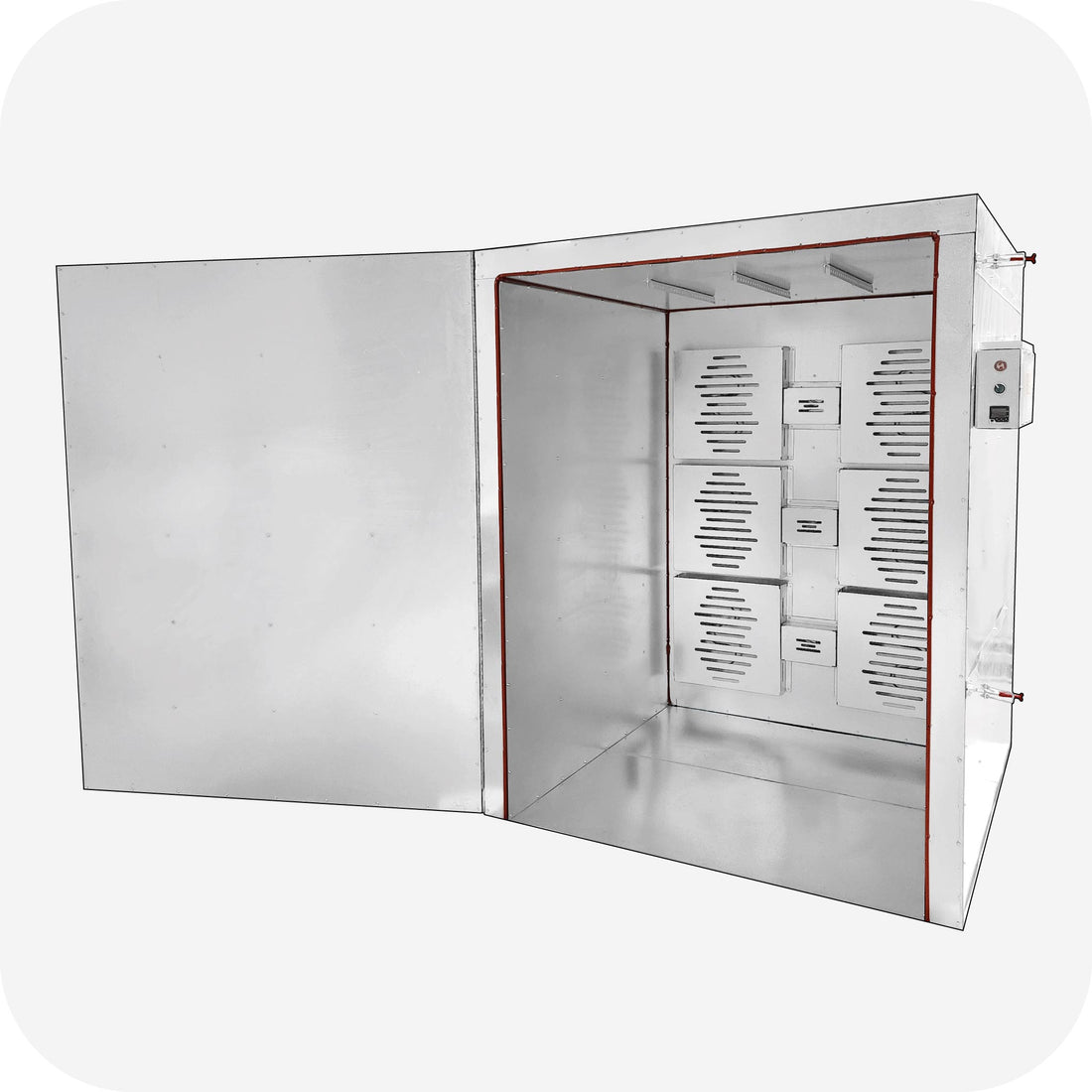

Inside Working Space
53×54×60″
Shipping Weight
~525 lb

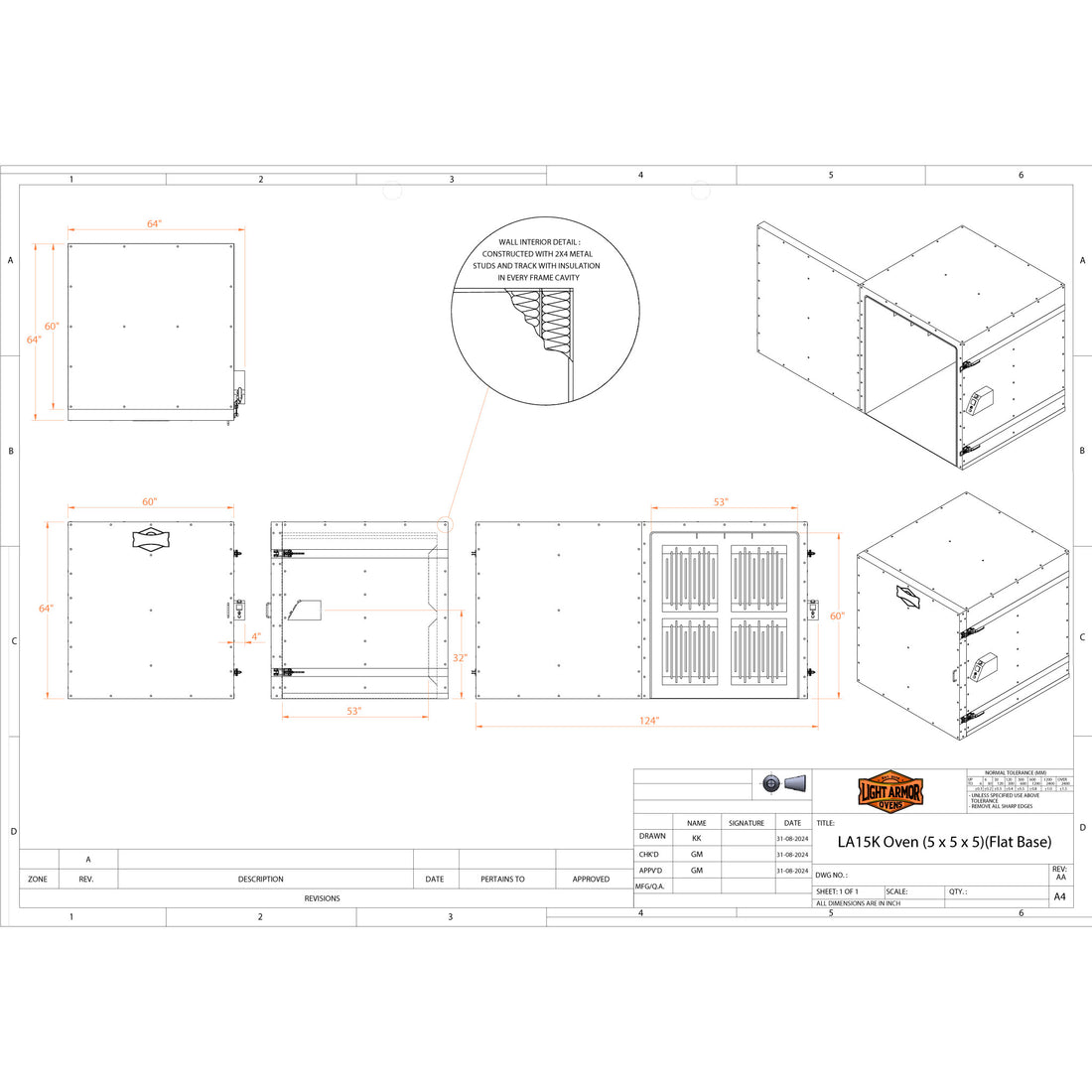

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 53″ W × 54″ D × 60″ T (Nominal) |
| Outside Footprint | 64″ W × 64″ D × 64″ T (Nominal) |
| Shipment Size | 6′ W × 6′ D × 6′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 56A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 60A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 2 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
— Square Footage That Works Harder
The LA15K Powder Coating Oven — A True 5′ Cube of Curing Power
The LA15K hands you a generous 5′ x 5′ x 5′ cube of usable curing space, so bulky brackets, wheels, frames, and awkward assemblies fit without a fight. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with G90 galvanized steel for lasting rust resistance, this curing oven brings a part up to temperature and holds that heat long enough to trigger the chemical reaction a flawless powder coating or Cerakote finish needs.
Room to Grow, Configured to Fit
This is a customizable oven, so you spec it for the work you actually do. Add a blower fan for more even airflow, an interior oven light to check parts at a glance, and upgrade to Rockwool insulation that holds heat in better. Because the cube shape gives you equal reach in every direction, you can run tight batch loads or a steady continuous process — whichever your part mix calls for.
- ✓ Spacious 5′ cube — equal width, depth, and height make room for bulky and irregular parts
- ✓ Illinois-built durability — G90 galvanized construction resists rust for a long, dependable service life
- ✓ Your configuration — blower fan, oven light, and Rockwool insulation options available
- ✓ Even, repeatable heat — maintains cure temperature then cools parts for consistent finishes
OVERSIZED ITEM - REQUIRES FORKLIFT OR LOADING DOCK AT PLACE OF DELIVERY, UNLESS PICKING UP FROM FREIGHT TERMINAL OR OUR WAREHOUSE
