LABS-4166 Powder Coat Oven (4 x 16 x 6)
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LABS-4166 Powder Coat Oven (4 x 16 x 6)
Unit from $9,999.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LABS-4166 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
42×205×72″
Weight
~1800 lb

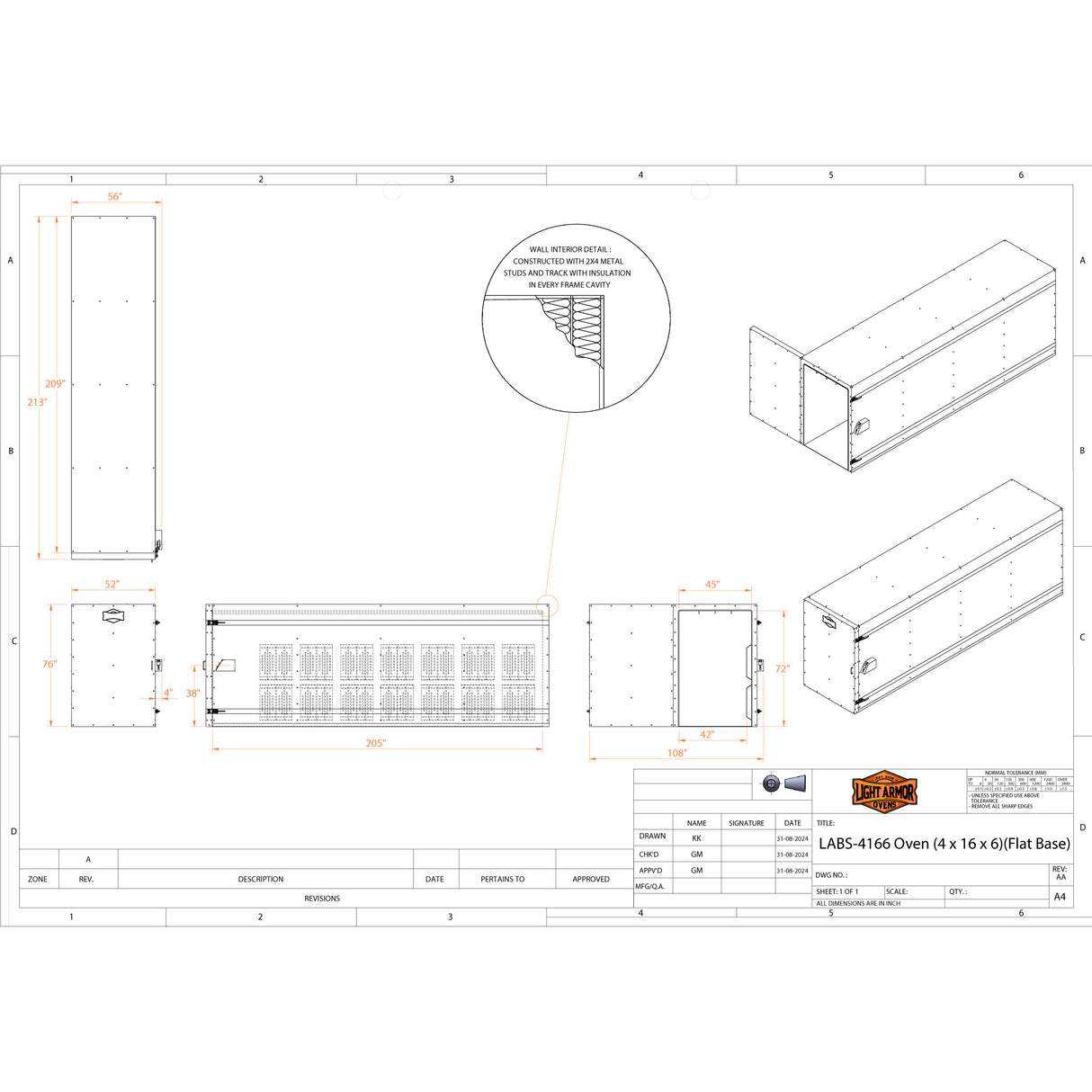

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 42″ W × 205″ D × 72″ T (Nominal) |
| Outside Footprint | 56″ W × 213″ D × 76″ T (Nominal) |
| Weight | ~1800 Pounds |
| Shipment Size | x2 Skids, Each 5′ W × 10′ D × 7′ T |
| Recommended Distance from Wall | 3″+ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 196A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 200A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) |
| Recommended # of Blower Fans | 6–8 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty Included |
— Maximum Reach, Minimal Width
Go Long and Stay Lean with the LABS-4166 Curing Oven
The LABS-4166 powder coating oven delivers a full sixteen feet of curing length in a lean 4' x 16' x 6' chamber, so you can finish extra-long railings, poles, and fabrications without surrendering half your shop to a wide cabinet. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with G90 galvanized steel that resists rust, it accepts rolling carts across a flat floor and maintains the held, even heat that a durable Cerakote or powder coat cure depends on.
Long-Part Curing That Fits Your Floor
The narrower four-foot width heats efficiently and tucks against a wall, yet the sixteen-foot run means the longest parts cure end to end. Choose batch loading or a continuous flow and trust the finish every cycle.
- ✓ Sixteen feet in a 4' width — maximum length for long parts without a sprawling footprint
- ✓ G90 galvanized steel — rust-resistant, Illinois-built construction built to endure
- ✓ Flat floor for carts — roll loaded carts directly in and out with ease
- ✓ Built to your preferences — add a blower fan, oven light, or Rockwool insulation
OVERSIZED ITEM - REQUIRES FORKLIFT AT PLACE OF DELIVERY, UNLESS PICKING UP AT OUR WAREHOUSE. FOR FREIGHT RATE, PLEASE EMAIL US
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
