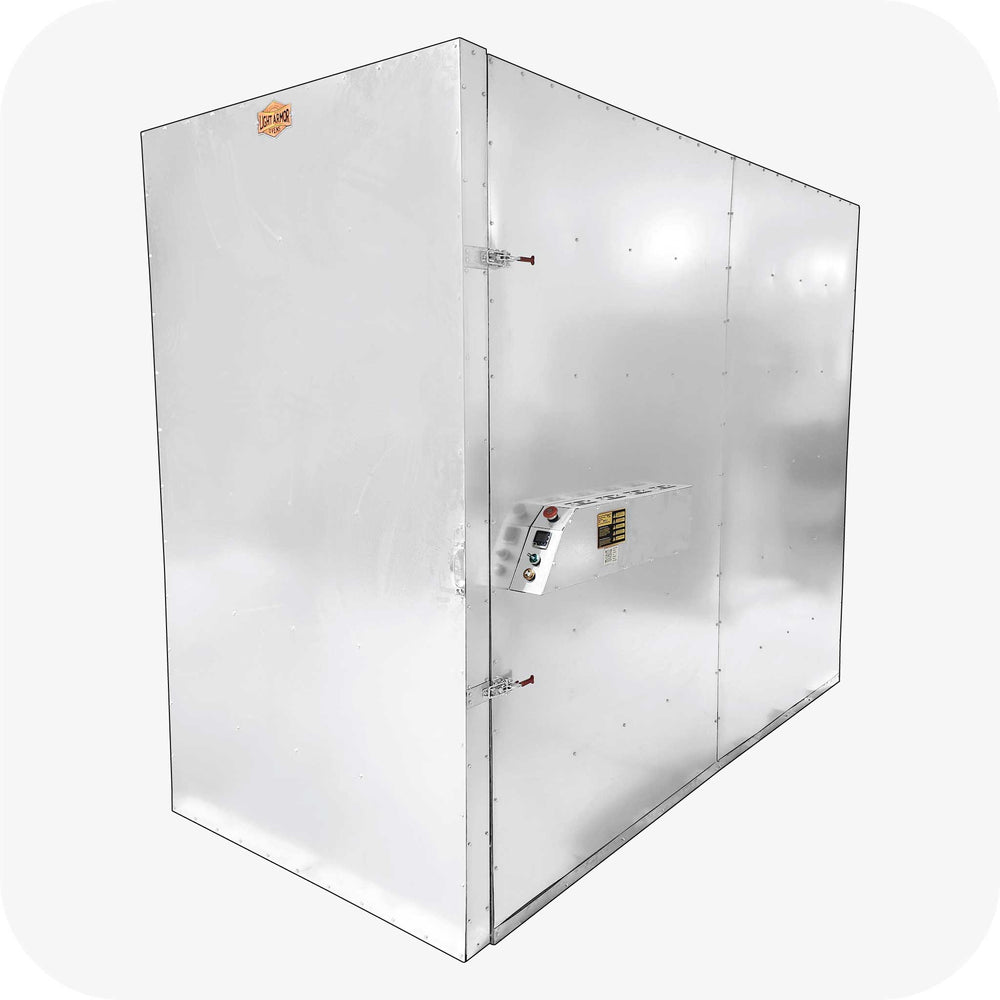

LABS-487 Powder Coat Oven (4 x 8 x 7)
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LABS-487 Powder Coat Oven (4 x 8 x 7)
Unit from $5,899.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LABS-487 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F

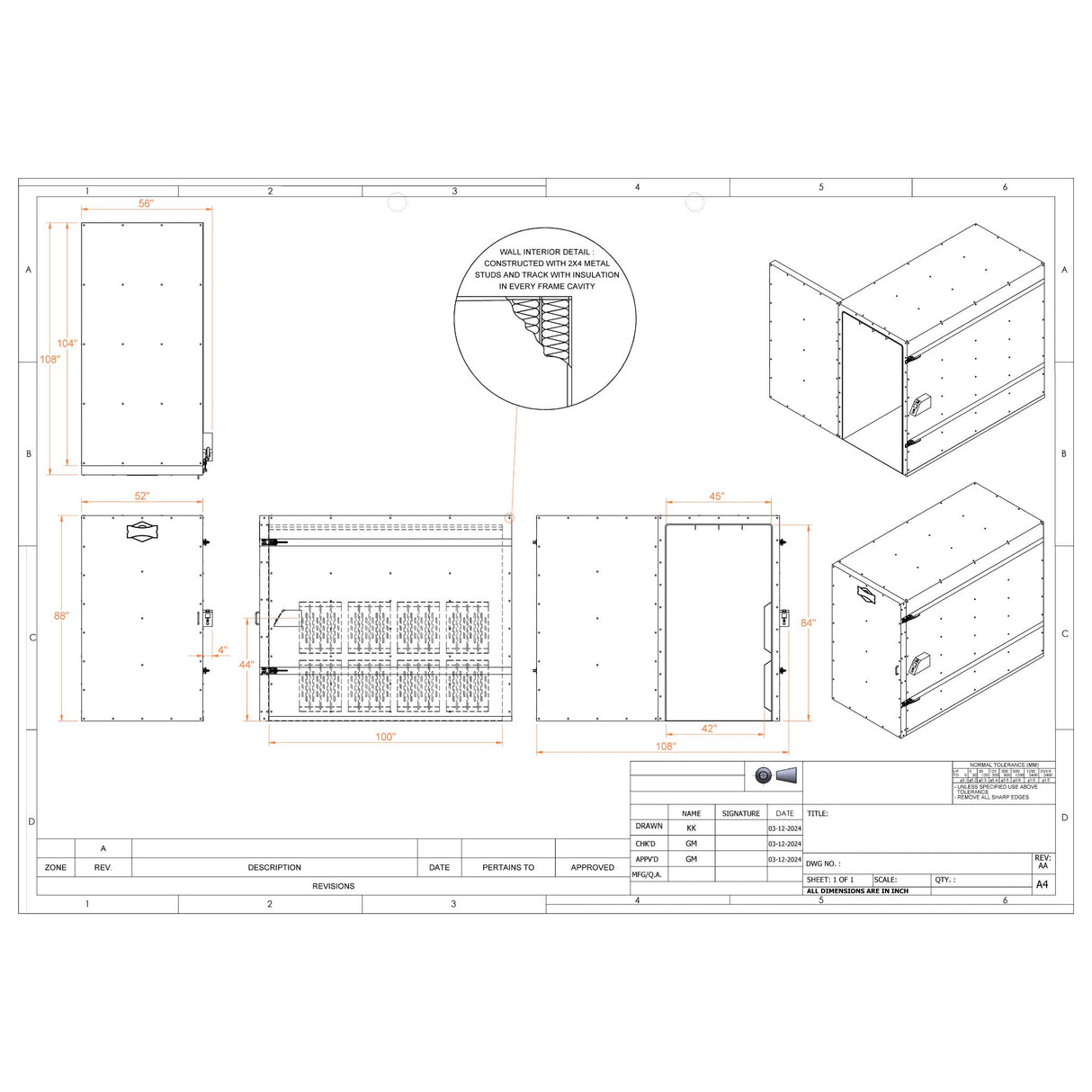

Inside Working Space
42×100×84″
Weight
~1300 lb
| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 42″ W × 100″ D × 84″ T (Nominal) |
| Outside Footprint | 56″ W × 108″ D × 88″ T (Nominal) |
| Weight | ~1300 Pounds |
| Shipment Size | 6′ W × 10′ D × 8′ T |
| Recommended Distance from Wall | 3″+ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 112A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 120A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) |
| Recommended # of Blower Fans | 3–4 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty Included |
— Roll In, Cure, Repeat
The LABS-487 Powder Coating Oven Is Built To Outlast The Rust
Your finishing oven should last as long as the work you put through it. The LABS-487 gives you a roomy 4' x 8' x 7' curing chamber designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with G90 galvanized material, so it shrugs off the rust that eats cheaper cabinets. Its flat floor lets you roll loaded carts straight in and out, turning batch after batch of powder coating and Cerakote work into a smooth, repeatable routine.
A Curing Oven Configured Around You
Add a blower fan, an oven light, or Rockwool insulation — the LABS-487 is customizable to the way you work. Run it as a batch oven or fold it into a continuous process; either way it holds heat steady to drive the chemical reaction your finish depends on.
- ✓ G90 galvanized construction — a rust-resistant shell that protects your investment load after load
- ✓ Flat floor for rolling carts — load and unload heavy parts without lifting or fighting a lip
- ✓ Batch or continuous ready — configure the workflow around your part count and production needs
- ✓ Designed and Assembled in the USA, your way — from U.S. and imported parts; choose a blower fan, oven light, and Rockwool insulation to match your shop
OVERSIZED ITEM - REQUIRES FORKLIFT AT PLACE OF DELIVERY, UNLESS PICKING UP AT OUR WAREHOUSE. FOR FREIGHT RATE, PLEASE EMAIL US
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
Customer Reviews
No reviews yet. Own one of these? We'd love to hear how it's working in your shop.
