LABS-586 Spray Booth (5 x 8 x 6)
Unit from $5,499.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— Clean Air, Clean Finish
The LABS-586 Spray Booth Keeps Overspray Out of Your Air and Off Your Parts

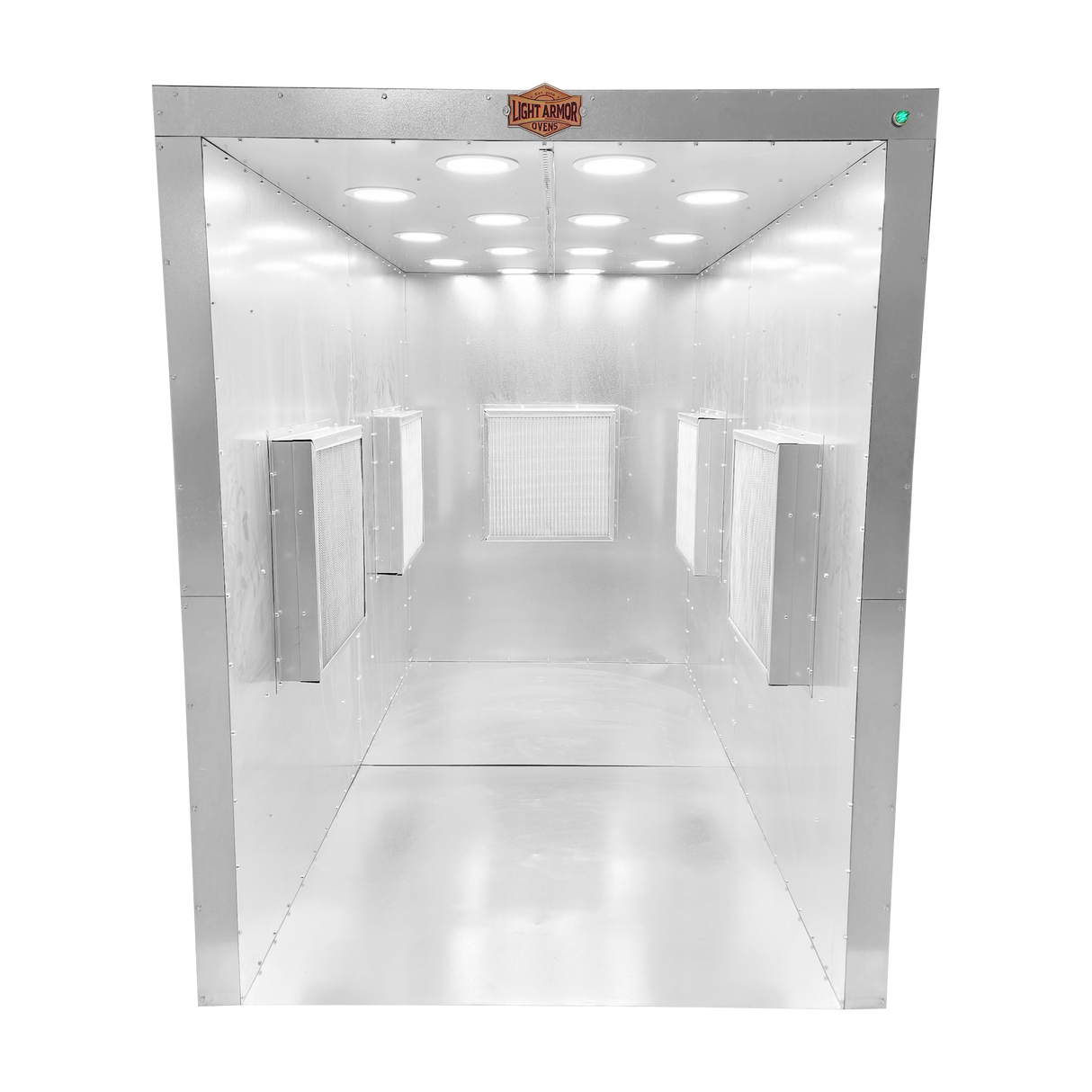

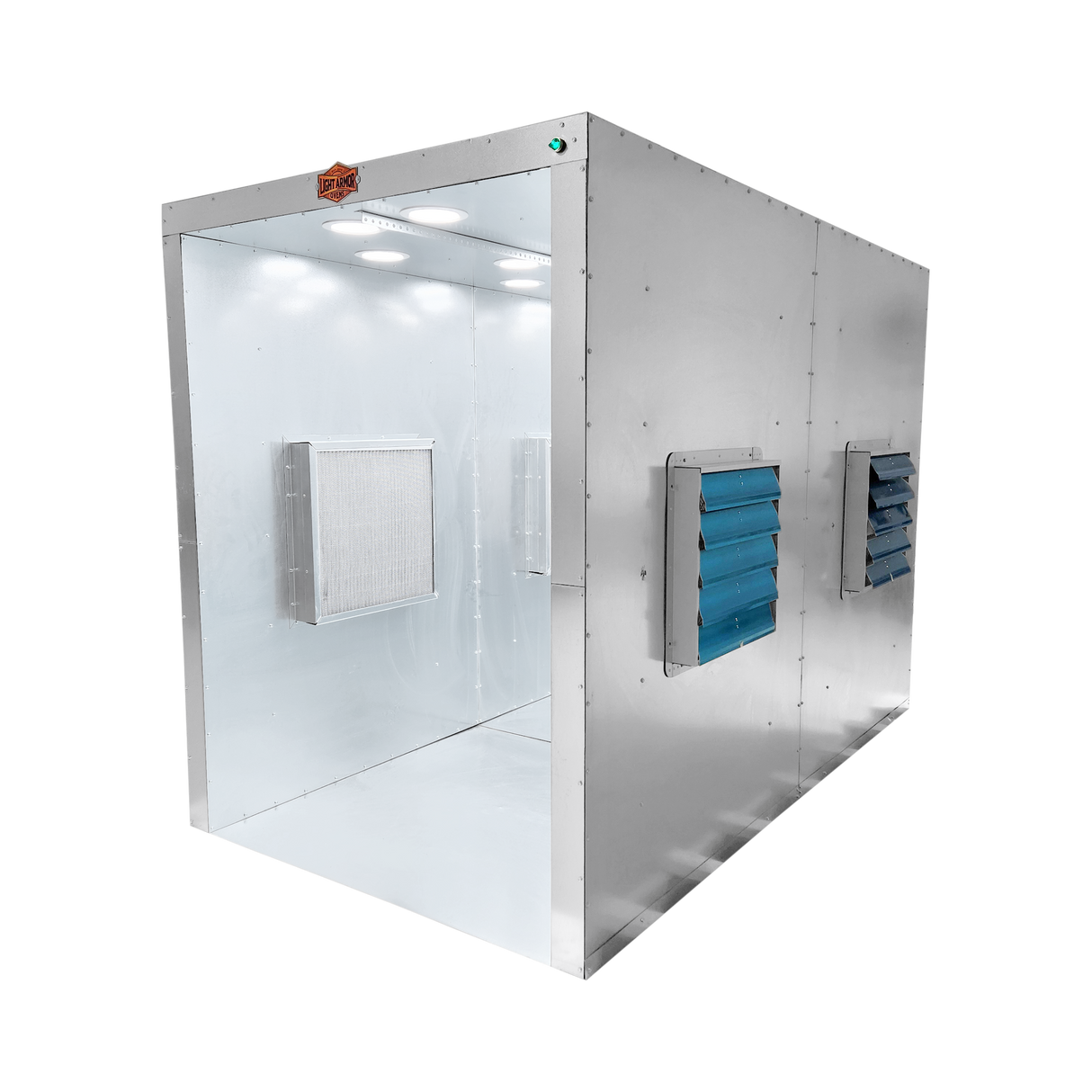

The LABS-586 spray booth gives you a 5' x 8' x 6' finishing station with a true inside working space of 45" W x 96" D x 72" T — room to spray and move around your work. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, this paint booth is engineered to keep conditions safe and clean for whoever is behind the gun. Four 20" exhaust fans moving roughly 12,000 CFM between them pull stray powder away from your breathing zone and your finish, so what lands on the part is exactly what you sprayed and nothing settles where it shouldn't.
Powerful Capture, Lower Maintenance
This powder coating booth is built to save you money over its life. Four washable 24" MERV 8 filters rinse clean and go right back in, again and again, while four disposable 24" MERV 12 filters back them up to trap the fine overspray. Bright LED lighting reveals every detail so you catch thin spots before they become rework.
- ✓ 45" x 96" x 72" work space — generous interior room to spray and maneuver parts

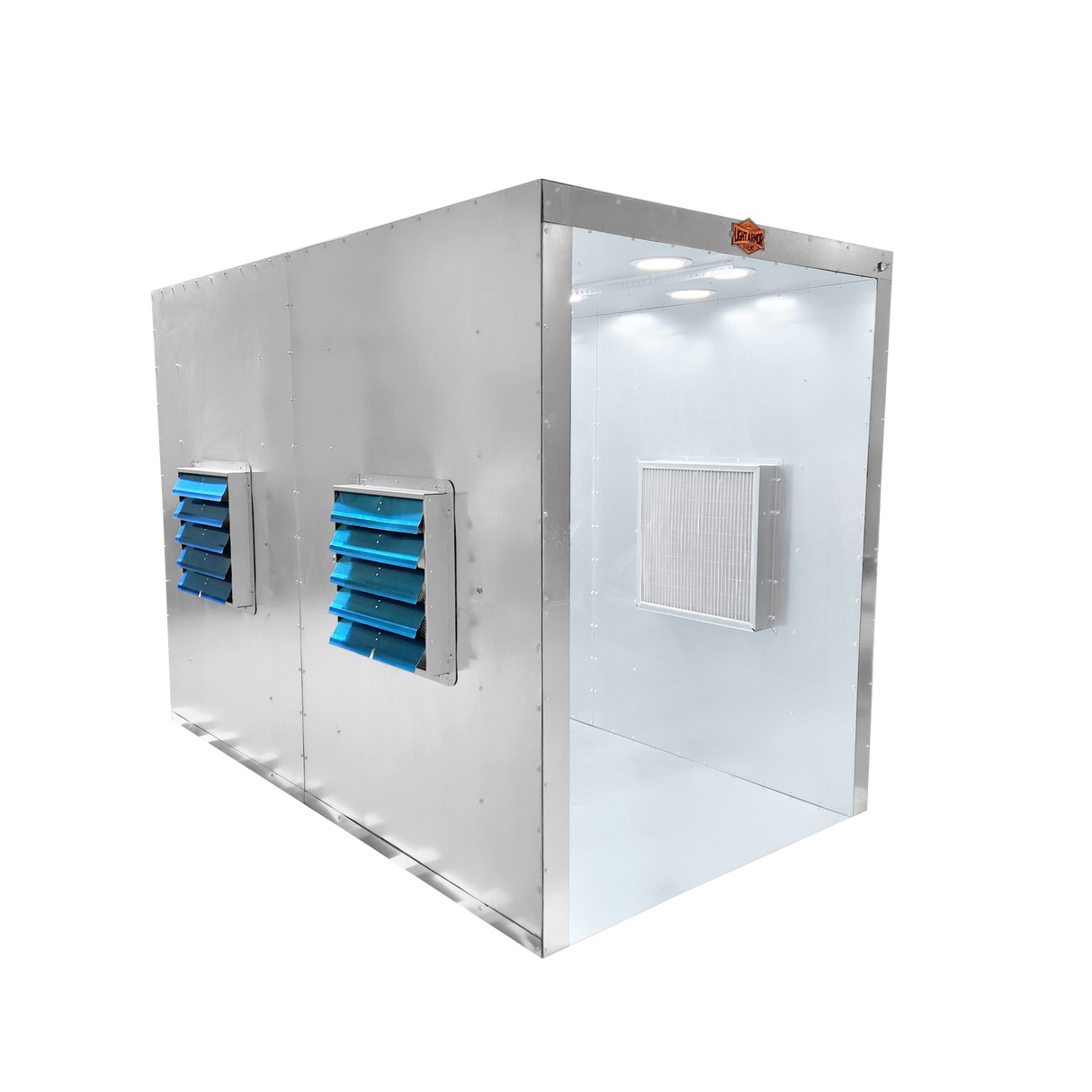

- ✓ Four 20″ exhaust fans — roughly 12,000 CFM combined for cleaner air and finishes
- ✓ Eight-filter, two-stage capture — four washable 24″ MERV 8 filters plus four disposable 24″ MERV 12 for fine overspray
- ✓ Bright LED lighting — see every surface clearly for flawless, rework-free coats
| ✎ Dimensions & Shipping | |
|---|---|

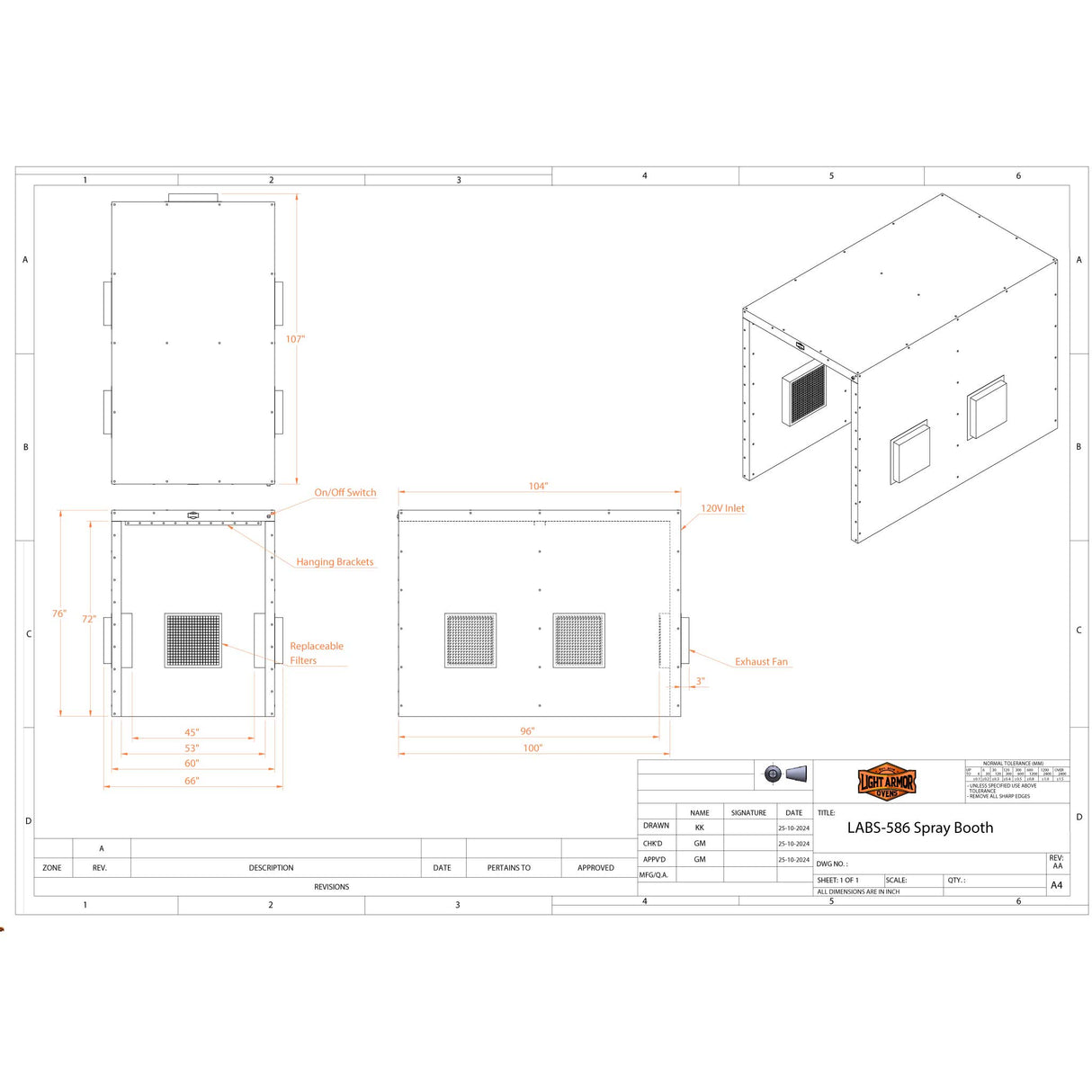

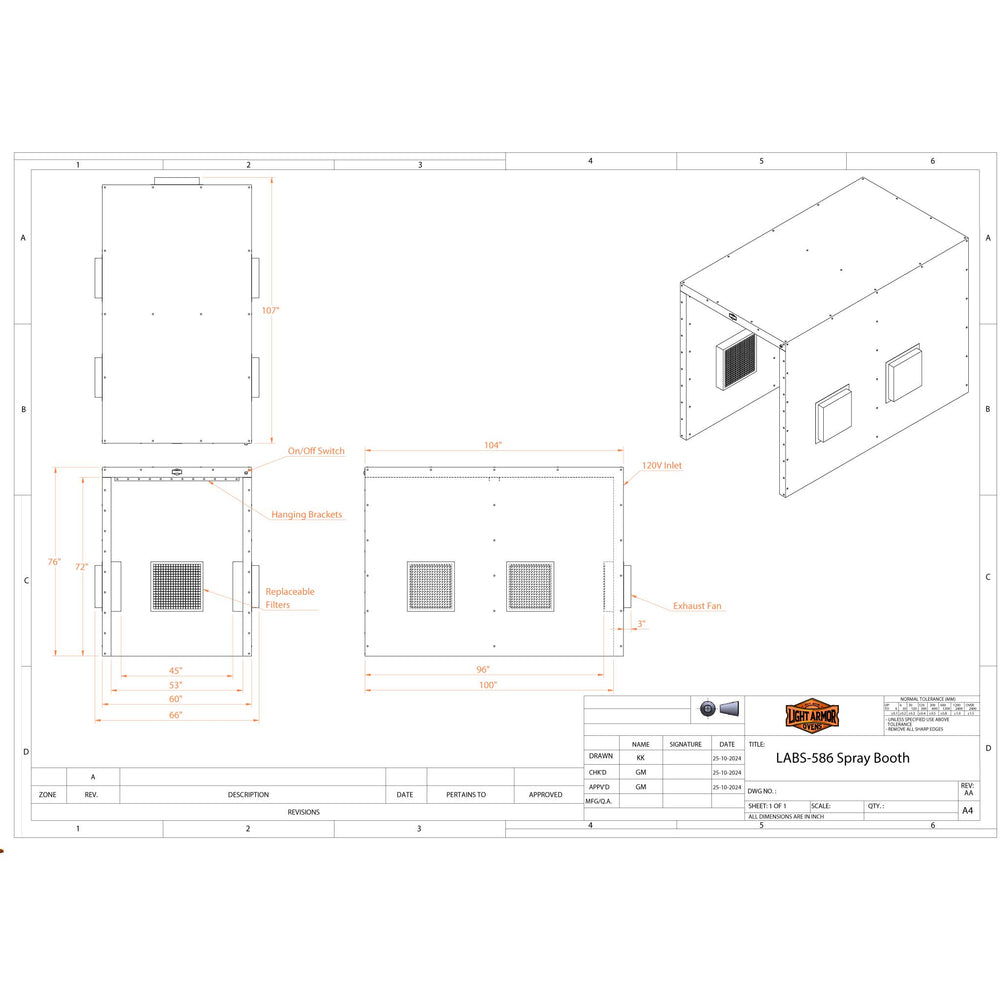

| Inside Working Dimensions | 45″ W × 96″ D × 72″ T |
| Outside Footprint | 66″ W × 107″ D × 76″ T |
| Skid Size | 6′ W × 10′ D × 7′ T |
| Shipping Weight | ~800 lb |
| Recommended Distance from Wall | 6″ (fan exhaust side) |
| ⚡ Power & Electrical | |
| Power Requirements | 120V / Single Phase / 4A Draw |
| Electrical Hook-Up | 120V Inlet on Back (extension cord not included) |
| Accessory Receptacle | Front-Mounted, for Powder Gun or Similar |
| Power Switch | Green Illuminated On/Off |
| 💨 Airflow & Filtration | |

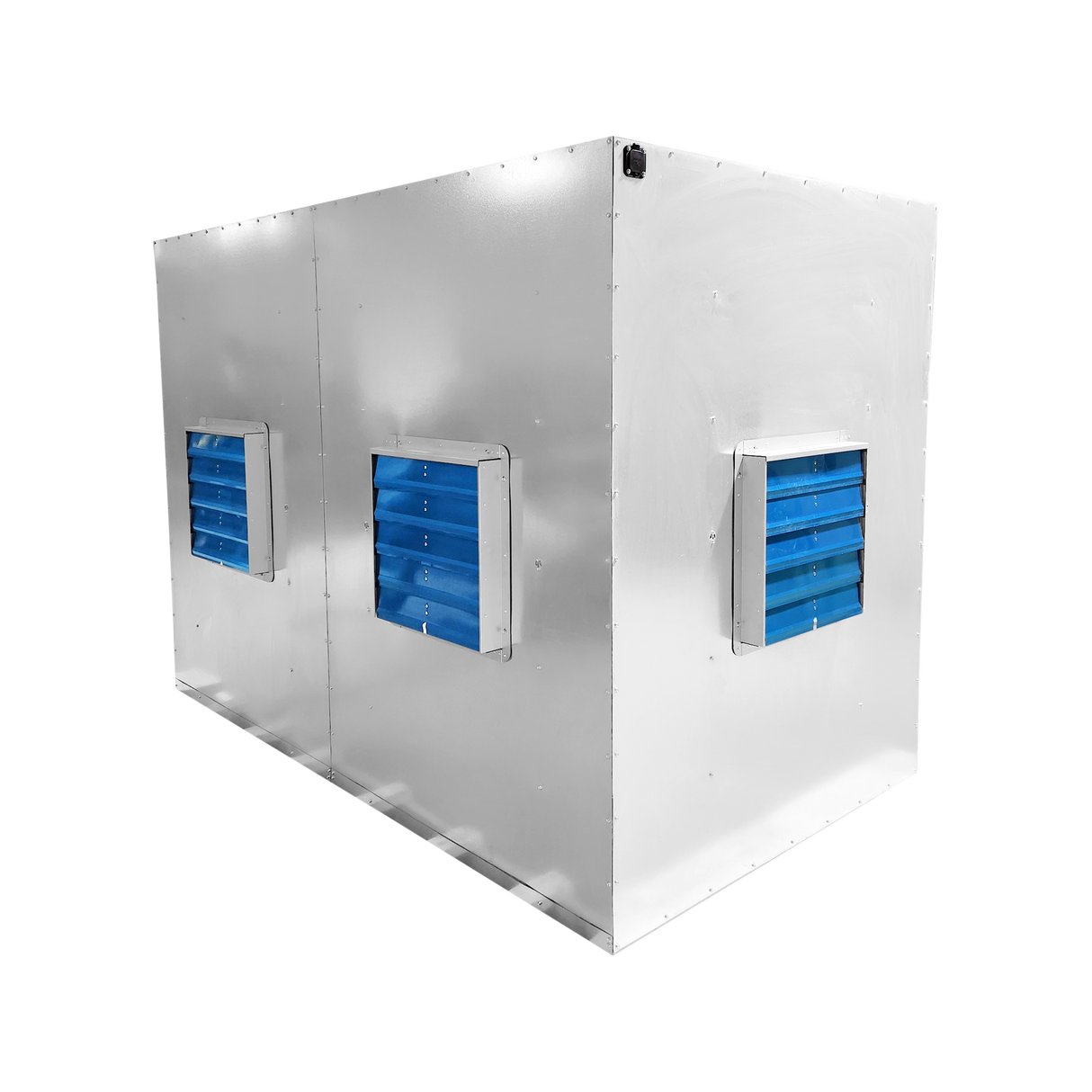

| Exhaust Fans | Four 20″ / ~12,000 CFM Combined |
| Filtration | Four 24″ Washable MERV 8 + Four 24″ Disposable MERV 12 |
| 🛡 Included & Support | |
| Lighting | Ceiling LEDs Included |
| Warranty | 1-Year Parts Warranty |
***OVERSIZED ITEM - REQUIRES FORKLIFT OR LOADING DOCK AT PLACE OF DELIVERY, UNLESS PICKING UP FROM FREIGHT TERMINAL OR OUR WAREHOUSE***
