LABS-6166 Powder Coat Oven (6 x 16 x 6)
Weight: 1500 lb
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LABS-6166 Powder Coat Oven (6 x 16 x 6)
Unit from $11,999.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LABS-6166 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
62×205×72″
Weight
~2500 lb

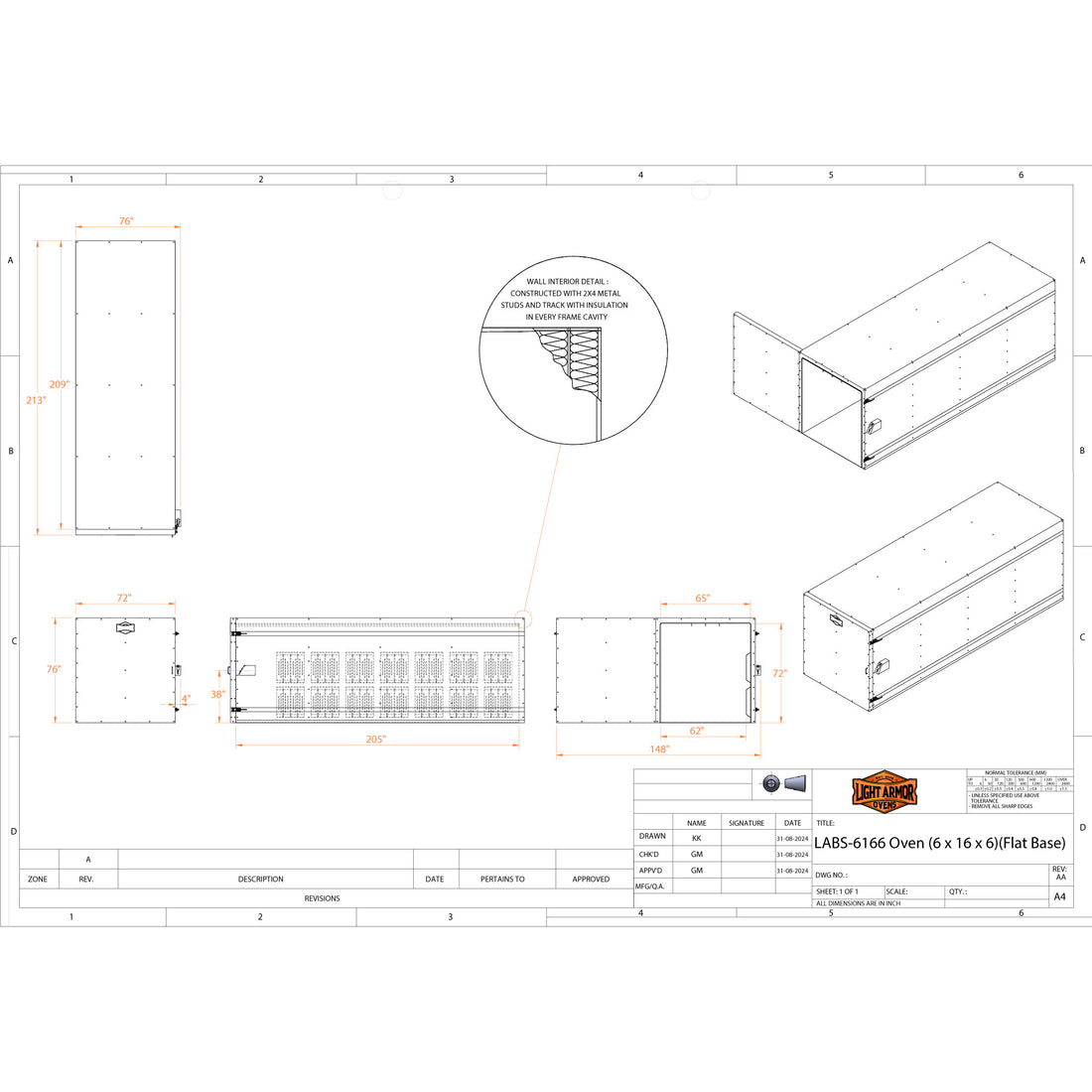

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 62″ W × 205″ D × 72″ T (Nominal) |
| Outside Footprint | 76″ W × 213″ D × 76″ T (Nominal) |
| Weight | ~2500 Pounds |
| Shipment Size | x2 Skids, Each 7′ W × 10′ D × 7′ T |
| Recommended Distance from Wall | 3″+ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 196A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 200A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) |
| Recommended # of Blower Fans | 6–8 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty Included |
— Long-Part Curing Capacity
The LABS-6166 Powder Coating Oven Handles Your Longest, Heaviest Jobs
Framed parts, extrusions, and oversized fabrications need room to cure — and the LABS-6166 gives you a generous 6' x 16' x 6' chamber to do it. This Illinois-built curing oven is built from G90 galvanized material that shrugs off rust year after year, and its flat floor means even your longest loads roll straight in on carts. From powder coating to Cerakote, the LABS-6166 brings parts up to full temperature and holds that heat precisely as long as your finish requires before cooling them back down.
Big Enough for Volume, Smart Enough to Adapt
The LABS-6166 is ready for whatever your production throws at it. Run batch loads for varied work or set up a continuous process when order volume demands steady output — your part count and product requirements guide the call. Designed by engineers focused on repeatable results, it turns out consistent, dependable finishes across a wide range of industries.
- ✓ Extra-long 6' x 16' x 6' chamber — cure oversized and multi-cart loads in one cycle
- ✓ Rust-resistant G90 galvanized steel — durable Illinois-built construction for daily production
- ✓ Roll-in flat floor — move heavy, lengthy parts in and out without strain
- ✓ Configurable options — add a blower fan, interior light, or Rockwool insulation
OVERSIZED ITEM - REQUIRES FORKLIFT AT PLACE OF DELIVERY, UNLESS PICKING UP AT OUR WAREHOUSE. FOR FREIGHT RATE, PLEASE EMAIL US
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
