LABS-888 Powder Coat Oven (8 x 8 x 8)
Weight: 1500 lb
Delivered by dedicated truck, quoted with your request (forklift needed on site) — or free pickup at our warehouse in Central Illinois.
Build Your Oven
Freight isn't in this price: we quote the truck to your address with your request, or pick it up free in Central Illinois.
Your picks go with the request. Quotes go out Monday–Friday, 10am–5pm.
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LABS-888 Powder Coat Oven (8 x 8 x 8)
Unit from $13,999.99 · freight quoted to your address
💰 Earn up to $500 back with the Feedback Promo. How It Works
Specs & Documents
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LABS-888 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
96×96×96″
Weight / Skid
~1500 lb

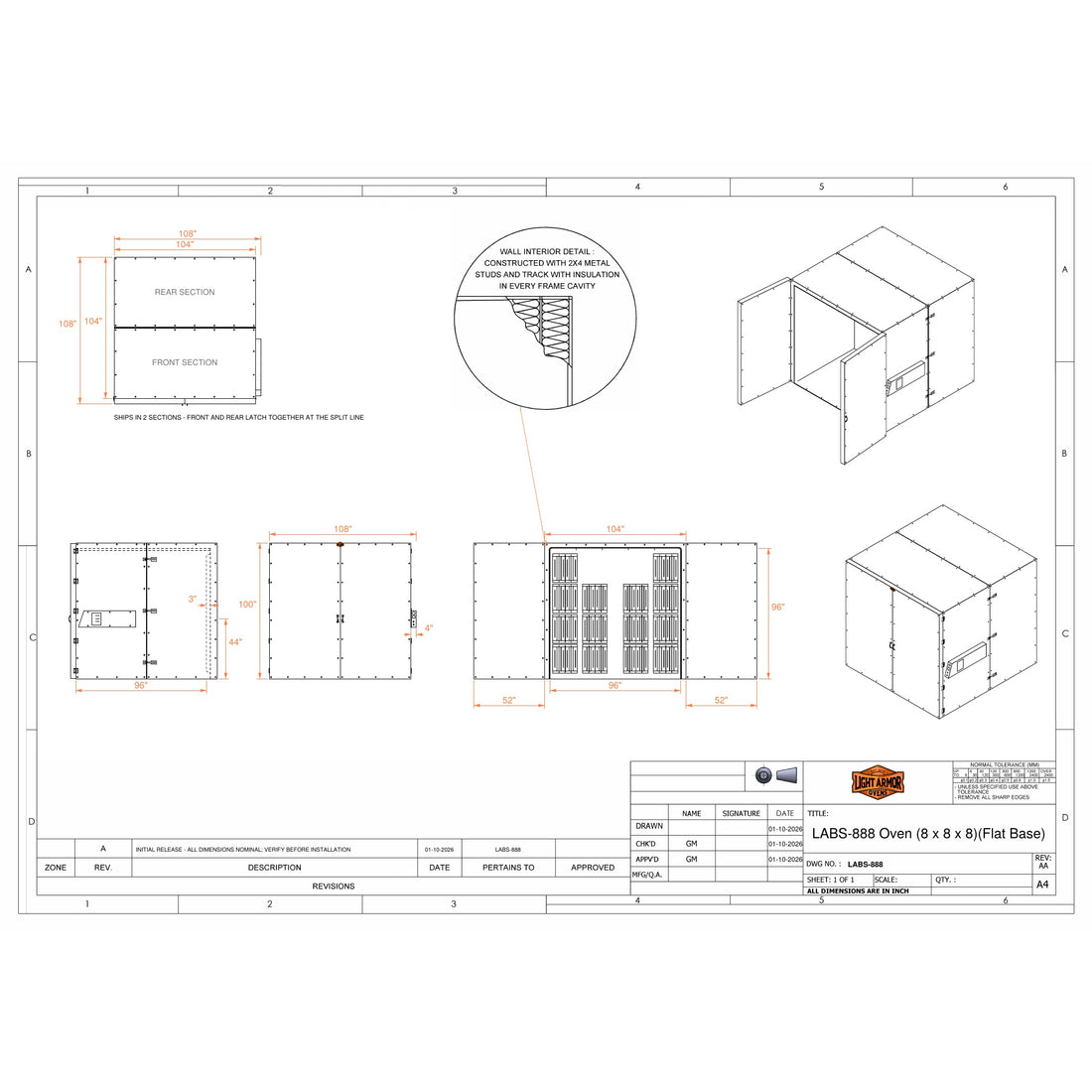

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 96″ W × 96″ D × 96″ T (Nominal) |
| Outside Footprint | 108″ W × 108″ D × 100″ T (Nominal) |
| Weight | ~1,500 Pounds Per Skid |
| Shipment Size | x2 Skids, Each 5′ W × 10′ D × 8′ T |
| Assembly | Ships in Two Sections (front & rear, latch together on site) |
| Recommended Distance from Wall | 3″+ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 196A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 200A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) |
| Recommended # of Blower Fans | 4–6 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty Included |
— Maximum-Capacity Curing Oven
Cure the Biggest Loads at Once in the LABS-888 Powder Coating Oven
When you need serious curing capacity, the LABS-888 answers with a full 8' x 8' x 8' chamber — width, depth, and height to spare. Roll entire carts of parts in over the flat floor and cure a whole batch in one cycle, cutting the time you spend loading and unloading. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with rust-resistant G90 galvanized material, this powder coating oven sustains the steady, even heat that powder coating and Cerakote finishes rely on to cure hard and uniform.
One Big Oven, Endless Configurations
The LABS-888 flexes to fit your operation: choose batch or continuous-process loading, and add a blower fan, oven light, or Rockwool insulation. Windows and lights are available as an optional upgrade for a clear view of your parts. Engineered for dependable, repeatable curing, this Illinois-built oven is built to keep large-scale finishing work moving.
- ✓ Full 8' x 8' x 8' cube chamber — handles the largest parts and biggest batches in a single load
- ✓ Two-section build — built and shipped as front and rear sections that latch together on site, so each piece is easier to move into your shop
- ✓ Flat roll-in floor — wheel loaded carts straight in and maximize every curing cycle
- ✓ Optional windows and lights — upgrade for a clear view inside while parts cure
- ✓ Illinois-built, rust-resistant G90 — durable galvanized construction delivering consistent, dependable heat
OVERSIZED ITEM - REQUIRES FORKLIFT AT PLACE OF DELIVERY, UNLESS PICKING UP AT OUR WAREHOUSE. FOR FREIGHT RATE, PLEASE EMAIL US
What Owners Say
See how many parts fit in one batch
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Spacing rules
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
