Here's the mistake that ruins more powder coating jobs than bad spraying ever will: setting the oven to 400°F, putting the part in, starting a 10-minute timer, and pulling it out. The finish looks fine — until it chips off in sheets a week later. The missing concept is part metal temperature (PMT), and once you understand it, consistent, durable finishes get dramatically easier.
The short answer
Most common powders cure in 10–20 minutes at 350–400°F — but that time starts when the metal itself reaches the target temperature, not when the oven air does. The authoritative source is always the powder manufacturer's technical data sheet (TDS), which states the cure schedule as something like "10 minutes @ 400°F PMT." Different chemistries vary widely, including low-cure powders in the 300–325°F range, so check the TDS for every powder you shoot.
Air temperature vs. part metal temperature
Your oven's controller reads and holds air temperature. But powder crosslinks — the chemical reaction that turns melted powder into a hard, bonded finish — based on the temperature of the metal underneath it. A thin bracket might reach oven temperature in two or three minutes. A thick cast wheel or a chunk of chassis steel can soak up heat for 15–20 minutes before the metal core hits 400°F.
That's why the honest version of a cure cycle looks like this:
- Preheat the oven to the TDS temperature.
- Load the part and let it climb — this is the soak phase, and it takes longer for heavier parts.
- Once the part itself is at temperature, start the TDS clock.
- Hold for the full stated time, then cool.
How do you know when the part is at temperature?
- Rule of thumb by mass: thin sheet metal parts need only a few extra minutes; medium parts like wheels typically want 10–15 minutes of soak before the clock starts; very heavy castings can want 20+. When in doubt, add soak time — a longer ramp doesn't hurt a proper cure.
- Measure it: a thermocouple probe touching the part (or a high-temp oven data logger for shops chasing repeatability) tells you exactly when PMT is reached. Infrared thermometers can help spot-check, but readings through a door opening are less reliable than a contact probe.
- Watch the flow-out: powder melts and levels around 300°F+. If you can see the load through a cracked door early in the cycle, full glossy flow-out is your cue that the surface is up to temp — then give the core time to catch up.
Even heat matters as much as enough heat. A well-insulated oven with steady air circulation — this is exactly what a blower fan option is for — keeps one side of the part from curing while the other lags.
Under-cured vs. over-baked: reading the symptoms
| Symptom | Likely cause |
|---|---|
| Coating chips or flakes off in sheets; poor adhesion | Under-cure — clock started before PMT, or oven temp too low |
| Finish dissolves or softens with a solvent rub (MEK/acetone test) | Under-cure — crosslinking never completed |
| Dull, brittle finish; reduced impact resistance | Over-bake — too long or too hot |
| Yellowing or color shift, especially on whites and light colors | Over-bake — lighter colors show it first |
| Bubbles or pinholes erupting from the surface | Outgassing from the substrate, not a cure problem (see below) |
The classic backyard test for cure is the solvent rub: 50 back-and-forth rubs with an MEK- or acetone-dampened rag on a hidden spot. A fully cured finish may lose a little gloss but won't dissolve down to metal.
A note on cast parts: pre-bake for outgassing
Cast aluminum wheels, cast iron, and welded assemblies trap gases that escape when heated — straight through your fresh powder, leaving pinholes. The fix is simple: pre-bake the bare part at or slightly above your cure temperature for 30–60 minutes before coating, let it cool to the powder's application range, then spray and cure normally. The gas escapes on the empty run instead of through your finish.
What about Cerakote?

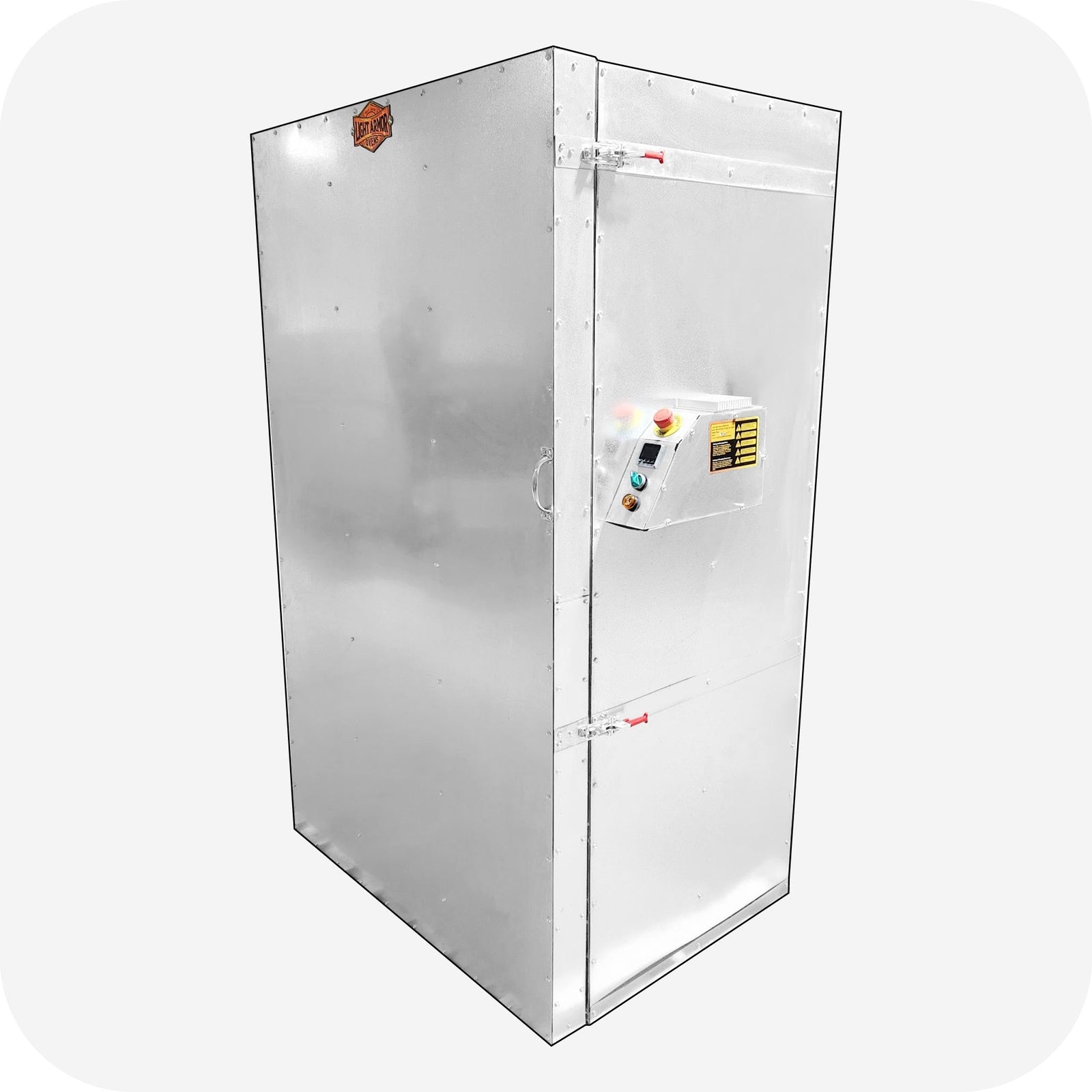

Oven-cure Cerakote (like the H-Series) cures at much lower temperatures than powder — typically in the 250°F range per the official Cerakote TDS for the specific product and substrate. The same PMT logic applies: the part, not the air, has to reach and hold the stated temperature. This is one reason a dedicated curing oven with a PID controller beats improvised setups — the same Light Armor oven handles both powder and Cerakote schedules just by changing the set point.
Dialing it in with your oven controller
Every Light Armor oven ships with a PID controller with timer and temperature functions — set the target, let it stabilize, and use the timer for the hold phase once your part has soaked. PID control means the oven cycles heat to hold the set point tightly instead of swinging wide like a kitchen oven. If you're running an older Light Armor oven, the updated controller with LCD display is a drop-in upgrade that makes repeatable schedules easier.
Frequently asked questions
Can I cure at a lower temperature for longer?
Within limits, many powders allow a lower-temp/longer-time schedule — but only the combinations listed on the TDS. Below the powder's minimum cure temperature, more time never completes the reaction.
Does powder cure faster at higher temperatures?
Some TDS sheets list a faster high-temp schedule, but pushing past it risks over-bake discoloration, especially on light colors. Follow the sheet.
Do I start the timer when I close the door?
No — that's the single most common error. Start it when the part reaches temperature.
What oven temperature range do I actually need?
A max of 450–500°F covers virtually every powder and Cerakote schedule with headroom. All Light Armor curing ovens are built for exactly this range.
Questions about matching an oven to the parts and powders you run? Get in touch — helping shops dial in their cure process is what we do all day.
