Wheels are the single most popular powder coating job — the first thing most hobbyists coat and the bread-and-butter work of most small shops. They're also where beginners hit their first pinhole disaster, because cast aluminum plays by special rules. Here's the full process, including the steps that separate a wheel that looks good on day one from a set that still looks good in five years.
Step 1: Complete teardown
Everything comes off the wheel before it sees heat or media: tires (powder cure temperatures will destroy them — never coat a mounted wheel), TPMS sensors and valve stems, balancing weights and their adhesive residue, and center caps. Have your tire shop break them down if you don't have a machine; they'll also want to know the wheels were coated when remounting.
Step 2: Strip the old finish
Powder needs bare, profiled metal. Chemical stripping takes off old paint and clear coat with less labor on intricate designs; media blasting (with an appropriate media and pressure for aluminum — aggressive blasting can distort thin spokes) leaves the surface profile powder loves. Many shops do both: strip chemically, then a light blast for profile. After stripping, degrease thoroughly and handle with gloves only — fingerprints cause fisheyes.
Step 3: The outgassing pre-bake (don't skip this)
Cast aluminum is slightly porous and absorbs oils, waxes, and moisture over years of service. Heat the wheel for the first time with powder on it, and that trapped material erupts through your melting finish as pinholes and bubbles. The fix costs nothing but time: bake the bare, stripped wheel at or slightly above your cure temperature for 30–60 minutes before any powder is applied. Whatever is going to outgas does it on this empty run. Let the wheel cool to the powder's application range, give it a final wipe-down, and you're ready to spray. For wheels, this step is the difference between amateur and professional results.
Step 4: Mask what shouldn't be coated
High-temp masking tape and silicone plugs handle the areas where coating causes problems: the hub mounting face and lug seats (coating here can compress over time and affect lug torque — many shops mask them for safety), valve stem holes, and TPMS mounting surfaces. Ask your tire shop or follow the wheel manufacturer's guidance if you're unsure how much of the mounting surface to keep bare.
Step 5: Spray
Hang the wheel from the center bore or a lug hole on solid, bare-metal hook contact — grounding matters. Coat the barrel and back side first, then the face, keeping the gun moving and film thickness in the powder's specified range. Watch the tight areas between spokes; drop the gun voltage if powder resists going into recesses (the Faraday cage effect). Working in a proper spray booth keeps overspray controlled and your shop air clean.
Step 6: Cure by part temperature, not by the clock
Here's where wheels differ from brackets: a cast wheel is a lot of metal. It can take 15+ minutes in the oven before the aluminum itself reaches cure temperature — and the data-sheet clock starts at part metal temperature, not when the door closes. Load the wheel, let it soak until it's at temp, then hold for the full stated time. Pulling wheels early is the classic cause of finishes that chip at the first curb touch. Let them cool naturally — don't quench.
Two-coat and clear-coat wheels
Popular wheel finishes are often two-stage: a base color followed by a clear or translucent "candy" top coat. Follow the powder manufacturer's recoat guidance — typically a partial cure of the base before the top coat, with the full cure at the end. Every added coat also adds film thickness, so keep application on the lighter side of the spec for stage one.
What size oven do wheels need?

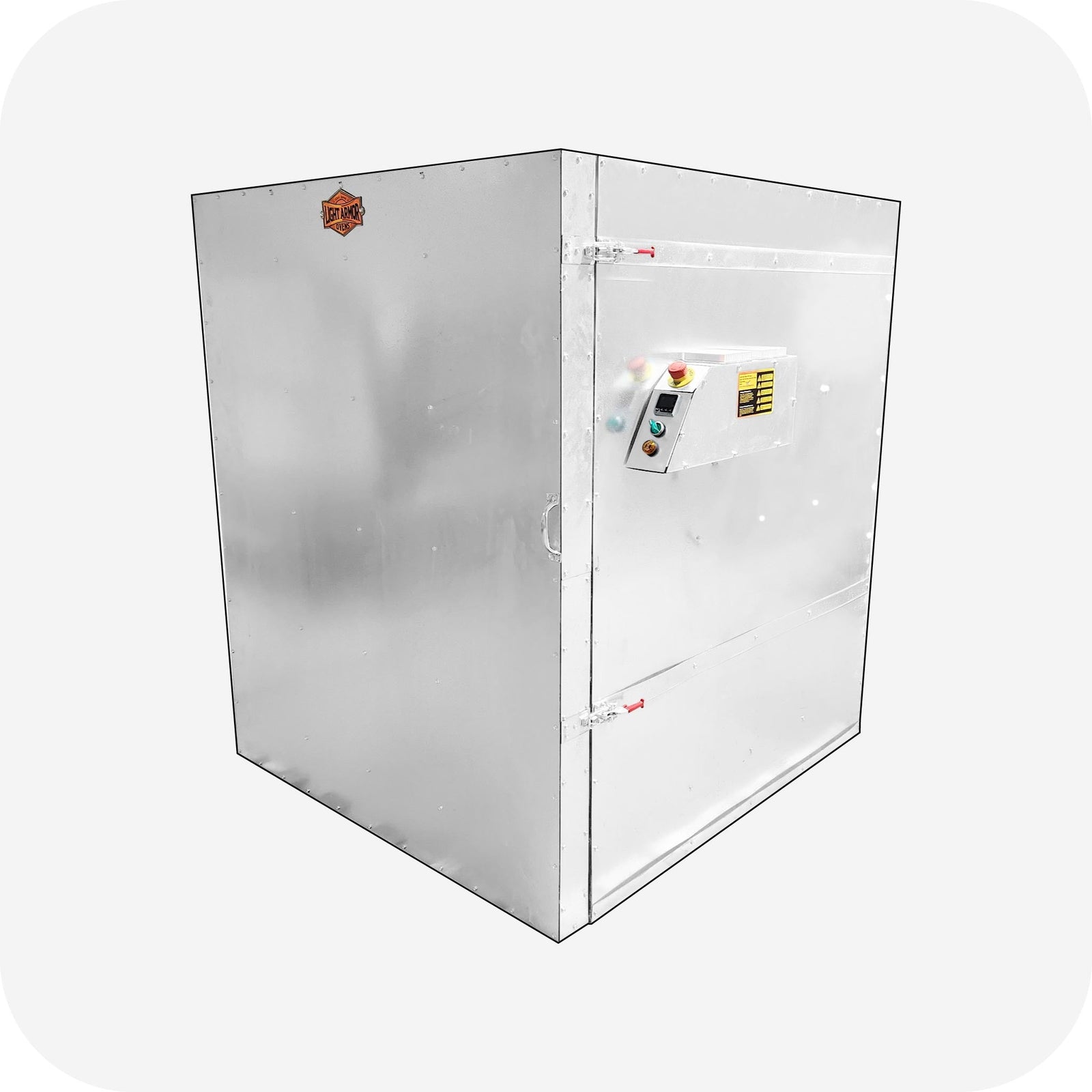

A single wheel up to roughly 20–21" fits the 22" × 23" chamber of the LA2500B — a fine setup for one-at-a-time hobby work. If sets of four are the plan, cure them in one cycle instead of four: the LA7500SB (36" × 37" × 72") or LA10K (45" × 46") with a rod shelving kit racks a full set with airflow around each wheel. More on matching oven to workload in our sizing guide.
Reassembly notes
Give freshly cured wheels a day before mounting tires — the finish continues hardening as it fully cools. Tell the tire shop the wheels are freshly powder coated so they use a touchless or plastic-guarded mounting process, and torque lugs to spec in stages, then re-check after the first drive.
Wheels are a forgiving place to learn because the process rewards patience at every step — strip fully, pre-bake, mask smart, cure to part temperature. Get those right and the finish will outlast the tires many times over. Questions about setting up for wheel work? We're happy to help you spec it out.
