Ask anyone who's owned a curing oven for a few years what they'd do differently and you'll hear the same answer: "I'd have bought bigger." The part that doesn't fit is always the job you end up turning down. This guide walks through how to size a powder coating oven around what you actually coat — with real interior dimensions, not vague categories.
How to measure for an oven
Three numbers matter more than anything else:
- Your largest part, hung the way you'll actually hang it. Parts cure suspended from hooks or racks, so add several inches of hanger above the part. A 24" wheel on a hook is not 24" tall.
- Airflow clearance. Parts shouldn't press against walls or elements — leave a couple of inches around the load so heat circulates and cures evenly.
- Batch size. An oven that fits one wheel makes you run four cure cycles per set. An oven that fits the whole set gets the job out the door the same day.
Sizing by what you coat
Firearms and small parts
Slides, frames, handguards, suppressors, brackets, valve covers, and small brake parts fit comfortably in the LA Mini Benchtop (22" × 23" × 29" inside). It reaches 500°F, sits on a bench, runs on a 20A circuit, and fits through a standard 36" doorway. If you Cerakote complete rifles or hang long barrels vertically, step up to the LA2500B — same footprint, but 60" of interior height.
Wheels
Wheels are the classic first job, and the trap is diameter plus depth. A single car wheel up to roughly 20–21" fits the LA2500B's 22" × 23" chamber, but you'll cure one or two at a time. If wheel sets are going to be a regular thing, the 36" × 37" chamber of the LA7500SB or the 45" × 46" chamber of the LA10K lets you rack a full set of four in one cure cycle. A rod shelving kit makes stacking wheels and flat parts much easier.
Motorcycle and bicycle frames
Most bicycle frames and small motorcycle frames need height and a bit of diagonal room — the LA2500B handles bike frames hung vertically, while motorcycle frames, swingarms, and forks are better suited to a 3' × 3' chamber with 6' of height like the LA7500SB (36" × 37" × 72" inside).
Automotive and fabrication work

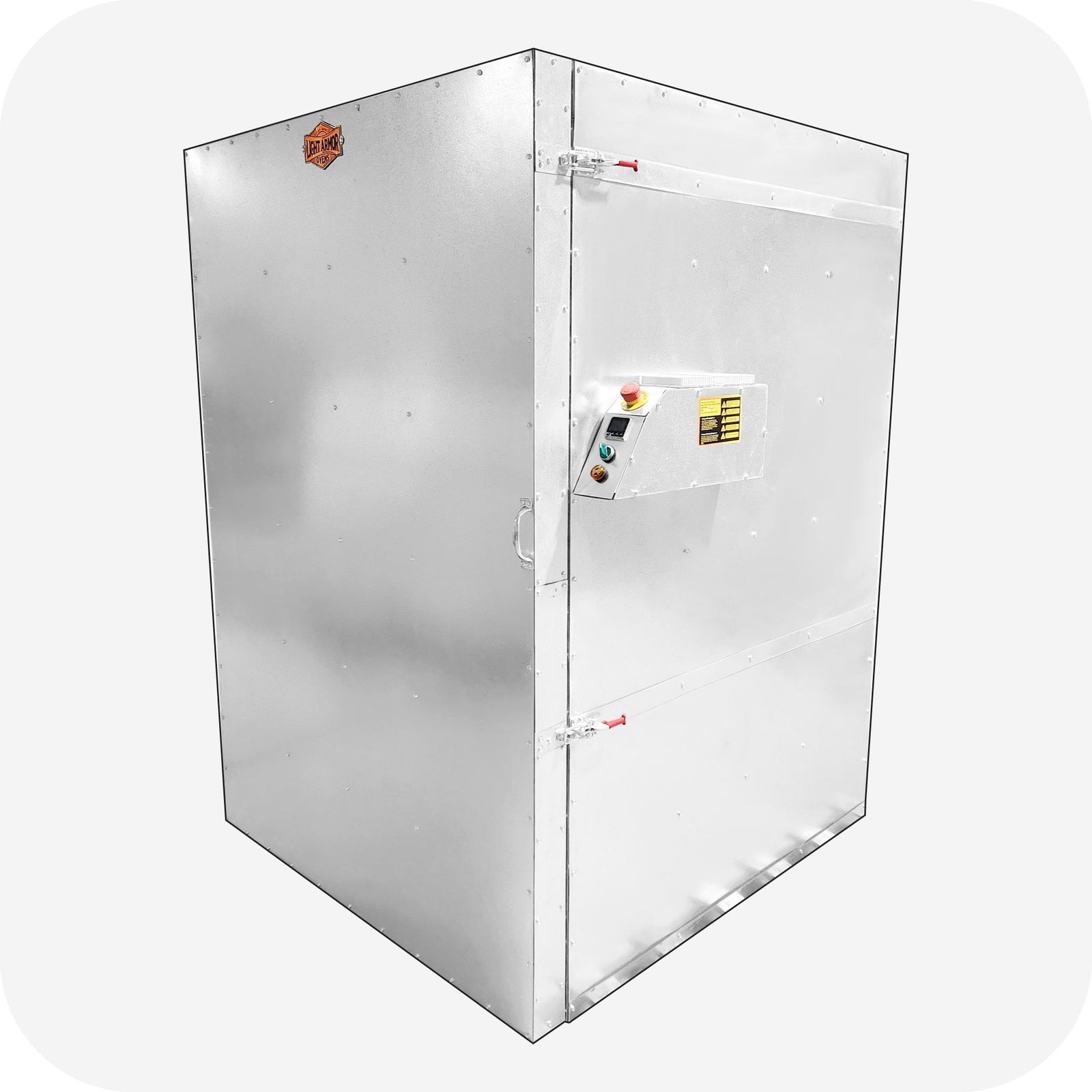

Bumpers, roll cages and chassis components, patio furniture, railings, and production batches call for the LA10K family — 45" × 46" interior footprints with height options from 5' to 8' (LA10K6, LA10K7, LA10K8). For long, narrow work like tubing, driveshafts, and trim, the wide-format LA10KW series gives you a 6-foot-wide chamber in a shallower footprint.
Quick reference: interior dimensions
| Model | Inside (W × D × T) | Best for |
|---|---|---|
| LA Mini | 22" × 23" × 29" | Firearm parts, small brackets, benchtop work |
| LA2500B / B6 | 22" × 23" × 60–72" | Complete rifles, bike frames, single wheels |
| LA5000 series | 3' × 2–3' × 5–6' | Mixed small-shop work, pairs of wheels |
| LA7500SB / SB7 | 36" × 37" × 72–84" | Motorcycle frames, wheel sets, furniture |
| LA10K / K6 / K7 / K8 | 45" × 46" × 60–96" | Automotive, fabrication, production batches |
| LA10KW series | 6' wide × 2' deep | Long, narrow parts — tubing, trim, driveshafts |
Exact interior, exterior, and electrical specs are on every product page — always confirm against the spec table before ordering.
Will it fit in your shop?
Interior size is only half the equation. Check these before you order:
- Doorways. The LA Mini and LA2500B have 33" exterior footprints and pass through a standard 36" doorway. The LA7500SB (48" footprint) and LA10K (56" footprint) need a garage door or wide shop entry.
- Wall clearance. Plan for at least 3" between the oven and any wall, plus comfortable loading room in front of the doors.
- Ceiling height. A 7' or 8' oven wants a ceiling with margin above it — measure before falling in love with the tall model.
- Electrical. Small ovens run on a 20A/240V circuit; the largest want 60A. See our full electrical requirements guide for the model-by-model breakdown.
Buy for next year's work, not today's
Powder coating businesses grow by word of mouth, and the jobs that come knocking are rarely smaller than the ones you started with. If you're on the fence between two sizes and the shop space and circuit can support it, go bigger — the price difference between adjacent sizes is small compared to the revenue of the jobs the bigger chamber unlocks. And because every Light Armor oven is built to order in the US, you can also customize dimensions if a stock size doesn't quite fit your work. Not sure which way to go? Send us the dimensions of the biggest part you plan to coat — we'll tell you exactly which oven it fits in.
