The single most common question we get before someone buys a curing oven isn't about temperature or size — it's "can my shop's electrical service actually run this thing?" The good news: for the vast majority of garage shops and small businesses, the answer is yes, without a service upgrade. This guide walks through exactly what a powder coating oven needs electrically, model by model, so you can talk to your electrician with real numbers in hand.
The short answer
Every Light Armor curing oven runs on 208–240V single-phase power — the same type of service that feeds an electric dryer, range, or welder outlet. You do not need three-phase power, and you do not need natural gas or propane service. What changes from model to model is the amp draw, which determines the breaker and wire gauge your electrician installs.
Electrical requirements by oven size
| Oven | Interior size | Power | Amp draw | Recommended breaker |
|---|---|---|---|---|
| LA Mini Benchtop | 22" × 23" × 29" | 208–240V single-phase | 14A | 20A or greater, 2-pole |
| LA2500B | 22" × 23" × 60" | 208–240V single-phase | 14A | 20A or greater, 2-pole |
| LA7500SB | 36" × 37" × 72" | 208–240V single-phase | 42A | 45A or greater, 2-pole |
| LA10K | 45" × 46" × 60" | 208–240V single-phase | 56A | 60A or greater, 2-pole |
Wiring for all models is 2 hot, 1 neutral, 1 ground on a 2-pole breaker. Every model's product page lists its exact draw and breaker recommendation, so check the spec table for the specific oven you're considering — mid-size models like the LA5000 series fall between the LA2500B and LA7500SB.
Do I need three-phase power?
No. Three-phase service is common in large industrial buildings but rare in residential garages and small commercial units, and a lot of oven shoppers assume they're locked out of a real curing oven because they don't have it. Our ovens are designed around single-phase 208–240V specifically so they can go into a home garage, a rented shop bay, or a small business without an expensive utility upgrade.
Will my garage panel handle it?
Here's the practical way to think about it:
- LA Mini and LA2500B (14A draw): These are light loads. If your panel can run an electric dryer, it can run one of these ovens. Many customers install a dedicated 20A, 240V circuit and are done.
- LA7500SB class (42A draw): Comparable to an electric range or a mid-size welder circuit. Most 100A+ residential panels can take a dedicated 45–50A circuit, but have an electrician confirm your available capacity.
- LA10K class (56A draw): This wants a dedicated 60A circuit. On an older 100A service that's already feeding HVAC and a dryer, your electrician may recommend a subpanel or service evaluation first.
One rule we always give customers: have a licensed electrician do the hookup and size the wire. Wire gauge depends on the run length from your panel and local code, and this article is general guidance — not a substitute for an electrician who can see your panel.
Hardwire or plug-in?
Every Light Armor oven can be hardwired (the standard, cleanest install for a dedicated circuit) or ordered with an optional plug & play setup so it connects to a matching receptacle. Plug-in is handy if you may move the oven around your shop or want to share a circuit location with a welder. If you're using an existing dryer or range outlet, make sure the receptacle's rating actually matches the oven's draw — don't run a 42A oven from a 30A dryer circuit.
What does it cost to run?

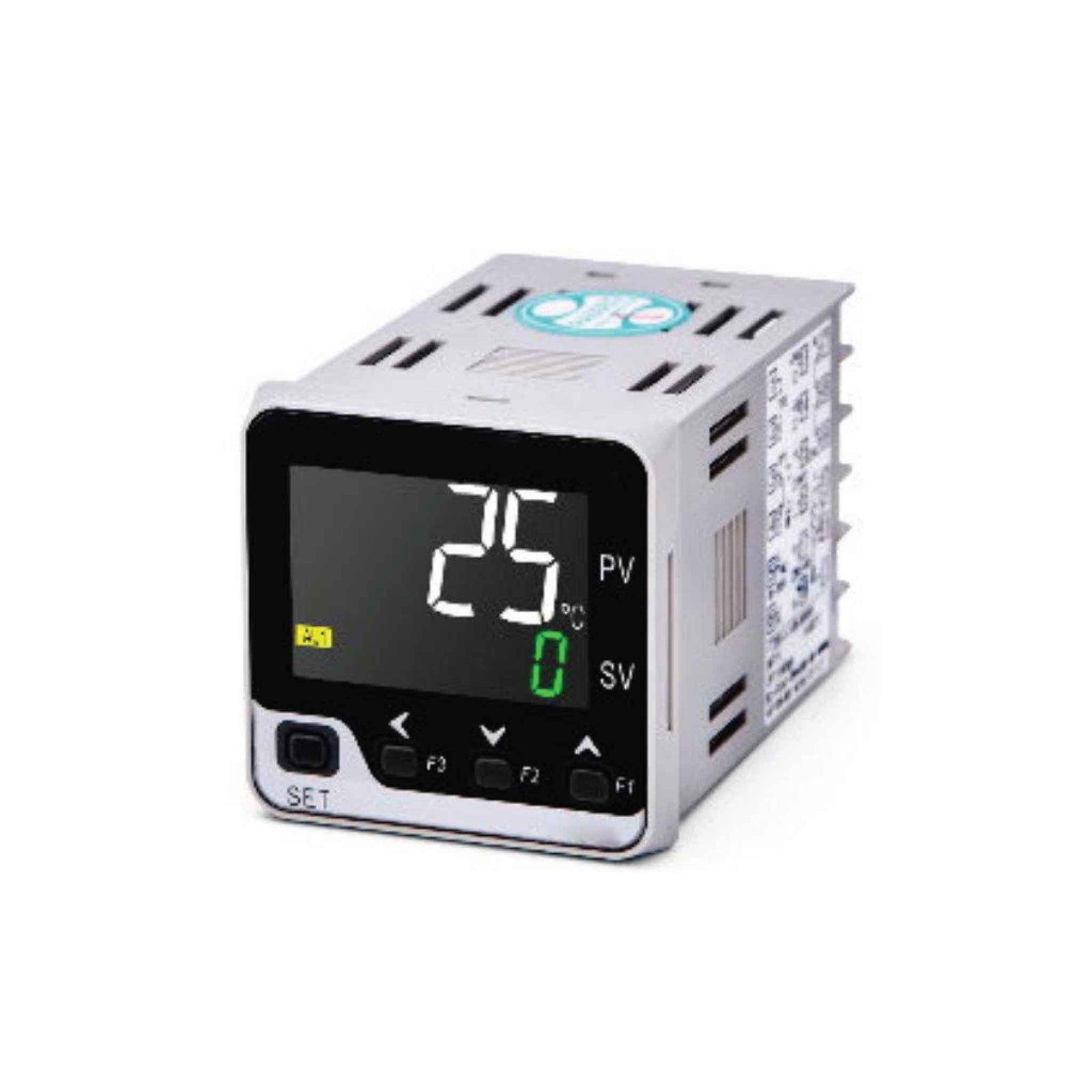

Electric curing ovens are cheaper to operate than most people expect, because the elements don't run continuously. The oven pulls full power while climbing to temperature, then the PID controller cycles the elements on and off to hold your set point — typically a fraction of full draw once at temp, especially with good insulation.
Rough math for a ballpark: an LA2500B drawing 14A at 240V is about 3.4 kW at full output. If a full preheat-and-cure session runs an hour with the elements active roughly half that time, you're using somewhere around 1.5–2 kWh — well under a dollar of electricity at typical residential rates. Even the larger ovens usually cost a few dollars per session, not per hour. Compare that to outsourcing a single set of wheels to a coating shop and the oven starts paying for itself quickly.
Frequently asked questions
Can I run a powder coating oven on 110V/120V?
Not a real curing oven. Standard 120V household circuits top out around 1.8 kW, which isn't enough to bring an insulated cabinet to 400°F and hold it there with any speed or consistency. 240V is the entry point for reliable curing.
Can I run one on a generator?
Technically possible if the generator can continuously supply 240V at the oven's full draw plus headroom, but for the mid and large ovens that means a very large generator. A dedicated circuit is almost always the more economical answer.
Can I use an extension cord?
No. Long, undersized conductors cause voltage drop and heat. These ovens should be on appropriately sized, dedicated wiring.
What about the spray booth?
Spray booths are a much lighter electrical load than ovens — the draw is from fans and lighting rather than heating elements. If your panel can handle the oven, adding a booth alongside it is rarely a problem.
The bottom line
If you have 240V service — and nearly every home and shop in the US does — there's a curing oven that fits your panel. Small ovens like the LA Mini and LA2500B run on a 20A circuit; the big LA10K family wants a 60A circuit. Find the exact specs on each product page, or reach out and tell us what your panel looks like — we spec this out for customers every week. And if you're budgeting the whole setup, we also offer financing.
