LABS-4166 Powder Coat Oven (4 x 16 x 6)
Freight quoted separately.
LABS-4166 Powder Coat Oven (4 x 16 x 6) is backordered and will ship as soon as it is back in stock.
Interior
Max Temp
Power
Availability
Build to Order
“I received the oven quickly, and it was packaged very well — there was no damage. Setup was a breeze.” ★★★★★— 76 Gunworks LLC, verified buyer
“I received the oven quickly, and it was packaged very well — there was no damage. Setup was a breeze.”
“Mounted mine on casters for mobility, and it's been great in a tight space.” ★★★★★— Ryan Powell · Cara Cara Metal, verified buyer
“Mounted mine on casters for mobility, and it's been great in a tight space.”
“It's a great quality oven, and I am ecstatic to have this upgrade in our shop!” ★★★★★— Daniel Kelly, verified buyer
“It's a great quality oven, and I am ecstatic to have this upgrade in our shop!”
“Absolutely in love with my new Light Armor oven, super easy to install with the plug and play kit.” ★★★★★— David Walls, verified buyer
“Absolutely in love with my new Light Armor oven, super easy to install with the plug and play kit.”
“Very impressed with heat up times … was also impressed with build quality.” ★★★★★— Dunham Gunworks, verified buyer
“Very impressed with heat up times … was also impressed with build quality.”
“Plenty of space for any project — combined with the fixtures from Cerakote I can easily knock out projects at volume.” ★★★★★— Fort Whistle LLC, verified buyer
“Plenty of space for any project — combined with the fixtures from Cerakote I can easily knock out projects at volume.”
“It also heats up quickly, reaching our required 350–400°F temperature in just about 15 minutes.” ★★★★★— Kyle Cook, verified buyer
“It also heats up quickly, reaching our required 350–400°F temperature in just about 15 minutes.”
“Ordered it on a Saturday and received it on Friday — faster than we expected.” ★★★★★— MK3 Metalworks, verified buyer
“Ordered it on a Saturday and received it on Friday — faster than we expected.”
Configure your options above first — we'll include them automatically. Quotes go out Monday–Friday, 10am–5pm.
Request a Quote
LABS-4166 Powder Coat Oven (4 x 16 x 6)
Unit from $9,999.99 · freight quoted to your address
Description
Description
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LABS-4166 · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
42×205×72″
Weight
~1800 lb

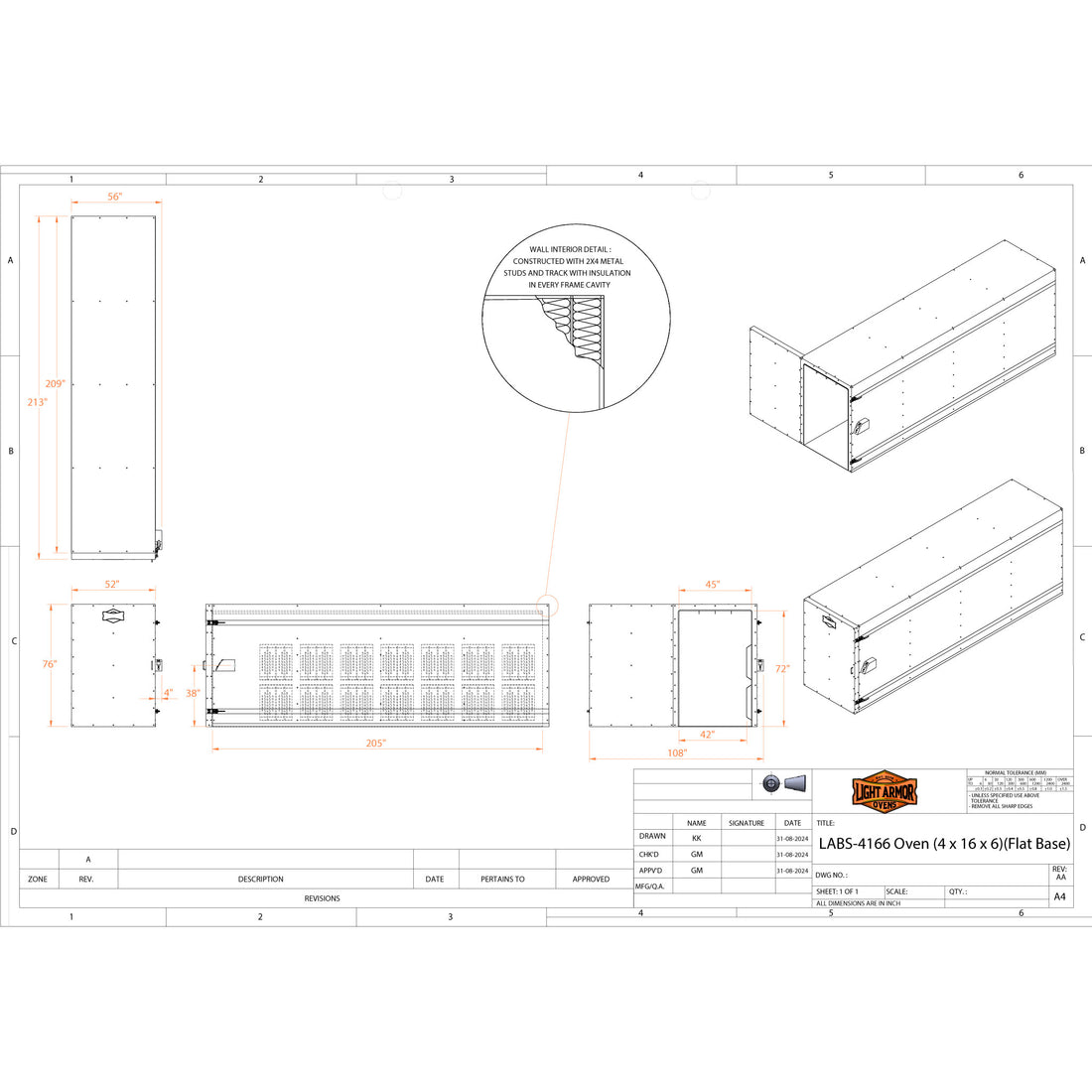

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 42″ W × 205″ D × 72″ T (Nominal) |
| Outside Footprint | 56″ W × 213″ D × 76″ T (Nominal) |
| Weight | ~1800 Pounds |
| Shipment Size | x2 Skids, Each 5′ W × 10′ D × 7′ T |
| Recommended Distance from Wall | 3″+ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 196A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 200A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) |
| Recommended # of Blower Fans | 6–8 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty Included |
— Maximum Reach, Minimal Width
Go Long and Stay Lean with the LABS-4166 Curing Oven

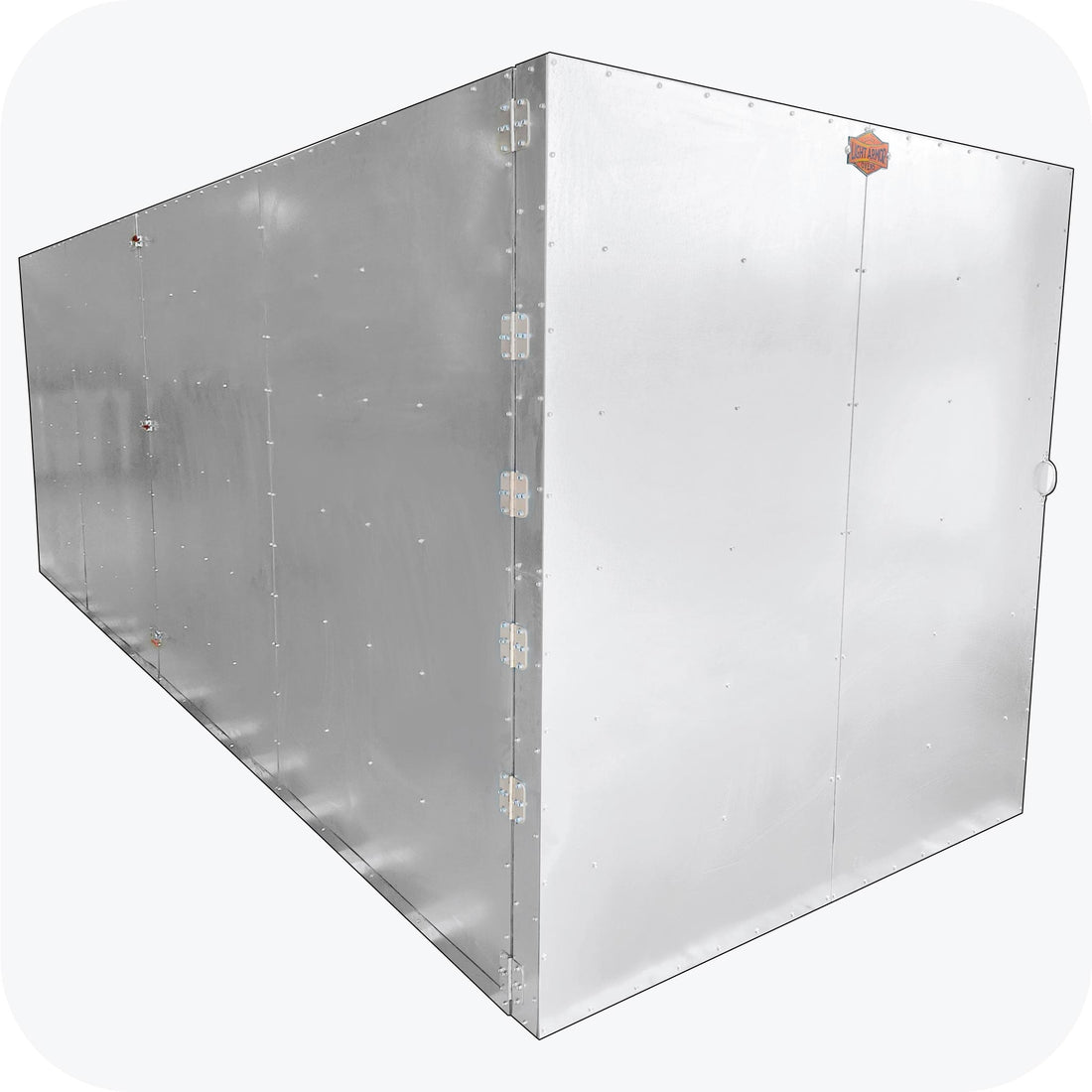

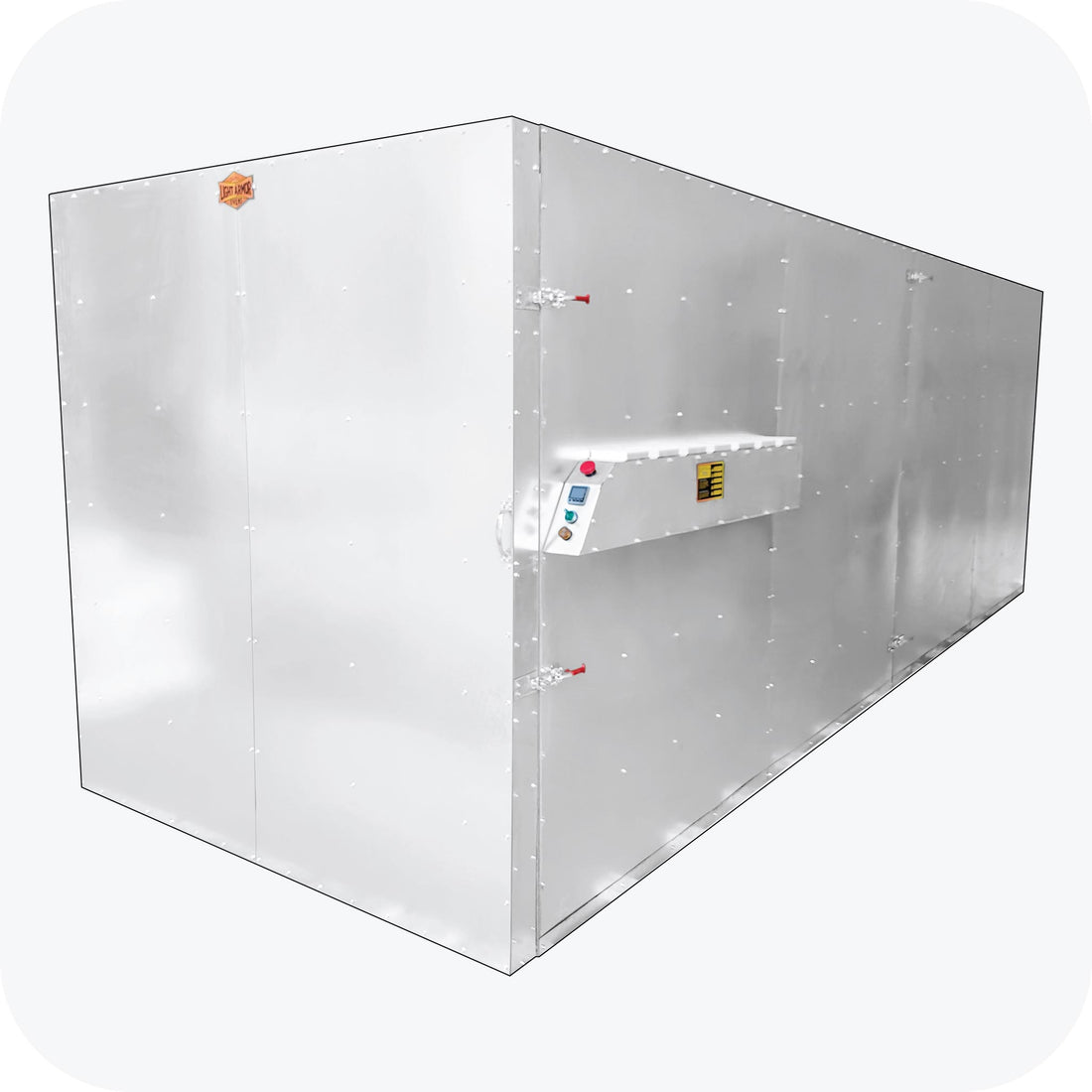

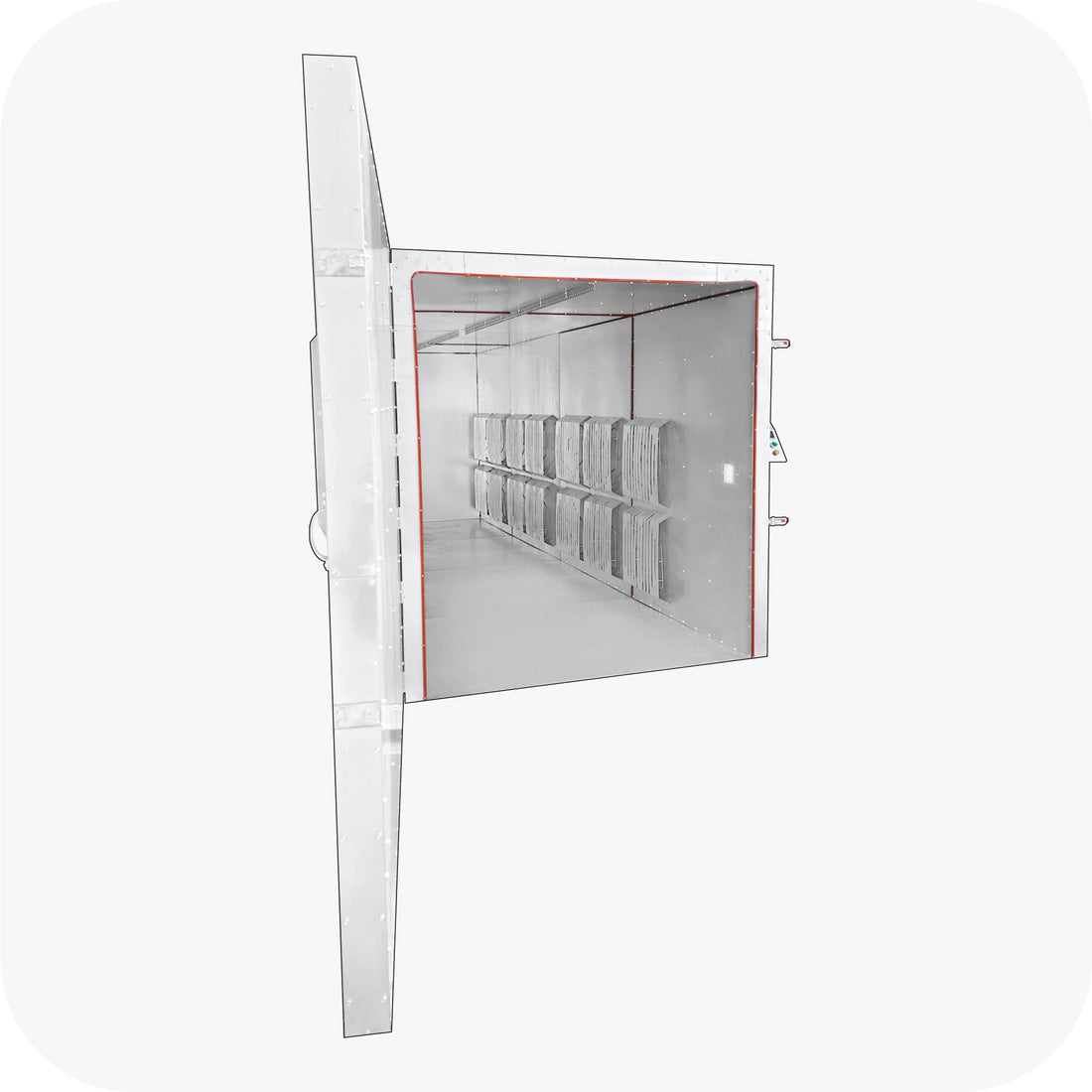

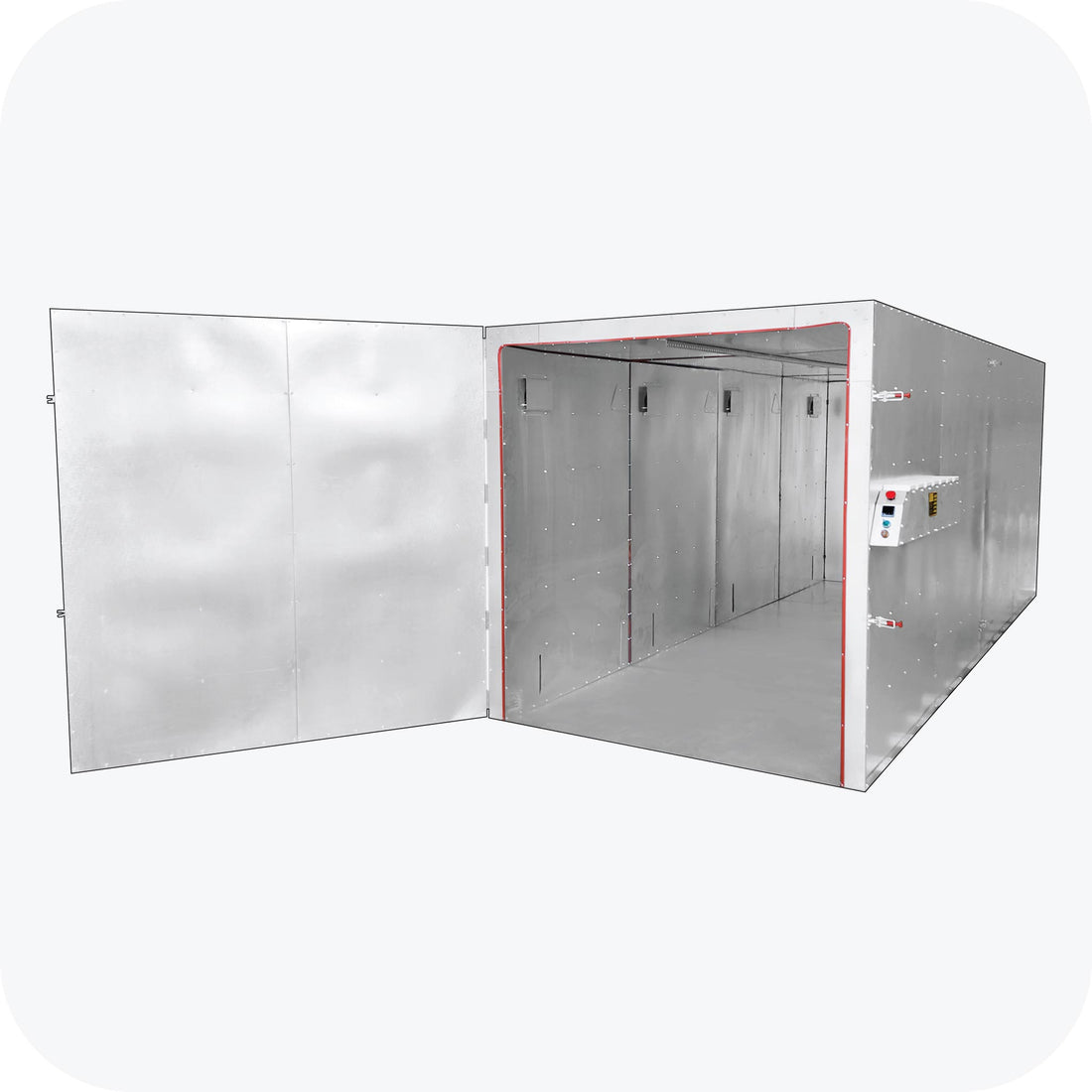

The LABS-4166 powder coating oven delivers a full sixteen feet of curing length in a lean 4' x 16' x 6' chamber, so you can finish extra-long railings, poles, and fabrications without surrendering half your shop to a wide cabinet. Designed in the USA and assembled in our Morrisonville, Illinois shop from U.S. and imported parts, with G90 galvanized steel that resists rust, it accepts rolling carts across a flat floor and maintains the held, even heat that a durable Cerakote or powder coat cure depends on.
Long-Part Curing That Fits Your Floor
The narrower four-foot width heats efficiently and tucks against a wall, yet the sixteen-foot run means the longest parts cure end to end. Choose batch loading or a continuous flow and trust the finish every cycle.
- ✓ Sixteen feet in a 4' width — maximum length for long parts without a sprawling footprint
- ✓ G90 galvanized steel — rust-resistant, Illinois-built construction built to endure
- ✓ Flat floor for carts — roll loaded carts directly in and out with ease
- ✓ Built to your preferences — add a blower fan, oven light, or select your oven color
OVERSIZED ITEM - REQUIRES FORKLIFT AT PLACE OF DELIVERY, UNLESS PICKING UP AT OUR WAREHOUSE. FOR FREIGHT RATE, PLEASE EMAIL US
