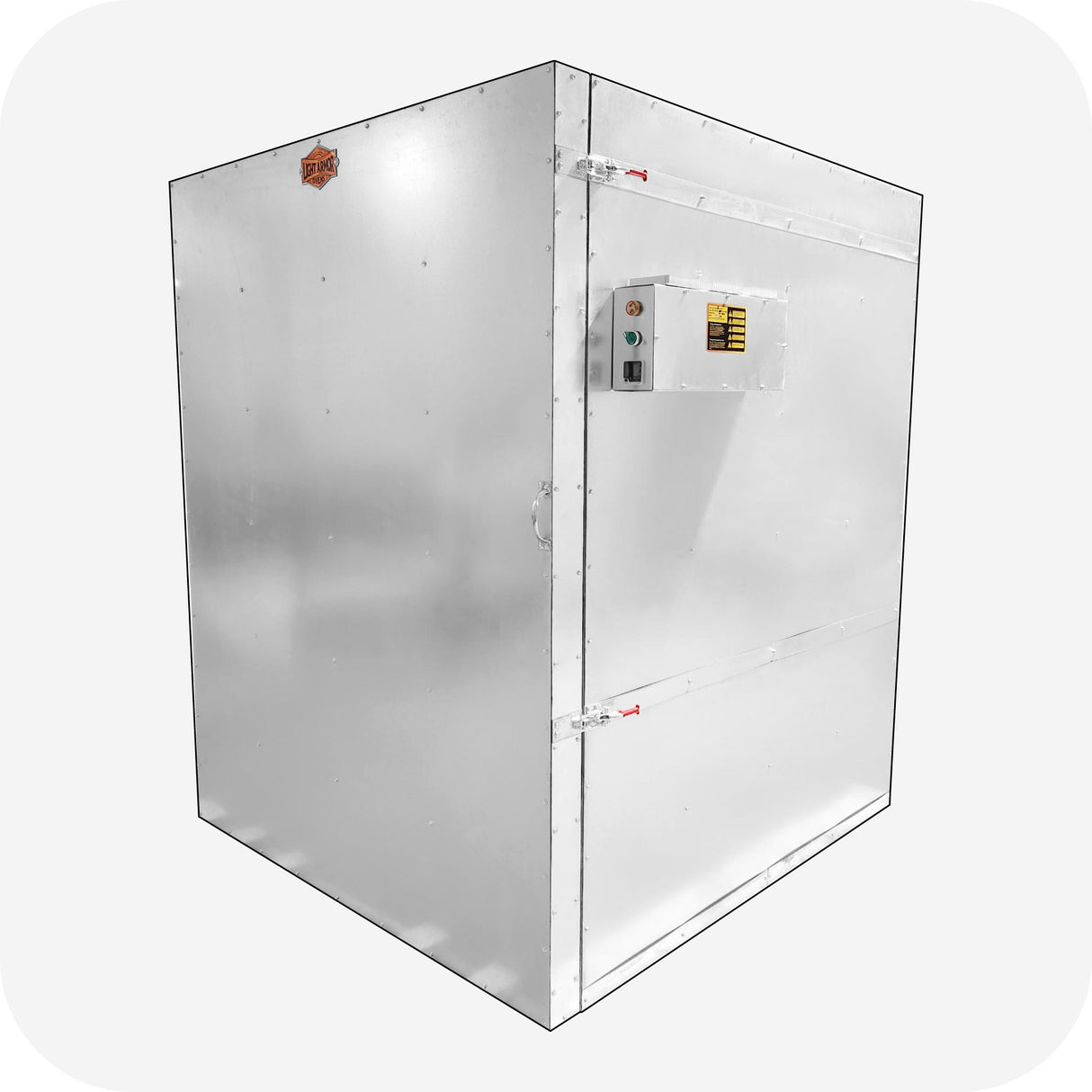

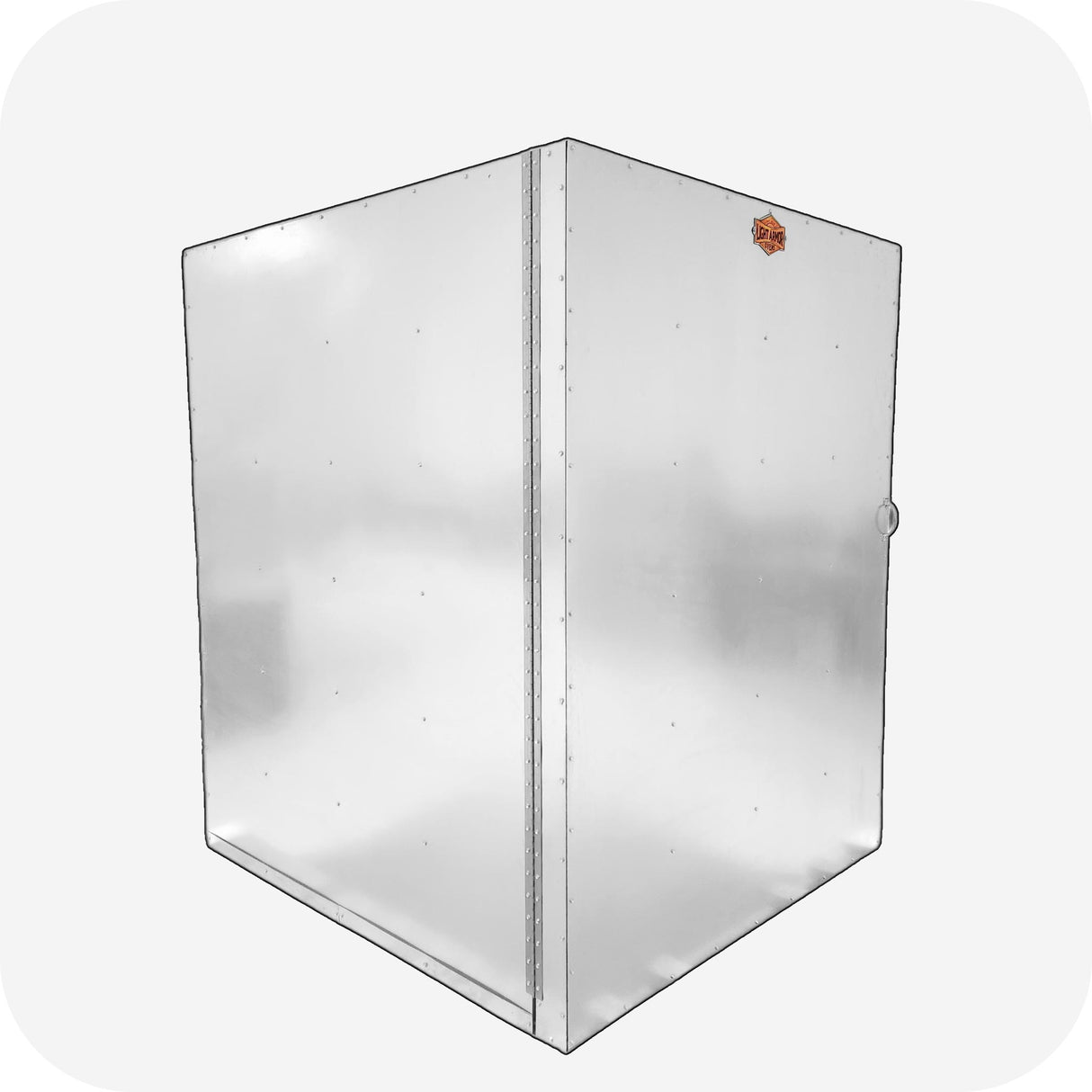

LA15K Powder Coating Oven (5' x 5' x 5')
LA15K Powder Coating Oven (5' x 5' x 5') is backordered and will ship as soon as it is back in stock.
Shipping, Tracking and Delivery
Shipping, Tracking and Delivery
Once your order is picked up by freight, we email you tracking information so that you can follow your shipment in transit. Freight carriers will have your name and number in case they need to contact you ahead of delivering. All freight that's shipped out is covered by insurance; in the case that your shipment is damaged, we will file an insurance claim on your behalf. Please note these claims can take anywhere between 1-2 months to fully process.
Description
Description
— Approved Applications
Trusted For Every Finish
Customers rely on our products across the full range of protective and performance coatings.
— LA15K · Technical Specifications
Everything You Need To Know
Max Temperature
500°F
Inside Working Space
53×54×60″
Shipping Weight
~525 lb

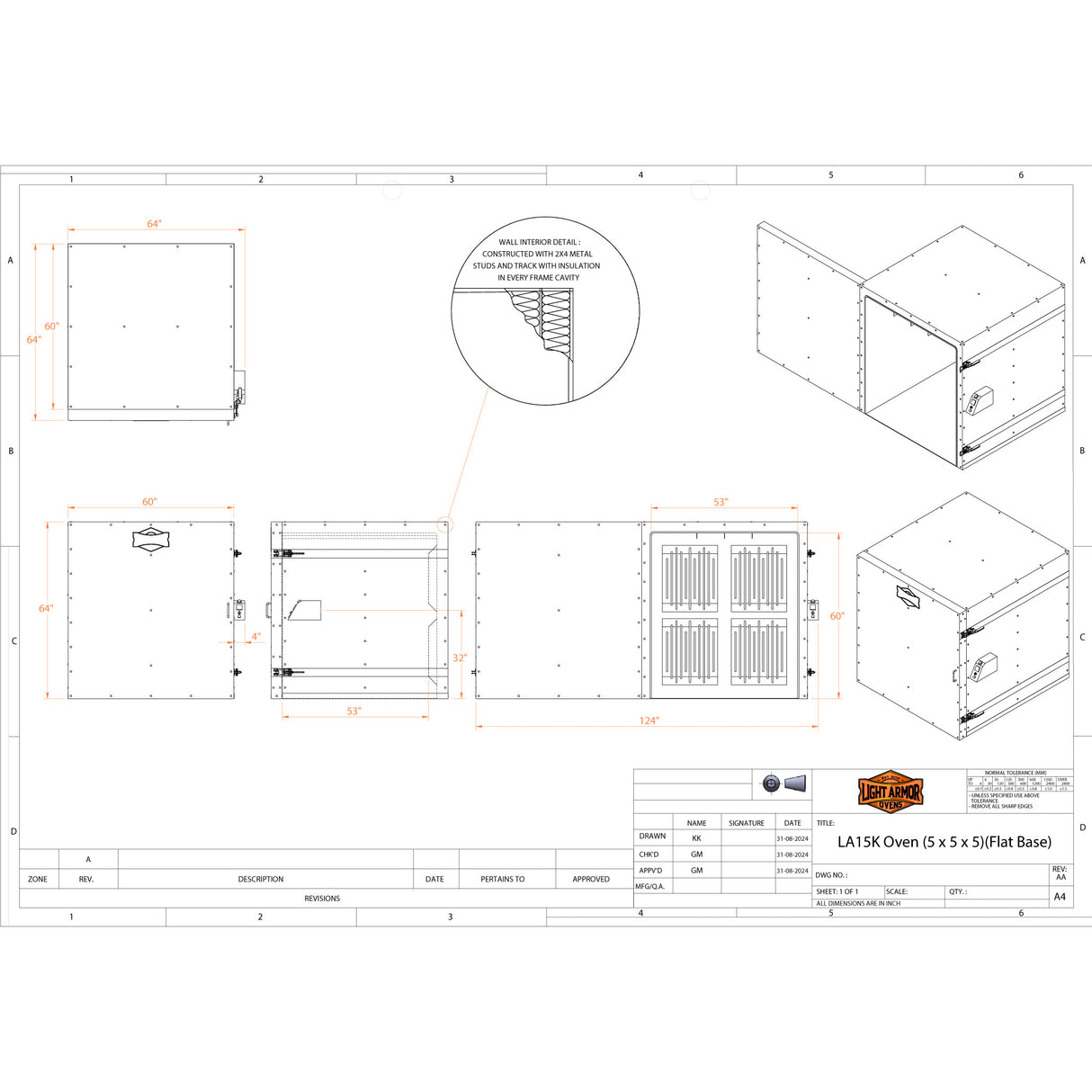

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 53″ W × 54″ D × 60″ T (Nominal) |
| Outside Footprint | 64″ W × 64″ D × 64″ T (Nominal) |
| Shipment Size | 6′ W × 6′ D × 6′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 56A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 60A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 2 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
— Square Footage That Works Harder
The LA15K Powder Coating Oven — A True 5′ Cube of Curing Power

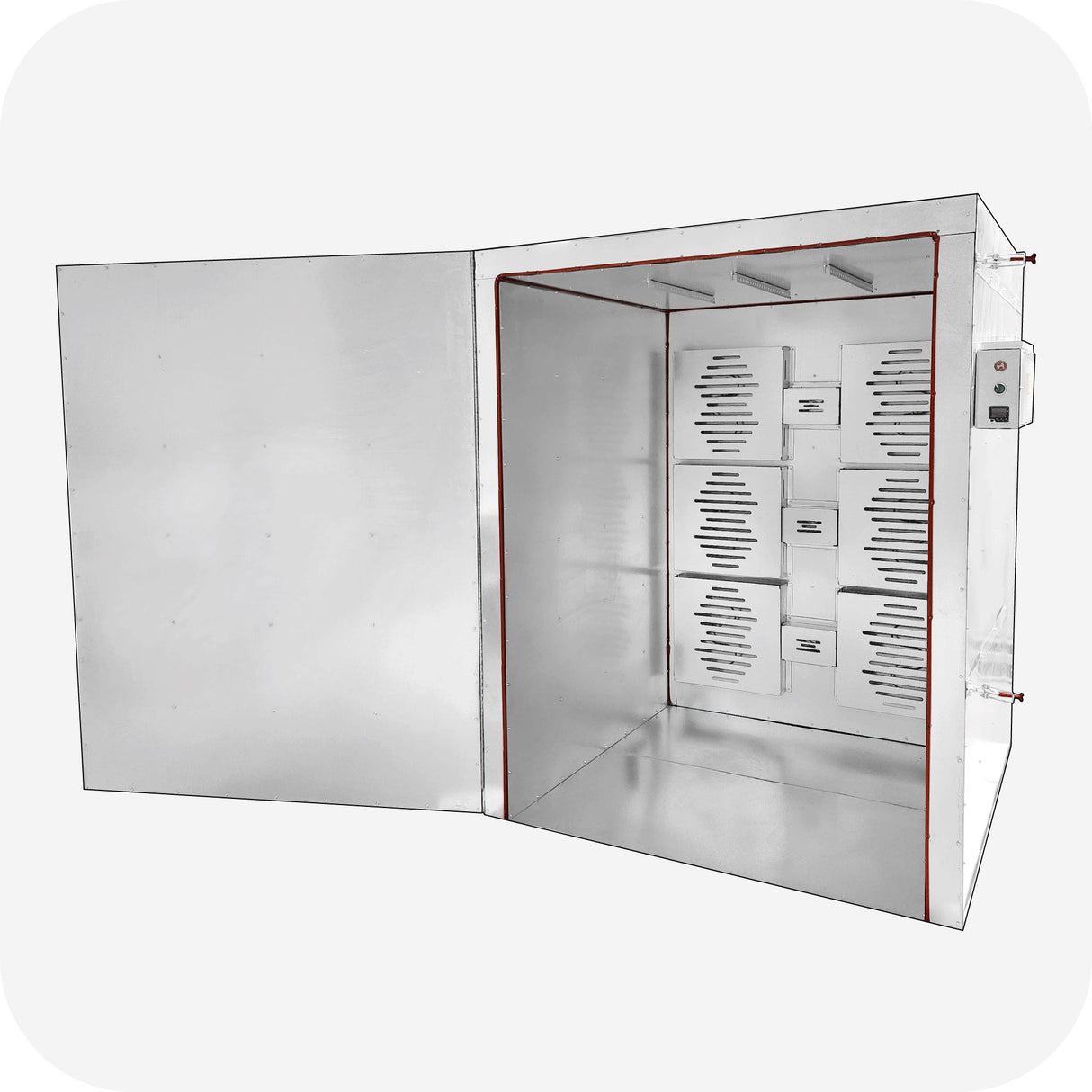

The LA15K hands you a generous 5′ x 5′ x 5′ cube of usable curing space, so bulky brackets, wheels, frames, and awkward assemblies fit without a fight. Made in the USA from G90 galvanized steel for lasting rust resistance, this curing oven brings a part up to temperature and holds that heat long enough to trigger the chemical reaction a flawless powder coating or Cerakote finish needs.
Room to Grow, Configured to Fit
This is a customizable oven, so you spec it for the work you actually do. Add a blower fan for more even airflow, an interior oven light to check parts at a glance, and choose an exterior color that suits your shop. Because the cube shape gives you equal reach in every direction, you can run tight batch loads or a steady continuous process — whichever your part mix calls for.
- ✓ Spacious 5′ cube — equal width, depth, and height make room for bulky and irregular parts
- ✓ US-made durability — G90 galvanized construction resists rust for a long, dependable service life
- ✓ Your configuration — blower fan, oven light, and custom oven color options available
- ✓ Even, repeatable heat — maintains cure temperature then cools parts for consistent finishes
OVERSIZED ITEM - REQUIRES FORKLIFT OR LOADING DOCK AT PLACE OF DELIVERY, UNLESS PICKING UP FROM FREIGHT TERMINAL OR OUR WAREHOUSE
