Shows the options you pick. Drag to spin, scroll or pinch to zoom.
Ships LTL freight, calculated at checkout from your address — or free pickup at our warehouse in Central Illinois.
Freight isn't in this price: it's calculated at checkout from your address, or pick it up free in Central Illinois.
Your upgrades go into the cart with your oven.
💰 Earn up to $500 back with the Feedback Promo. How It Works

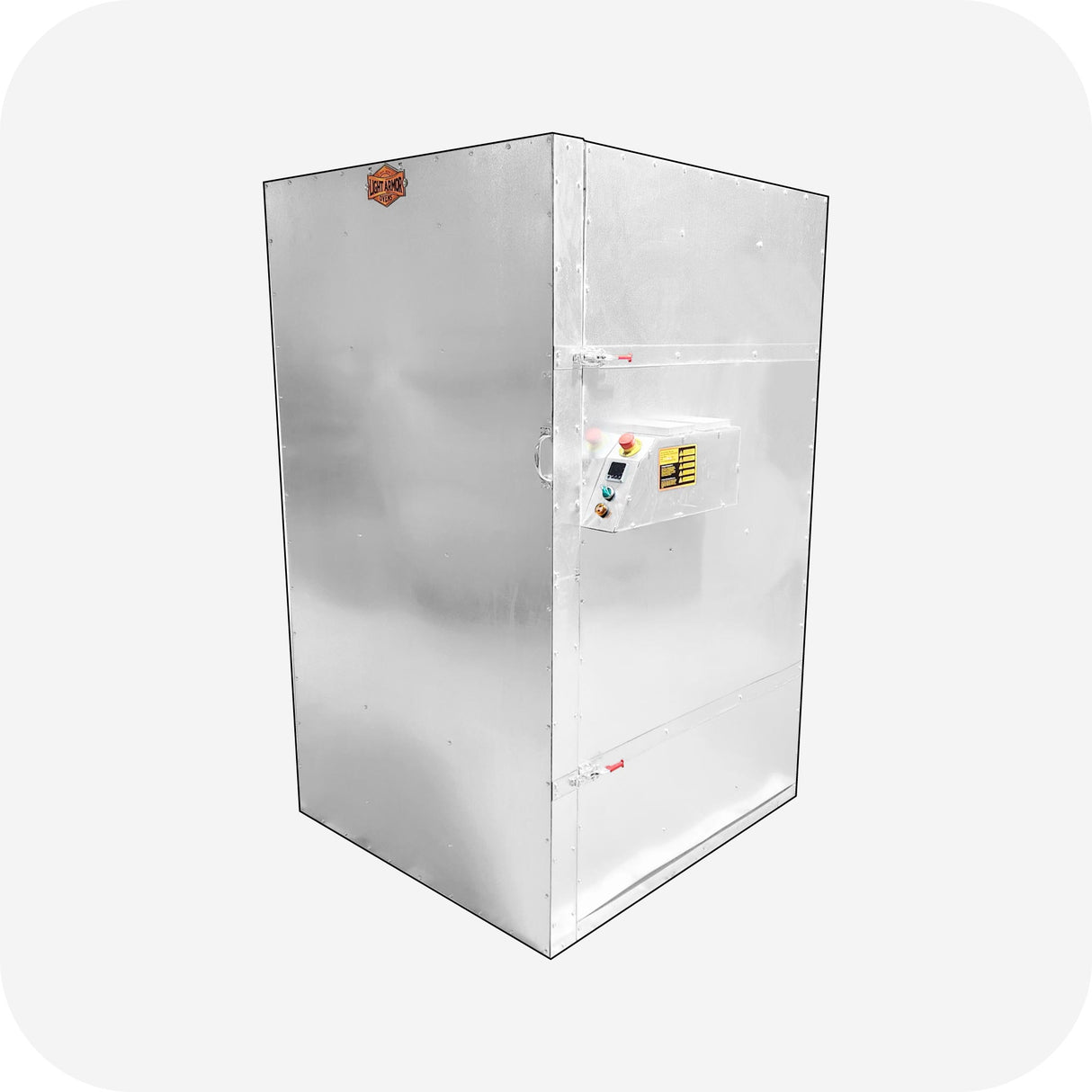

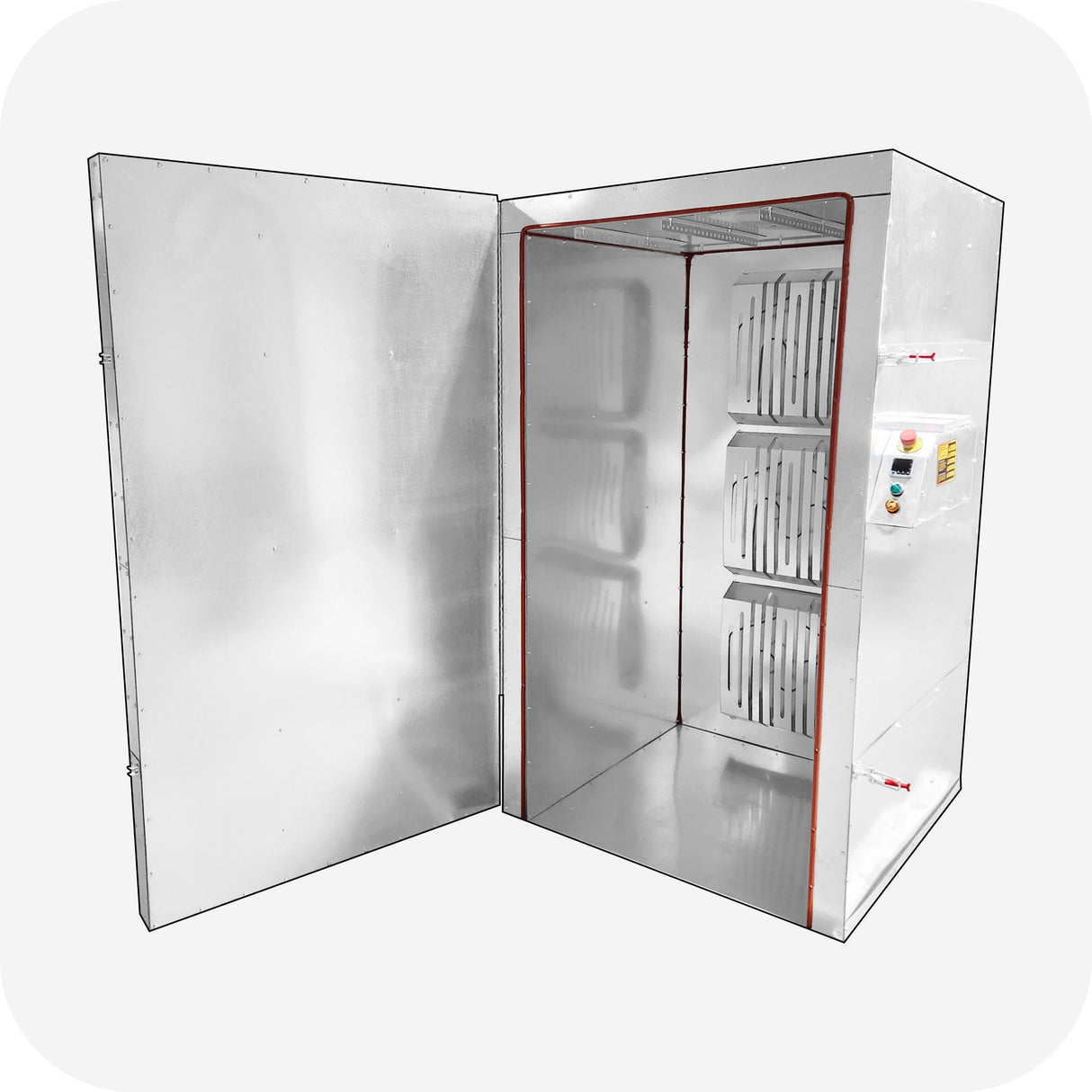

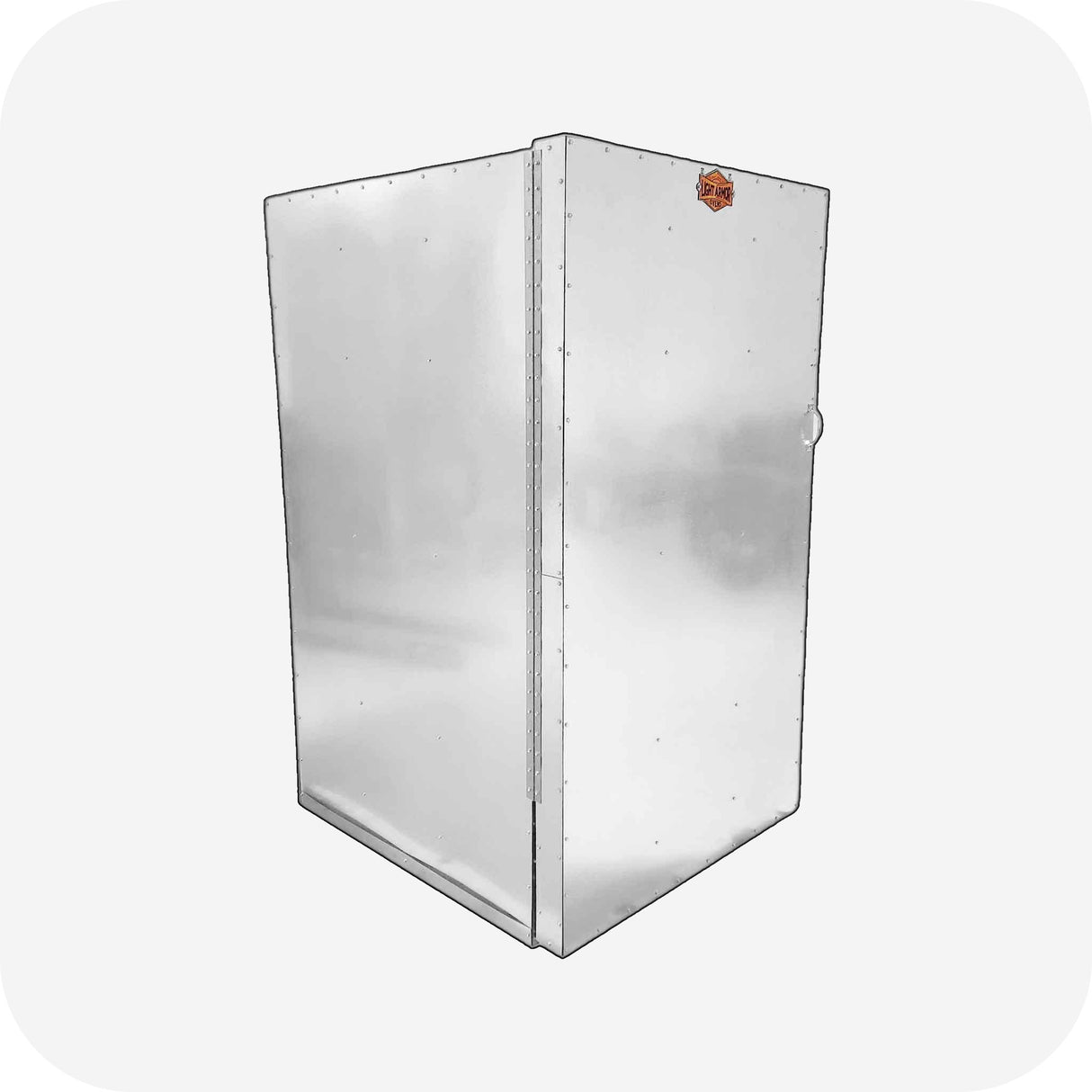

In stock and ready to ship: 3′ x 3′ x 6′ powder coat oven. 36″ x 37″ x 72″ interior, up to 500°F, 240V on a 45A breaker.
— Approved Applications
Customers rely on our products across the full range of protective and performance coatings.
— LA7500SB · Technical Specifications
Max Temperature
500°F
Inside Working Space
36×37×72″
Shipping Weight
~525 lb

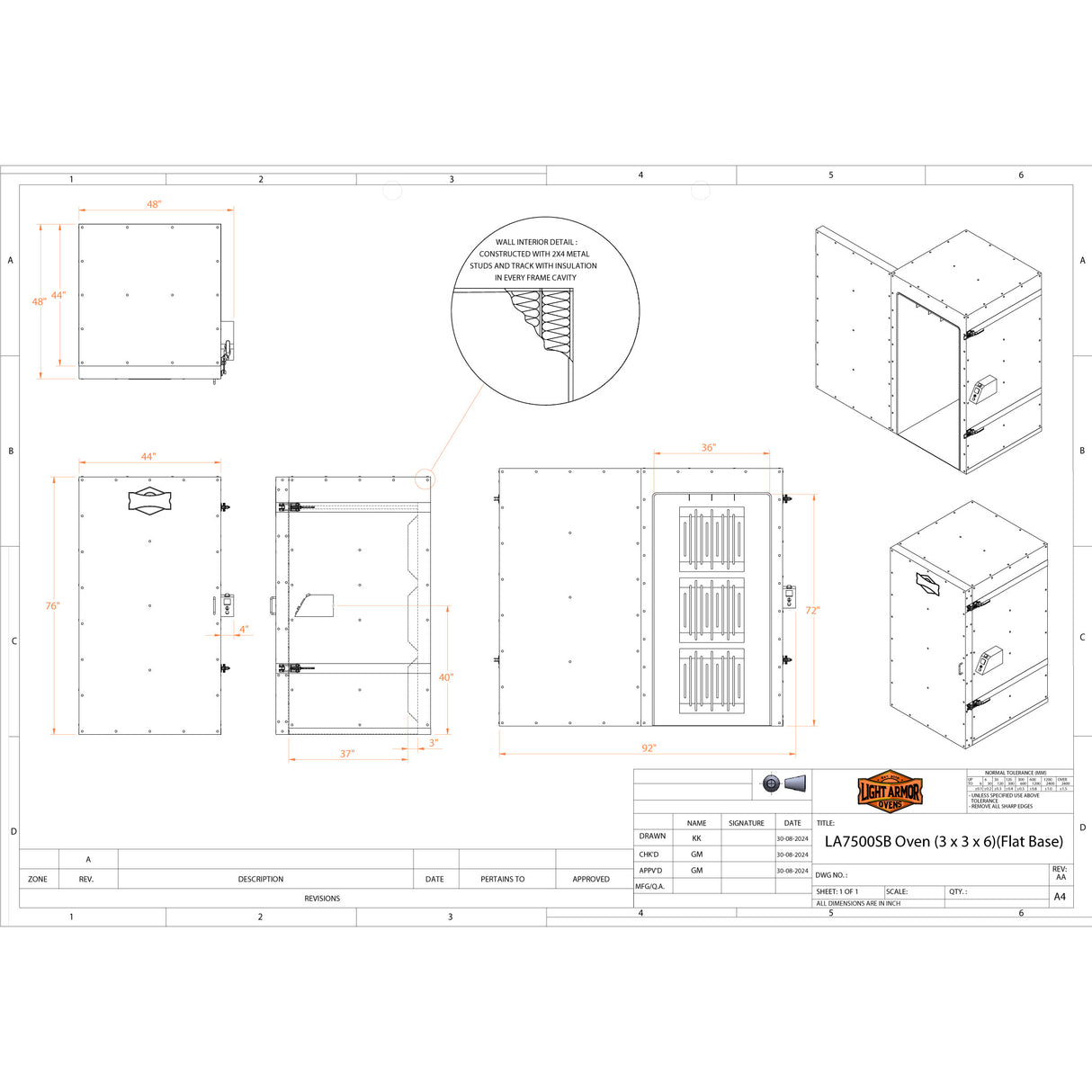

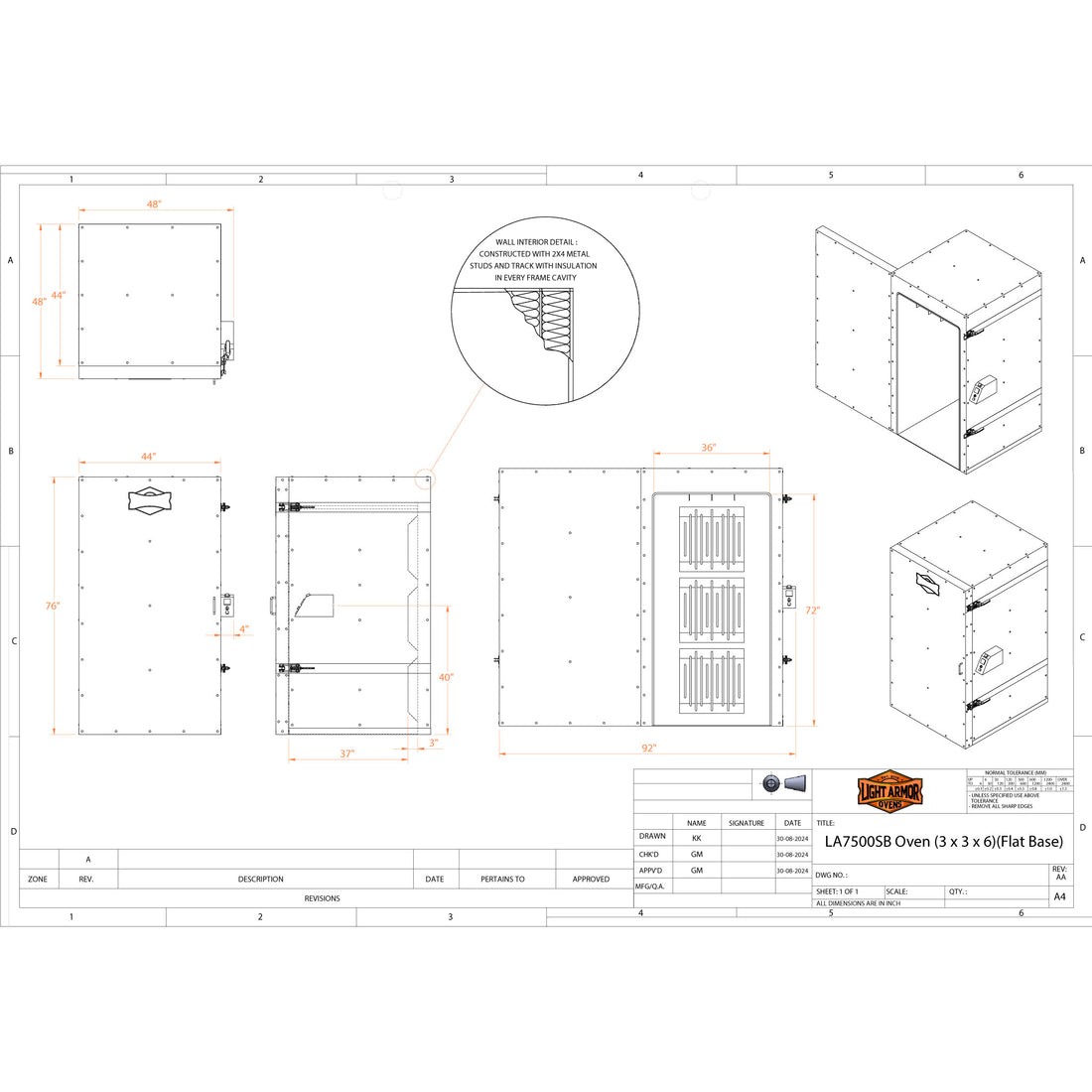

| Dimensions & Shipping | |
|---|---|
| Inside Working Dimensions | 36″ W × 37″ D × 72″ T (Nominal) |
| Outside Footprint | 48″ W × 48″ D × 76″ T (Nominal) |
| Shipment Size | 5′ W × 5′ D × 7′ T |
| Recommended Distance from Wall | 3″ |
| Power & Electrical | |
| Power Requirements | 240V / Single Phase / 42A Draw (208V 3-Ph upgrade available) |
| Breaker & Required Wires | 45A or Greater / 2-Pole / 2 Hot, 1 Neutral, 1 Ground |
| Electrical Hook-Up | Hardwire (DIY) or Plug & Play (Optional) |
| Recommended # of Blower Fans | 1 |
| Performance & Controls | |
| Temperature Range | Ambient – 500°F |
| Included PID Controller Functions | Timer & Temperature Controls |
| Included & Support | |
| Ceiling Hanging | Included |
| Warranty | 1-Year Complete Parts Warranty |
— Tall Capacity, Even Heat
With a full 6' interior height, the LA7500SB lets you hang or stand tall parts vertically inside a smart 3' x 3' x 6' footprint — a real advantage when floor space is tight but your work runs long. This stationary powder coating oven is In-Stock and Loaded, so you can put it to work almost as soon as you order.
From Cerakote and powder coating to epoxy resin, carbon fiber, polymers, rubber, and thermoplastics, this curing oven maintains even heat distribution throughout the cycle so every finished part comes out consistent. Fast cooling and true temperature uniformity keep your throughput high.
Pick an oven and a part. We'll hang a full batch on the ceiling rails or a rolling rack so you can spin it around, then add upgrades like a blower fan or window to see exactly where they go.
Insulation, warranty and lead-time options don't change how the oven looks, so they aren't shown here.
Estimates assume parts hang on wire or hooks from the ceiling rails or the bars of a rolling rack (the 8′ × 8′ ovens take a rack only) with the spacing above. The rack shown is a generic one sized to the oven. Part weight isn't checked, so ask us before loading heavy parts. Prices are current base and upgrade prices; freight is quoted at checkout.
Gordon was great getting us at SideFX info and helping us with the ordering process with great recommendations. We glady support and appreciate a True USA made product and great customer service. These products are the best om the market! Don't sleep on light armor ovens!
We just purchased the 3x3x6 oven and are impressed so far. The oven showed up much faster than expected, which helped us stay on schedule getting our shop set up!
One thing we really appreciated was that it came with the correct plug and receptacle needed for wiring which made the install simple and saved us extra time and hassle trying to source parts ourselves or run gas.
The size is perfect for most of the accessories and smaller parts we coat on a daily basis. It heats evenly, gets up to temp quickly, and feels very well built for the price point. For anyone looking for a quality oven without taking up a massive amount of shop space, this setup is hard to beat.
Overall, very happy with the purchase and would definitely recommend Light Armor to anyone getting into powder coating or adding another oven to their shop.
My 7500SB came in with great timing! Once I had an electrician come and wire up the shop the rest was a breeze! The oven has a spacious interior with great hanging racks! The controller is easy and quick to operate for fast production time as well as fast heat up times for efficiency in the shop! Was very happy with the purchase and cant wait to order a Light Armor booth to supplement the oven. Having both should make work quick and flawless with this great equipment!
Great oven very well made inside is spacious great for a lot of items I would recommend this oven for anyone really looking to get one won’t be disappointed 5 stars for sure
We are so pleased with our first oven from Gordon and Light Armor Ovens that we purchased the second one from him.
Our ovens are used hard 6 days a week and we have had zero issues with them.
If you were looking for ovens to give you incredible service and take a pounding day in and day out give Gordon a call.
The oven is very well built, comes up to temp very, very quickly and is extremely well insulated There was damage to the fan motor during shipping and it was replaced in a couple of days with no arguments, or extra costs. Overall this is one went well beyond my expectations and was a pleasurable purchasing experience.
Very pleased with the quality of my oven . Guys were great to deal with , I absolutely appreciate the recommendation to add the blower system ! So glad I took their recommendation. Light armor guys really do care about their customers and believe in the ovens they sell !!! Thank you !!
We needed to add capacity to our wheel repair powder coating business and found Light Armor Ovens. After many phone calls with Gordon, we decided to give it a try. We have had the oven a few weeks now and it has been a tremendous help and work horse. Our ovens run 10 to 12 to 14 hours per day. From the nice big door to the easy programmable controls and quick cycle times, we are very happy with our new oven. Exceptional customer service from start to finish with a very good product at an exceptional price. You won't go wrong buying a Light Armor Oven.
